XZU302-TPMQS (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)RZU300..SCB..CBU ; (9905-0406)BU30#,RZU340,XZU300,301,302,306,307,33#,36

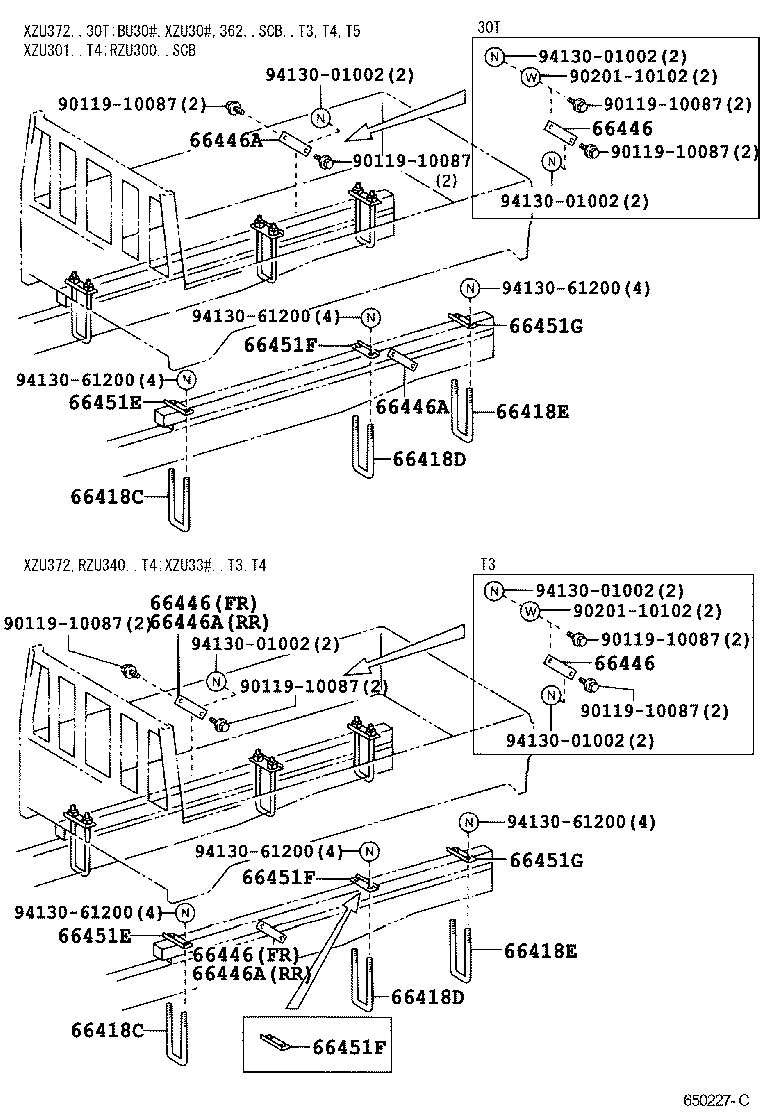

Click highlighted areas on diagram

diagram 66418C 66418C 66418D 66418D 66418E 66418E 66446 66446 66446 66446 66446A 66446A 66446A 66446A 66451E 66451E 66451F 66451F 66451F 66451G 66451G 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9020110102 9020110102 9413001002 9413001002 9413001002 9413001002 9413001002 9413001002 9413061200 9413061200 9413061200 9413061200 9413061200 9413061200
Part # Description Qty Price
66418C - BOLT, U, FRONT
90117-12040

XZU301,302..T5..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU

長さ=355

 2
66418C - BOLT, U, FRONT
90117-12040

XZU301,302..T5..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU

長さ=355

 2
66418D - BOLT, U, CENTER
90117-12040

XZU372..T3..20T..CBU;BU30#,BZU300,RZU300,XZU300,301,302,306,307..(T3,T5)..CBU

長さ=355

 2
66418D - BOLT, U, CENTER
90117-12040

XZU372..T3..20T..CBU;BU30#,BZU300,RZU300,XZU300,301,302,306,307..(T3,T5)..CBU

長さ=355

 2
66418E - BOLT, U, REAR
90117-12038

XZU301,302..T5..CBU;XZU372..T3..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU

長さ=320

 2
66418E - BOLT, U, REAR
90117-12038

XZU301,302..T5..CBU;XZU372..T3..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU

長さ=320

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

XZU302..ST..CBU;XZU301,341..T3..LPG;BU306,RZU300,XZU307..DCB..CBU;BZU300,340,XZU302,342..T4..CNG;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,BZU300,340,RZU300,XZU300,340,341,342,346,347..(T3,T5)..CBU

 2
66447-92803

XZU302..ST..CBU;BU306,RZU300,XZU307..DCB..CBU;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,RZU300,XZU300,34#..(T3,T5)..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

XZU302..ST..CBU;XZU301,341..T3..LPG;BU306,RZU300,XZU307..DCB..CBU;BZU300,340,XZU302,342..T4..CNG;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,BZU300,340,RZU300,XZU300,340,341,342,346,347..(T3,T5)..CBU

 2
66447-92803

XZU302..ST..CBU;BU306,RZU300,XZU307..DCB..CBU;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,RZU300,XZU300,34#..(T3,T5)..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

XZU302..ST..CBU;XZU301,341..T3..LPG;BU306,RZU300,XZU307..DCB..CBU;BZU300,340,XZU302,342..T4..CNG;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,BZU300,340,RZU300,XZU300,340,341,342,346,347..(T3,T5)..CBU

 2
66447-92803

XZU302..ST..CBU;BU306,RZU300,XZU307..DCB..CBU;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,RZU300,XZU300,34#..(T3,T5)..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

XZU302..ST..CBU;XZU301,341..T3..LPG;BU306,RZU300,XZU307..DCB..CBU;BZU300,340,XZU302,342..T4..CNG;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,BZU300,340,RZU300,XZU300,340,341,342,346,347..(T3,T5)..CBU

 2
66447-92803

XZU302..ST..CBU;BU306,RZU300,XZU307..DCB..CBU;XZU301,302..(T3,T5)..(295T,30T)..CBU;BU301,346,RZU300,XZU300,34#..(T3,T5)..CBU

 2
66451E - PLATE, U BOLT, FRONT
66451-37030

XZU301..T4..LPG;RZU300..SCB..CBU;BZU300,340..T4..CNG;BU306,XZU307,372..SCB..(T3,T4,T5)..CBU;BU301,346,BZU300,340,RZU301,340,XZU300,301,302,306,33#,340,341,342,346,347,362,382..(T3,T4,T5)..CBU

 2
66451E - PLATE, U BOLT, FRONT
66451-37030

XZU301..T4..LPG;RZU300..SCB..CBU;BZU300,340..T4..CNG;BU306,XZU307,372..SCB..(T3,T4,T5)..CBU;BU301,346,BZU300,340,RZU301,340,XZU300,301,302,306,33#,340,341,342,346,347,362,382..(T3,T4,T5)..CBU

 2
66451G - PLATE, U BOLT, REAR
66451-37030

XZU301..T4..LPG;BZU300,340..T4..CNG;BU306,346,XZU307,337,347..(T3,T4,T5)..CBU;BU301,BZU300,340,RZU30#,340,XZU300,301,302,306,330,331,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU

 2
66451G - PLATE, U BOLT, REAR
66451-37030

XZU301..T4..LPG;BZU300,340..T4..CNG;BU306,346,XZU307,337,347..(T3,T4,T5)..CBU;BU301,BZU300,340,RZU30#,340,XZU300,301,302,306,330,331,340,341,342,346,362,372,382..(T2,T3,T4,T5)..CBU

 2
Common parts
90119-10087
90201-10102
94130-01002
94130-61200
