XZU302-TPMQS (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)XZU341,352..4FC,5F..20T,295T..DSL ; (9905-0406)BZU300,340,XZU300,301,302

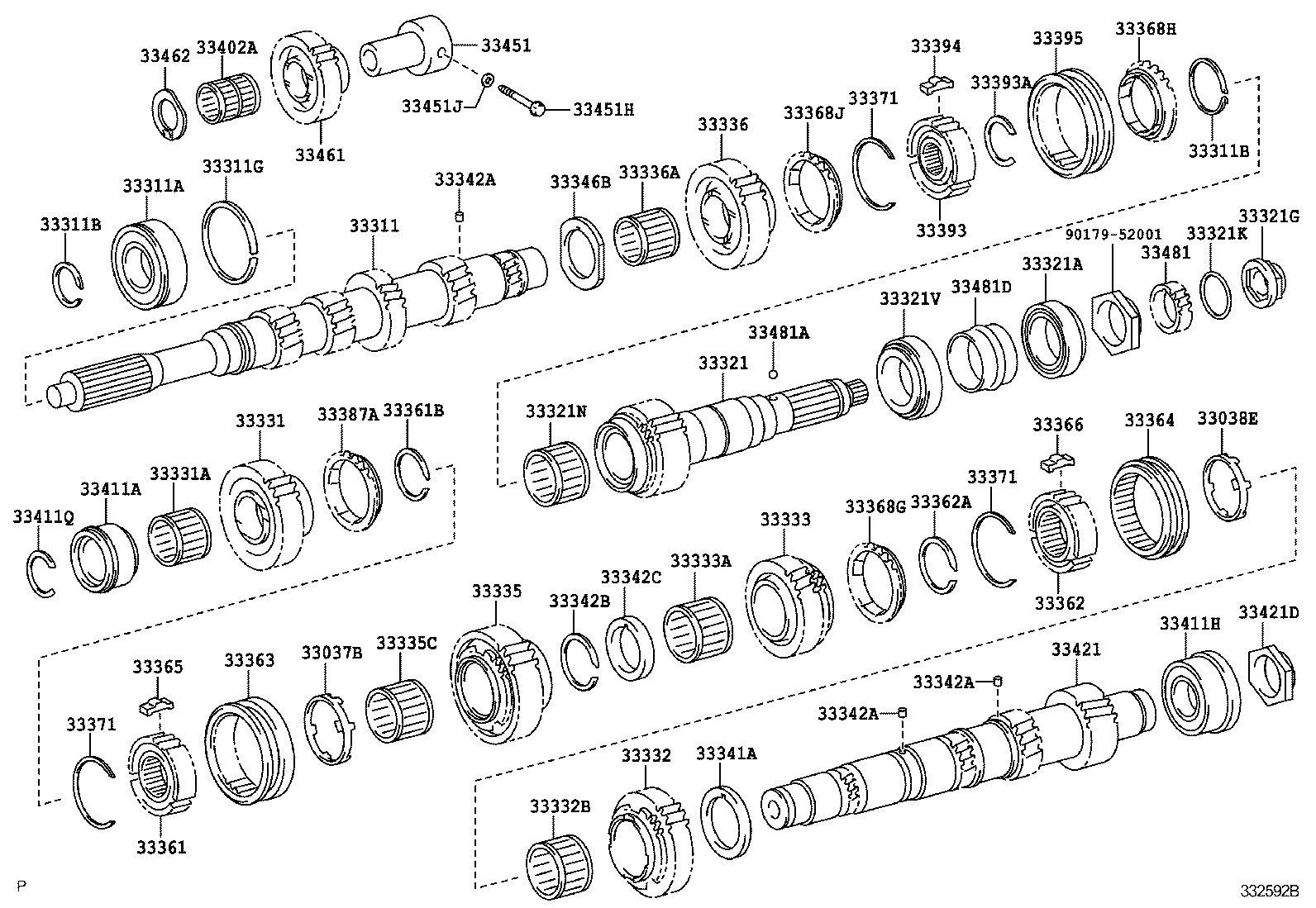

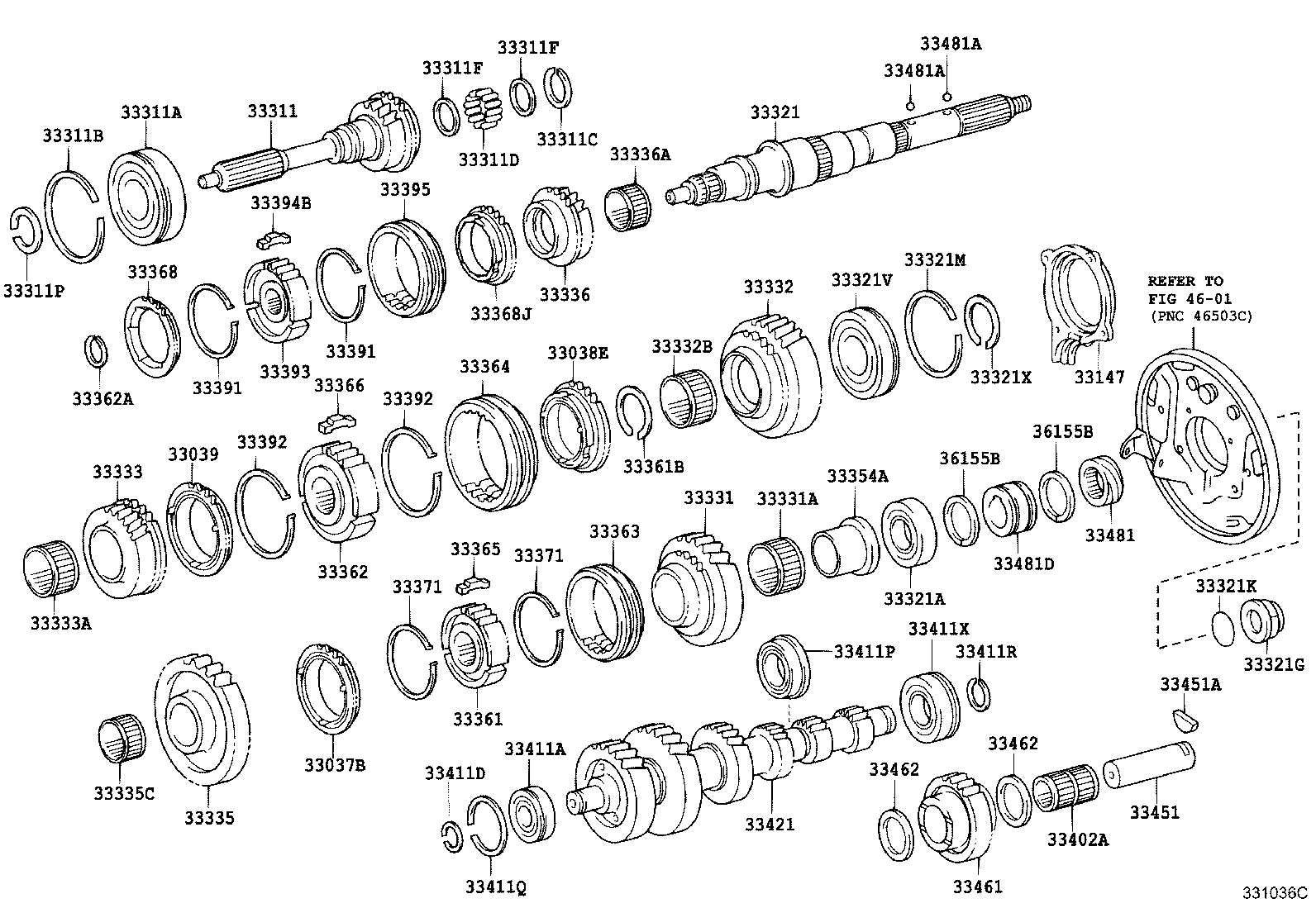

Click highlighted areas on diagram

H350,H351

diagram 33037B 33038E 33039 33147 33311 33311A 33311B 33311C 33311D 33311F 33311F 33311P 33321 33321A 33321G 33321K 33321M 33321V 33321X 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33354A 33361 33361B 33362 33362A 33363 33364 33365 33366 33368 33368J 33371 33371 33391 33391 33392 33392 33393 33394B 33395 33402A 33411A 33411D 33411P 33411Q 33411R 33411X 33421 33451 33451A 33461 33462 33462 33481 33481A 33481A 33481D 36155B 36155B 4601
Part # Description Qty Price
33037B - RING SET, SYNCHRONIZER, NO.1
33037-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33037-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33037-37021

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33037-37022

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33037-37022

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33038-37011

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33038-37011

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33038-37012

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33038-37012

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33147 - RETAINER, BEARING, CENTER
33147-37011

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33147-37011

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37200

XZU302..DM3,T3;XZU301..5F..IV4;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL)

 1
33301-37200

XZU302..DM3,T3;XZU301..5F..IV4;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL)

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90363-50007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.36−2.46

 1
90520-99010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.36−2.46

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
96151-04500

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
96151-04500

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
33311D - BEARING, INPUT SHAFT
90361-09002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 12
90361-09002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 12
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
90520-45004

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ B

 1
90520-45004

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ B

 1
90520-45003

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ A

 1
90520-45003

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ A

 1
90520-45006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ D

 1
90520-45006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ D

 1
90520-45008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.75−2.80,ﾏｰｸ F

 1
90520-45008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.75−2.80,ﾏｰｸ F

 1
90520-45005

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ C

 1
90520-45005

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ C

 1
90520-45007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ E

 1
90520-45007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ E

 1
33321 - SHAFT, OUTPUT
33321-37060

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321-37060

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90363-38007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
90179-24008

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
90301-31003

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
90301-31003

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33321M - RING, SHAFT SNAP (FOR BEARING)
90520-99009

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

内径=106.1,外径=115.64

 1
90520-99009

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

内径=106.1,外径=115.64

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-45019

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90363-45019

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
90520-41006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-41006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-41008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-41008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-41009

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-41009

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-41007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-41007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-41012

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70,ﾏｰｸ G

 1
90520-41012

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70,ﾏｰｸ G

 1
90520-41011

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65,ﾏｰｸ F

 1
90520-41011

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65,ﾏｰｸ F

 1
90520-41010

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60,ﾏｰｸ E

 1
90520-41010

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60,ﾏｰｸ E

 1
90520-41013

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.75,ﾏｰｸ H

 1
90520-41013

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.75,ﾏｰｸ H

 1
33331 - GEAR, REVERSE
33331-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33331-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90364-47008

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332 - GEAR, 2ND
33033-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33033-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90364-50003

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33034-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90364-58007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335 - GEAR, 1ST
33335-37080

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335-37080

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-44004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90364-44004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33036-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
90364-38020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90364-38020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33354A - RACE, REVERSE GEAR BEARING, INNER
33354-37010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33354-37010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
90520-46007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.05−3.10,ﾏｰｸ D

 1
90520-46007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.05−3.10,ﾏｰｸ D

 1
90520-46005

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.95−3.00,ﾏｰｸ B

 1
90520-46005

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.95−3.00,ﾏｰｸ B

 1
90520-46008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.10−3.15,ﾏｰｸ E

 1
90520-46008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.10−3.15,ﾏｰｸ E

 1
90520-46009

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.15−3.20,ﾏｰｸ F

 1
90520-46009

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.15−3.20,ﾏｰｸ F

 1
90520-46006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.00−3.05,ﾏｰｸ C

 1
90520-46006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.00−3.05,ﾏｰｸ C

 1
90520-46004

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.90−2.95,ﾏｰｸ A

 1
90520-46004

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.90−2.95,ﾏｰｸ A

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28059

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
90520-28059

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33363-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33364-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33364-37031

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33364-37031

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33365-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33365-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33368 - RING, SYNCHRONIZER, NO.2
33368-60021

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60021

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368J - RING, SYNCHRONIZER (FOR 5TH GEAR)
33368-60042

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60042

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33393-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33394B - KEY, SYNCHROMESH SHIFTING, NO.3
33394-37010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33394-37010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33395-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR)
90364-28010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90364-28010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90365-30030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90520-27054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ B

 1
90520-27054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ B

 1
90520-27056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ D

 1
90520-27056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ D

 1
90520-27057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ E

 1
90520-27057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ E

 1
90520-27053

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ A

 1
90520-27053

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ A

 1
90520-27055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ C

 1
90520-27055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ C

 1
90520-27058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ F

 1
90520-27058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ F

 1
33411P - BEARING, COUNTER SHAFT CENTER
90365-36004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90365-36004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-63001

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.60−1.70

 1
90520-63001

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.60−1.70

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-29034

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-29034

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-29033

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29033

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29035

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29035

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29032

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29032

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29038

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29038

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29036

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29036

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29037

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ F

 1
90520-29037

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ F

 1
33411X - BEARING, RADIAL BALL
90363-32038

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
90363-32038

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37120

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33421-37120

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33451-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
90280-03002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
90280-03002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
33461 - GEAR, REVERSE IDLER
33461-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33461-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

BU346..T2..CBU;XZU301..DM3..5F;XZU321..5F..1NO;BU346..(T2,T4)..IV3;XZU301,331..5F..IV4;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);RZU300,XZU321..(DM8,T2,T4)..20T;RZU300,XZU302,312..SCB..(DM3,DM5,T3)..5F;BU30#,RZU301,340,XZU311,320..(03S,06S,DM5,DM6,DM7,T2,T4)..5F

歯数=6,ﾏｰｸ 6X23−25

 1
33481-36160

BU346..T2..CBU;XZU301..DM3..5F;XZU321..5F..1NO;BU346..(T2,T4)..IV3;XZU301,331..5F..IV4;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);RZU300,XZU321..(DM8,T2,T4)..20T;RZU300,XZU302,312..SCB..(DM3,DM5,T3)..5F;BU30#,RZU301,340,XZU311,320..(03S,06S,DM5,DM6,DM7,T2,T4)..5F

歯数=6,ﾏｰｸ 6X23−25

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU306..5F..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(295T,30T)..DSL..(CBU,IV3)..4NO;XZU301,351,352..(DM2,DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347..5F..(20T,30T)..(CNG,DSL,LPG)

 2
90360-06004

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU306..5F..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(295T,30T)..DSL..(CBU,IV3)..4NO;XZU301,351,352..(DM2,DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347..5F..(20T,30T)..(CNG,DSL,LPG)

 2
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU306..5F..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(295T,30T)..DSL..(CBU,IV3)..4NO;XZU301,351,352..(DM2,DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347..5F..(20T,30T)..(CNG,DSL,LPG)

 2
90360-06004

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU306..5F..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(295T,30T)..DSL..(CBU,IV3)..4NO;XZU301,351,352..(DM2,DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347..5F..(20T,30T)..(CNG,DSL,LPG)

 2
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33487-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
36155B - RING, TRANSFER OIL SEAL
36155-36020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
36155-36020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
36155B - RING, TRANSFER OIL SEAL
36155-36020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
36155-36020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
Linked diagrams
4601

(9905-0406)BU30#,346,XZU302,307,337..5F..DSL

Click highlighted areas on diagram

M153,M155

diagram 33038E 33039 33311 33311A 33311B 33311C 33311D 33311F 33311F 33311G 33321 33321A 33321B 33321G 33321K 33323A 33323A 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33336B 33338C 33342A 33342B 33342C 33354A 33361 33362 33362A 33363 33364 33365 33366 33367 33369 33369 33371 33371 33391 33391 33392 33392 33393 33393A 33394 33395 33402 33411A 33411H 33411R 33421 33451 33451A 33461A 33462 33464 33481 33481D 4601
Part # Description Qty Price
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33037-37022

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33038-37011

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33038-37012

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37200

XZU302..DM3,T3;XZU301..5F..IV4;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL)

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.36−2.46

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
96151-04500

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
33311D - BEARING, INPUT SHAFT
90361-09002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 12
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 2
33321 - SHAFT, OUTPUT
33321-37060

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
90301-31003

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33331 - GEAR, REVERSE
33331-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332 - GEAR, 2ND
33033-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335 - GEAR, 1ST
33335-37080

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-44004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
90364-38020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33354A - RACE, REVERSE GEAR BEARING, INNER
33354-37010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28059

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33364-37031

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-29034

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-29033

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29035

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29032

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29038

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29036

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29037

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.65−2.70,ﾏｰｸ F

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37120

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
90280-03002

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T)

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

BU346..T2..CBU;XZU301..DM3..5F;XZU321..5F..1NO;BU346..(T2,T4)..IV3;XZU301,331..5F..IV4;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);RZU300,XZU321..(DM8,T2,T4)..20T;RZU300,XZU302,312..SCB..(DM3,DM5,T3)..5F;BU30#,RZU301,340,XZU311,320..(03S,06S,DM5,DM6,DM7,T2,T4)..5F

歯数=6,ﾏｰｸ 6X23−25

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
Linked diagrams
4601

(0310-0406)XZU304,305,344 ; (0406- )XZU304,334..5F..DCRL,DSLL ; (0406- )XZU30

Click highlighted areas on diagram

M550

diagram 33037B 33038E 33311 33311A 33311B 33311B 33311G 33321 33321A 33321G 33321K 33321N 33321V 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33341A 33342A 33342A 33342A 33342B 33342C 33346B 33361 33361B 33362 33362A 33363 33364 33365 33366 33368G 33368H 33368J 33371 33371 33371 33387A 33393 33393A 33394 33395 33402A 33411A 33411H 33411Q 33421 33421D 33451 33451H 33451J 33461 33462 33481 33481A 33481D 9017952001
Part # Description Qty Price
33037B - RING SET, SYNCHRONIZER, NO.1
33037-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33037-37022

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37200

XZU302..DM3,T3;XZU301..5F..IV4;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL)

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.36−2.46

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.36−2.46

 1
33321 - SHAFT, OUTPUT
33321-37060

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
90301-31003

XZU301..CNG,LPG;XZU301..5F..IV4;XZU321,340..MTM..1NO;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,BZU300,XZU31#,320..(DM5,DM6,DM7,T1,T4,T5)..5F;RZU300,XZU300,302,330,331,341..(DM3,T2,T3,T4,T5)..MTM..(20T,295T,30T);BU306,346,BZU340,RZU301,340,XZU306,307,321,337,342,346,347,351,352..(03S,06S,DM2,DM5,DM8,T2,T3,T4,T5)..5F..20T

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-45019

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33331 - GEAR, REVERSE
33331-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332 - GEAR, 2ND
33033-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335 - GEAR, 1ST
33335-37080

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-44004

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37050

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
90364-38020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
90520-46007

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.05−3.10,ﾏｰｸ D

 1
90520-46005

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.95−3.00,ﾏｰｸ B

 1
90520-46008

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.10−3.15,ﾏｰｸ E

 1
90520-46009

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.15−3.20,ﾏｰｸ F

 1
90520-46006

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=3.00−3.05,ﾏｰｸ C

 1
90520-46004

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.90−2.95,ﾏｰｸ A

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28054

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28055

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28059

XZU302..DM3,T3;XZU301..5F..IV4;BZU300..T3..IV3;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);XZU300,306,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)

 1
33364-37031

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 3
33368J - RING, SYNCHRONIZER (FOR 5TH GEAR)
33368-60042

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR)
90364-28010

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-63001

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

厚さ=1.60−1.70

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37120

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,330,331,341,342,346,347..5F..(20T,30T);BZU300,340,XZU306,31#,351,352..(DM2,DM5,DM6,T4,T5)..5F

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33461 - GEAR, REVERSE IDLER
33461-37030

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

BU346..T2..CBU;XZU301..DM3..5F;XZU321..5F..1NO;BU346..(T2,T4)..IV3;XZU301,331..5F..IV4;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);RZU300,XZU321..(DM8,T2,T4)..20T;RZU300,XZU302,312..SCB..(DM3,DM5,T3)..5F;BU30#,RZU301,340,XZU311,320..(03S,06S,DM5,DM6,DM7,T2,T4)..5F

歯数=6,ﾏｰｸ 6X23−25

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

XZU302..DM3,T3;XZU301..5F..IV4;XZU301,302..CNG,LPG;XZU306..5F..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(295T,30T)..DSL..(CBU,IV3)..4NO;XZU301,351,352..(DM2,DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347..5F..(20T,30T)..(CNG,DSL,LPG)

 2
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T)

 1
Common parts
90179-52001
