XZU301H-TQMQC3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2003
Engine 15BLPG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005-0306)15B#

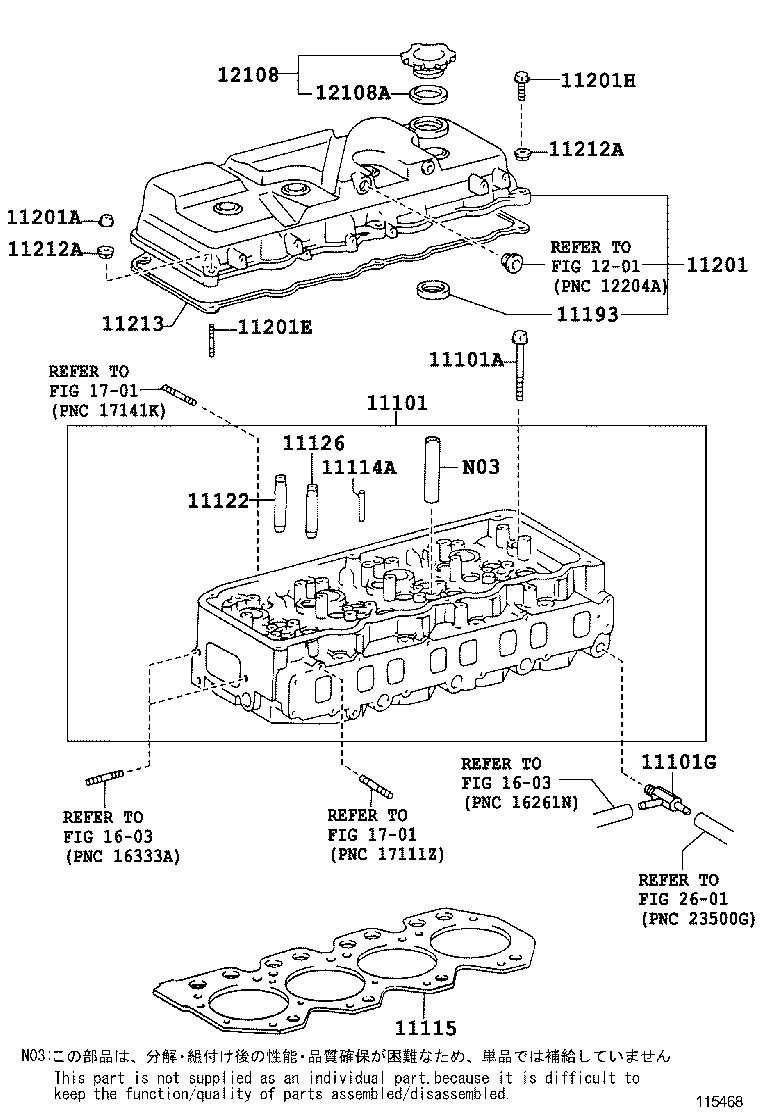

Click highlighted areas on diagram

diagram 11101 11101A 11101G 11114A 11115 11122 11126 11193 11201 11201A 11201E 11201H 11212A 11212A 11213 1201 12108 12108A 1603 1603 1701 1701 2601
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49386

15BLPG..XZU301,341

 1
11101-49387

15BLPG..XZU301,302,341,342

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

15B#..XZU301,302,341,342

 18
11101G - UNION(FOR CYLINDER HEAD)
90404-54044

15B#..XZU301,302,341,342

 1
11114A - PIN, STRAIGHT
90250-09007

15B#..XZU301,302,341,342

長さ=53.5,外径=9

 8
11115 - GASKET, CYLINDER HEAD
11115-58131

15B#..XZU301,302,341,342

厚さ=1.20

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-58020

15B#..XZU301,302,341,342

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-58020

15B#..XZU301,302,341,342

STD

 8
11193 - GASKET, SPARK PLUG TUBE
11193-15010

15B#..XZU301,302,341,342

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-48040

15B#..XZU301,302,341,342

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08040

15B#..XZU301,302,341,342

 2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
92112-60835

15B#..XZU301,302,341,342

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
91511-60835

15B#..XZU301,302,341,342

 4
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15B#..XZU301,302,341,342

 6
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

15B#..XZU301,302,341,342

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58021

15B#..XZU301,302,341,342

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

15B#..XZU301,302,341,342

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

15B#..XZU301,302,341,342

 1
Linked diagrams
1201
1603
1701
2601
