DYNA/TOYOACE
XZU301H-TKTQS (2004)
5253 - REAR BUMPER & BUMPER STAY

XZU301H-TKTQS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine S05D

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0505)BU346,BZU300,340,RZU30#,340,XZU300,301,302,33#,34#,372,378,38#..CBU..1NO

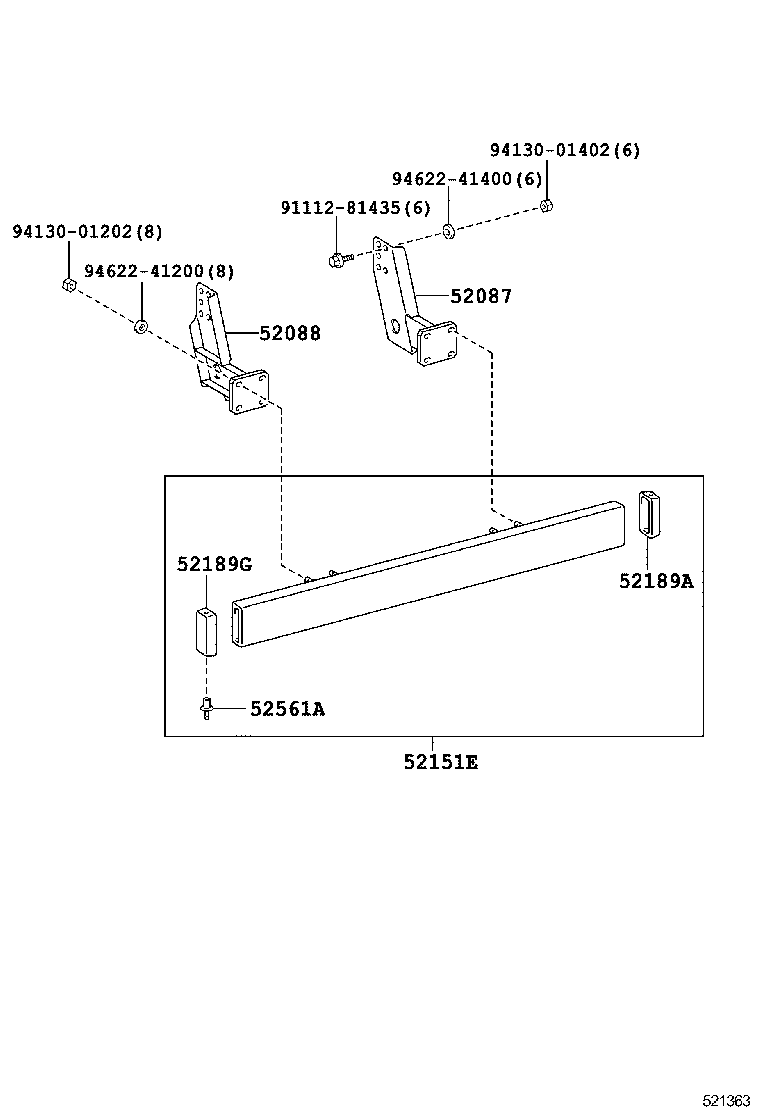

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52087-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151-37220	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52152-37100	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52151E - BAR, REAR BUMPER
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
Common parts
90541-10058
91112-81435
91651-41020
94130-01402
94622-11400
94622-41400
Linked diagrams
5152

(9905-0505)BZU300,RZU300,XZU300,301,302..T3..CBU,IV4 ; (0206-0505)XZU301..T3..LPG ;

Click highlighted areas on diagram

TYPE D

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52087-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151-37220	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52152-37100	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52151E - BAR, REAR BUMPER
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
65267B - BRACKET SUB-ASSY, TAIL GATE BUMPER STOP, RH
65079-37010	XZU341..T3..30T..CBU;BZU300,340,RZU300,XZU301,304,306,308,344,388..SCB..(T3,T5)..CBU	06/2004 - 12/2999	1
65079-37010	XZU341..T3..(295T,30T)..CBU;BU30#,BZU300,340,RZU300,XZU300,301,302,306,307,340,382..SCB..(T3,T5)..CBU	05/1999 - 06/2004	1
65268B - BRACKET SUB-ASSY, TAIL GATE BUMPER STOP, LH
65079-37010	XZU341..T3..(295T,30T)..CBU;BU30#,BZU300,340,RZU300,XZU300,301,302,306,307,340,382..SCB..(T3,T5)..CBU	05/1999 - 06/2004	1
65079-37010	XZU341..T3..30T..CBU;BZU300,340,RZU300,XZU301,304,306,308,344,388..SCB..(T3,T5)..CBU	06/2004 - 12/2999	1
66321 - BUMPER, GATE RUBBER
66321-92805	XZU341..T3..30T..CBU;BZU300,340,RZU300,XZU301,304,306,308,344,388..SCB..(T3,T5)..CBU	06/2004 - 12/2999	2
66321-92805	XZU341..T3..(295T,30T)..CBU;BU30#,BZU300,340,RZU300,XZU300,301,302,306,307,340,382..SCB..(T3,T5)..CBU	05/1999 - 06/2004	2
66321 - BUMPER, GATE RUBBER
66321-92805	XZU341..T3..30T..CBU;BZU300,340,RZU300,XZU301,304,306,308,344,388..SCB..(T3,T5)..CBU	06/2004 - 12/2999	2
66321-92805	XZU341..T3..(295T,30T)..CBU;BU30#,BZU300,340,RZU300,XZU300,301,302,306,307,340,382..SCB..(T3,T5)..CBU	05/1999 - 06/2004	2
Common parts
91112-81435
91642-81225
91651-41020
93210-16014
94130-01202
94130-01402
94622-41200
94622-41400

(0505- )BZU300,RZU300..T4..30T ; (0505- )BZU340,RZU340,XZU331,34#,388 ; (0505

Click highlighted areas on diagram

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52087-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52087-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52087-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151-37220	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52151-37220	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52088-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52152-37100	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52152-37100	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52151E - BAR, REAR BUMPER
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151E - BAR, REAR BUMPER
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
Common parts
91112-81435
94130-01202
94130-01402
94622-41200
94622-41400

(0505- )BZU300,RZU300,XZU301,304..T3..CBU,IV3; (0505- )BZU300,XZU368..T4..20

Click highlighted areas on diagram

Part #	Description	Period	Qty
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52087-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52151-37220	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-37130	BZU300,RZU300,XZU300,301,302..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52088-37130	BZU300,RZU300,XZU301,304..T3..CBU TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52152-37100	BZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3	05/2005 - 12/2999	1
52151E - BAR, REAR BUMPER
52151-37030	BZU300,RZU300,XZU300,301,302..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
52151-37030	BZU300,RZU300,XZU301,304..T3..CBU 塗装不要,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 05/2005	1
52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH
52189-37020	XZU378..20T..IV3;XZU378..30T..DCRL;XZU301..(T4,T5)..IV3;BZU300,RZU300,XZU304,334..30T..CBU..1NO;BZU340,RZU340,XZU301,331,34#,388..(T2,T3,T4)..(CBU,IV3)..1NO;BZU300,RZU30#,XZU304,306,308,334,336,338,368..(T2,T3,T4,T5)..IV3	05/2005 - 12/2999	1
Common parts
91112-81435
94130-01202
94130-01402
94622-41200
94622-41400

(9905-0505)T2,T3,T4,T5..CBU ; (0206-0505)XZU412..CNG ; (0306-0505)CNG

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty	Price
Common parts
90031-19122
90179-08142
90540-10030
91112-81435
93210-18035
94130-01402
94622-41400

(0505- )XZU414,424..20T..DCRL..CBU ; (0505-)XZU414,424..DCR,DCRL,DSLL..IV3 ;

Click highlighted areas on diagram

ﾘﾔﾊﾞﾝﾊﾟﾄﾘﾂｹ=ﾅｯﾄ

Part #	Description	Period	Qty	Price
Common parts
90179-14007
91112-81435
91552-01435
94130-01202
94130-01402
94151-21200
94622-41200
94622-41400

XZU301H-TKTQS (2004)

(9905-0505)BU346,BZU300,340,RZU30#,340,XZU300,301,302,33#,34#,372,378,38#..CBU..1NO

(9905-0505)BZU300,RZU300,XZU300,301,302..T3..CBU,IV4 ; (0206-0505)XZU301..T3..LPG ;

(0505- )BZU300,RZU300..T4..30T ; (0505- )BZU340,RZU340,XZU331,34#,388 ; (0505

(0505- )BZU300,RZU300,XZU301,304..T3..CBU,IV3; (0505- )BZU300,XZU368..T4..20

(9905-0505)T2,T3,T4,T5..CBU ; (0206-0505)XZU412..CNG ; (0306-0505)CNG

(0505- )XZU414,424..20T..DCRL..CBU ; (0505-)XZU414,424..DCR,DCRL,DSLL..IV3 ;
