XZU301H-TKTQS (2004)
Toyota Dyna/Toyoace

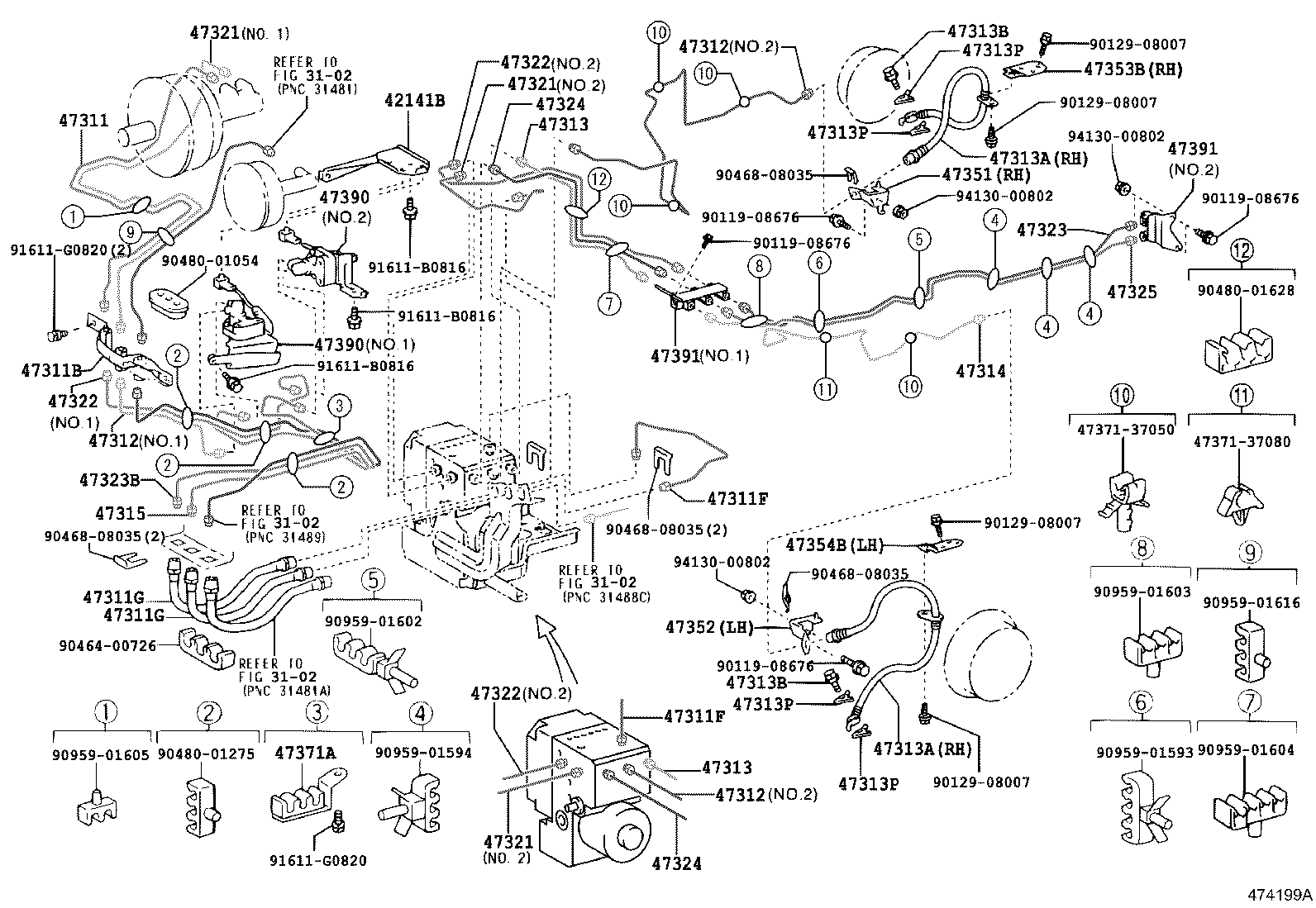

ILLUST NO. 1 OF 5(0406- )XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5..CBU,IV3,IV4,IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311-37162 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311-37161 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 90947-02B27 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 90947-02B27 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37570 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47351-37130 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47352-37050 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47353-37150 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47354-37160 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47371-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 5(0406- )IV6,IV7..4NO ; (0406- )XZU301..6FC..20T..IV3..1NO ; (0406- )XZU301
ｱﾘ(ﾌﾞﾚｰｷﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311-37162 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311-37161 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 90947-02B27 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 90947-02B27 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37570 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37070 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47351-37130 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47352-37050 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47353-37150 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47354-37160 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47371-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7
W(ABS) 4X2 SHORT,S/LONG,LONG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37490 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37340 |
XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )
W/O(ABS) CLAMP:LH SIDE=2,RH SIDE=3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
2 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37240 |
XZU331,340,341..SCB..(20T,295T,30T);BU346,BZU300,340,RZU300,XZU300,301,302,330,342,346,347..T3..(20T,295T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47327-37240 |
XZU341..T3..20T;XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,346..T3..(20T,30T) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37100 |
XZU341..T3..20T;XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,346..T3..(20T,30T) |
1 | ||
| 47329-37100 |
XZU331,340,341..SCB..(20T,295T,30T);BU346,BZU300,340,RZU300,XZU300,301,302,330,342,346,347..T3..(20T,295T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT |
1 | ||
| 47345-36050 |
XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44050-37040 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37010 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
