XZU301H-TKTQS (2004)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0406- )XZU351..6FC ; (0406- )BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37102 |
XZU301,304,306,331,334,336,341,346,351..(03S,DM5,T2,T3,T4,T5)..6FC |
1 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36011 |
RZU300,XZU300,301,302,31#,32#,330,331,340,341..295T,30T ｲﾗｽﾄ参照 |
1 | ||
| 46503-37681 |
XZU351..6FC;XZU304,334..(T3,T4,T5)..(20T,30T)..(DCRL,DSLL);XZU301,306,331,336,341,344,346..(03S,DM3,T2,T3,T4,T5)..(20T,30T) |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
XZU362,372,382;RZU300,XZU300,301,302,31#,32#,330,331,340,341,371..295T,30T |
1 | ||
| 46506-36010 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
BU30#,346,XZU302,342;RZU300,340,XZU300,301,306,307,31#,32#,33#,340,341,346,347,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL,EFI,LPG) |
1 | ||
| 46577-36010 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||
| Linked diagrams | ||||
| 3305 | ||||
| 3701 | ||||

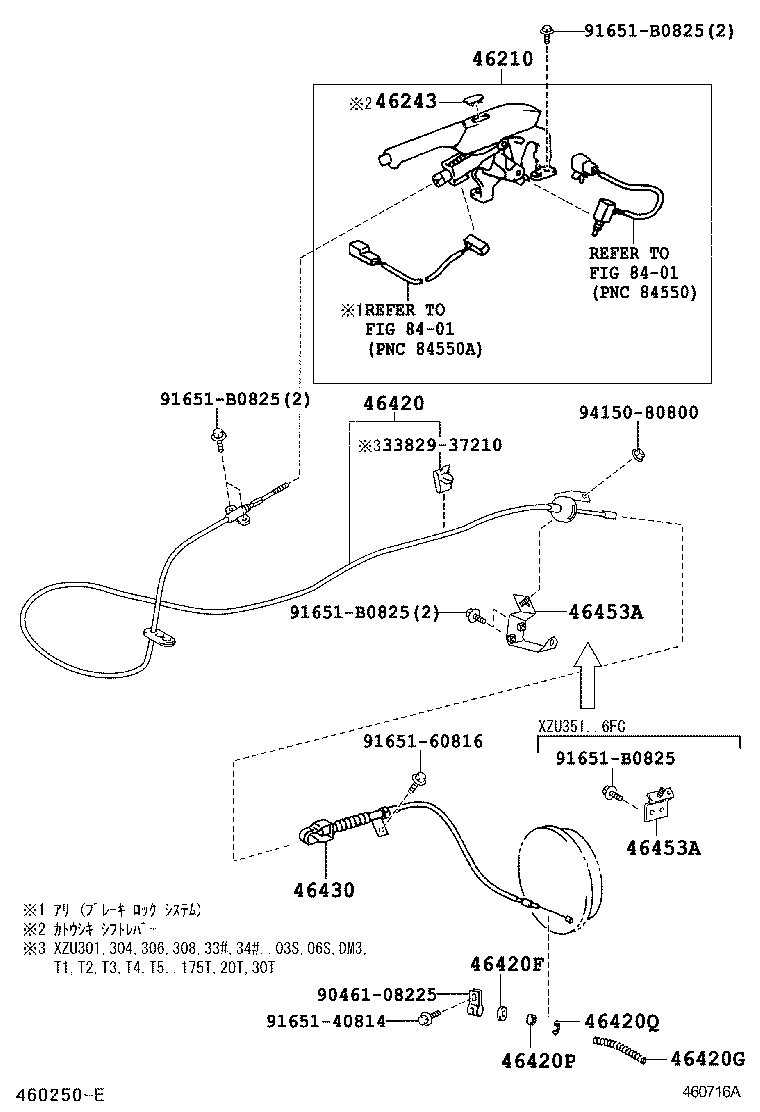

ILLUST NO. 1 OF 2(0406- )XZU351..6FC ; (0406- )XZU301,304,306,308,33#,34#..03S,06S,DM3,T1,T2,T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
XZU362..1NO;BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37160 |
BU30#,346,XZU30#,33#,34#,350..CBU,IV3,IV6,IV7 |
1 | ||
| 46420-37460 |
XZU301,306,331,336,341,346 |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
BU30#,346,XZU302,342;RZU300,340,XZU300,301,306,307,31#,32#,33#,340,341,346,347,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL,EFI,LPG) |
1 | ||
| 90303-10001 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
XZU362,372,382;RZU300,XZU300,301,302,31#,32#,330,331,340,341,371..295T,30T |
1 | ||
| 90501-14003 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..175T,20T,295T,30T |
1 | ||
| 90560-08002 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
BU30#,346,XZU302,342;RZU300,340,XZU300,301,306,307,31#,32#,33#,340,341,346,347,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL,EFI,LPG) |
1 | ||
| 96160-00700 |
XZU351..6FC;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#..(03S,06S,DM3,DM5,T1,T2,T3,T4,T5)..(175T,20T,30T) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37690 |
XZU301,306,331,336,341,346..(03S,T2,T3,T4,T5)..6FC |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..CBU,IV3,IV6,IV7 |
1 | ||
| 46453-37190 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..CBU,IV3,IV6,IV7 |
1 | ||
| 46453-37190 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90461-08225 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0406- )BZU410,XZU401,411,414,421,424..5F,6FC..30T,35T..CNG,DCRL,DSL,LPG ; (0610
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||
