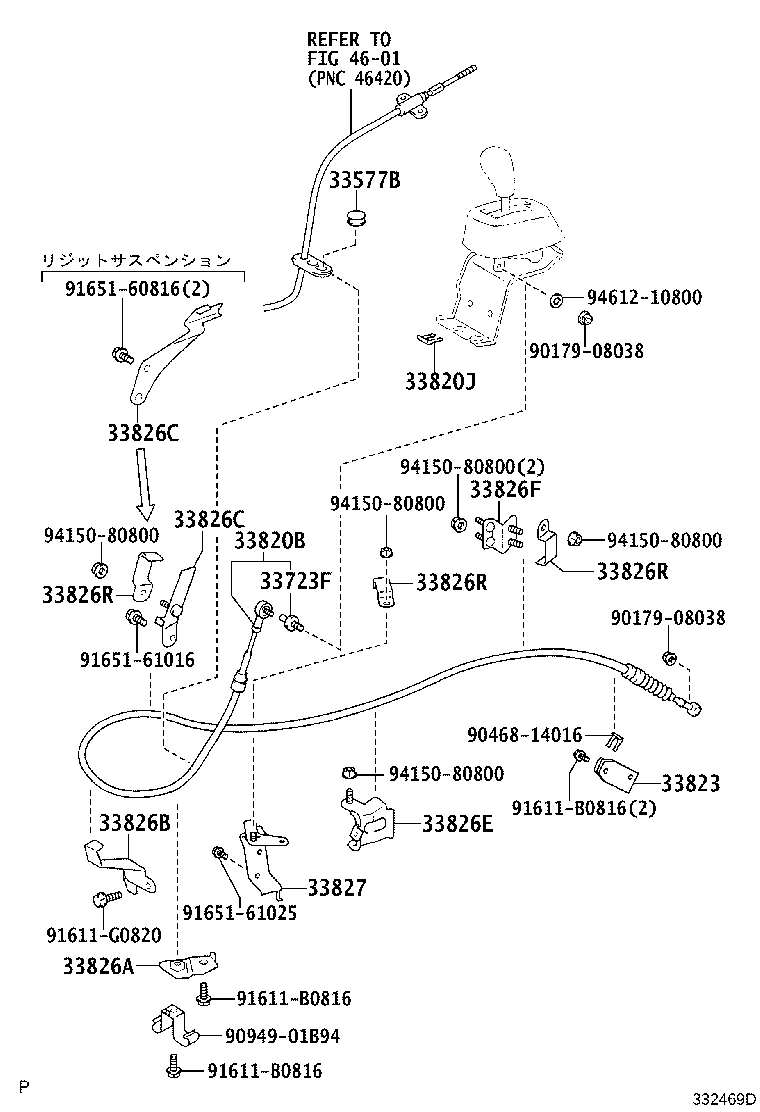

Toyota Dyna/toyoace XZU301 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33577B - COVER, CONTROL SHAFT HOLE
33577-37050	RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM	06/2004 - 12/2999	1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010	RZU301,XZU301,304,306,308,33#,341,346,348,351..ATM	06/2004 - 12/2999	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-3V410	XZU301,306,331,336,341,346..6FC	06/2004 - 10/2006	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37680	XZU301,304,306,331,334,336,341,346,351..6FC	06/2004 - 10/2006	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37180	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,32#,337,341,342,346,347,351,352,362,37#,382	05/1999 - 06/2004	1
33826-37180	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU331,362..DSL..1NO;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,37#,382	05/1999 - 06/2004	1
33826-37210	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37610	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,RZU300,340,XZU302,31#,321,322,341,342,351,352 ｱﾘ(ﾘｼﾞﾂﾄﾞｻｽﾍﾟﾝｼﾖﾝ)	05/1999 - 06/2004	1
33826-37610	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37610	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,RZU300,340,XZU302,31#,321,322,341,342,351,352 ｱﾘ(ﾘｼﾞﾂﾄﾞｻｽﾍﾟﾝｼﾖﾝ)	05/1999 - 06/2004	1
33826-37610	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#	06/2004 - 12/2999	1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33826-37250	XZU306..DSL;XZU306..T5..DSLL;BU30#,346,RZU300,340,XZU301,302,307,331,337,341,342,346,347	05/1999 - 12/2000	1
33826-37251	BZU300,340,RZU30#,340,XZU301,306,331,336,341,346	06/2004 - 12/2999	1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33826-37420	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BZU300,340,XZU300,302,307,330,337,340,341,342,346,347,350	05/1999 - 06/2004	1
33827-37270	XZU301,306,331,336,341,346	06/2004 - 10/2006	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZU301,321,331,341	06/2004 - 10/2006	2
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZU301,321,331,341	06/2004 - 10/2006	2
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZU301,321,331,341	06/2004 - 10/2006	2
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37240	XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388	06/2004 - 04/2006	1
33827-37241	XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388	05/2006 - 10/2006	1
Common parts
90179-08038
90468-14016
90949-01B94
91611-B0816
91611-G0820
91651-60816
91651-61016
91651-61025
94150-80800
94612-10800
Linked diagrams
4601

Part #	Description	Period	Qty	Price
Common parts
90159-30027
90159-50193
90463-12008
91611-B0616
91651-B0825
93315-14008
93319-13006
94130-60800
94531-00800
96160-00500
Linked diagrams
8401

XZU301H-TKTQS (2004)

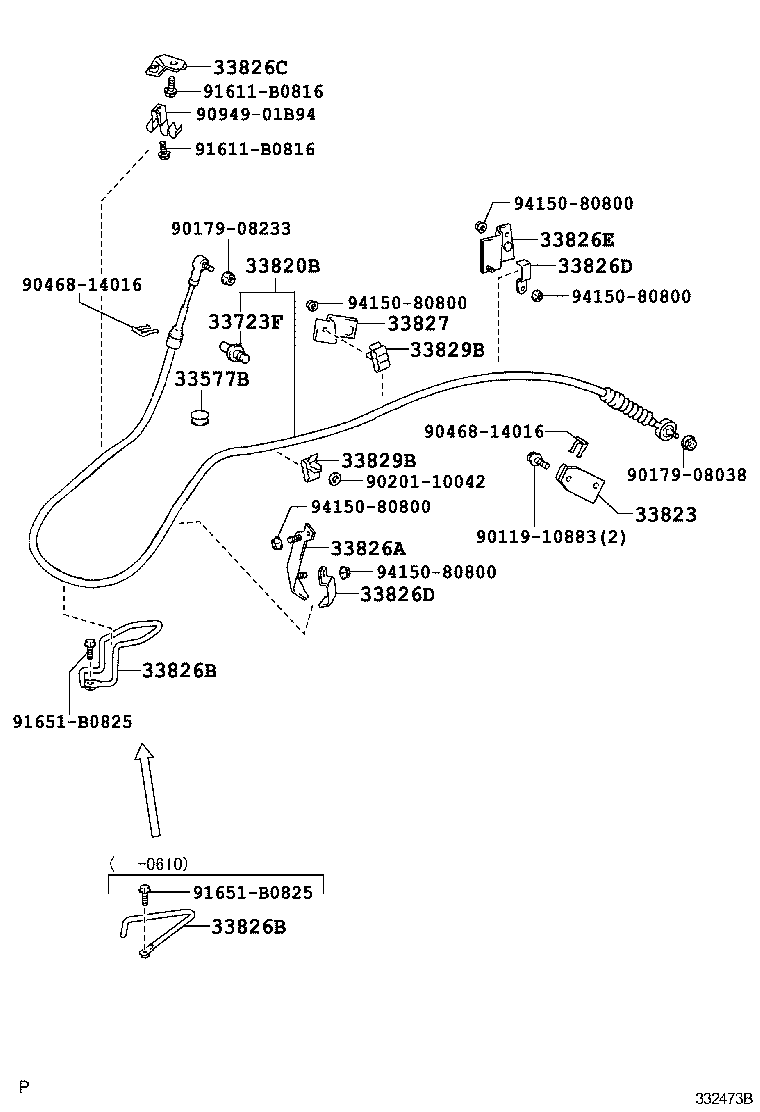

ILLUST NO. 2 OF 2(0406- )XZU301,306,331,336,341,346..6FC

ILLUST NO. 1 OF 2(0406- )6FC..DCRL,DSL

ILLUST NO. 2 OF 2(0406-0610)6FC

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90119-10883
90179-08038
90179-08233
90201-10042
90468-14016
90949-01B94
91611-B0816
91651-B0825
94150-80800
