Toyota Dyna/toyoace XZU301 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU301D-TUMMS3 (1999)
3602 - POWER TAKE-OFF CASE & GEAR

XZU301D-TUMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

Click highlighted areas on diagram

ﾊﾞｷﾕ-ﾑｼｷ

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

(0406- )DM3

Click highlighted areas on diagram

ﾎﾟﾝﾌﾟﾁｮｸﾂﾞｹﾀｲﾌﾟ10KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2004	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36610 - POWER TAKE-OFF ASSY
36610-37080	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F ﾄﾗﾝｽﾐｯｼｮﾝﾀｲﾌﾟ = H350	05/1999 - 06/2002	1
36610-37180	XZU301,302,31#,351,352..(DM2,DM3,DM5)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=H351	06/2002 - 06/2004	1
36610-37320	XZU301..DM3	06/2004 - 10/2006	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU321..DM8;XZU301..T4..IV6;XZU321..5F..1NO;XZU306..T4..5F..CBU;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
90311-20010	XZU301..DM3;XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37050	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36621-37050	XZU301..DM3	06/2004 - 10/2006	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU311,321..5F..1NO;XZU320,351,352..DM2,DM7;XZU301,302,31#,321..(DM3,DM5,DM8)..5F..20T ｱﾘ(PTO ﾎﾟﾝﾌﾟﾁﾖｸｽﾞｹﾀｲﾌﾟ)	05/1999 - 06/2004	2
90311-25110	XZU301..DM3	06/2004 - 10/2006	2
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU311,321..5F..1NO;XZU320,351,352..DM2,DM7;XZU301,302,31#,321..(DM3,DM5,DM8)..5F..20T ｱﾘ(PTO ﾎﾟﾝﾌﾟﾁﾖｸｽﾞｹﾀｲﾌﾟ)	05/1999 - 06/2004	2
90311-25110	XZU301..DM3	06/2004 - 10/2006	2
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36631-37050	XZU301..DM3	06/2004 - 10/2006	1
36631-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-37010	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36641-37010	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36641-37010	XZU301..DM3	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37120	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37080	XZU301,302,31#,351,352..(DM2,DM3,DM5)..5F	06/2002 - 06/2004	1
36718-37120	XZU301..DM3	06/2004 - 10/2006	1
36718-37070	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37060	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36723-37060	XZU301..DM3	06/2004 - 10/2006	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2003 - 06/2004	1
90366-22001	XZU301..DM3 NO.1	06/2004 - 10/2006	1
97100-06205	XZU301..DM3 NO.2	06/2004 - 10/2006	1
97100-06205	XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F	05/1999 - 06/2002	1
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2002 - 06/2003	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2003 - 06/2004	1
90366-22001	XZU301..DM3 NO.1	06/2004 - 10/2006	1
97100-06205	XZU301..DM3 NO.2	06/2004 - 10/2006	1
97100-06205	XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F	05/1999 - 06/2002	1
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2002 - 06/2003	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
97100-06205	XZU301..DM3	06/2004 - 10/2006	1
97100-06205	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
97100-06205	XZU301..DM3	06/2004 - 10/2006	1
97100-06205	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2003	2
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2003	2
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90562-43002	XZU312..DCB;XZU321..DM7..5F..4NO;XZU31#..30T..DSL..4NO;XZU301,302,322,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F..DSL 厚さ=6.4	05/1999 - 06/2004	1
90562-43002	XZU301..DM3 厚さ=6.4	06/2004 - 10/2006	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37020	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36811-37020	XZU301..DM3	06/2004 - 10/2006	1
36811-37020	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37040	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.1	05/1999 - 06/2002	1
36814-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.2	05/1999 - 06/2002	1
36814-37040	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.1	06/2002 - 06/2004	1
36814-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.2	06/2002 - 06/2004	1
36814-37040	XZU301..DM3 NO.1	06/2004 - 10/2006	1
36814-37050	XZU301..DM3 NO.2	06/2004 - 10/2006	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37040	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.1	05/1999 - 06/2002	1
36814-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.2	05/1999 - 06/2002	1
36814-37040	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.1	06/2002 - 06/2004	1
36814-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.2	06/2002 - 06/2004	1
36814-37040	XZU301..DM3 NO.1	06/2004 - 10/2006	1
36814-37050	XZU301..DM3 NO.2	06/2004 - 10/2006	1
36814B - RING, O (FOR FRONT POWER TAKE-OFF SHAFT)
96711-24015	XZU301..DM3 NO.2	06/2004 - 10/2006	1
96711-24015	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.2	05/1999 - 06/2004	1
90301-11009	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.1	05/1999 - 06/2004	1
90301-11009	XZU301..DM3 NO.1	06/2004 - 10/2006	1
36814B - RING, O (FOR FRONT POWER TAKE-OFF SHAFT)
96711-24015	XZU301..DM3 NO.2	06/2004 - 10/2006	1
96711-24015	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.2	05/1999 - 06/2004	1
90301-11009	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.1	05/1999 - 06/2004	1
90301-11009	XZU301..DM3 NO.1	06/2004 - 10/2006	1
36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT)
90254-04023	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
90254-04023	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
90254-04023	XZU301..DM3	06/2004 - 10/2006	1
36815 - SHAFT, POWER TAKE-OFF FORK, NO.2
36815-37010	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36815-37010	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36815-37010	XZU301..DM3	06/2004 - 10/2006	1
Common parts
82716-37400
90119-08124
90119-08B94
90119-10372
90360-08004
90560-25015
92132-81025
94130-61000
94512-01000

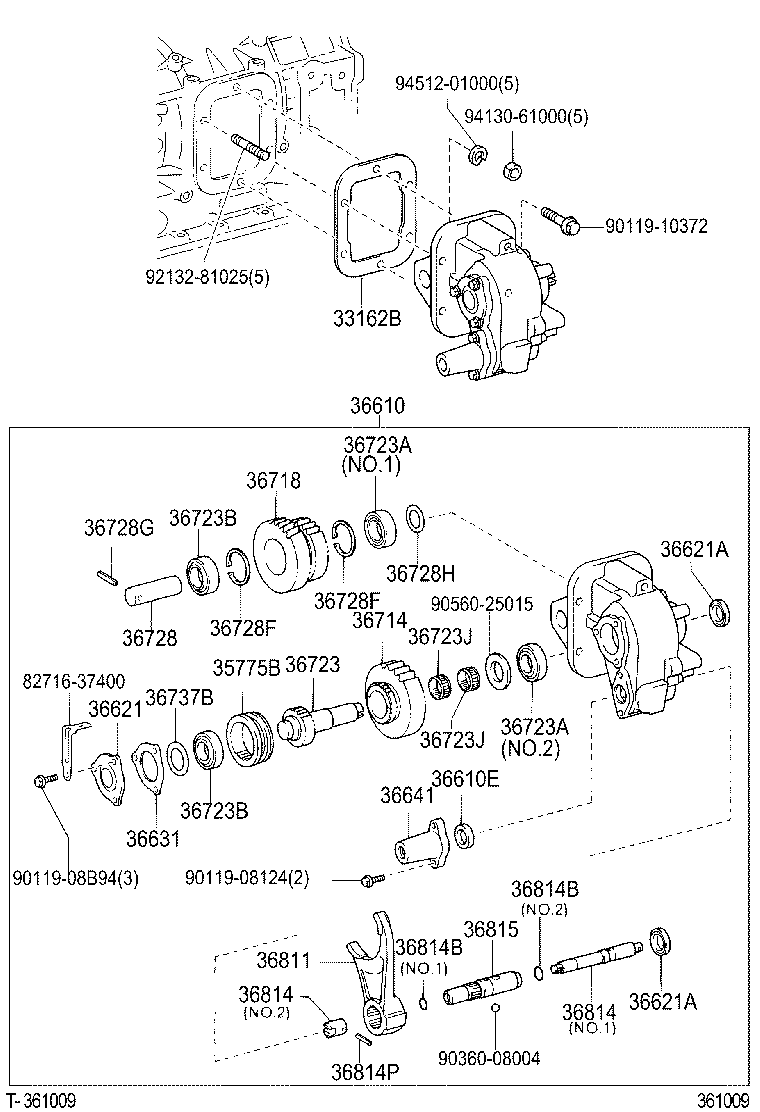

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2004	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36610 - POWER TAKE-OFF ASSY
36610-37080	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F ﾄﾗﾝｽﾐｯｼｮﾝﾀｲﾌﾟ = H350	05/1999 - 06/2002	1
36610-37180	XZU301,302,31#,351,352..(DM2,DM3,DM5)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=H351	06/2002 - 06/2004	1
36610-37320	XZU301..DM3	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37050	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36621-37050	XZU301..DM3	06/2004 - 10/2006	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU311,321..5F..1NO;XZU320,351,352..DM2,DM7;XZU301,302,31#,321..(DM3,DM5,DM8)..5F..20T ｱﾘ(PTO ﾎﾟﾝﾌﾟﾁﾖｸｽﾞｹﾀｲﾌﾟ)	05/1999 - 06/2004	2
90311-25110	XZU301..DM3	06/2004 - 10/2006	2
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36631-37050	XZU301..DM3	06/2004 - 10/2006	1
36631-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-37010	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36641-37010	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36641-37010	XZU301..DM3	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37120	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37080	XZU301,302,31#,351,352..(DM2,DM3,DM5)..5F	06/2002 - 06/2004	1
36718-37120	XZU301..DM3	06/2004 - 10/2006	1
36718-37070	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37060	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36723-37060	XZU301..DM3	06/2004 - 10/2006	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2003 - 06/2004	1
90366-22001	XZU301..DM3 NO.1	06/2004 - 10/2006	1
97100-06205	XZU301..DM3 NO.2	06/2004 - 10/2006	1
97100-06205	XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F	05/1999 - 06/2002	1
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2002 - 06/2003	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
97100-06205	XZU301..DM3	06/2004 - 10/2006	1
97100-06205	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
90521-56108	XZU301..DM3	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
90521-56108	XZU301..DM3	06/2004 - 10/2006	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2003	2
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2003	2
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90562-43002	XZU312..DCB;XZU321..DM7..5F..4NO;XZU31#..30T..DSL..4NO;XZU301,302,322,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F..DSL 厚さ=6.4	05/1999 - 06/2004	1
90562-43002	XZU301..DM3 厚さ=6.4	06/2004 - 10/2006	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37020	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36811-37020	XZU301..DM3	06/2004 - 10/2006	1
36811-37020	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37040	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.1	05/1999 - 06/2002	1
36814-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.2	05/1999 - 06/2002	1
36814-37040	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.1	06/2002 - 06/2004	1
36814-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.2	06/2002 - 06/2004	1
36814-37040	XZU301..DM3 NO.1	06/2004 - 10/2006	1
36814-37050	XZU301..DM3 NO.2	06/2004 - 10/2006	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ15KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	BZU300..DM6,T3;XZU302..DM3,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU340,341,342..MTM..(DSL,DSLL);XZU301..(DM3,T3)..5F..(20T,295T);BZU340,XZU300,306,31#,330,331,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2004	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU340;XZU302..LPG;XZU302..DM3,T3;XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU300,306,31#,330,331,341,342,346,347,351,352..MTM..(20T,295T,30T)..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36610 - POWER TAKE-OFF ASSY
36610-37080	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F ﾄﾗﾝｽﾐｯｼｮﾝﾀｲﾌﾟ = H350	05/1999 - 06/2002	1
36610-37180	XZU301,302,31#,351,352..(DM2,DM3,DM5)..5F ﾄﾗﾝｽﾐﾂｼﾖﾝﾀｲﾌﾟ=H351	06/2002 - 06/2004	1
36610-37320	XZU301..DM3	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37050	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352,362..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36621-37050	XZU301..DM3	06/2004 - 10/2006	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU311,321..5F..1NO;XZU320,351,352..DM2,DM7;XZU301,302,31#,321..(DM3,DM5,DM8)..5F..20T ｱﾘ(PTO ﾎﾟﾝﾌﾟﾁﾖｸｽﾞｹﾀｲﾌﾟ)	05/1999 - 06/2004	2
90311-25110	XZU301..DM3	06/2004 - 10/2006	2
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36631-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36631-37050	XZU301..DM3	06/2004 - 10/2006	1
36631-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-37010	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36641-37010	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36641-37010	XZU301..DM3	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37120	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37080	XZU301,302,31#,351,352..(DM2,DM3,DM5)..5F	06/2002 - 06/2004	1
36718-37120	XZU301..DM3	06/2004 - 10/2006	1
36718-37070	XZU301,302,31#,32#,351,352..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37060	XZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F	05/1999 - 06/2004	1
36723-37060	XZU301..DM3	06/2004 - 10/2006	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T;BU30#,346,RZU30#,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2003 - 06/2004	1
90366-22001	XZU301..DM3 NO.1	06/2004 - 10/2006	1
97100-06205	XZU301..DM3 NO.2	06/2004 - 10/2006	1
97100-06205	XZU302..(T4,T5)..5F..20T..DSL;XZU301,302,322..(DM3,DM7,DM8)..5F;BU30#,346,RZU300,340,XZU307,31#,320,321,337,351,352,362,372,382..(DCB,SCB)..5F	05/1999 - 06/2002	1
97100-06205	XZU301,302..DM3..5F;XZU302..(T4,T5)..5F..20T..DSL;BU30#,346,RZU300,340,XZU307,31#,337,351,352,362,372,382..(DCB,SCB)..5F	06/2002 - 06/2003	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
97100-06205	XZU301..DM3	06/2004 - 10/2006	1
97100-06205	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
90521-56108	XZU301..DM3	06/2004 - 10/2006	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-22001	XZU321..5F..1NO;XZU301,302..DM3..5F;XZU302,321,362..(DM8,T4,T5)..5F..20T..DSL;BU30#,346,RZU30#,340,XZU307,31#,320,337,351,352,372,382..(DCB,SCB)..5F	05/1999 - 06/2004	2
90521-56108	XZU301..DM3	06/2004 - 10/2006	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2003	2
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,31#,330..(DCB,SCB)..(175T,20T,30T);XZU302,306,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,LPG)..(CBU,IV3)	06/2002 - 10/2002	2
90521-56108	XZU301..CNG,LPG;XZU301..5F..(295T,30T)..4NO;XZU301,362..(DM3,T3,T4)..5F..(20T,295T);BU30#,346,RZU300,340,XZU300,306,31#,330..(DCB,SCB)..5F..(175T,20T,30T);XZU302,307,331,337,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	10/2002 - 06/2003	2
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90562-43002	XZU312..DCB;XZU321..DM7..5F..4NO;XZU31#..30T..DSL..4NO;XZU301,302,322,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F..DSL 厚さ=6.4	05/1999 - 06/2004	1
90562-43002	XZU301..DM3 厚さ=6.4	06/2004 - 10/2006	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37020	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F	05/1999 - 06/2002	1
36811-37020	XZU301..DM3	06/2004 - 10/2006	1
36811-37020	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F	06/2002 - 06/2004	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37040	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.1	05/1999 - 06/2002	1
36814-37050	XZU301,302,31#,32#,351,352,362..(DM2,DM3,DM5,DM7,DM8)..5F NO.2	05/1999 - 06/2002	1
36814-37040	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.1	06/2002 - 06/2004	1
36814-37050	XZU301,302,31#,351,352,362..(DM2,DM3,DM5,DM7)..5F NO.2	06/2002 - 06/2004	1
36814-37040	XZU301..DM3 NO.1	06/2004 - 10/2006	1
36814-37050	XZU301..DM3 NO.2	06/2004 - 10/2006	1
Common parts
82716-37480
90031-70107
90032-01147
90101-08156
90116-10103
90119-08124
90179-14066
90201-08091
90201-15011
90214-14001
90389-25003
90407-51002
90501-29040
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG

Part #	Description	Period	Qty	Price
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863

XZU301D-TUMMS3 (1999)

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

(0406- )DM3

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Part Price Details
