XZU301A-TYPMS3 (1999)
Toyota Dyna/Toyoace
(0310- )XZU304..T4..DCRL..CBU ; (0310- )XZU304..30T..DCRL..4NO ; (0310- )X

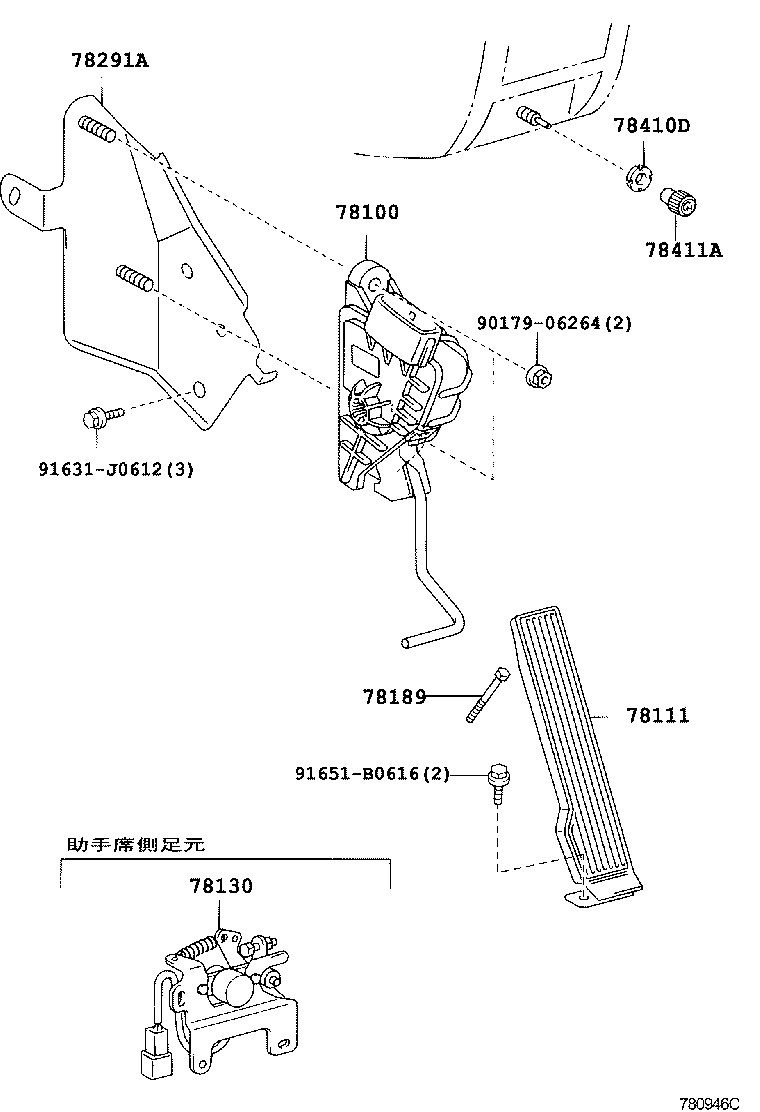

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37611 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37611 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37611 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37610 |
XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 78100-37610 |
XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 78100-37610 |
XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 78100-37612 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37612 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37612 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-37081 |
XZU302,322..DSL..IV3;XZU302,322..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7,DM8)..IV3;XZU301,306,307,331,337,341,342,346,347..SCB..(DM6,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 78130-37081 |
XZU302,322..DSL..IV3;XZU302,322..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7,DM8)..IV3;XZU301,306,307,331,337,341,342,346,347..SCB..(DM6,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 78130-37081 |
XZU302,322..DSL..IV3;XZU302,322..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7,DM8)..IV3;XZU301,306,307,331,337,341,342,346,347..SCB..(DM6,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 78130-37080 |
XZU302,322..IV3;XZU302,322..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7,DM8)..IV3;XZU301,306,307,331,337,341,342,346,347..SCB..(DM6,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 78130-37080 |
XZU302,322..IV3;XZU302,322..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7,DM8)..IV3;XZU301,306,307,331,337,341,342,346,347..SCB..(DM6,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 78130-37080 |
XZU302,322..IV3;XZU302,322..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7,DM8)..IV3;XZU301,306,307,331,337,341,342,346,347..SCB..(DM6,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37080 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78208-37080 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78208-37080 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 90950-01865 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
(0310-0406)XZU414,415 ; (0406- )DCR,DCRL,DSL,DSLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06264 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
