XZU301A-TYPMS3 (1999)
Toyota Dyna/Toyoace

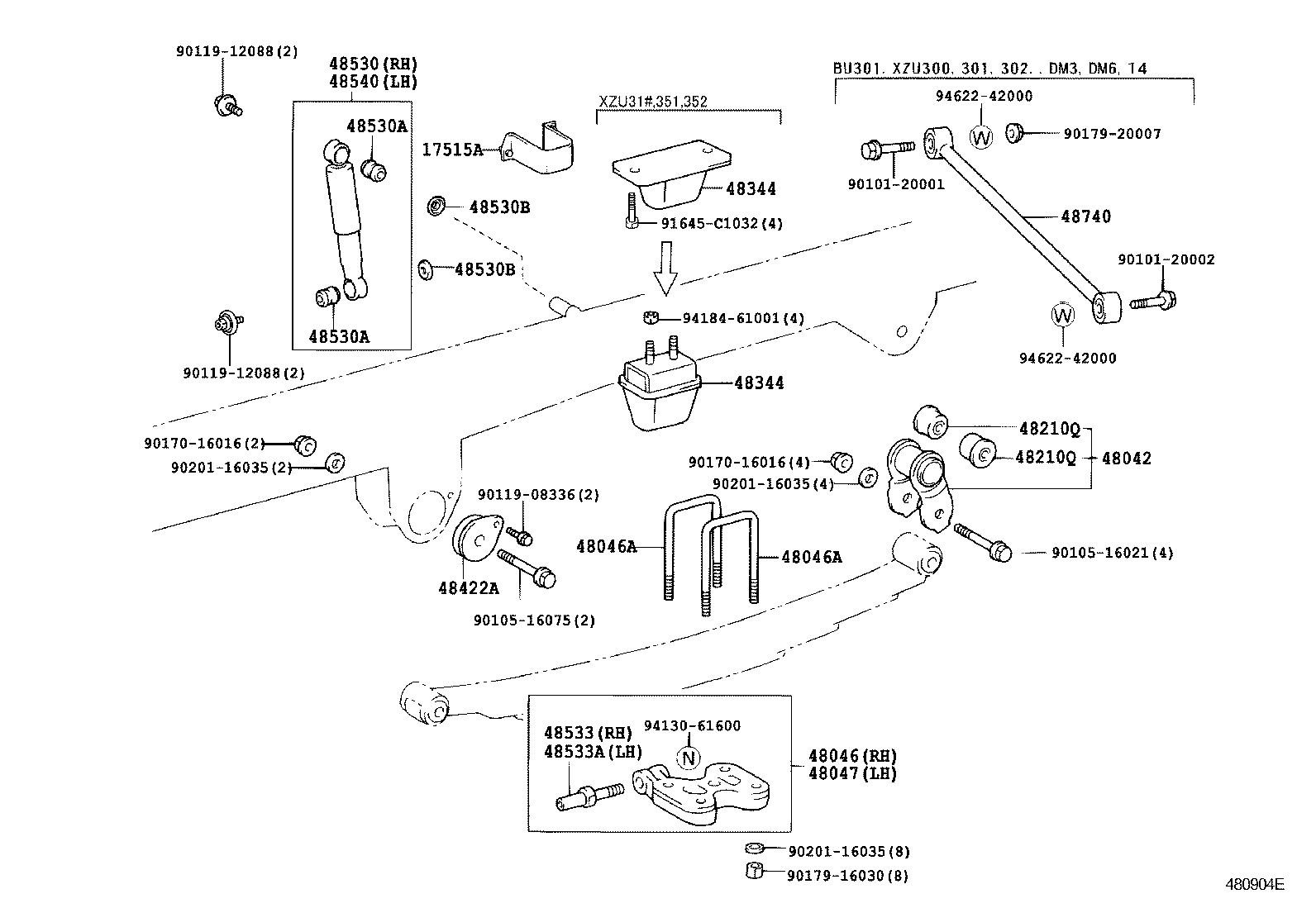

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,BZU340,RZU30#,340,XZU301,302,306,307,337,347,351,352,362..03S,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48046-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48047-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48344-37050 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80672 |
BU30#,RZU300,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..(CNG,DSL,EFI,LPG) ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,RZU300,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..(CNG,DSL,EFI,LPG) ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80672 |
BU30#,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..DSL ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..DSL ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 94130-61600 | ||||
| 94150-80800 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||

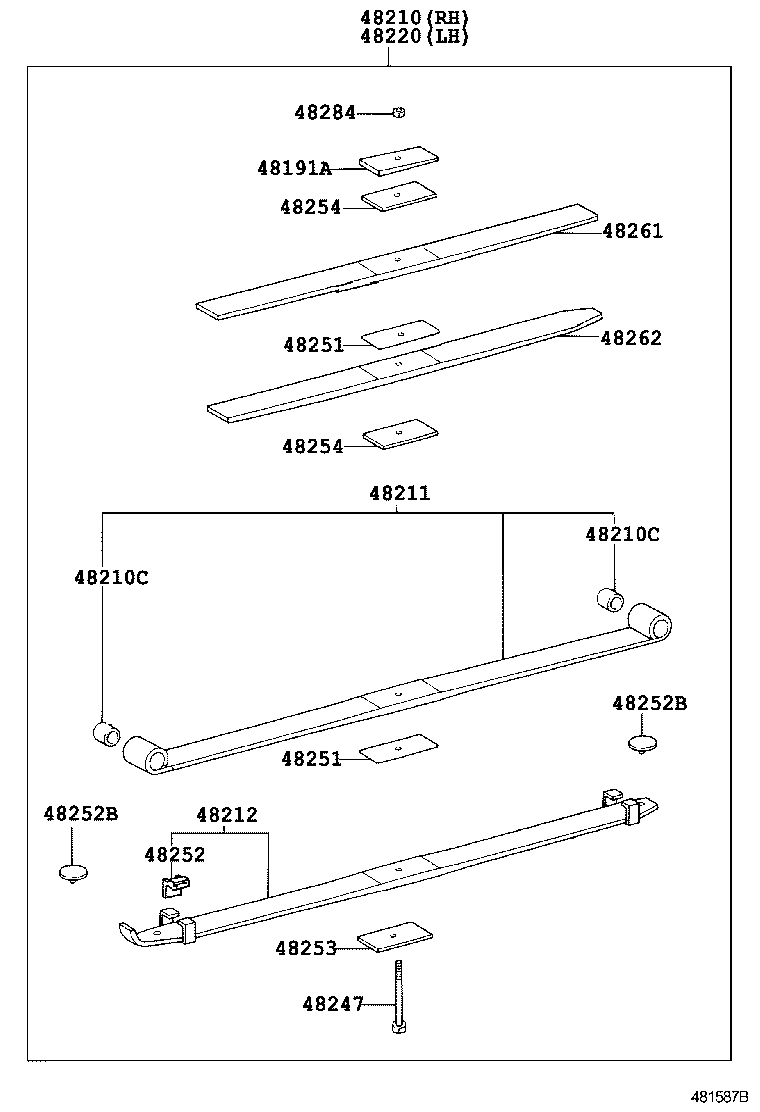

ILLUST NO. 2 OF 3(9905-0406)XZU300..T3..IV3 ; (9905-0406)XZU301..DM6,T4..1NO ; (9905-0406)XZU301..T3
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37640 |
XZU302..20T..1NO;XZU301..4FC..20T..DSL..1NO;XZU301..5F..20T..DSL..IV3..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37640 |
XZU302..20T..1NO;XZU301..4FC..20T..DSL..1NO;XZU301..5F..20T..DSL..IV3..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37640 |
XZU302..20T..1NO;XZU301..4FC..20T..DSL..1NO;XZU301..5F..20T..DSL..IV3..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-37640 |
XZU302..20T..1NO;XZU301..4FC..20T..DSL..1NO;XZU301..5F..20T..DSL..IV3..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37640 |
XZU301,302..20T..(IV3,IV6)..1NO ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37640 |
XZU301,302..20T..(IV3,IV6)..1NO ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37640 |
XZU301,302..20T..(IV3,IV6)..1NO ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-37640 |
XZU301,302..20T..(IV3,IV6)..1NO ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
XZU301,302..20T..DSL..(IV3,IV6)..1NO ｶｰｺﾞ ﾀﾞﾝﾌﾟ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213-37640 |
XZU301,302..20T..DSL..(IV3,IV6)..1NO ｶｰｺﾞ ﾀﾞﾝﾌﾟ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213-37640 |
XZU301,302..20T..DSL..(IV3,IV6)..1NO ｶｰｺﾞ ﾀﾞﾝﾌﾟ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213-37640 |
XZU301,302..20T..DSL..(IV3,IV6)..1NO ｶｰｺﾞ ﾀﾞﾝﾌﾟ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48214-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48203-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48203-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48203-37640 |
XZU301,302..20T..(IV3,IV6)..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48246-36052 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48246-36052 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48246-36052 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37640 |
BU301,RZU301..IV3..1NO;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;BZU300,XZU300..(DM6,T4)..(CNG,DSL);BZU300,XZU302..(DM3,DM6)..(DSL,LPG);XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48247-37640 |
BU301,RZU301..IV3..1NO;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;BZU300,XZU300..(DM6,T4)..(CNG,DSL);BZU300,XZU302..(DM3,DM6)..(DSL,LPG);XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48247-37640 |
BU301,RZU301..IV3..1NO;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;BZU300,XZU300..(DM6,T4)..(CNG,DSL);BZU300,XZU302..(DM3,DM6)..(DSL,LPG);XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48247-37640 |
BU301,RZU301..IV3..1NO;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;BZU300,XZU300..(DM6,T4)..(CNG,DSL);BZU300,XZU302..(DM3,DM6)..(DSL,LPG);XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU301,302..20T..(IV3,IV6)..1NO |
2 | ||
| 48251-36530 |
XZU301,302..20T..(IV3,IV6)..1NO |
2 | ||
| 48251-36530 |
XZU301,302..20T..(IV3,IV6)..1NO |
2 | ||
| 48251-36530 |
XZU301,302..20T..(IV3,IV6)..1NO |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252-37890 |
XZU301,302..20T..(IV3,IV6)..1NO |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48256-3B770 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48256-3B770 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48256-3B770 |
XZU362;XZU301..20T..IV6;BU30#,RZU300,XZU30#,31#,322,337,351,352..(03S,06S,DM2,DM3,DM5,DM6,T1,T2,T4,T5)..(CBU,IV3,IV7) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU301..DSLL..4NO;XZU321,322..30T..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG);BU30#,BZU300,RZU30#,XZU300,302,306,307,31#,337,351,352,362..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
2 | ||
| 48299-27620 |
XZU301..DSLL..4NO;XZU321,322..30T..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG);BU30#,BZU300,RZU30#,XZU300,302,306,307,31#,337,351,352,362..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
2 | ||
| 48299-27620 |
XZU301..DSLL..4NO;XZU321,322..30T..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG);BU30#,BZU300,RZU30#,XZU300,302,306,307,31#,337,351,352,362..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
2 | ||
| 48299-27620 |
XZU301..DSLL..4NO;XZU321,322..30T..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG);BU30#,BZU300,RZU30#,XZU300,302,306,307,31#,337,351,352,362..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
| 94184-61000 | ||||
ILLUST NO. 1 OF 3(9905-0406)XZU341..LPG ; (9905-0406)XZU302..CNG,DSL ; (9905-0406)RZU300,XZU300,301,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48046-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 90117-16068 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) 長さ=270 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48047-37080 |
XZU302..DM3,DM6;BZU300,XZU306..DM6,T5;BU301,XZU300..(DM6,T4)..1NO;XZU301,362..DM3,DM5,DM6,DM7,T4,T5;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48344-37050 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48344-37050 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80672 |
BU30#,RZU300,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..(CNG,DSL,EFI,LPG) ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,RZU300,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..(CNG,DSL,EFI,LPG) ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80672 |
BU30#,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..DSL ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,XZU30#,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT..DSL ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;RZU300,XZU302..(T4,T5)..(295T,30T);XZU301,31#,351,352..DM2,DM3,DM5,DM6,T4 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,337,351,352..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-37010 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| 48740-37010 |
XZU301..DM3,DM6,T4;BZU300,XZU302..DM3,DM6;XZU301..T5..(295T,30T);BU301,XZU300..(DM6,T4)..1NO;BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
1 | ||
| Common parts | ||||
| 90101-20001 | ||||
| 90101-20002 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90179-20007 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94622-42000 | ||||
ILLUST NO. 2 OF 3(0206-0406)DM6..CNG,DSL,LPG..IV3,IV6 ; (0210-0406)XZU301..20T..DSLL ; (0210-0406)BZ
3-LEAF 48210-3V600
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU311,321..4NO;XZU301..DSLL..4NO;XZU302..295T..4NO;BU30#,XZU301..(03S,06S,DM3,DM6,T1,T2,T4,T5)..(CNG,DSL,LPG);BZU300,RZU30#,XZU300,302,306,307,312,322,337,351,352,362..(03S,DM2,DM3,DM5,DM6,DM7,DM8,T2,T4,T5)..(20T,30T) ﾌﾛﾝﾄ |
4 | ||
| 90389-16026 |
XZU302..ST;RZU301..IV3;XZU302..DM3,DM6;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,XZU322..(DM6,DM7,DM8,T4)..(CNG,DSL);BZU300,RZU300,XZU300,302,31#..(DM5,T4,T5)..(295T,30T);BU301,BZU300,XZU320,321..(DM6,DM7,DM8,T1,T5)..(DSL,LPG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37640 |
XZU302..20T..1NO;XZU301..4FC..20T..DSL..1NO;XZU301..5F..20T..DSL..IV3..1NO MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48201-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37640 |
XZU301,302..20T..(IV3,IV6)..1NO ｷｮｳｶ ｻｽﾍﾟﾝｼｮﾝ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48212-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-37640 |
XZU301,302..20T..DSL..(IV3,IV6)..1NO ｶｰｺﾞ ﾀﾞﾝﾌﾟ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48202-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37640 |
XZU301,302..20T..(IV3,IV6)..1NO 6枚ﾘｰﾌ,MARK=R-37640:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48210-3V600 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) 3枚ﾘｰﾌ,MARK=R-3V600:ILLUST NO.3 OF 3 ｻﾝｼｮｳ,T=88:ILLUST NO.3 OF 3 ｻﾝｼｮｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37640 |
BU301,RZU301..IV3..1NO;XZU301..T5..(295T,30T);XZU301,302..(CNG,DSLL)..4NO;BZU300,XZU300..(DM6,T4)..(CNG,DSL);BZU300,XZU302..(DM3,DM6)..(DSL,LPG);XZU301..(DM3,DM6,T4)..(CNG,DSL,LPG);BZU300,RZU300,XZU302..(T4,T5)..(295T,30T) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU301,302..20T..(IV3,IV6)..1NO |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU301,302..20T..(IV3,IV6)..1NO |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-36530 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48253-36530 |
BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..(IV3,IV6) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BZU300..T4;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU301,RZU300,XZU300,302,31#..(DM3,DM5,DM6,T2,T4,T5)..WT;BU306,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362,372,382..(03S,06S,DM2,DM5,T2,T3,T4,T5)..20T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU301,302..20T..(IV3,IV6)..1NO NO.2 |
12 | ||
| 48252-37630 |
XZU301,302..20T..(IV3,IV6)..1NO NO.1 |
4 | ||
| 48252-37380 |
XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU301..DSLL..4NO;XZU321,322..30T..4NO;XZU301..(DM3,DM6,T4,T5)..(CNG,DSL,LPG);BU30#,BZU300,RZU30#,XZU300,302,306,307,31#,337,351,352,362..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
