Toyota Dyna/toyoace XZU301 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU301A-TYPMS3 (1999)
4703 - BRAKE BOOSTER & VACUUM TUBE

XZU301A-TYPMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine S05D

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0206-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-37170	BU30#,346,XZU301,302,306,307,31#,321,322,337,341,346,347,351,352,362,372,382..175T,20T	05/1999 - 02/2000	1
44610-37171	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,337,341,342,346,347,351,352,362,372,382..175T,20T	02/2000 - 06/2003	1
44610-37171	BU30#,346,BZU300,340,RZU30#,340,XZU301,302,306,307,312,32#,337,341,342,346,347,351,352,362,372,382..175T,20T ｱﾘ(ABS)	06/2003 - 06/2004	1
44621V - SEAL, BOOSTER BODY
44621-36070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44730B - CLAMP, VACUUM HOSE
44597-37020	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/2001 - 06/2004	1
44597-37010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2001	1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44734B - BRACKET, BOOSTER SUPPORT
44734-37010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 08/2000	1
44734-37011	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	08/2000 - 06/2004	1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-37030	XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG	05/1999 - 06/2004	1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37210	BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB	05/1999 - 08/2000	1
44764-37211	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..SCB	08/2000 - 06/2004	1
44764A - HOSE, BOOSTER VACUUM
44776-37090	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44768 - TUBE, BOOSTER VACUUM
44768-37110	XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN	05/1999 - 06/2004	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37040	XZU301,302,306,307,312,321,322,331,337,341,347..4FC	05/1999 - 06/2002	1
44775E - HOSE, WAY TO CONNECTOR
44776-37100	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS)	06/2003 - 06/2004	1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37150	BU301..(DM6,T1)..20T;XZU300,301,302,31#,32#,330,331,340,341,35# 長さ=420	05/1999 - 08/1999	1
44776-37170	XZU302..ST;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU31#,321,322..SCB..20T;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;BU301,XZU301,302..(DM3,DM6,T1,T3)..(20T,295T)..DSL;XZU300,320,330,331,340,341,35#..SCB..(DM2,DM7,T3,T4)..(20T,30T,35T,40T)..DSL 長さ=380	08/1999 - 06/2004	1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37130	XZU301,302,306,307,32#,331,337,341,347,352..4FC..DSL	06/2002 - 10/2002	1
44778-37130	RZU301,XZU301,302,306,307,32#,331,337,341,347,352..4FC	10/2002 - 06/2004	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90119-08676
90179-08038
90179-10065
90461-08642
90464-00549
90467-16013
90480-22022
91611-B0816
94130-00802
96132-40700
96133-41500
Linked diagrams
3104
4702
8414

ILLUST NO. 2 OF 2(9905-0406)BU30#..DCB ; (0005-0406)6F..295T ; (0005-0406)RZU300,340,XZU301..1NO ; (

Click highlighted areas on diagram

Part #	Description	Period	Qty
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..4FC..20T..DSL..1NO;S05D..XZU301..5F..20T..DSL..IV3..1NO;J05C,S05C..XZU302,350..(20T,40T)..1NO	06/2002 - 10/2002	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..4FC..20T..DSL..1NO;S05D..XZU301..5F..20T..DSL..IV3..1NO;J05C,S05C..XZU302,350..(20T,40T)..1NO	06/2002 - 10/2002	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..20T..IV3..1NO;S05D..XZU301..4FC..20T..IV6;J05C,S05C..XZU302,350..(20T,40T)..1NO	10/2002 - 06/2004	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..20T..IV3..1NO;S05D..XZU301..4FC..20T..IV6;J05C,S05C..XZU302,350..(20T,40T)..1NO	10/2002 - 06/2004	1
27679-78200	4B..BU301..1NO;S05#..XZU301,302..4FC..20T..DSL..1NO	07/1999 - 06/2002	1
27679-78200	4B..BU301..1NO;S05#..XZU301,302..4FC..20T..DSL..1NO	07/1999 - 06/2002	1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78030	4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032	05/1999 - 11/2001	1
27690-78030	4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032	05/1999 - 11/2001	1
27690-78031	S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032	11/2001 - 07/2003	1
27690-78031	S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032	11/2001 - 07/2003	1
27690-78032	S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032	07/2003 - 06/2004	1
27690-78032	S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032	07/2003 - 06/2004	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37110	BU301,XZU301,302,350..(20T,40T)..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44704-37110	BU301,XZU301,302,350..(20T,40T)..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44704-37140	XZU301..IV6..1NO;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU350..SCB..1NO;XZU301,302..20T..(DSL,DSLL)..IV3..1NO	05/2000 - 06/2004	1
44704-37140	XZU301..IV6..1NO;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU350..SCB..1NO;XZU301,302..20T..(DSL,DSLL)..IV3..1NO	05/2000 - 06/2004	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44730-60050	XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-37030	XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG	05/1999 - 06/2004	1
44754-37030	XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG	05/1999 - 06/2004	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37240	XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
44771-37240	XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37230	XZU301..4FC..IV6;XZU302..T4..5F..20T..DSL..IV3;BU30#,XZU307..SCB..(DM6,T4)..IV3;XZU301,302,306..(DM6,T4)..4FC..20T..IV3	05/2000 - 06/2002	1
44773-37230	XZU301..4FC..IV6;XZU302..T4..5F..20T..DSL..IV3;BU30#,XZU307..SCB..(DM6,T4)..IV3;XZU301,302,306..(DM6,T4)..4FC..20T..IV3	05/2000 - 06/2002	1
44773-37230	BU301..1NO;XZU301,302..4FC..20T..1NO	07/1999 - 05/2000	1
44773-37230	BU301..1NO;XZU301,302..4FC..20T..1NO	07/1999 - 05/2000	1
44773-37230	XZU301..IV6..1NO;XZU301..5F..20T..DSL..IV3..1NO;XZU301,306,341,347..SCB..(DM6,T4)..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	06/2002 - 10/2002	1
44773-37230	XZU301..IV6..1NO;XZU301..5F..20T..DSL..IV3..1NO;XZU301,306,341,347..SCB..(DM6,T4)..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	06/2002 - 10/2002	1
44773-37230	XZU301..IV6..1NO;XZU301..20T..(DSL,DSLL)..IV3..1NO;XZU301,306,341,347..SCB..T4..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	10/2002 - 06/2004	1
44773-37230	XZU301..IV6..1NO;XZU301..20T..(DSL,DSLL)..IV3..1NO;XZU301,306,341,347..SCB..T4..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	10/2002 - 06/2004	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060	XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
44778-37060	XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060	XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
44778-37060	XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37060	XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB	05/1999 - 03/2000	1
44778-37060	XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB	05/1999 - 03/2000	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
Common parts
47371-37040
90119-08676
90201-14099
90401-09001
90461-08385
94130-00802
96133-41500
Linked diagrams
1903
3602
8401

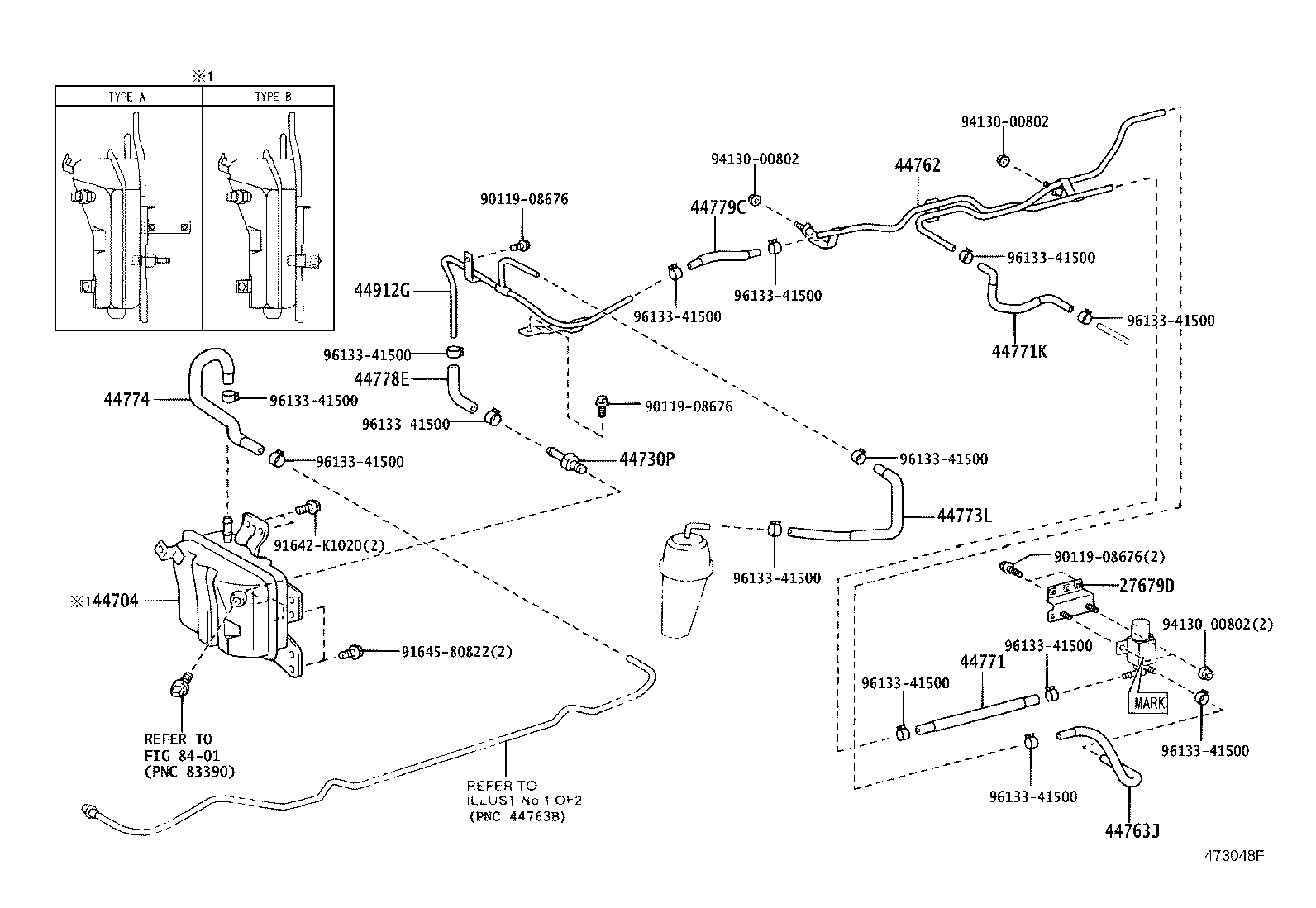

ILLUST NO. 2 OF 2(9905-0406)XZU301,302..20T..1NO ; (9906-0406)XZU350

Click highlighted areas on diagram

Part #	Description	Period	Qty
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..4FC..20T..DSL..1NO;S05D..XZU301..5F..20T..DSL..IV3..1NO;J05C,S05C..XZU302,350..(20T,40T)..1NO	06/2002 - 10/2002	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..20T..IV3..1NO;S05D..XZU301..4FC..20T..IV6;J05C,S05C..XZU302,350..(20T,40T)..1NO	10/2002 - 06/2004	1
27679-78200	4B..BU301..1NO;S05#..XZU301,302..4FC..20T..DSL..1NO	07/1999 - 06/2002	1
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..4FC..20T..DSL..1NO;S05D..XZU301..5F..20T..DSL..IV3..1NO;J05C,S05C..XZU302,350..(20T,40T)..1NO	06/2002 - 10/2002	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..20T..IV3..1NO;S05D..XZU301..4FC..20T..IV6;J05C,S05C..XZU302,350..(20T,40T)..1NO	10/2002 - 06/2004	1
27679-78200	4B..BU301..1NO;S05#..XZU301,302..4FC..20T..DSL..1NO	07/1999 - 06/2002	1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78030	4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032	05/1999 - 11/2001	1
27690-78031	S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032	11/2001 - 07/2003	1
27690-78032	S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032	07/2003 - 06/2004	1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78030	4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032	05/1999 - 11/2001	1
27690-78031	S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032	11/2001 - 07/2003	1
27690-78032	S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032	07/2003 - 06/2004	1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78030	4B..BU301..WT..IV3;S05D..XZU301..4FC..IV6;S05C..XZU302..T4..5F..20T..IV3;S05#..XZU301,302..(DM6,T4)..4FC..20T..IV3;S05#,4B..BU306,XZU301,307,31#,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78030,27690-78031,27690-78032	05/1999 - 11/2001	1
27690-78031	S05D..XZU331..DSL..IV4;S05D..XZU331..5F..DSLL;S05#..XZU301,31#..DCB..5F;S05D..XZU301..4FC..DSL..(IV4,IV6);S05C,4B..BU30#,XZU307..03S,06S,DM6;S05#..XZU301,302..4FC..20T..DSL..IV3..1NO ﾏｰｸ= 27690-78031,27690-78032	11/2001 - 07/2003	1
27690-78032	S05#..XZU301,302..4FC..20T..IV3..1NO;J05C,S05D..XZU301,350..(IV4,IV6)..1NO;S05#,4B..BU306,XZU307,312,331..(DCB,VAN)..(03S,06S,DM5,T3) ﾏｰｸ= 27690-78032	07/2003 - 06/2004	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37110	BU301,XZU301,302,350..(20T,40T)..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44704-37140	XZU301..IV6..1NO;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU350..SCB..1NO;XZU301,302..20T..(DSL,DSLL)..IV3..1NO	05/2000 - 06/2004	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37240	XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37230	XZU301..4FC..IV6;XZU302..T4..5F..20T..DSL..IV3;BU30#,XZU307..SCB..(DM6,T4)..IV3;XZU301,302,306..(DM6,T4)..4FC..20T..IV3	05/2000 - 06/2002	1
44773-37230	BU301..1NO;XZU301,302..4FC..20T..1NO	07/1999 - 05/2000	1
44773-37230	XZU301..IV6..1NO;XZU301..5F..20T..DSL..IV3..1NO;XZU301,306,341,347..SCB..(DM6,T4)..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	06/2002 - 10/2002	1
44773-37230	XZU301..IV6..1NO;XZU301..20T..(DSL,DSLL)..IV3..1NO;XZU301,306,341,347..SCB..T4..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	10/2002 - 06/2004	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37230	XZU301..4FC..IV6;XZU302..T4..5F..20T..DSL..IV3;BU30#,XZU307..SCB..(DM6,T4)..IV3;XZU301,302,306..(DM6,T4)..4FC..20T..IV3	05/2000 - 06/2002	1
44773-37230	BU301..1NO;XZU301,302..4FC..20T..1NO	07/1999 - 05/2000	1
44773-37230	XZU301..IV6..1NO;XZU301..5F..20T..DSL..IV3..1NO;XZU301,306,341,347..SCB..(DM6,T4)..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	06/2002 - 10/2002	1
44773-37230	XZU301..IV6..1NO;XZU301..20T..(DSL,DSLL)..IV3..1NO;XZU301,306,341,347..SCB..T4..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	10/2002 - 06/2004	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37110	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	05/1999 - 06/2004	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060	XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37060	XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB	05/1999 - 03/2000	1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37060	XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB	05/1999 - 03/2000	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
Common parts
90119-08676
91641-80835
91642-81035
91642-K1020
91645-80822
94130-00802
96133-41500
Linked diagrams
3602
8401

ILLUST NO. 2 OF 2(0005-0406)XZU341..T4..IV3 ; (0005-0406)XZU306..DSLL..CBU ; (0005-0406)XZU301,306,3

Click highlighted areas on diagram

ﾎﾞﾄﾙｶｰ OR ﾚｲﾄｳｼﾔ

Part #	Description	Period	Qty
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..4FC..20T..DSL..1NO;S05D..XZU301..5F..20T..DSL..IV3..1NO;J05C,S05C..XZU302,350..(20T,40T)..1NO	06/2002 - 10/2002	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..4FC..20T..DSL..1NO;S05D..XZU301..5F..20T..DSL..IV3..1NO;J05C,S05C..XZU302,350..(20T,40T)..1NO	06/2002 - 10/2002	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..20T..IV3..1NO;S05D..XZU301..4FC..20T..IV6;J05C,S05C..XZU302,350..(20T,40T)..1NO	10/2002 - 06/2004	1
27679-78200	S05D..XZU301..5F..IV6..1NO;S05D..XZU301..20T..IV3..1NO;S05D..XZU301..4FC..20T..IV6;J05C,S05C..XZU302,350..(20T,40T)..1NO	10/2002 - 06/2004	1
27679-78200	4B..BU301..1NO;S05#..XZU301,302..4FC..20T..DSL..1NO	07/1999 - 06/2002	1
27679-78200	4B..BU301..1NO;S05#..XZU301,302..4FC..20T..DSL..1NO	07/1999 - 06/2002	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37110	BU301,XZU301,302,350..(20T,40T)..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44704-37110	BU301,XZU301,302,350..(20T,40T)..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44704-37140	XZU301..IV6..1NO;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU350..SCB..1NO;XZU301,302..20T..(DSL,DSLL)..IV3..1NO	05/2000 - 06/2004	1
44704-37140	XZU301..IV6..1NO;XZU301,302,341,342..CNG,LPG;BU301,RZU300,340,XZU350..SCB..1NO;XZU301,302..20T..(DSL,DSLL)..IV3..1NO	05/2000 - 06/2004	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44730-60050	XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37240	XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
44771-37240	XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7)	05/1999 - 06/2004	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37230	XZU301..4FC..IV6;XZU302..T4..5F..20T..DSL..IV3;BU30#,XZU307..SCB..(DM6,T4)..IV3;XZU301,302,306..(DM6,T4)..4FC..20T..IV3	05/2000 - 06/2002	1
44773-37230	XZU301..4FC..IV6;XZU302..T4..5F..20T..DSL..IV3;BU30#,XZU307..SCB..(DM6,T4)..IV3;XZU301,302,306..(DM6,T4)..4FC..20T..IV3	05/2000 - 06/2002	1
44773-37230	BU301..1NO;XZU301,302..4FC..20T..1NO	07/1999 - 05/2000	1
44773-37230	BU301..1NO;XZU301,302..4FC..20T..1NO	07/1999 - 05/2000	1
44773-37230	XZU301..IV6..1NO;XZU301..5F..20T..DSL..IV3..1NO;XZU301,306,341,347..SCB..(DM6,T4)..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	06/2002 - 10/2002	1
44773-37230	XZU301..IV6..1NO;XZU301..5F..20T..DSL..IV3..1NO;XZU301,306,341,347..SCB..(DM6,T4)..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	06/2002 - 10/2002	1
44773-37230	XZU301..IV6..1NO;XZU301..20T..(DSL,DSLL)..IV3..1NO;XZU301,306,341,347..SCB..T4..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	10/2002 - 06/2004	1
44773-37230	XZU301..IV6..1NO;XZU301..20T..(DSL,DSLL)..IV3..1NO;XZU301,306,341,347..SCB..T4..4FC..(20T,30T)..DSL..IV3;BU30#,XZU302,307,337,350..SCB..(DM6,T3,T4)..(20T,40T)..DSL..(IV3,IV6)	10/2002 - 06/2004	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37110	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	05/1999 - 06/2004	1
44774-37110	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB	05/1999 - 06/2004	1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37060	XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB	05/1999 - 03/2000	1
44778-37060	XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB	05/1999 - 03/2000	1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37560	XZU301,302..20T..(IV3,IV6)..1NO	05/1999 - 05/2000	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6;XZU306..T4..DSL..IV3;XZU301,302,307..SCB..(DM6,T4)..20T..(DSL,DSLL)..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	05/2000 - 06/2002	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
44912-37840	XZU301..IV6..1NO;XZU302..T4..5F..20T..DSL..IV3;XZU306,307..SCB..T4..DSL..IV3;XZU301,302..(DM6,T4)..4FC..20T..DSL..IV3 ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ	06/2002 - 06/2004	1
Common parts
90119-08676
91642-K1020
91645-80822
94130-00802
96133-41500
Linked diagrams
8401

ILLUST NO. 1 OF 2(9905-0206)BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-37170	BU30#,346,XZU301,302,306,307,31#,321,322,337,341,346,347,351,352,362,372,382..175T,20T	05/1999 - 02/2000	1
44610-37171	BU30#,346,RZU300,340,XZU301,302,306,307,31#,321,322,337,341,342,346,347,351,352,362,372,382..175T,20T	02/2000 - 06/2003	1
44610-37171	BU30#,346,BZU300,340,RZU30#,340,XZU301,302,306,307,312,32#,337,341,342,346,347,351,352,362,372,382..175T,20T ｱﾘ(ABS)	06/2003 - 06/2004	1
44621V - SEAL, BOOSTER BODY
44621-36070	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010	RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5	04/2001 - 06/2002	1
44730-20070	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 04/2001	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-35010	RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5	04/2001 - 06/2002	1
44730-20070	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 04/2001	1
44730B - CLAMP, VACUUM HOSE
44597-37020	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/2001 - 06/2004	1
44597-37010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2001	1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44734B - BRACKET, BOOSTER SUPPORT
44734-37010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 08/2000	1
44734-37011	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	08/2000 - 06/2004	1
44754C - BRACKET, VACUUM TUBE, NO.1
44754-37030	XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG	05/1999 - 06/2004	1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37210	BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB	05/1999 - 08/2000	1
44764-37211	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..SCB	08/2000 - 06/2004	1
44764A - HOSE, BOOSTER VACUUM
44776-37090	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44768 - TUBE, BOOSTER VACUUM
44768-37110	XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN	05/1999 - 06/2004	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37040	XZU301,302,306,307,312,321,322,331,337,341,347..4FC	05/1999 - 06/2002	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37040	XZU301,302,306,307,312,321,322,331,337,341,347..4FC	05/1999 - 06/2002	1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-37030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 08/2001	1
44772-37060	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 06/2002	1
44775E - HOSE, WAY TO CONNECTOR
44776-37100	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS)	06/2003 - 06/2004	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS)	06/2003 - 06/2004	1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37150	BU301..(DM6,T1)..20T;XZU300,301,302,31#,32#,330,331,340,341,35# 長さ=420	05/1999 - 08/1999	1
44776-37170	XZU302..ST;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU31#,321,322..SCB..20T;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;BU301,XZU301,302..(DM3,DM6,T1,T3)..(20T,295T)..DSL;XZU300,320,330,331,340,341,35#..SCB..(DM2,DM7,T3,T4)..(20T,30T,35T,40T)..DSL 長さ=380	08/1999 - 06/2004	1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37130	XZU301,302,306,307,32#,331,337,341,347,352..4FC..DSL	06/2002 - 10/2002	1
44778-37130	RZU301,XZU301,302,306,307,32#,331,337,341,347,352..4FC	10/2002 - 06/2004	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90119-08676
90179-08038
90179-10065
90461-08642
90464-00549
90467-16013
90480-22022
91611-B0816
94130-00802
96132-40700
96133-41500
Linked diagrams
3104
4702
8414

ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
90179-08038
90179-10065
90464-00549
90466-15003
90480-22022
91611-B0816
94130-00802
96132-40700
96133-41500
Linked diagrams
4702
8414

ILLUST NO. 2 OF 2(0206- )XZU411,421..4FC,6F ; (0206- )XZU401..4FC,5F..30T,35T ; (0206- )XZU

Click highlighted areas on diagram

BOTTOLE CAR

Part #	Description	Period	Qty	Price
Common parts
90119-08676
91641-C0814
95446-09400
96133-41500
Linked diagrams
8401

XZU301A-TYPMS3 (1999)

ILLUST NO. 1 OF 2(0206-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,3

ILLUST NO. 2 OF 2(9905-0406)BU30#..DCB ; (0005-0406)6F..295T ; (0005-0406)RZU300,340,XZU301..1NO ; (

ILLUST NO. 2 OF 2(9905-0406)XZU301,302..20T..1NO ; (9906-0406)XZU350

ILLUST NO. 2 OF 2(0005-0406)XZU341..T4..IV3 ; (0005-0406)XZU306..DSLL..CBU ; (0005-0406)XZU301,306,3

ILLUST NO. 1 OF 2(9905-0206)BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB

ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354

ILLUST NO. 2 OF 2(0206- )XZU411,421..4FC,6F ; (0206- )XZU401..4FC,5F..30T,35T ; (0206- )XZU

Part Price Details
