Toyota Dyna/toyoace XZU301 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU301A-TYMMS6 (1999)
3602 - POWER TAKE-OFF CASE & GEAR

XZU301A-TYMMS6 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)5F..IV6 ; (9905-0406)XZU306..T4..5F..CBU

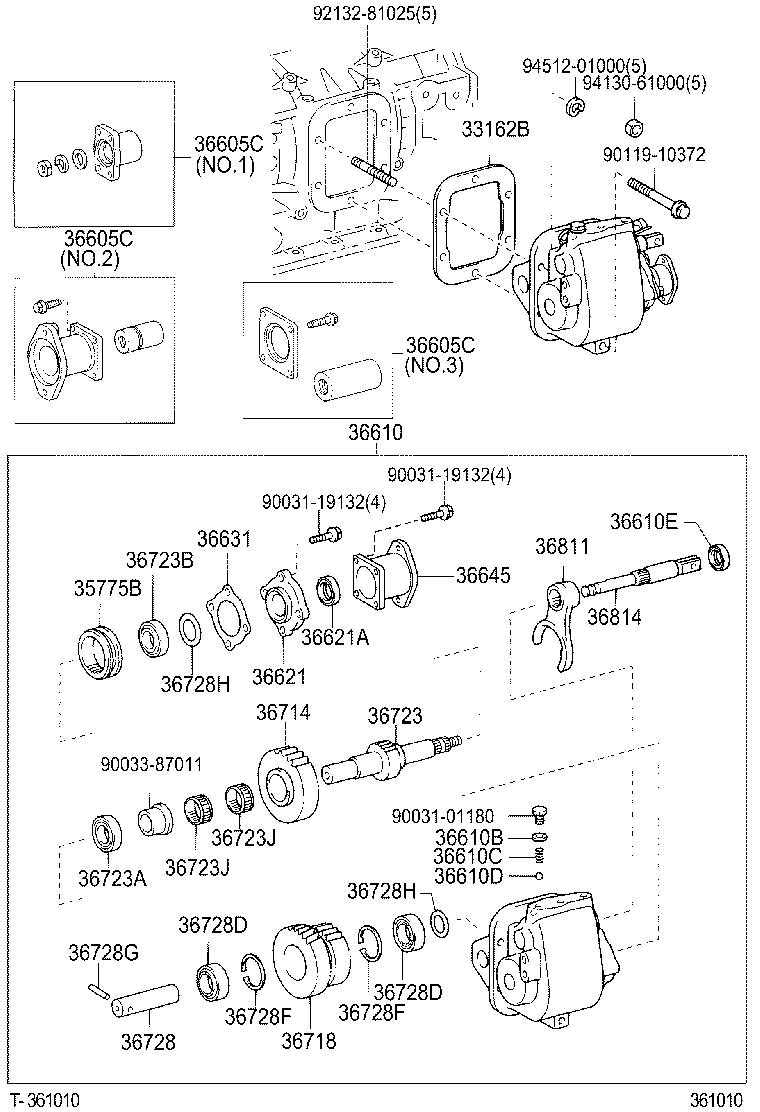

Click highlighted areas on diagram

ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36610 - POWER TAKE-OFF ASSY
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF)
90031-01180	XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12001	XZU301,350..5F..IV6;XZU306..T4..5F..CBU 厚さ=0.5	05/1999 - 06/2002	1
90430-12004	XZU301,350..5F..IV6;XZU306..T4..5F..CBU 厚さ=2	05/1999 - 06/2002	1
90430-12006	XZU301,306,354..5F..IV6 厚さ=1	06/2004 - 10/2006	1
90430-12001	XZU301,306,354..5F..IV6 厚さ=0.5	06/2004 - 10/2006	1
90430-12006	XZU301,350..5F..IV6;XZU306..T4..5F..CBU 厚さ=1	05/1999 - 06/2002	1
90430-12004	XZU301,306,354..5F..IV6 厚さ=2	06/2004 - 10/2006	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90035-01053	XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90035-01053	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-10001	XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90360-10001	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU321..DM7..5F..4NO;XZU322..(DM7,DM8)..5F;XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90311-20010	XZU301..DM3;XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36621-37071	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU322..T5..5F;XZU301..5F..20T..IV6;XZU302,330,350..5F..(20T,40T)..1NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)	05/1999 - 06/2002	1
90311-25110	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93101	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36632-37030	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36642 - SPACER, POWER TAKE-OFF COVER
36642-37020	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37090	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37040	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,341,342,346,347,350..(T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36723-37030	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
90366-22001	XZU301,306,354..5F..IV6	06/2004 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25	05/1999 - 06/2002	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08	05/1999 - 06/2002	1
90564-42002	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13	05/1999 - 06/2002	1
90564-42003	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23	05/1999 - 06/2002	1
90564-42004	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53	05/1999 - 06/2002	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36811-93104	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37060	XZU301,350..5F..IV6	05/1999 - 06/2002	1
36814-37060	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
Common parts
82716-37270
90031-70107
90032-01147
90033-87011
90119-08124
90119-10890
90214-14001
92112-61045
94130-61000
94512-01000
Linked diagrams
8413

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

Click highlighted areas on diagram

ﾊﾞｷﾕ-ﾑｼｷ

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

(0206-0406)XZU301,32#,350..DM6,DM7,DM8,T3..5F..20T,30T,40T..DSL,DSLL..CBU,IV3,IV6

Click highlighted areas on diagram

ﾃﾞﾝｷｼｷ

Part #	Description	Period	Qty
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
35775-37010	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36610 - POWER TAKE-OFF ASSY
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU321..DM7..5F..4NO;XZU322..(DM7,DM8)..5F;XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90311-20010	XZU321..DM7..5F..4NO;XZU322..(DM7,DM8)..5F;XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90311-20010	XZU301..DM3;XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
90311-20010	XZU301..DM3;XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36621-93200	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36621-37071	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36621-37071	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU322..T5..5F;XZU301..5F..20T..IV6;XZU302,330,350..5F..(20T,40T)..1NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)	05/1999 - 06/2002	1
90311-25110	XZU322..T5..5F;XZU301..5F..20T..IV6;XZU302,330,350..5F..(20T,40T)..1NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)	05/1999 - 06/2002	1
90311-25110	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
90311-25110	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37090	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714-37090	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37040	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,341,342,346,347,350..(T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36718-37040	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,341,342,346,347,350..(T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36723-37100	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36723-37030	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723-37030	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728-37020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728-37020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
90254-04002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36851-37010	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
Common parts
90031-16079
90119-10295
94130-61000
94512-01000
SU002-00719
SU002-00723
SU002-00745
SU002-00782
SU002-00820
SU002-00855
SU002-00856
SU002-00857
SU002-00858
SU002-00862
Linked diagrams
8413

(0206-0406)5F..IV6..1NO

Click highlighted areas on diagram

ﾏﾆﾕｱﾙﾚﾊﾞ- MYY5A

Part #	Description	Period	Qty
36610 - POWER TAKE-OFF ASSY
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
Common parts
90031-16079
90119-10295
94130-61000
94512-01000

(0406- )5F..IV6 ; (0406- )35T,40T..IV3

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12001	XZU301,350..5F..IV6;XZU306..T4..5F..CBU 厚さ=0.5	05/1999 - 06/2002	1
90430-12004	XZU301,350..5F..IV6;XZU306..T4..5F..CBU 厚さ=2	05/1999 - 06/2002	1
90430-12006	XZU301,306,354..5F..IV6 厚さ=1	06/2004 - 10/2006	1
90430-12001	XZU301,306,354..5F..IV6 厚さ=0.5	06/2004 - 10/2006	1
90430-12006	XZU301,350..5F..IV6;XZU306..T4..5F..CBU 厚さ=1	05/1999 - 06/2002	1
90430-12004	XZU301,306,354..5F..IV6 厚さ=2	06/2004 - 10/2006	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90035-01053	XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90035-01053	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-10001	XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90360-10001	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU321..DM7..5F..4NO;XZU322..(DM7,DM8)..5F;XZU301,350..(DM6,T3)..5F..IV6	05/1999 - 06/2002	1
90311-20010	XZU301..DM3;XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36621-37071	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU322..T5..5F;XZU301..5F..20T..IV6;XZU302,330,350..5F..(20T,40T)..1NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)	05/1999 - 06/2002	1
90311-25110	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93101	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36632-37030	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36645 - SPACER, POWER TAKE-OFF OUTPUT SHAFT
36645-37030	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37090	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37040	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,341,342,346,347,350..(T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36723-37030	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
90366-22001	XZU301,306,354..5F..IV6	06/2004 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25	05/1999 - 06/2002	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36811-93104	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37060	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36814-37060	XZU301,350..5F..IV6	05/1999 - 06/2002	1
Common parts
90031-01180
90031-19132
90033-87011
90119-10372
92132-81025
94130-61000
94512-01000

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36605C - POWER TAKE-OFF SET
36605-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.1	06/2004 - 12/2999	1
36605-37040	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.2	06/2004 - 12/2999	1
36605-37050	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354,368,378,388..(DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) NO.3	06/2004 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36621-37071	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU322..T5..5F;XZU301..5F..20T..IV6;XZU302,330,350..5F..(20T,40T)..1NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)	05/1999 - 06/2002	1
90311-25110	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93101	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36632-37030	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37090	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37040	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,341,342,346,347,350..(T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36723-37030	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
90366-22001	XZU301,306,354..5F..IV6	06/2004 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25	05/1999 - 06/2002	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08	05/1999 - 06/2002	1
90564-42002	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13	05/1999 - 06/2002	1
90564-42003	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23	05/1999 - 06/2002	1
90564-42004	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53	05/1999 - 06/2002	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36811-93104	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37060	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36814-37060	XZU301,350..5F..IV6	05/1999 - 06/2002	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ15KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-96300	XZU301,302,306,31#,32#,331,34#,35#..5F	05/1999 - 06/1999	2
33162-37030	XZU302..LPG;XZU302..(DM3,DM6,T3)..5F;XZU301..5F..(CBU,IV3,IV6);XZU302..(T4,T5)..(295T,30T);XZU300,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	06/1999 - 06/2002	2
33162-37030	XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
35775-37030	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
36610 - POWER TAKE-OFF ASSY
36610-37090	XZU301,306,350..(DM6,T3,T4)..5F..(20T,40T)..(CBU,IV6) ｱﾘ(ﾌﾞﾝﾘｼｷﾊﾞｷﾕ-ﾑ P.T.O)	05/1999 - 06/2002	1
36610-37261	XZU301,350..5F..IV6..1NO	06/2002 - 06/2004	1
36610-37330	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36621-37071	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU322..T5..5F;XZU301..5F..20T..IV6;XZU302,330,350..5F..(20T,40T)..1NO;XZU301..(DM6,T3)..5F..(20T,30T)..DSL..(CBU,IV3) ｱﾘ(PTO ﾏﾆﾕｱﾙﾚﾊﾞ-ｼｷ)	05/1999 - 06/2002	1
90311-25110	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93101	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36632-37030	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37170	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 02/2005	1
36714-37090	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36714-37171	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	02/2005 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37040	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,341,342,346,347,350..(T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36723-37030	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU302..LPG;XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,306,322,330,331,34#,350..(T2,T3,T4,T5)..MTM..(DSL,DSLL,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
90366-22001	XZU301,306,354..5F..IV6	06/2004 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	BU30#,346,RZU300,340,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU300,302,306,307,322,33#,341,342,346,347,350,362,372,382..(DM6,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3,IV6) 厚さ=16.25	05/1999 - 06/2002	1
90366-22001	XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25	06/2004 - 12/2999	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
90364-28020	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728-37020	XZU304,334..(DCRL,DSLL)..(CBU,IV3);XZU301,305,306,331,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BU30#,346,RZU300,XZU301,362..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,31#,32#,33#,341,342,346,347,35#,372,382..(DCB,SCB)..5F..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.05	05/1999 - 06/2002	1
90564-25002	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.1	05/1999 - 06/2002	1
90564-25003	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.2	05/1999 - 06/2002	1
90564-25004	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6) 厚さ=0.5	05/1999 - 06/2002	1
90564-42003	XZU301,306,354..5F..IV6 厚さ=0.17−0.23	06/2004 - 12/2999	1
90564-25002	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	06/2004 - 12/2999	1
90564-25004	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	06/2004 - 12/2999	1
90564-42001	XZU301,306,354..5F..IV6 厚さ=0.02−0.08	06/2004 - 12/2999	1
90564-42002	XZU301,306,354..5F..IV6 厚さ=0.07−0.13	06/2004 - 12/2999	1
90564-25003	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	06/2004 - 12/2999	1
90564-25001	XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	06/2004 - 12/2999	1
90564-42004	XZU301,306,354..5F..IV6 厚さ=0.47−0.53	06/2004 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.02−0.08	05/1999 - 06/2002	1
90564-42002	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.07−0.13	05/1999 - 06/2002	1
90564-42003	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.17−0.23	05/1999 - 06/2002	1
90564-42004	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6) 厚さ=0.47−0.53	05/1999 - 06/2002	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	BU30#,346,RZU300,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6);RZU340,XZU300,302,306,307,322,33#,34#,350,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
36811-93104	XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)	06/2004 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37060	XZU301,306,354..5F..IV6	06/2004 - 10/2006	1
36814-37060	XZU301,350..5F..IV6	05/1999 - 06/2002	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330,350..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3,IV6)	05/1999 - 06/2002	1
Common parts
82716-37480
90031-70107
90032-01147
90101-08156
90116-10103
90119-08124
90179-14066
90201-08091
90201-15011
90214-14001
90389-25003
90407-51002
90501-29040
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG

Part #	Description	Period	Qty	Price
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863

XZU301A-TYMMS6 (1999)

(9905-0406)5F..IV6 ; (9905-0406)XZU306..T4..5F..CBU

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

(0206-0406)XZU301,32#,350..DM6,DM7,DM8,T3..5F..20T,30T,40T..DSL,DSLL..CBU,IV3,IV6

(0206-0406)5F..IV6..1NO

(0406- )5F..IV6 ; (0406- )35T,40T..IV3

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Part Price Details
