XZU301A-TYMMM3 (2000)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(9905-0406)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37170 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31301-37160 |
BU306,346,XZU30#,322,33#,34#..(DM6,T2,T3,T4,T5)..MTM..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁ ｽｲﾂﾁ) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90959-03257 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 31302-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37010 |
BU306,346,XZU30#,322,33#,34#..(DM6,T2,T3,T4,T5)..MTM..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90179-06204 | ||||
| 90468-14017 | ||||
| 91641-80818 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8413 | ||||

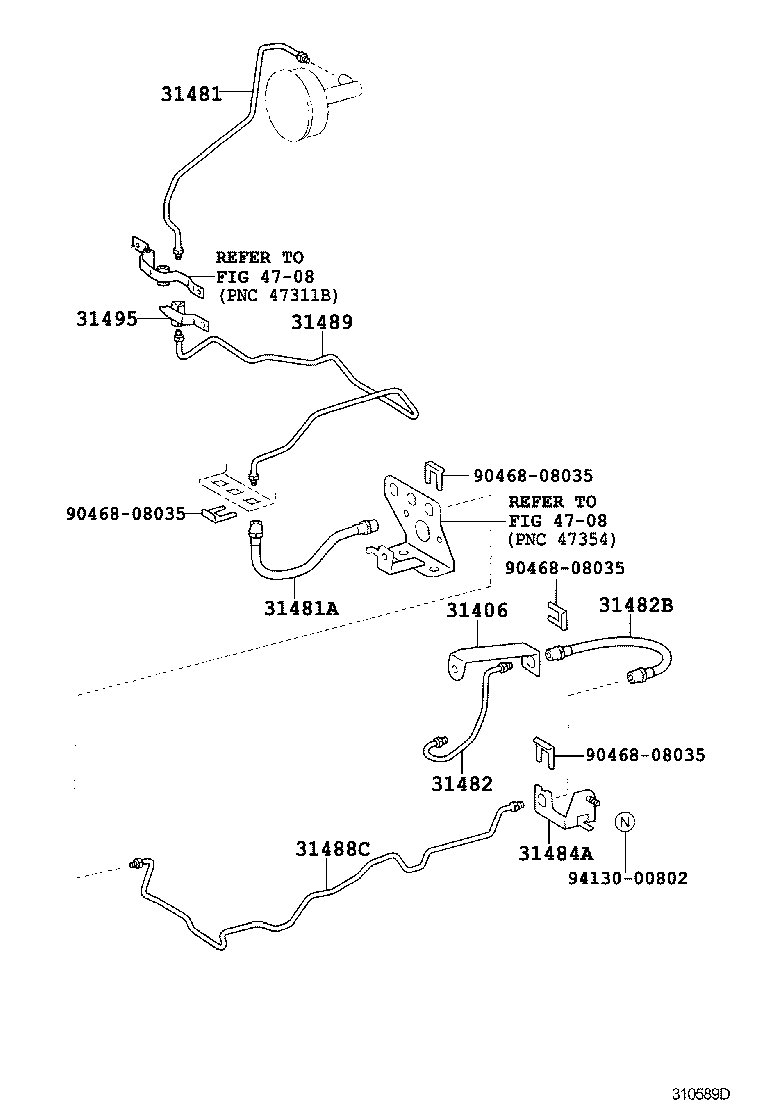

ILLUST NO. 2 OF 2(9905-0406)MTM..CNG,LPG,TDEFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-08035 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(9905-0705)MTM..CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06204 | ||||
| 90468-14017 | ||||
| 91111-41035 | ||||
| 91651-B0820 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8401 | ||||
| 8413 | ||||
