XZU301A-TYMMM3 (2000)
Toyota Dyna/Toyoace
(0010-0306)15BCNG..XZU301,302

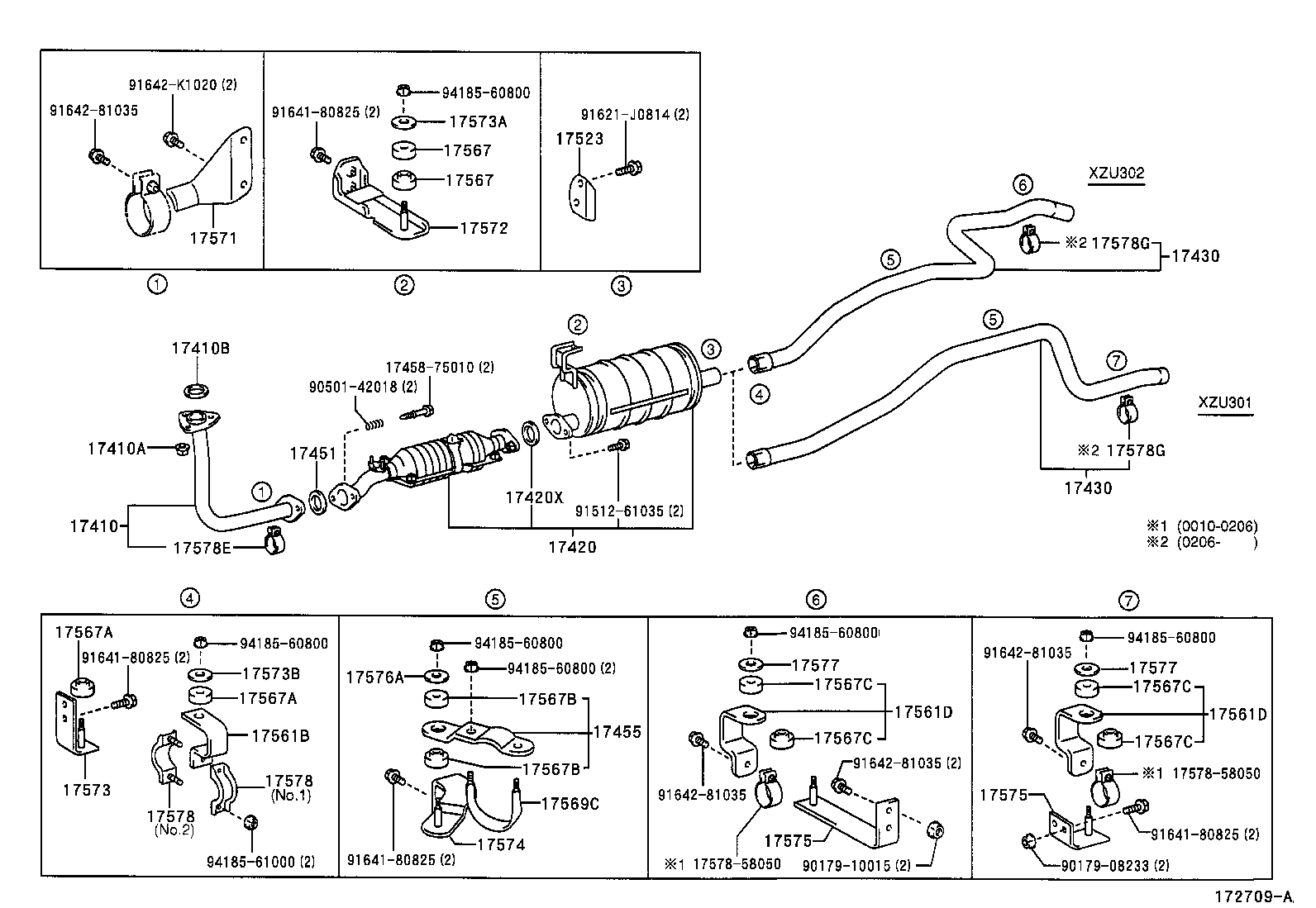

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06067 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-5C210 |
15B#..XZU301,302..DM6,T4 |
1 | ||
| 17420-5C211 |
15B#..XZU301,302..DM6,T4 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D,4B..BU30#,XZU321,341,346,371;S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,4B,3RZFE,3RZFPE..BU346,RZU300,340,XZU300,301,302,307,320,322,330,337,340,341,342,347,350,362,372,382 |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D,4B..BU30#,XZU321,341,346,371;S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,4B,3RZFE,3RZFPE..BU346,RZU300,340,XZU300,301,302,307,320,322,330,337,340,341,342,347,350,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-58391 |
15B#..XZU301,302,341,342 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78050 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,350,362,382..WT |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,33#,35#,362,37#,382 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78010 |
S05D..XZU341,346,371;S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,307,330,337,340,341,342,347,350,372,382 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D,4B..BU30#,346,XZU321,341,346,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,307,320,322,330,337,340,341,342,347,350,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-58050 |
15BLPG..XZU301,341;15B#,3RZFPE..RZU300,XZU301,302,342..20T |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-58050 |
15BLPG..XZU301,341;15B#,3RZFPE..RZU300,XZU301,302,342..20T |
1 | ||
| Common parts | ||||
| 17458-75010 | ||||
| 17578-58050 | ||||
| 90179-08233 | ||||
| 90179-10015 | ||||
| 90501-42018 | ||||
| 91512-61035 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 91642-K1020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
