XZU301A-TYMMC3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2003
Engine 15BLPG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )15B#

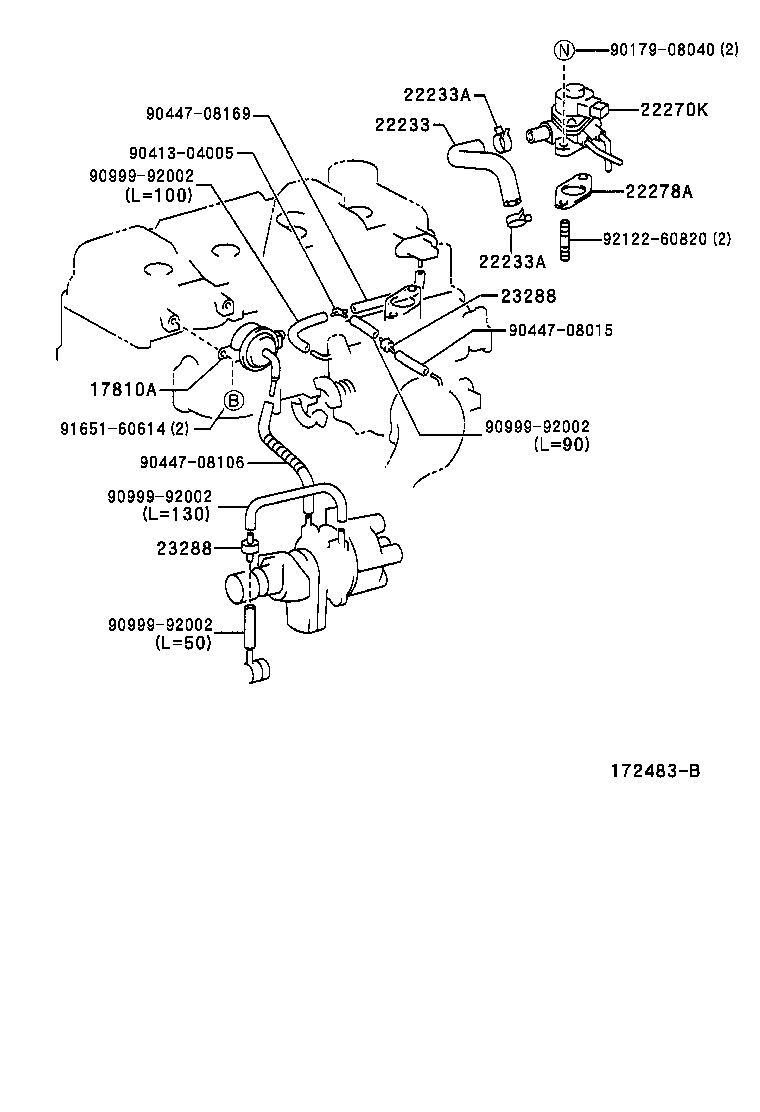

diagram 17810A 22233 22233A 22233A 22270K 22278A 23288 23288 9017908040 9041304005 9044708015 9044708106 9044708169 9099992002 9099992002 9099992002 9099992002 9165160614 9212260820
Part # Description Qty Price
17810A - FILTER ASSY, AIR
17810-48011

15B#..XZU301,302,341,342

 1
17810-48011

15B#..XZU301,302,341,342

 1
22233 - HOSE, LPG AUXILIARY AIR VALVE, NO.1
22233-48011

15B#..XZU301,302,341,342

 1
22233-48011

15B#..XZU301,302,341,342

 1
22233-48010

15B#..XZU301,302,341,342

 1
22233-48010

15B#..XZU301,302,341,342

 1
22233A - CLIP(FOR LPG AUXILIARY AIR VALVE NO.1)
90467-26002

15B#..XZU301,302,341,342

 2
90467-26002

15B#..XZU301,302,341,342

 2
96134-52600

15B#..XZU301,302,341,342

 2
96134-52600

15B#..XZU301,302,341,342

 2
22233A - CLIP(FOR LPG AUXILIARY AIR VALVE NO.1)
90467-26002

15B#..XZU301,302,341,342

 2
90467-26002

15B#..XZU301,302,341,342

 2
96134-52600

15B#..XZU301,302,341,342

 2
96134-52600

15B#..XZU301,302,341,342

 2
22270K - VALVE ASSY, LPG IDLE SPEED CONTROL
22270-48010

15B#..XZU301,302,341,342

 1
22270-48010

15B#..XZU301,302,341,342

 1
22278A - GASKET, LPG IDLE SPEED CONTROL VALVE
22278-46010

15B#..XZU301,302,341,342

 1
22278-46010

15B#..XZU301,302,341,342

 1
23288 - JET, NO.1
90925-04007

15B#..XZU301,302,341,342

 2
90925-04007

15B#..XZU301,302,341,342

 2
23288 - JET, NO.1
90925-04007

15B#..XZU301,302,341,342

 2
90925-04007

15B#..XZU301,302,341,342

 2
Common parts
90179-08040 None epc.PartDetail.None
90413-04005 None epc.PartDetail.None
90447-08015 None epc.PartDetail.None
90447-08106 None epc.PartDetail.None
90447-08169 None epc.PartDetail.None
90999-92002 None epc.PartDetail.None
91651-60614 None epc.PartDetail.None
92122-60820 None epc.PartDetail.None

(0011- )15BCNG,15BLPG

diagram 17810A 22233 22233A 22233A 22270K 22278A 23288 23288 9017908040 9041304005 9044708015 9044708106 9044708169 9099992002 9099992002 9099992002 9099992002 9165160614 9212260820
Part # Description Qty Price
Common parts
90179-08040 None epc.PartDetail.None
90413-04005 None epc.PartDetail.None
90447-08015 None epc.PartDetail.None
90447-08106 None epc.PartDetail.None
90447-08169 None epc.PartDetail.None
90999-92002 None epc.PartDetail.None
91651-60614 None epc.PartDetail.None
92122-60820 None epc.PartDetail.None
