XZU301-TQTQS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine S05D
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )6FC

Click highlighted areas on diagram

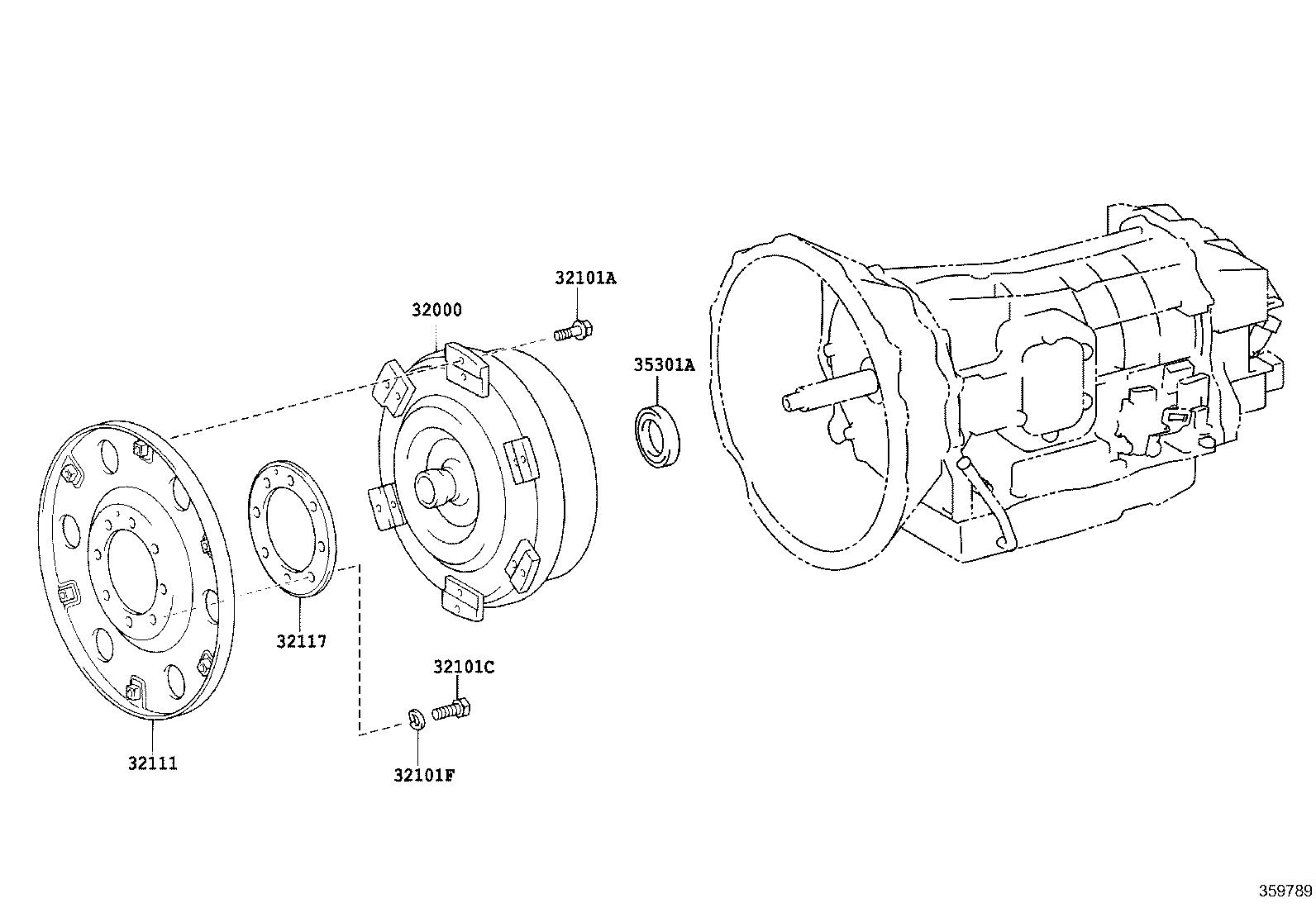

A860

diagram 32000 32101A 32101C 32101F 32111 32117 35301A
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-37030

XZU301,304,306,331,334,336,341,346,351..6FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-10894

XZU301,304,306,308,33#,341,346,348,351..ATM

*10−1.25PX28−23

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90031-01166

XZU301,306,331,336,341,346,351..6FC

 8
32101F - WASHER(FOR DRIVE PLATE & RING GEAR)
90032-04005

XZU301,306,331,336,341,346,351..6FC

 8
32111 - PLATE, PUMP IMPELLER DRIVE
32111-37023

XZU301,306,331,336,341,346,351..6FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-37010

XZU301,306,331,336,341,346,351..6FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-46009

XZU301,304,306,331,334,336,341,346,351..6FC

 1

(0406- )6FC

Click highlighted areas on diagram

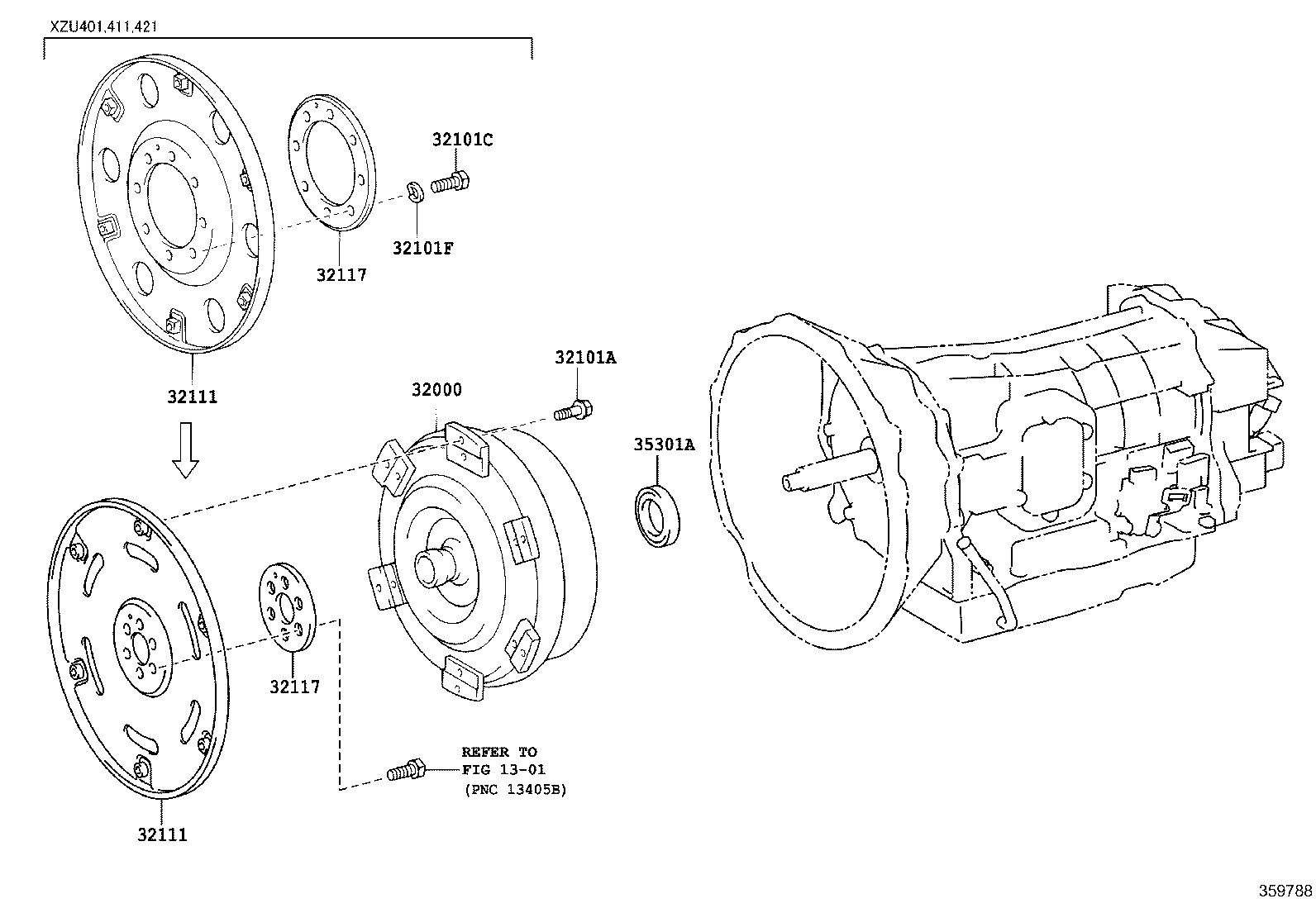

A860

diagram 1301 32000 32101A 32101C 32101F 32111 32111 32117 32117 35301A
Part # Description Qty Price
Linked diagrams
1301
