XZU301-TQPQS (2000)
Toyota Dyna/Toyoace
(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-37010 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU301,312,321,322..SCB..5F..(CBU,IV3);XZU301,322..(T3,T4,T5)..4FC..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,311,320,33#,34#,351,352,362,372,382..SCB |
1 | ||
| 84987-37010 |
BU30#..SCB;BU346,BZU300,340,RZU30#,340,XZU301,302,306,307,331,337,341,342,346,347,362,372,382..SCB..(T2,T3,T4,T5)..(CBU,IV3) |
1 | ||
| 84987-37010 |
XZU322..DM8,T5;XZU322..DM7..5F;BU30#,346,XZU30#,31#,320,321,33#,34#,351,352,362,372,382..SCB..(CBU,IV3) |
1 | ||
| 84987-37010 |
BU30#,346,RZU300,340,XZU301,302,306,307,331,337,341,342,346,347,362,372,382..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3) |
1 | ||
| 84987-37010 |
BU30#,346..SCB;RZU300,340,XZU301,302,306,307,331,337,341,342,346,347,362,372,382..SCB..(T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 85999Q - BRACKET, DOOR CONTROL TRANSMITTER | ||||
| 85999-36040 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU301,312,321,322..SCB..5F..(CBU,IV3);XZU301,322..(T3,T4,T5)..4FC..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,311,320,33#,34#,351,352,362,372,382..SCB ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 85999-36040 |
XZU341..6F..295T;BU30#,XZU341..SCB..(20T,30T)..DSL;BU346,RZU300,340,XZU301,302,306,307,331,337,342,346,347,362,372,382..SCB..(T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 85999-36040 |
BU30#,346,XZU30#,31#,32#,33#,34#,351,352,362,372,382..SCB..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 85999-36040 |
XZU341..6F..295T;BU30#,346,XZU341..SCB..(20T,30T)..(DSL,LPG);RZU300,340,XZU301,302,306,307,331,337,342,346,347,362,372,382..SCB..(T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||

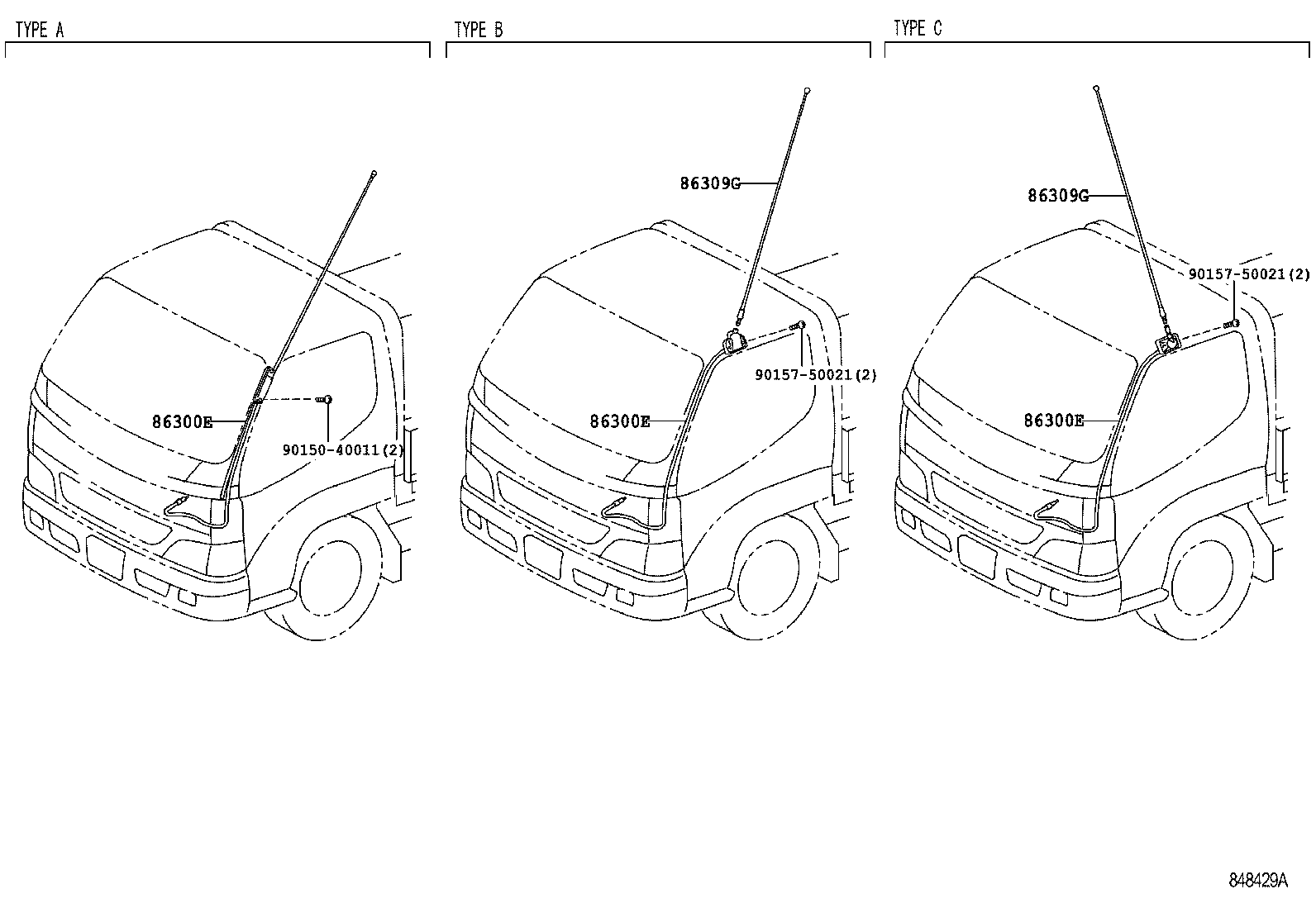

| 86300E - ANTENNA ASSY, WIRELESS DOOR LOCK | ||||
| 86300-37070 |
BU30#;BU346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,372,382..(20T,295T,30T)..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 86300-37070 |
BU30#,346,BZU300,340,RZU30#,340;XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(20T,295T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 86300-37070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-37050 |
BU30#,346,XZU30#,31#,32#,33#,34#,351,352,362,372,382..SCB..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 89741-37050 |
XZU302..5F..20T..1NO;XZU302..(DM3,T3,T4,T5)..DSL;XZU301,322..(T3,T4,T5)..4FC..(CBU,IV3);XZU301,312,321,322..SCB..5F..(DSL,DSLL)..(CBU,IV3);BU30#,346,XZU300,306,307,311,320,33#,34#,351,352,362,372,382..SCB..(DSL,DSLL) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 89741-37050 |
BU30#,346,XZU301,302,306,307,331,337,341,342,346,347,362,372,382..SCB..(T1,T2,T3,T4,T5)..DSL..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 89741-37040 |
BU30#,346,XZU30#,31#,32#,33#,34#,351,352,362,372,382..(175T,20T,295T,30T)..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 89741-37040 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) |
1 | ||
| 89741-37050 |
BU30#,346,XZU301,302,306,307,331,337,341,342,346,347,362,372,382..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 89741-37040 |
BU30#,346,XZU300,302..DSL;XZU301,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(20T,295T,30T)..(DSL,DSLL)..(CBU,IV3,IV6,IV7) |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZU322..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU311,321..5F..1NO;XZU31#..SCB..5F..20T;XZU306..4FC..DSLL..IV3;BZU300,XZU301,302,306,321,362..(DM8,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3);BU30#,346,BZU340,RZU30#,340,XZU307,320,331,337,341,342,346,347,372,382..SCB ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 89742-37050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,351,352,362,372,382..(175T,20T,295T,30T)..(CBU,IV3) DELTA |
1 | ||
| 89742-37040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU30#,346,XZU301,306..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7);BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(20T,295T,30T)..(CBU,IV3) DYNA OR TOYOACE |
1 | ||
| 89742-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU30#,346,XZU301,306..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7);BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(20T,295T,30T)..(CBU,IV3) DUTRO |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZU322..T5..4FC;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU311,321..5F..1NO;XZU31#..SCB..5F..20T;XZU306..4FC..DSLL..IV3;BZU300,XZU301,302,306,321,362..(DM8,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3);BU30#,346,BZU340,RZU30#,340,XZU307,320,331,337,341,342,346,347,372,382..SCB ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 89742-37050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,351,352,362,372,382..(175T,20T,295T,30T)..(CBU,IV3) DELTA |
1 | ||
| 89742-37040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU30#,346,XZU301,306..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7);BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(20T,295T,30T)..(CBU,IV3) DYNA OR TOYOACE |
1 | ||
| 89742-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU30#,346,XZU301,306..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7);BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(20T,295T,30T)..(CBU,IV3) DUTRO |
1 | ||
| Common parts | ||||
| 90150-40011 | ||||
| 90159-60413 | ||||

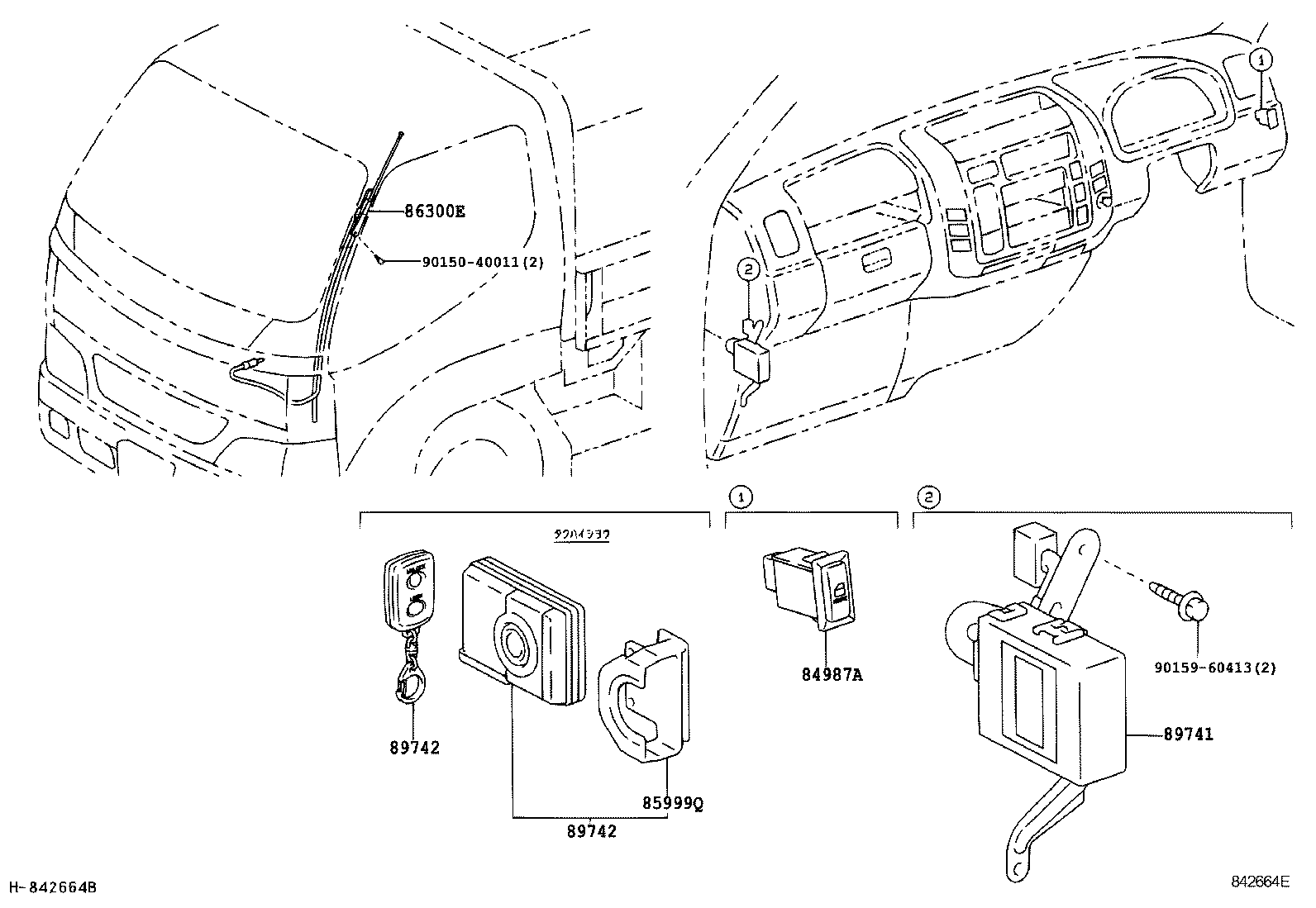

ILLUST NO. 1 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91621-J0614 | ||||

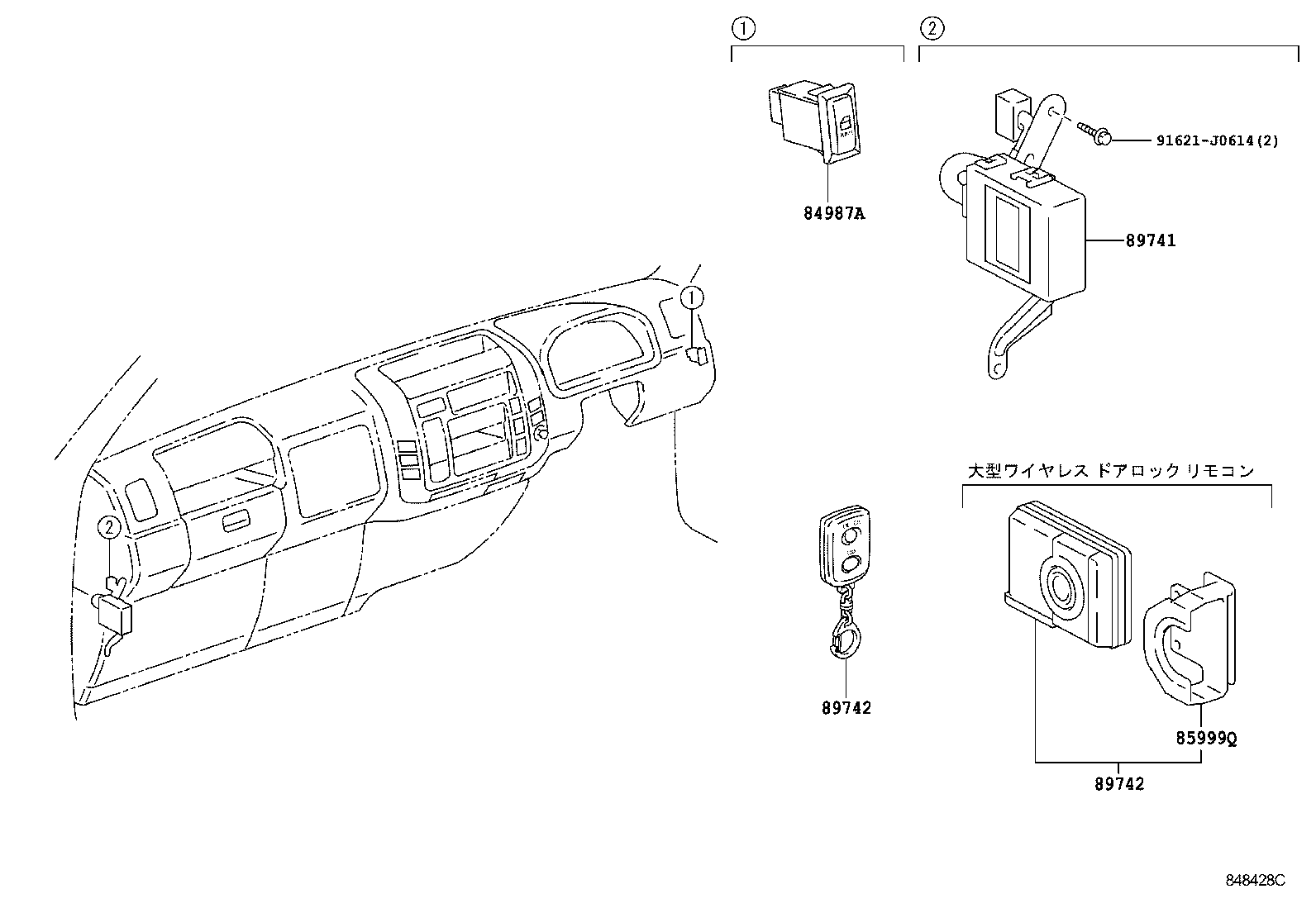

ILLUST NO. 2 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90150-40011 | ||||
| 90157-50021 | ||||
(9905- )
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90150-40011 | ||||
| 91621-J0614 | ||||
