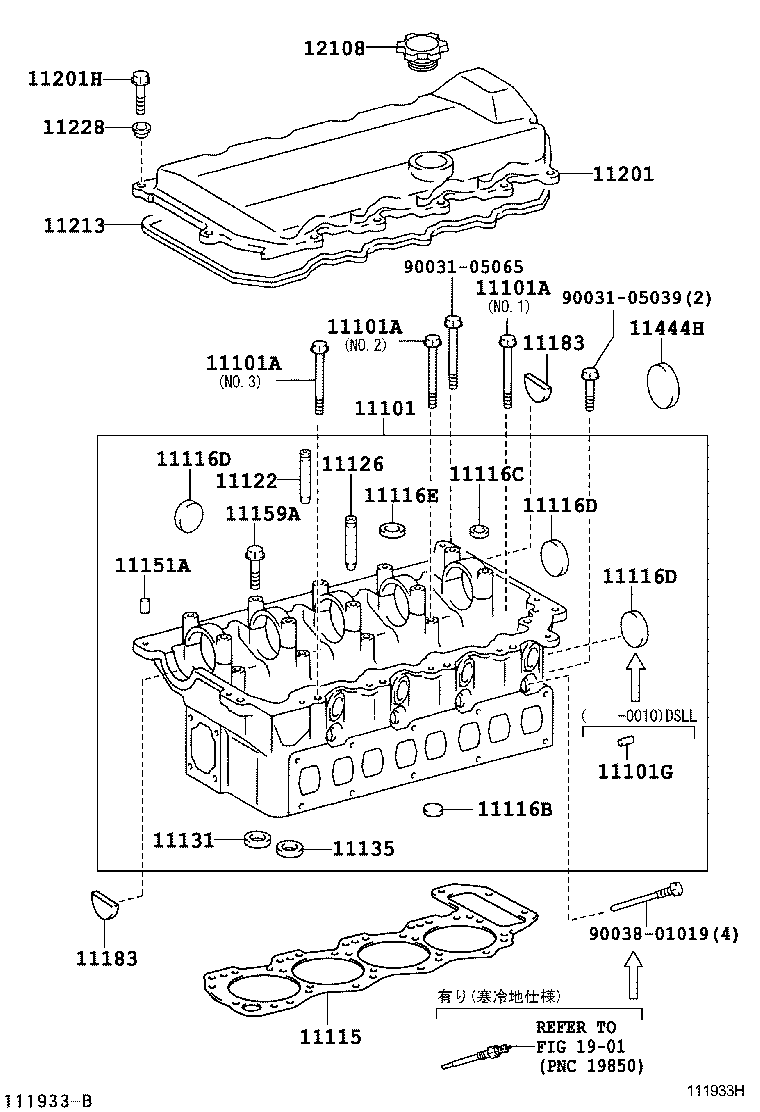

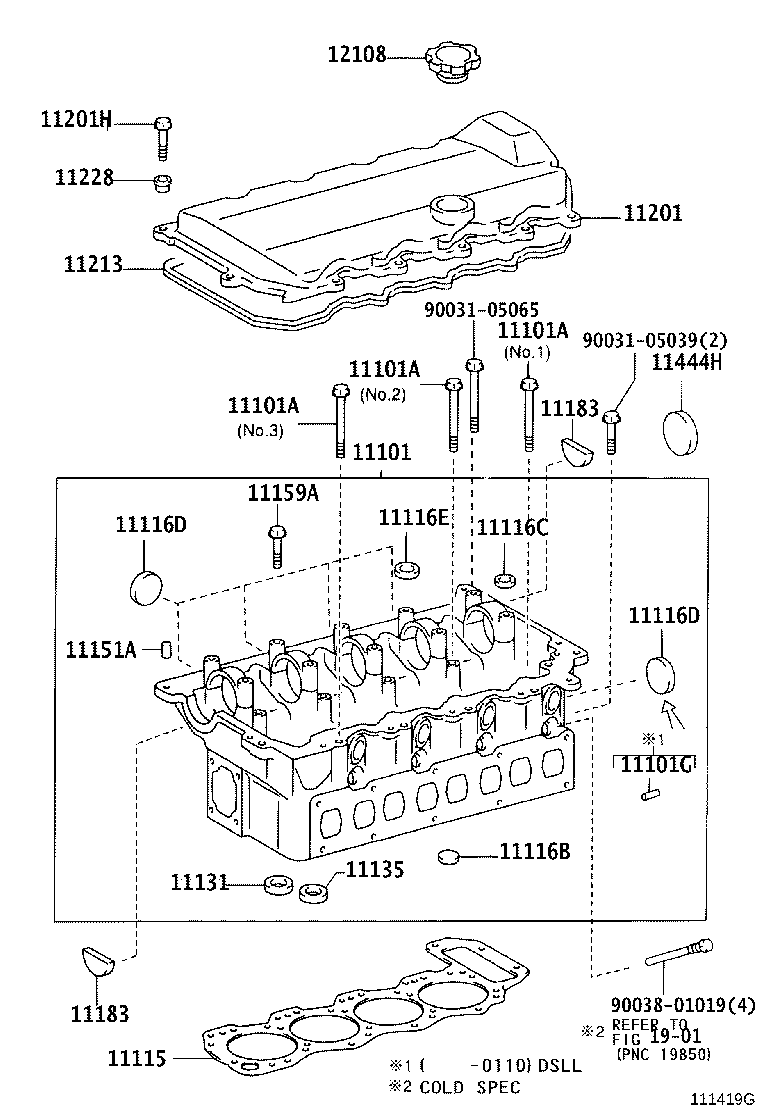

XZU301-TPPQS3 (2000)
Toyota Dyna/Toyoace
(9905-0206)J05C,S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 11101-78061 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90031-09051 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
9 | ||
| 90038-01023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
4 | ||
| 90038-01024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.3 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90031-09051 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
9 | ||
| 90038-01023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
4 | ||
| 90038-01024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.3 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90031-09051 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
9 | ||
| 90038-01023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
4 | ||
| 90038-01024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.3 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382 |
1 | ||
| 11115-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 90033-31024 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
4 | ||
| 90033-31024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 90033-31024 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 90033-31023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
5 | ||
| 90033-31023 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 90033-31023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
5 | ||
| 90033-31023 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
5 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 90033-31022 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 STD |
8 | ||
| 11131-78040 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 STD |
8 | ||
| 11135-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90032-50046 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
10 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90031-05045 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-78012 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 11183-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-78012 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 11183-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 11211-78021 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90031-05013 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
13 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11228 - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
13 | ||
| 11444H - PLUG, HOLE(FOR CYLINDER HEAD) | ||||
| 11444-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12108-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90031-05039 | ||||
| 90031-05065 | ||||
| 90038-01019 | ||||
| Linked diagrams | ||||
| 1901 | ||||

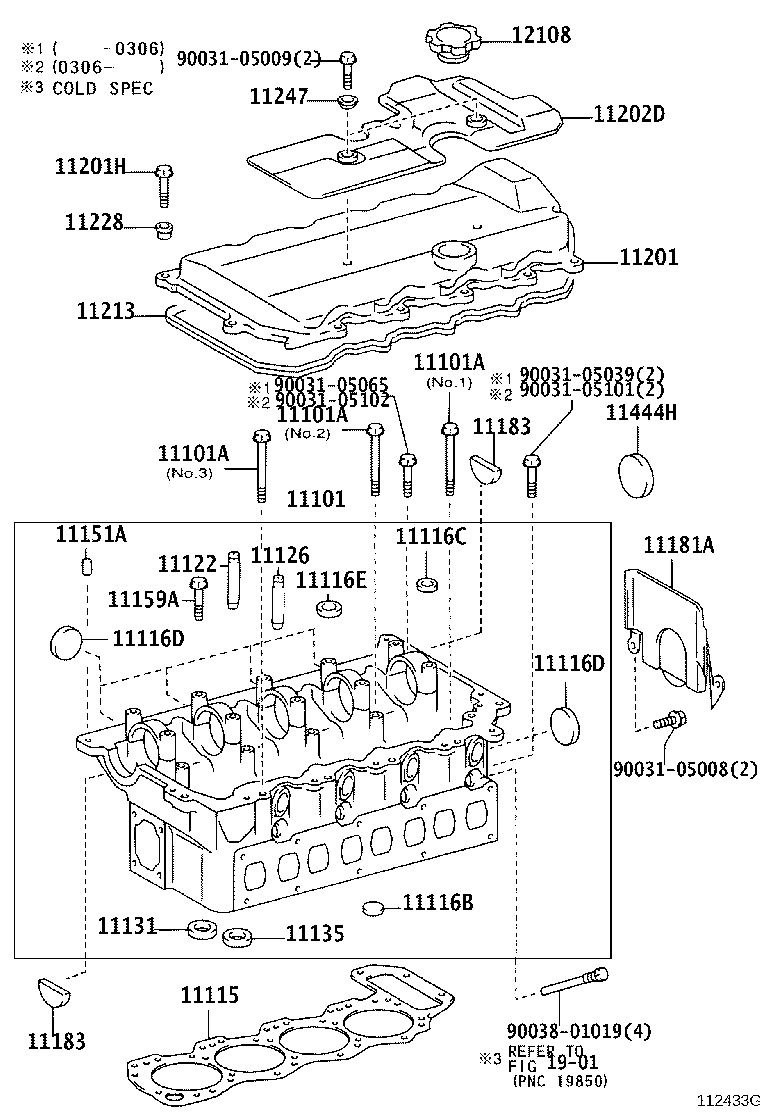

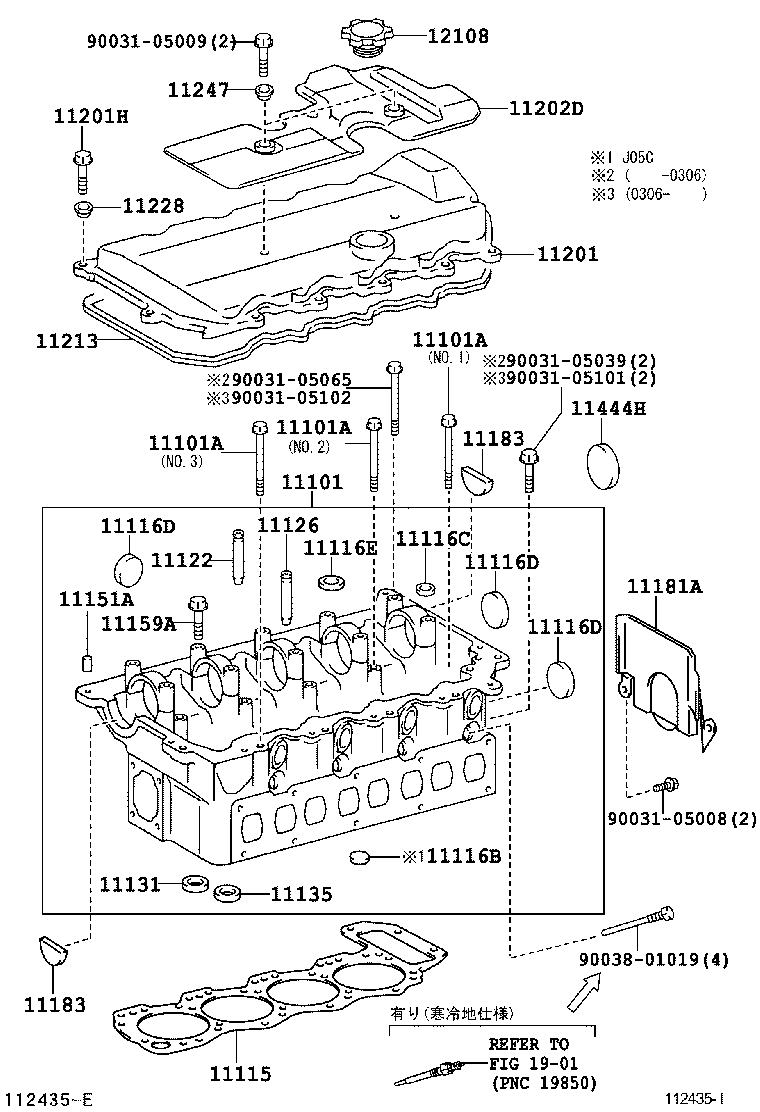

(0206-0406)J05C,S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 11101-78061 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90031-09051 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
9 | ||
| 90038-01023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
4 | ||
| 90038-01024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.3 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90031-09051 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
9 | ||
| 90038-01023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
4 | ||
| 90038-01024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.3 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90031-09051 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
9 | ||
| 90038-01023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
4 | ||
| 90038-01024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.3 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,372,382 |
1 | ||
| 11115-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 90033-31024 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
4 | ||
| 90033-31024 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 90033-31024 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 90033-31020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 90033-31023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
5 | ||
| 90033-31023 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 90033-31023 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
5 | ||
| 90033-31023 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
5 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 90033-31022 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-89101 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL STD |
8 | ||
| 11122-89101 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-89101 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382..DSL STD |
8 | ||
| 11122-89101 |
S05#..XZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352,362,37#,382 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 STD |
8 | ||
| 11131-78040 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-89101 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 STD |
8 | ||
| 11135-78030 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90032-50046 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
10 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90031-05045 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
10 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11108-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 11108-78021 |
S05D..XZU301,331..DSL;S05D..XZU301..SCB..DSLL;S05#..XZU302,306,307,31#,32#,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11108-78021 |
S05D..XZU301,331..DSL;S05D..XZU301..SCB..DSLL;J05C,S05#..XZU300,302,306,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-78012 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 11183-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-78012 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 11183-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-78020 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 11211-78021 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90031-05013 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
13 | ||
| 11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2 | ||||
| 11211-78040 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11211-78040 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 11228 - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
13 | ||
| 11247 - STAY, CYLINDER HEAD COVER | ||||
| 11247-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 11247-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL |
2 | ||
| 11444H - PLUG, HOLE(FOR CYLINDER HEAD) | ||||
| 11444-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12108-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90031-05008 | ||||
| 90031-05009 | ||||
| 90031-05039 | ||||
| 90031-05065 | ||||
| 90031-05101 | ||||
| 90031-05102 | ||||
| 90038-01019 | ||||
| Linked diagrams | ||||
| 1901 | ||||
(9905-0206)J05C,S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05039 | ||||
| 90031-05065 | ||||
| 90038-01019 | ||||
| Linked diagrams | ||||
| 1901 | ||||
(0206-0406)J05C,S05#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05008 | ||||
| 90031-05009 | ||||
| 90031-05039 | ||||
| 90031-05065 | ||||
| 90031-05101 | ||||
| 90031-05102 | ||||
| 90038-01019 | ||||
| Linked diagrams | ||||
| 1901 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
