XZU301-TPPQS (2000)
Toyota Dyna/Toyoace

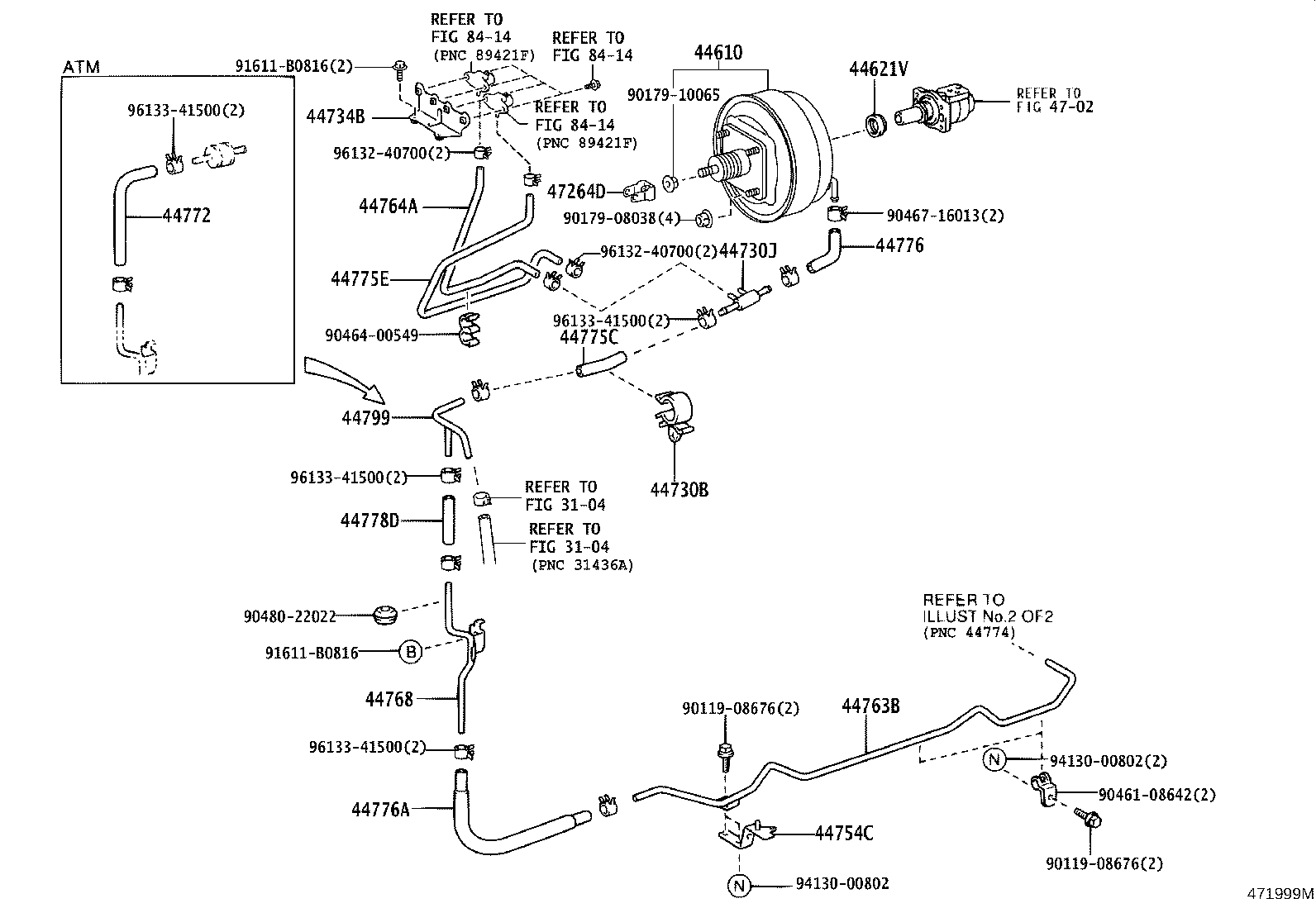

ILLUST NO. 1 OF 2(0206-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37150 |
XZU300,301,302,311,320,321,330,331,340,341,37#,382..295T,30T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44734-37011 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37210 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB |
1 | ||
| 44764-37211 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..SCB |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37040 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37150 |
BU301..(DM6,T1)..20T;XZU300,301,302,31#,32#,330,331,340,341,35# 長さ=420 |
1 | ||
| 44776-37170 |
XZU302..DM3..30T;XZU306..DSLL..CBU;XZU311,331..DCB..DSL;BZU300,XZU301..CNG,LPG;XZU341..4FC..295T..DSL;XZU302..(T4,T5)..WT..4NO;XZU301..5F..30T..(IV4,IV6);XZU301,306..(T4,T5)..20T..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301..4FC..30T..DSL..(IV4,IV6);XZU306,341..(4FC,6F)..(DSLL,LPG)..IV3;XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU30#,346,BZU340,RZU30#,340,XZU307,337,342,346,347,351,352..(SCB,VAN)..(03S,06S,DM5,T2,T3,T4,T5) 長さ=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37130 |
XZU301,302,306,307,32#,331,337,341,347,352..4FC..DSL |
1 | ||
| 44778-37130 |
RZU301,XZU301,302,306,307,32#,331,337,341,347,352..4FC |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90467-16013 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0005-0406)XZU301..DSL..CBU,IV3..4NO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78020 |
S05D..XZU301..20T..IV7;S05D..XZU306..T5..DSLL;J05C,S05#,4B..BU306,346,XZU300,302,306,307,31#,32#..SCB..(DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL;J05C,S05#,4B..BU301,XZU301,33#,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ= 27690-78020,27690-78021,27690-78022,27690-78023 |
1 | ||
| 27690-78020 |
S05D..XZU301..20T..IV7;S05D..XZU306..T5..DSLL;J05C,S05#,4B..BU306,346,XZU300,302,306,307,31#,32#..SCB..(DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL;J05C,S05#,4B..BU301,XZU301,33#,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ= 27690-78020,27690-78021,27690-78022,27690-78023 |
1 | ||
| 27690-78021 |
S05D..XZU301..20T..IV7;S05D..XZU306..T5..DSLL;J05C,S05#,4B..BU306,346,XZU300,302,306,307,31#,32#..SCB..(DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL;J05C,S05#,4B..BU301,XZU301,33#,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ=27690-78021,27690-78022,27690-78023 |
1 | ||
| 27690-78021 |
S05D..XZU301..20T..IV7;S05D..XZU306..T5..DSLL;J05C,S05#,4B..BU306,346,XZU300,302,306,307,31#,32#..SCB..(DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL;J05C,S05#,4B..BU301,XZU301,33#,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ=27690-78021,27690-78022,27690-78023 |
1 | ||
| 27690-78022 |
S05D..XZU301..20T..IV7;S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D,4B..BU306,346,XZU301,306..SCB..(DM3,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7);J05C,S05#,4B..BU301,XZU300,302,307,31#,32#,33#,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5) ﾏｰｸ= 27690-78022,27690-78023 |
1 | ||
| 27690-78022 |
S05D..XZU301..20T..IV7;S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D,4B..BU306,346,XZU301,306..SCB..(DM3,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7);J05C,S05#,4B..BU301,XZU300,302,307,31#,32#,33#,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5) ﾏｰｸ= 27690-78022,27690-78023 |
1 | ||
| 27690-78023 |
S05D..XZU301..20T..IV7;J05C,S05#,4B..BU30#,346,XZU300,302,306,307,31#,32#..SCB..(DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5);J05C,S05#..XZU301,33#,340,341,342,346,347,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ= 27690-78023 |
1 | ||
| 27690-78023 |
S05D..XZU301..20T..IV7;J05C,S05#,4B..BU30#,346,XZU300,302,306,307,31#,32#..SCB..(DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5);J05C,S05#..XZU301,33#,340,341,342,346,347,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ= 27690-78023 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37070 |
XZU362..4NO;XZU301..20T..IV7;XZU341..6F..295T;XZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;XZU300,301,302,306,307,31#,32#,33#,340,342,346,347..SCB..(DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 44704-37070 |
XZU362..4NO;XZU301..20T..IV7;XZU341..6F..295T;XZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;XZU300,301,302,306,307,31#,32#,33#,340,342,346,347..SCB..(DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730-60050 |
XZU307..03S..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU301,306,307,331..(DCB,SCB)..(CNG,DSL,LPG);BU30#,346,BZU300,340,XZU300,302,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37240 |
XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44771-37240 |
XZU300,301,302,306,307,33#,340,341,342,346,347..SCB..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37060 |
XZU306..5F..IV3;XZU301..20T..IV7;XZU306..DSL..CBU;XZU341..6F..295T;XZU306..4FC..DSL..IV3;XZU301..30T..DSLL..IV3..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;BU30#,346,XZU300,301,302,307,31#,32#,33#,340,342,346,347..SCB..(DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) ｱﾘ(PTO) |
1 | ||
| 44773-37060 |
XZU306..5F..IV3;XZU301..20T..IV7;XZU306..DSL..CBU;XZU341..6F..295T;XZU306..4FC..DSL..IV3;XZU301..30T..DSLL..IV3..1NO;XZU341,351,352..(DM2,T3,T4)..(20T,30T)..DSL;BU30#,346,XZU300,301,302,307,31#,32#,33#,340,342,346,347..SCB..(DM3,DM5,DM7,DM8,T1,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) ｱﾘ(PTO) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 44778-37060 |
XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 44778-37060 |
XZU307,31#,347,372,382..SCB;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,32#,33#,340,341,342,346,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB |
1 | ||
| 44778-37060 |
XZU301,31#,331;BU30#,346,XZU300,302,306,307,32#,330,337,34#,35#,362,372,382..SCB |
1 | ||
| 44778-37060 |
XZU301..20T..IV7;BU301,XZU301,312,331..(DM3,DM5,T1,T3,T4,T5)..(20T,295T,30T)..DSL..(CBU,IV3,IV4,IV7);BU306,346,XZU300,302,306,307,311,32#,330,337,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL |
1 | ||
| 44778-37060 |
XZU301..20T..IV7;BU301,XZU301,312,331..(DM3,DM5,T1,T3,T4,T5)..(20T,295T,30T)..DSL..(CBU,IV3,IV4,IV7);BU306,346,XZU300,302,306,307,311,32#,330,337,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..DSL |
1 | ||
| 44778-37060 |
XZU312;XZU301..20T..IV7;BU30#,346,XZU300,306,307,311,347,372,382..SCB;XZU301,302,32#,33#,340,341,342,346,351,352,362..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) |
1 | ||
| 44778-37060 |
XZU312;XZU301..20T..IV7;BU30#,346,XZU300,306,307,311,347,372,382..SCB;XZU301,302,32#,33#,340,341,342,346,351,352,362..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7) |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37020 |
XZU301..20T..IV7;BU306,346,XZU300,306,307,31#,32#..SCB;BU301,XZU301,302,33#,340,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44781-37020 |
XZU301..20T..IV7;BU306,346,XZU300,306,307,31#,32#..SCB;BU301,XZU301,302,33#,340,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37310 |
XZU301..20T..IV7;XZU301,302,306,307,31#,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44912-37310 |
XZU301..20T..IV7;XZU301,302,306,307,31#,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37310 |
XZU301..20T..IV7;XZU301,302,306,307,31#,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| 44912-37310 |
XZU301..20T..IV7;XZU301,302,306,307,31#,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90461-08385 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 3602 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9905-0206)BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37150 |
XZU300,301,302,311,320,321,330,331,340,341,37#,382..295T,30T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-35010 |
RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5 |
1 | ||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-35010 |
RZU300..EFI;XZU302..CNG,LPG;XZU307..T4..4FC;BU306,XZU307..DCB..5F;RZU300,XZU302..T4..(295T,30T)..(DSL,LPG);BU346,RZU340,XZU300,301,306,331,337,34#,362,372,382;BU30#,XZU302,307,31#,32#,330,35#,371..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T5 |
1 | ||
| 44730-20070 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37020 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44597-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44734-37011 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU307,347..SCB,VAN;BU30#,346,BZU300,340,RZU30#,XZU300,301,302,306,33#,340,341,342,346,350..CNG,DSL,DSLL,LPG |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37210 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350..SCB |
1 | ||
| 44764-37211 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..SCB |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU301,31#,331,37#,382;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,306,307,32#,330,337,340,341,342,346,347,35#,362..SCB,VAN |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37040 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37040 |
XZU301,302,306,307,312,321,322,331,337,341,347..4FC |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-37030 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44772-37060 |
XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS) |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44776-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ABS) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37150 |
BU301..(DM6,T1)..20T;XZU300,301,302,31#,32#,330,331,340,341,35# 長さ=420 |
1 | ||
| 44776-37170 |
XZU302..DM3..30T;XZU306..DSLL..CBU;XZU311,331..DCB..DSL;BZU300,XZU301..CNG,LPG;XZU341..4FC..295T..DSL;XZU302..(T4,T5)..WT..4NO;XZU301..5F..30T..(IV4,IV6);XZU301,306..(T4,T5)..20T..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301..4FC..30T..DSL..(IV4,IV6);XZU306,341..(4FC,6F)..(DSLL,LPG)..IV3;XZU301,31#,321,322..(295T,30T)..(CBU,IV3)..4NO;BU30#,346,BZU340,RZU30#,340,XZU307,337,342,346,347,351,352..(SCB,VAN)..(03S,06S,DM5,T2,T3,T4,T5) 長さ=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37130 |
XZU301,302,306,307,32#,331,337,341,347,352..4FC..DSL |
1 | ||
| 44778-37130 |
RZU301,XZU301,302,306,307,32#,331,337,341,347,352..4FC |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90467-16013 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08126 | ||||
| 90179-08146 | ||||
| 90461-08050 | ||||
| 90461-10376 | ||||
| 90461-12090 | ||||
| 90467-16141 | ||||
| 91611-40610 | ||||
| 91611-40820 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
