XZU301-TPMQS3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

Click highlighted areas on diagram

diagram 86500 86520 9011908103 9011908827 9011908827
Part # Description Qty Price
86500 - HORN ASSY
86500-37010

BU30#,346,XZU300,301,302,306,307,33#,340,341,342,346,347,350,362,37#,382

 1
86500-37010

XZU368;XZU30#,33#,34#,354,378,388..03S,06S,DM3,DM6,T1,T2,T3,T4,T5

 1
86500-37011

XZU368;XZU30#,33#,34#,354,378,388..03S,06S,DM3,DM6,T1,T2,T3,T4,T5

 1
86520 - HORN ASSY, LOW PITCHED
86520-37030

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,330,337,34#,350,362,37#,382..DSL,DSLL

 1
Common parts
90119-08103
90119-08827

(0610- )

Click highlighted areas on diagram

diagram 86500 9011908103 9011908827
Part # Description Qty Price
Common parts
90119-08103
90119-08827

(7708- )

Click highlighted areas on diagram

diagram 86508 86510 86520 86522 9161140816 9161140816 9165140820
Part # Description Qty Price
Common parts
91611-40816
91651-40820

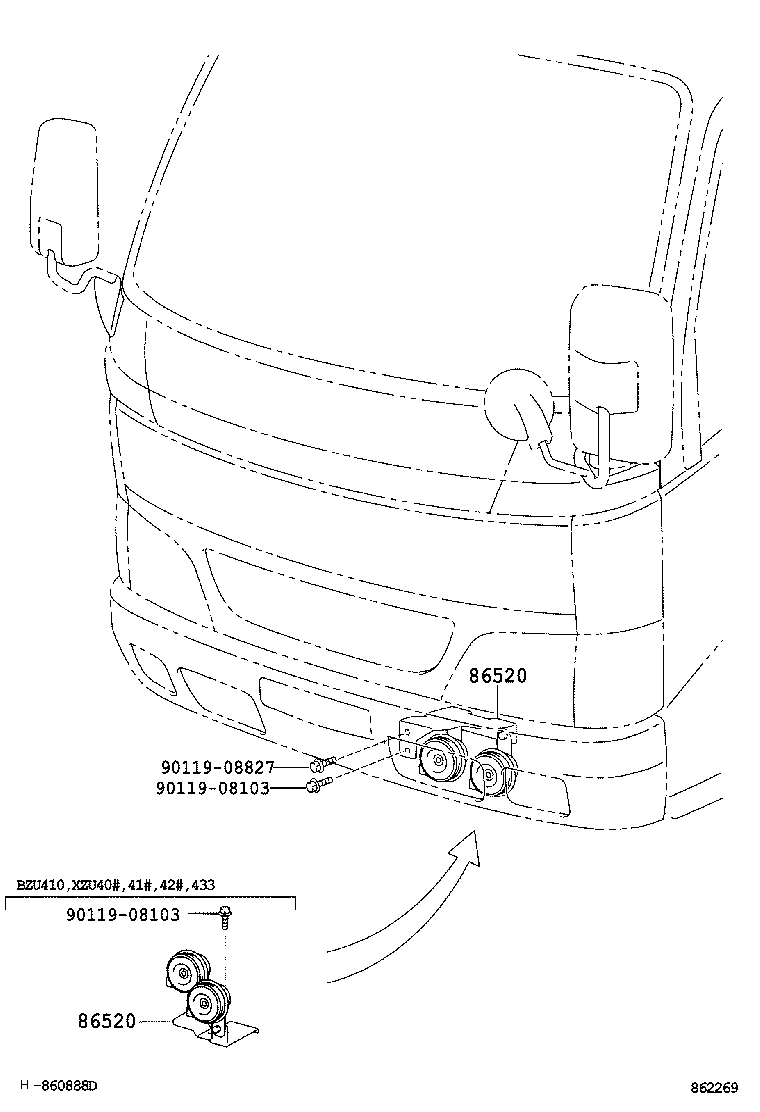

(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG

Click highlighted areas on diagram

diagram 86520 86520 9011908103 9011908103 9011908827
Part # Description Qty Price
Common parts
90119-08103
90119-08827
