XZU301-TPMQS3 (2000)
Toyota Dyna/Toyoace
(9905-0406)BZU300,340,RZU301,XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F
H350,H351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90930-03090 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 96411-41800 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 96411-41800 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 96411-41800 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90311-22009 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33262-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90311-13001 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) 外径=28 |
1 | ||
| 90201-13029 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) 外径=28 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60050 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33212-60050 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
2 | ||
| 90105-08211 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
2 | ||
| 90105-08211 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-60060 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33213-60060 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33215B - FORK, GEAR SHIFT, NO.4 | ||||
| 33212-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33212-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33231E - BOLT(FOR REVERSE SHIFT HEAD) | ||||
| 90105-07001 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 90105-07001 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33242H - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33243-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33243-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33244-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33244-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 90520-14003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33242-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33242-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33251-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90254-05016 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-12185 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 90501-12185 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33252-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37080 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33253-37080 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33282-36030 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37080 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33257-37080 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33282-35010 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU341..6F..(DSLL,LPG);XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33261B - SHAFT, SHIFT LEVER | ||||
| 33261-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33261-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-37010 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33263-37010 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04110 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 90250-04110 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 90331-14004 |
XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU31#,320..(DM5,DM6,DM7,T4)..5F;XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);RZU300,XZU300,302,321,330,331,37#,382..(DM3,DM8,T2,T3,T4,T5)..5F..(20T,295T,30T);BU30#,346,BZU340,RZU301,340,XZU306,307,337,341,342,346,347,351,352,362..5F..(175T,20T) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=15.45 |
1 | ||
| 90250-10023 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=15.45 |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 外径=18 |
4 | ||
| 90341-12008 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 外径=18 |
4 | ||
| 90341-12008 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 外径=18 |
4 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 外径=18 |
4 | ||
| 90341-12008 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 外径=18 |
4 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=13.6,外径=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 90360-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 90360-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 90360-10003 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
3 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10035 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=81.9,外径=9.53 |
1 | ||
| 90250-10035 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=81.9,外径=9.53 |
1 | ||
| 33271 - HOUSING, SHIFT LEVER SHAFT | ||||
| 33207-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33207-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=29.3 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=29.3 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU304,334..5F..(DCRL,DSLL);XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=29.3 |
3 | ||

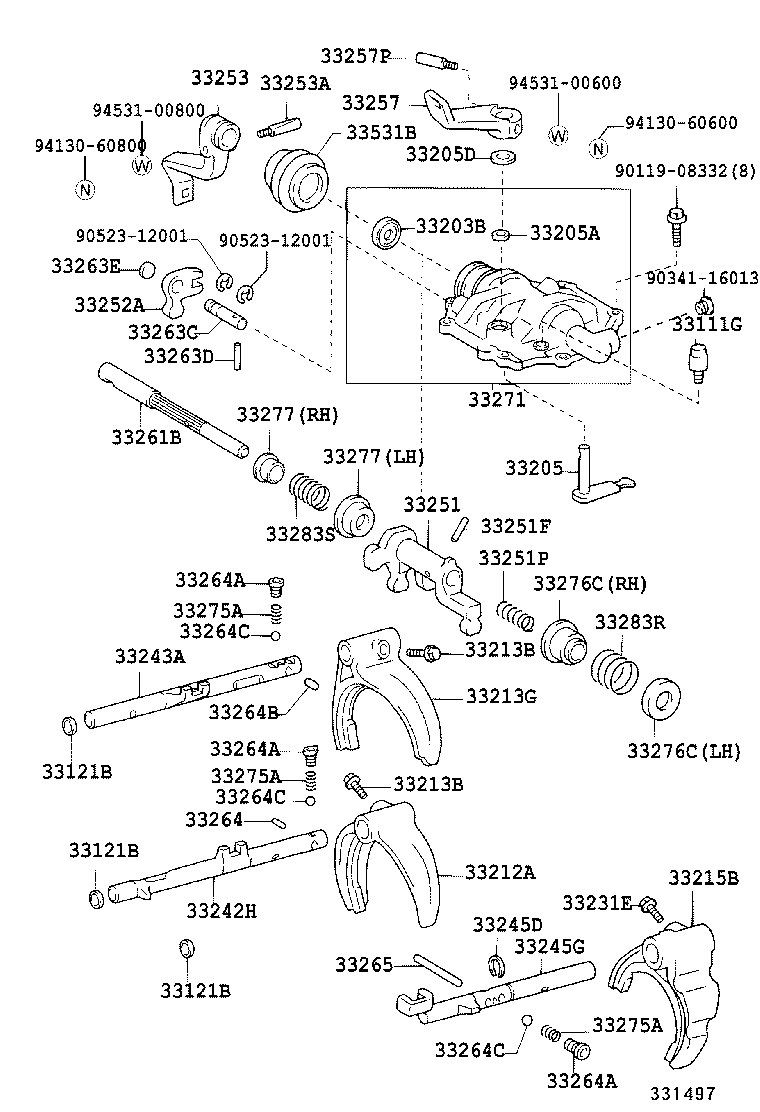

| 33276C - SEAT, SELECT SPRING | ||||
| 33276-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33276-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33276-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33276-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33276-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33276-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33276-37040 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33277-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33277-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33277-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33277-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 右側 |
1 | ||
| 33277-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33277-37030 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) 左側 |
1 | ||
| 33283R - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH) | ||||
| 90501-23150 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 90501-23150 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33283S - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH) | ||||
| 90501-20165 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 90501-20165 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| 33531-37020 |
XZU302..DM3,T3;XZU301..5F..IV4;XZU321..5F..1NO;XZU301,302..CNG,LPG;XZU341..6F..(DSLL,LPG);XZU302..(T4,T5)..(295T,30T);XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU300,340,XZU306,31#,320,351,352..(DM2,DM5,DM6,DM7,T4,T5)..5F;XZU300,321,330,331,341,342,346,347..(DM8,T2,T3,T4)..5F..(20T,30T) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90341-16013 | ||||
| 90523-12001 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
(0610- )XZU30#,33#,34#,354,50#,538,548..03S,06S,DM3,DM6,T2,T3,T4,T5..5F
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-B0825 | ||||
| 94130-60600 | ||||
| 94531-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
