XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 7 OF10(9905- )
ｲｸﾞﾆﾂｼﾖﾝ ｽｲﾂﾁ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80221 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84112-80222 |
XZU304..DSL;XZU31#,35#,368;XZU344..T3..IV3;XZU301,344..CBU,IV6;XZU304..T5..20T..DCRL;XZU304..(CBU,IV4,IV7)..1NO;XZU301..(DM6,T3,T4,T5)..IV3;BZU300,340,RZU30#,340,XZU306,308,321,33#,341,346,348,378,388..(03S,06S,DM6,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4) ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80222 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84112-80221 |
XZU304..DSL;XZU31#,35#,368;XZU344..T3..IV3;XZU301,344..CBU,IV6;XZU304..T5..20T..DCRL;XZU304..(CBU,IV4,IV7)..1NO;XZU301..(DM6,T3,T4,T5)..IV3;BZU300,340,RZU30#,340,XZU306,308,321,33#,341,346,348,378,388..(03S,06S,DM6,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4) |
1 | ||
| 84112-80221 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84112-80222 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37050 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84140-37050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84306-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37190 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37160 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37180 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) & ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37200 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU300,301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3);XZU302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84310-37170 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37210 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU300,301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3);XZU302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ & ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84310-37191 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84310-37161 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37171 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-37181 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84312-20011 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 84329-37070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84329-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 84329-37070 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37160 |
XZU306..T5..DSLL;XZU301,306..5F..(CNG,DSL,LPG);XZU301..(DM6,T4)..5F..DSLL..IV3;XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| 84450-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37010 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾅｼ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-37160 |
XZU306..T5..DSLL;XZU300,307,312,32#..SCB;XZU301,302,306,311,33#,340,341,342,346,347,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..DSL..(CBU,IV3) ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84652-37011 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ﾅｼ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82716-37240 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 8 OF10(9905- )DCB,SCB
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-46020 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 84231-60070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-46020 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 84231-60070 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37020 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 84550A - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37040 |
BZU300..DM6,T3;BZU300..T4..LPG;XZU300,330,350..IV3,IV6;XZU302..(DM6,T3)..5F..IV3;BZU340,XZU302,341,342..LPG;XZU301..T4..5F..DSL..(IV3,IV6)..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU301,331..(DM6,T3,T5)..5F..DSL..(IV3,IV6,IV7);XZU301,306..(DM6,T3,T4)..5F..(CNG,DSLL,LPG)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84810-37050 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37030 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL |
1 | ||
| 84820-37032 |
XZU306..CBU,IV3;XZU301,304,305,308,31#,321,33#,34#,35#,368,378,388 24V |
1 | ||
| Common parts | ||||
| 82711-37240 | ||||
| 90109-06296 | ||||
| 90164-30009 | ||||
| 90168-40061 | ||||
| 90179-05011 | ||||
| 90468-04147 | ||||
| 91511-G0814 | ||||
| 91651-40612 | ||||
| 94150-80800 | ||||
ILLUST NO. 9 OF10(9905- )BU346,BZU300,340,RZU30#,340,XZU300,301,302,304,305,307,308,32#,33#,34#,3
ﾁﾙﾄ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 84512-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 90159-40215 | ||||
| 90178-06002 | ||||
| 91611-G0820 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 5251 | ||||
ILLUST NO.10 OF10(9905- )DCB,SCB
ﾘﾔﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU31#,371..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU331,347,382..DSL;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU312..SCB..5F..20T..IV3;BU30#,XZU306,362..SCB..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU346,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) MARK 83320-37050 |
1 | ||
| 83320-80374 |
XZU378..IV4;XZU351..5F..IV3;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,34#,368,388..20T,30T,35T,40T |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU31#,371..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU331,347,382..DSL;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU312..SCB..5F..20T..IV3;BU30#,XZU306,362..SCB..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU346,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) MARK 83320-37050 |
1 | ||
| 83320-80374 |
XZU378..IV4;XZU351..5F..IV3;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,34#,368,388..20T,30T,35T,40T |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU31#,371..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU331,347,382..DSL;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU312..SCB..5F..20T..IV3;BU30#,XZU306,362..SCB..DSL;XZU306,331..(T3,T5)..5F..DSLL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU346,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) MARK 83320-37050 |
1 | ||
| 83320-80374 |
XZU378..IV4;XZU351..5F..IV3;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,34#,368,388..20T,30T,35T,40T |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;RZU300,XZU311,347,37#,382..DSL,DSLL,EFI;BU30#,346,RZU340,XZU300,302,307,312,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL,EFI) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;RZU300,XZU311,347,37#,382..DSL,DSLL,EFI;BU30#,346,RZU340,XZU300,302,307,312,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL,EFI) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;RZU300,XZU311,347,37#,382..DSL,DSLL,EFI;BU30#,346,RZU340,XZU300,302,307,312,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL,EFI) |
1 | ||
| 83380A - SWITCH ASSY, PRESSURE | ||||
| 83380-37010 |
BZU300..T4..LPG;XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU302..5F..IV3..1NO;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;XZU301..T4..4FC..IV3..1NO;BU301,BZU340,XZU350..(DSL,LPG)..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BZU300,XZU306,331..(DM6,T3,T5)..5F..(CNG,DSLL,LPG);XZU300,301,330..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7) |
2 | ||
| 83380A - SWITCH ASSY, PRESSURE | ||||
| 83380-37010 |
BZU300..T4..LPG;XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU302..5F..IV3..1NO;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;XZU301..T4..4FC..IV3..1NO;BU301,BZU340,XZU350..(DSL,LPG)..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BZU300,XZU306,331..(DM6,T3,T5)..5F..(CNG,DSLL,LPG);XZU300,301,330..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7) |
2 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650-37050 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650-37050 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-37070 |
XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BU301,XZU300,302,330,350..5F..(IV3,IV6)..1NO;XZU301..(DM6,T3,T4,T5)..5F..DSL..(IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 77395-33010 | ||||
| 83161-20200 | ||||
| 91611-B0816 | ||||
| 91611-B0825 | ||||
| 93313-A3020 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
ILLUST NO. 5 OF10(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90987-02019 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02019 |
N04C..XZU304..SCB..(DSL,DSLL);N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(4FC,5F)..(20T,30T)..(CBU,IV3) |
1 | ||
| 28490A - RELAY ASSY, EXHAUST RETARDER | ||||
| 28490-78010 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 81980-37090 |
XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU306,322..DM7,DM8,T4;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;XZU302,347..SCB..20T..DSL;XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,XZU321..(DM7,T1,T4,T5)..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,XZU300,307,33#,340,341,342,346,351,352,362,37#,382..(20T,295T,30T)..DSL |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37170 |
XZU372,382..SCB;BU30#,346,XZU30#,31#,32#,33#,34#,35#,362..(DCB,SCB)..(DSL,DSLL)..(CBU,IV3,IV6,IV7) |
1 | ||
| 82683-37340 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-37030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90986-01005 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 84340-25030 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);BZU300,340,RZU301..T4..5F..20T..IV3;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL) |
1 | ||
| 84640-37050 |
BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 85900C - RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK) | ||||
| 85900-37020 |
XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BU301,XZU300,302,330,350..5F..(IV3,IV6)..1NO;XZU301..(DM6,T3,T4,T5)..5F..DSL..(IV3,IV6,IV7) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90987-04007 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90987-02019 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02017 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02018 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37030 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL |
1 | ||
| 80590-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 86650R - BUZZER ASSY, ES START | ||||
| 86650-37130 |
XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90387-09027 | ||||
| 91551-80820 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||

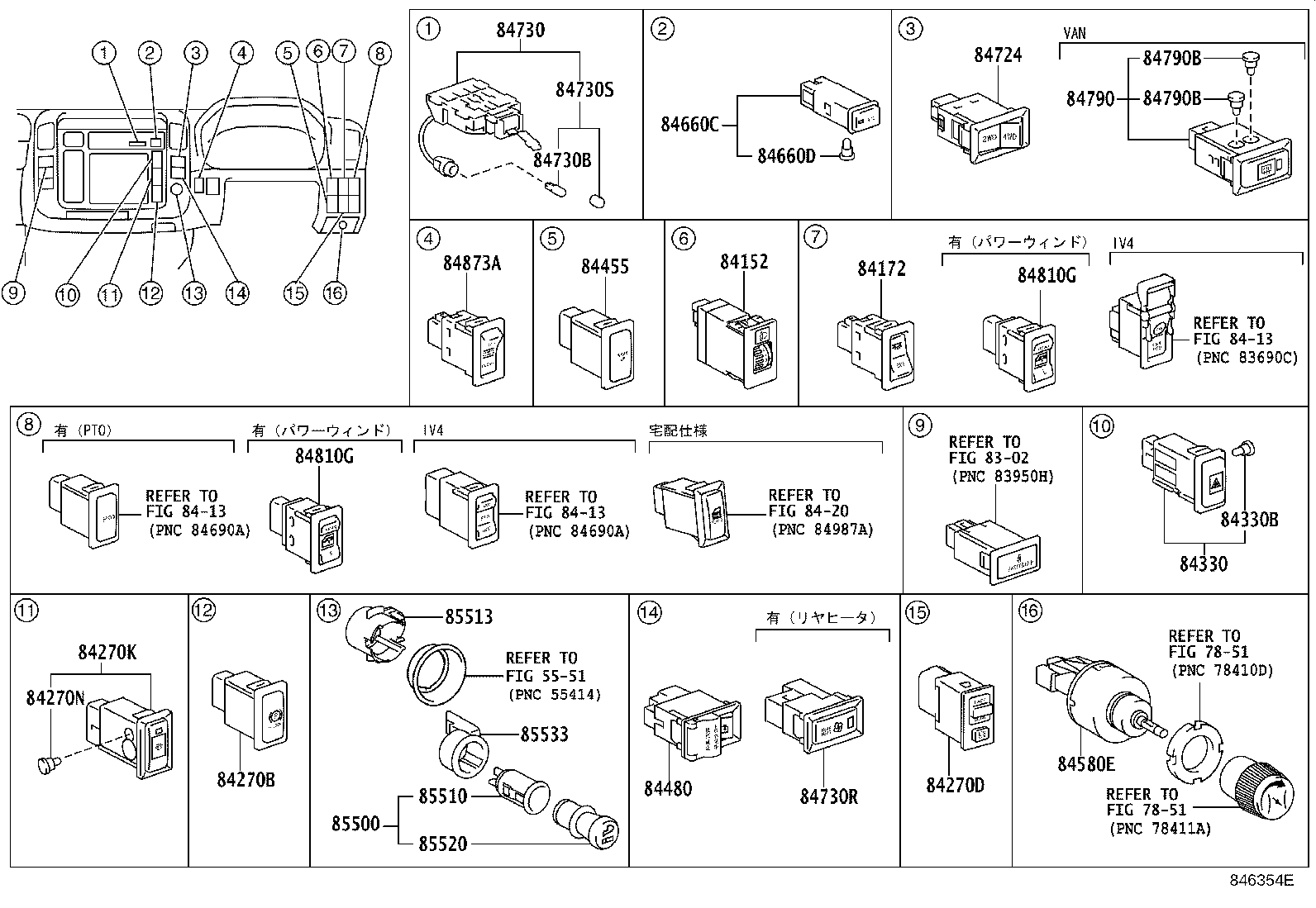

ILLUST NO. 6 OF10(0406- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 84270-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 84270B - SWITCH ASSY, BRAKE LOCK | ||||
| 84270-37040 |
BZU300..T4..LPG;XZU302,341,342..LPG;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU302..5F..IV3..1NO;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;XZU301..T4..4FC..IV3..1NO;BU301,BZU340,XZU350..(DSL,LPG)..1NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;BZU300,XZU306,331..(DM6,T3,T5)..5F..(CNG,DSLL,LPG);XZU300,301,330..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37110 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 84270-37060 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37120 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37070 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL |
1 | ||
| 84332-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 28V 0.67W |
1 | ||
| 84999-10570 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.67W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37050 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 84455-37060 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 84660-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 28V 0.87W |
1 | ||
| 88607-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84732-37050 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84873-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 85500-36020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513-12020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 85520-95400 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 4 OF10(0406- )SCB
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37070 |
XZU306,331..DSL;XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,322..(DM3,DM6,T3,T4,T5)..4FC..DSL;XZU302,307,31#,320,321,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL ｱﾘ(ABS) |
1 | ||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37070 |
XZU306,331..DSL;XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301,322..(DM3,DM6,T3,T4,T5)..4FC..DSL;XZU302,307,31#,320,321,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL ｱﾘ(ABS) |
1 | ||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU312..SCB..5F;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,RZU300,340,XZU300,302,307,311,33#,34#,35#..SCB..(DSL,DSLL,EFI) |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,31#,32#,33#,340,346,347,35#..SCB |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02017 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02017 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 1 OF10(0406- )XZU301,306,311,321,331,336,341,346,351

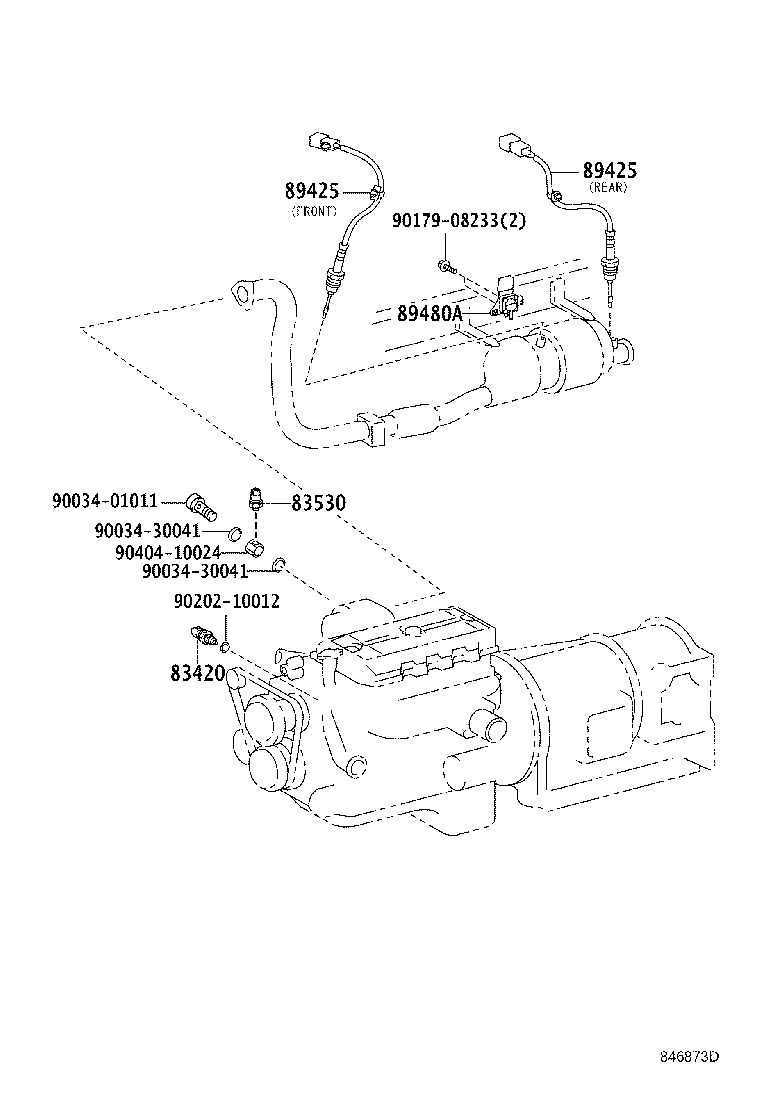

ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 83530-37030 |
XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37030 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37021 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425-37031 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37020 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37030 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37021 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425-37031 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37020 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XZU30#,31#,321,33#,34#,35#,388 |
1 | ||
| Common parts | ||||
| 90034-01011 | ||||
| 90034-30041 | ||||
| 90179-08233 | ||||
| 90202-10012 | ||||
| 90404-10024 | ||||
ILLUST NO. 1 OF10(0610- )XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-30041 | ||||
| 90119-08676 | ||||
| 90202-10012 | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF10(0610- )XZU30#,33#,34#,354,50#,538,548..03S,06S,DM3,DM6,T2,T3,T4,T5..5F

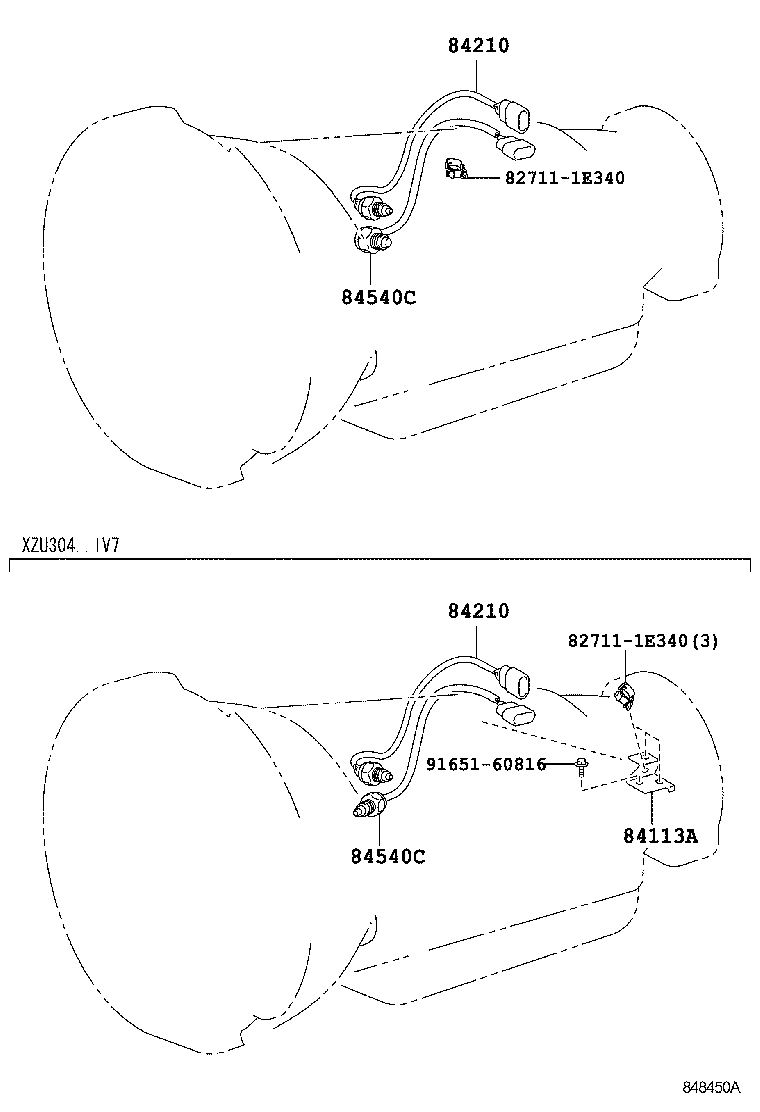

ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 91651-60816 | ||||
ILLUST NO. 3 OF10(0610- )SCB
ﾘﾚｰﾌﾞﾛｯｸ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06158 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8413 | ||||
| 8414 | ||||
ILLUST NO. 5 OF10(0610- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06178 | ||||
| 90387-09027 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 8202 | ||||
| 8405 | ||||
ILLUST NO. 6 OF10(0610- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 9 OF10(0610- )DCB,SCB
ﾁﾙﾄ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40215 | ||||
| 91651-60616 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||
ILLUST NO. 8 OF10(0610- )DCB,SCB
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81973-37010 | ||||
| 82711-37240 | ||||
| 82711-3H630 | ||||
| 90109-06296 | ||||
| 90119-06424 | ||||
| 90119-08827 | ||||
| 90164-30009 | ||||
| 90168-40061 | ||||
| 90179-05011 | ||||
| 90468-04147 | ||||
| 91511-G0814 | ||||
| 91651-40612 | ||||
| 94151-80800 | ||||
ILLUST NO.10 OF10(0610- )DCB,SCB
ﾘﾔﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
ILLUST NO. 7 OF10(0610- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 82716-37241 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF 5(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50048 | ||||
| 90461-07028 | ||||
| 90468-08007 | ||||
| 91111-40812 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93540-16014 | ||||
| 93540-44010 | ||||
| 93566-14512 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 2 OF 5(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82817-22180 | ||||
| 90201-10008 | ||||
| 90461-08318 | ||||
| 90463-12570 | ||||
| 90480-25002 | ||||
| 91611-40614 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-41025 | ||||
| 91651-40820 | ||||
| 93316-14012 | ||||
| 93319-14010 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-40400 | ||||
| 94512-01000 | ||||
ILLUST NO. 4 OF 5(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06070 | ||||
| 90179-06078 | ||||
| 90179-06158 | ||||
| 90269-03002 | ||||
| 91511-40612 | ||||
| 91611-40612 | ||||
| 91611-40616 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93319-15008 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8406 | ||||
| 8501 | ||||
ILLUST NO. 5 OF 5(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06142 | ||||
| 90179-06158 | ||||
| 90464-00190 | ||||
| 90560-08268 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40818 | ||||
| 93319-15014 | ||||
| 94115-40500 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 5(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-36020 | ||||
| 90159-50017 | ||||
| 90202-10012 | ||||
| 90461-05027 | ||||
| 90461-05028 | ||||
| 90461-05029 | ||||
| 90464-00156 | ||||
ILLUST NO. 1 OF 5(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19877-66010 | ||||
| 28602-68010 | ||||
| 28613-54010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 28623-78010 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90201-12030 | ||||
| 90404-54025 | ||||
| 90430-12221 | ||||
| 92112-60625 | ||||
| 94613-10601 | ||||
| 94631-10601 | ||||
ILLUST NO. 7 OF11(9905- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 82716-37241 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 8 OF11(9905- )
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81973-37010 | ||||
| 90109-06296 | ||||
| 90119-08827 | ||||
| 90164-30009 | ||||
| 90168-40061 | ||||
| 90468-04147 | ||||
ILLUST NO. 9 OF11(9905- )
ﾁﾙﾄ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 89639-37030 | ||||
| 90159-40215 | ||||
| 90178-06002 | ||||
| 91651-60616 | ||||
| 94130-60600 | ||||
| 94150-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO.10 OF11(9905- )
ﾘﾔﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77395-33010 | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
