Toyota Dyna/toyoace XZU301 HEADLAMP

XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0406-0505)175T,20T,30T

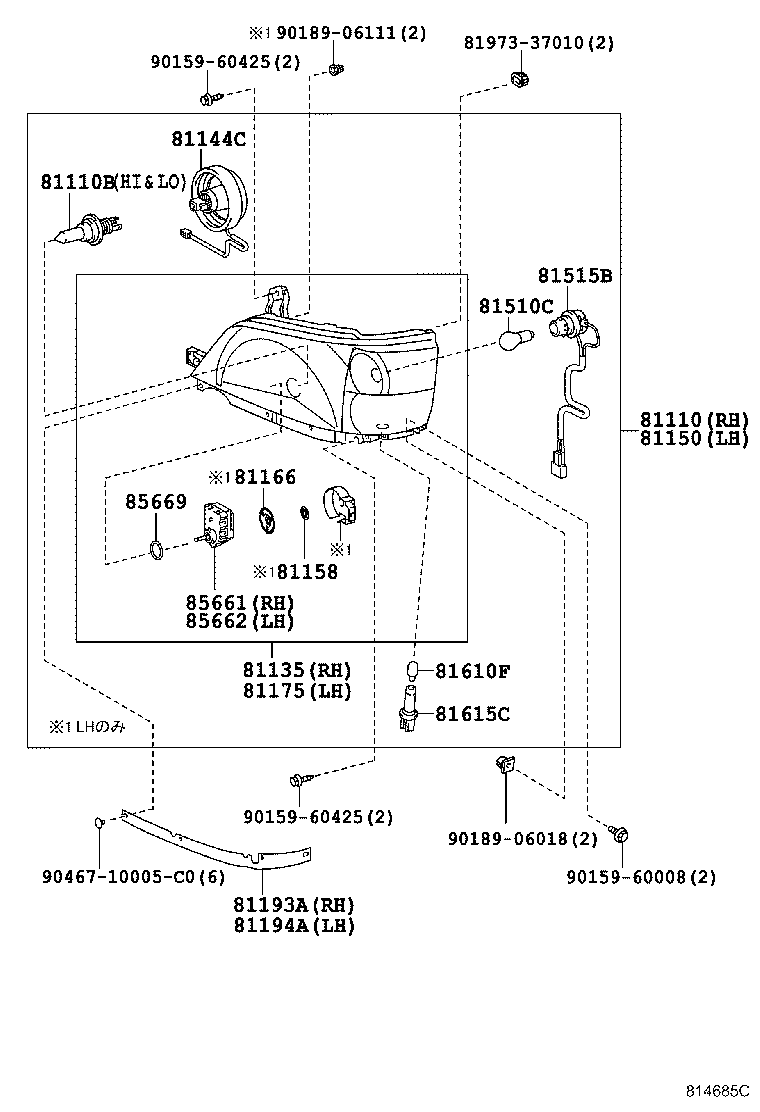

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-37110	XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU306,322..DM7,DM8,T4;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;XZU302,347..SCB..20T..DSL;XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,XZU321..(DM7,T1,T4,T5)..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,XZU300,307,33#,340,341,342,346,351,352,362,37#,382..(20T,295T,30T)..DSL	05/1999 - 06/2002	1
81110-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2004	1
81110-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL 24V 75/70W,HAL WH	05/1999 - 08/2001	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37110	XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU306,322..DM7,DM8,T4;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;XZU302,347..SCB..20T..DSL;XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,XZU321..(DM7,T1,T4,T5)..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,XZU300,307,33#,340,341,342,346,351,352,362,37#,382..(20T,295T,30T)..DSL	05/1999 - 06/2002	1
81130-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 01/2005	1
81130-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81130-37290	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	05/2005 - 12/2999	1
81144C - COVER, HEADLAMP SOCKET
90075-65002	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	2
81138-37280	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	2
81150 - HEADLAMP ASSY, LH
81150-37110	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 08/2001	1
81150-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81150-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2004	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37110	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 08/2001	1
81170-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 01/2005	1
81170-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81170-37290	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	05/2005 - 12/2999	1
81193A - PROTECTOR, HEADLAMP, RH
81193-37010	BU306..SCB,VAN;BU306..DCB..CBU;BU301,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2000	1
81193-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	1
81193-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	1
81194A - PROTECTOR, HEADLAMP, LH
81194-37010	BU306..SCB,VAN;BU306..DCB..CBU;BU301,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2000	1
81193-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	1
81193-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	1
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81138-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-16015	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T 24V 21/5W	06/2004 - 05/2005	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-60004	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	2
90075-99106	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	2
Common parts
81973-37010
90159-60008
90159-60425
90189-06018
90189-06111
90467-10005C0

(0505- )

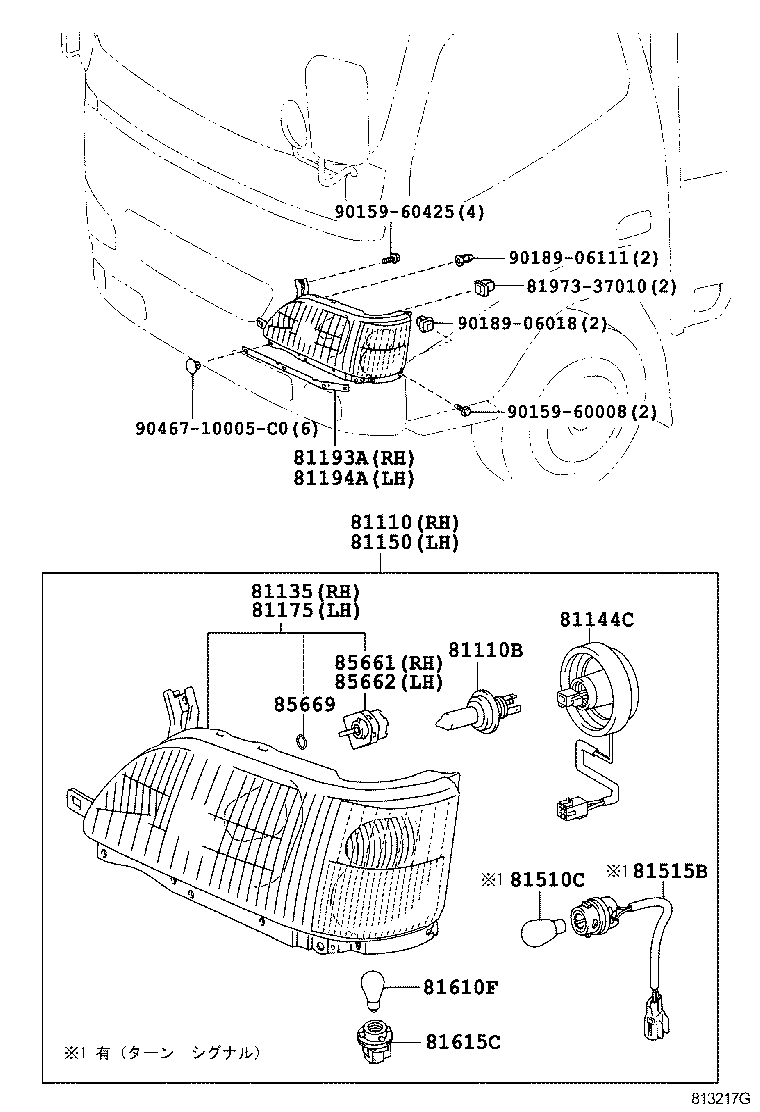

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-37110	XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU306,322..DM7,DM8,T4;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;XZU302,347..SCB..20T..DSL;XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,XZU321..(DM7,T1,T4,T5)..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,XZU300,307,33#,340,341,342,346,351,352,362,37#,382..(20T,295T,30T)..DSL	05/1999 - 06/2002	1
81110-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2004	1
81110-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17019	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL 24V 75/70W,HAL WH	05/1999 - 08/2001	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-37110	XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU306,322..DM7,DM8,T4;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;XZU302,347..SCB..20T..DSL;XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,XZU321..(DM7,T1,T4,T5)..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,XZU300,307,33#,340,341,342,346,351,352,362,37#,382..(20T,295T,30T)..DSL	05/1999 - 06/2002	1
81130-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 01/2005	1
81130-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81130-37290	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	05/2005 - 12/2999	1
81144C - COVER, HEADLAMP SOCKET
90075-65002	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	2
81138-37280	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	2
81150 - HEADLAMP ASSY, LH
81150-37110	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 08/2001	1
81150-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81150-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2004	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-37110	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 08/2001	1
81170-37210	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 01/2005	1
81170-37211	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	01/2005 - 05/2005	1
81170-37290	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	05/2005 - 12/2999	1
81193A - PROTECTOR, HEADLAMP, RH
81193-37010	BU306..SCB,VAN;BU306..DCB..CBU;BU301,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2000	1
81193-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	1
81193-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	1
81194A - PROTECTOR, HEADLAMP, LH
81194-37010	BU306..SCB,VAN;BU306..DCB..CBU;BU301,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2000	1
81193-37040	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	1
81193-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	1
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81138-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-16015	XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T 24V 21/5W	06/2004 - 05/2005	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-60004	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	05/2005 - 12/2999	2
90075-99106	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 05/2005	2
Common parts
81973-37010
90159-60008
90159-60425
90189-06018
90189-06111
90467-10005C0

(0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81973-37010
90159-60008
90159-60425
90189-06018
90189-06111
90467-10005C0

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81131-22170
90189-05005
93219-14008

(0505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81973-37010
90159-60008
90159-60425
90189-06018
90189-06111
90467-10005C0
