XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

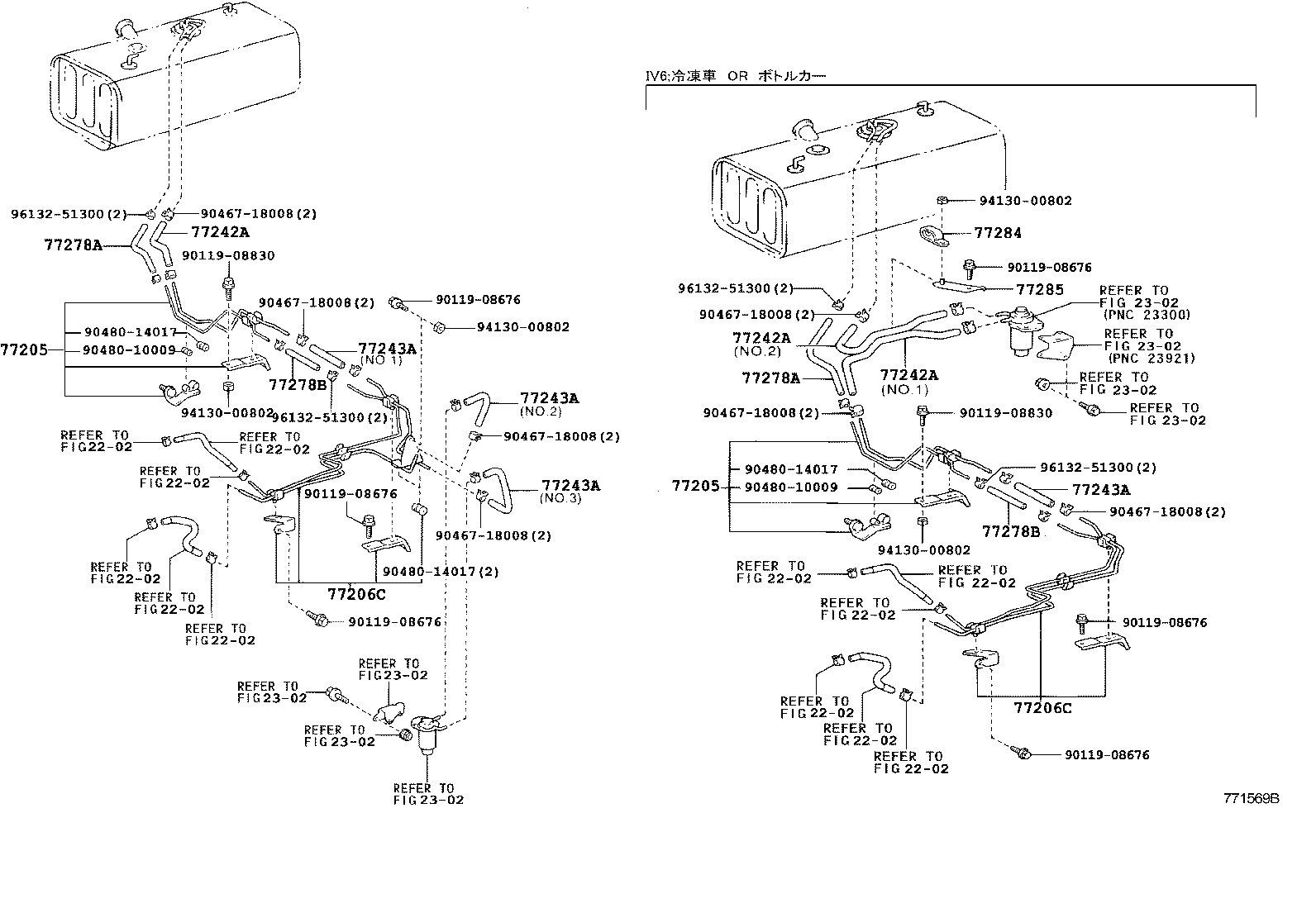

ILLUST NO. 2 OF 2(0406- )XZU301,304,306,308,336,338..SCB..DM3,T1,T2,T3,T5

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2202 2202 2202 2202 2202 2202 2302 2302 2302 2302 2302 2302 2302 2302 77205 77205 77206C 77206C 77242A 77242A 77242A 77243A 77243A 77243A 77243A 77278A 77278A 77278B 77278B 77284 77285 9011908676 9011908676 9011908676 9011908676 9011908676 9011908676 9011908830 9011908830 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9046718008 9048010009 9048010009 9048014017 9048014017 9048014017 9413000802 9413000802 9413000802 9413000802 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330

XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)

 1
77205-37330

XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)

 1
77205-37310

XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)

 1
77205-37310

XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330

XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)

 1
77205-37330

XZU302..DM3,DM6;XZU306..T5..IV3;XZU302..4FC..ST..IV3;XZU301..(DM3,T4)..CBU;XZU307..SCB..4FC..IV3;XZU302,337..(T2,T4)..4FC;XZU300,302,331..T4..(295T,30T);XZU307..SCB..(T2,T4)..4FC..CBU;XZU301..(DM3,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7);XZU301,306..(DM6,T4)..20T..(DSL,DSLL)..(CBU,IV3,IV6);XZU300,302,330,331,350..(T3,T5)..(30T,40T)..(IV3,IV6)

 1
77205-37310

XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)

 1
77205-37310

XZU304..T5..IV3;XZU304..T4..DCRL..CBU;XZU301,331..DM3,DM6,T4;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU304..SCB..(DM6,T1,T3,T4)..(DSL,DSLL);XZU301,306,308,331,334..(T3,T5)..(20T,30T)..(IV3,IV6);XZU305,306,308,334,336,338,354..SCB..(DM6,T2,T3,T4)..(20T,40T)

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37480

XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)

 1
77206-37480

XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)

 1
77206-37840

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

 1
77206-37840

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37480

XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)

 1
77206-37480

XZU302..DM3,T3;XZU301..20T..IV7;XZU302..4FC..4NO;XZU302..(T4,T5)..(295T,30T);XZU301,331..(DM3,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV7)

 1
77206-37840

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

 1
77206-37840

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL

*H,L=220,内径=12

 1
95332-12022

XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL

*H,L=220,内径=12

 1
95332-12022

XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL

*H,L=220,内径=12

 1
95332-12022

XZU31#..DCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,306,307,32#,33#,350..SCB..(DM3,DM7,DM8,T1,T2,T3,T4,T5)..DSL

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU301,304,306,308,321,33#..SCB..(DM3,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12016

XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12030

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
95332-12018

XZU301,304,306,308,33#..SCB..(DM3,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=180,内径=12,NO.2:ｲﾗｽﾄ参照

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL)

*H,L=240,内径=7.6

 1
95333-08030

XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL)

*H,L=240,内径=7.6

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL)

*H,L=240,内径=7.6

 1
95333-08030

XZU31#;XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU301..T4..IV6..1NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);BU30#,XZU300,302,307,33#,35#..SCB..(DM2,DM3,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL)

*H,L=240,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
95333-08020

XZU30#,31#,321,33#,34#,35#,368,378,388

*H,L=160,内径=7.6

 1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 3(0610- )XZU30#,368,50#,568..SCB..DM3,DM5,T2,T3,T4,T5..CBU,IV3,IV7

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ(780X320X385)

diagram 77017B 77023 77026B 77100A 77100B 77100U 77154 77169A 77169B 77178 77244C 77249 77380 77701U 8401 8401 8401 93319A4010 93319A4010 9613251100
Part # Description Qty Price
Common parts
93319-A4010
96132-51100
Linked diagrams
8401
