XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

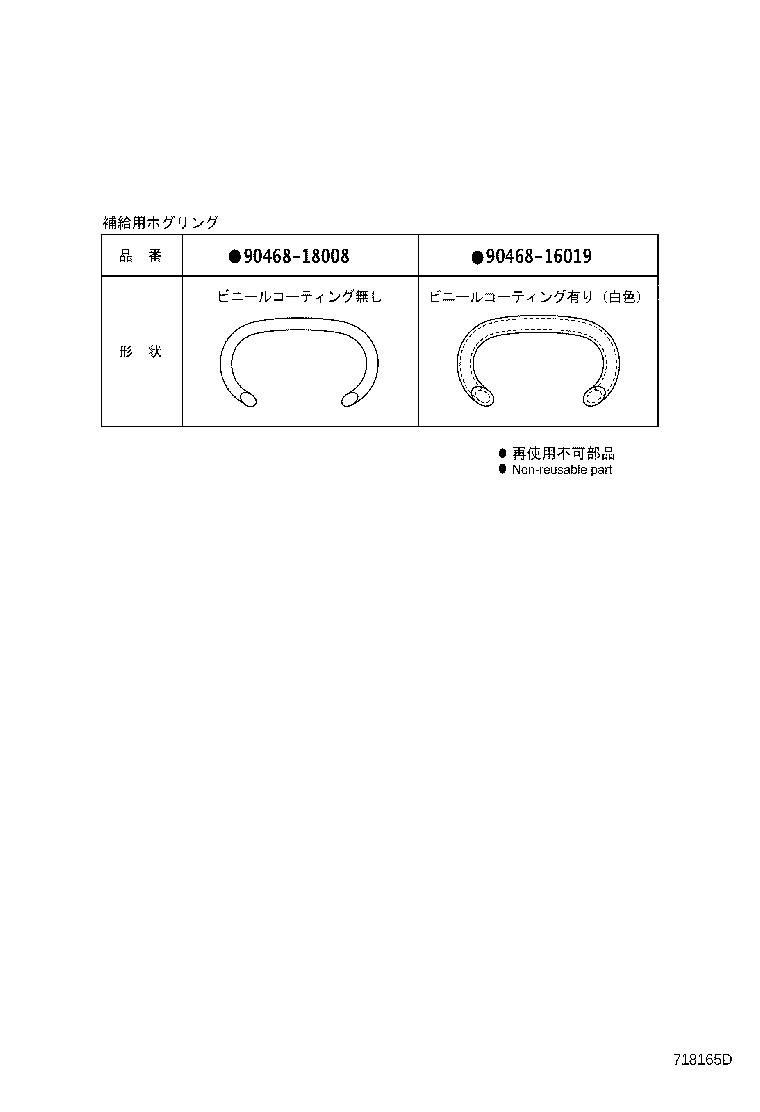

(9905- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

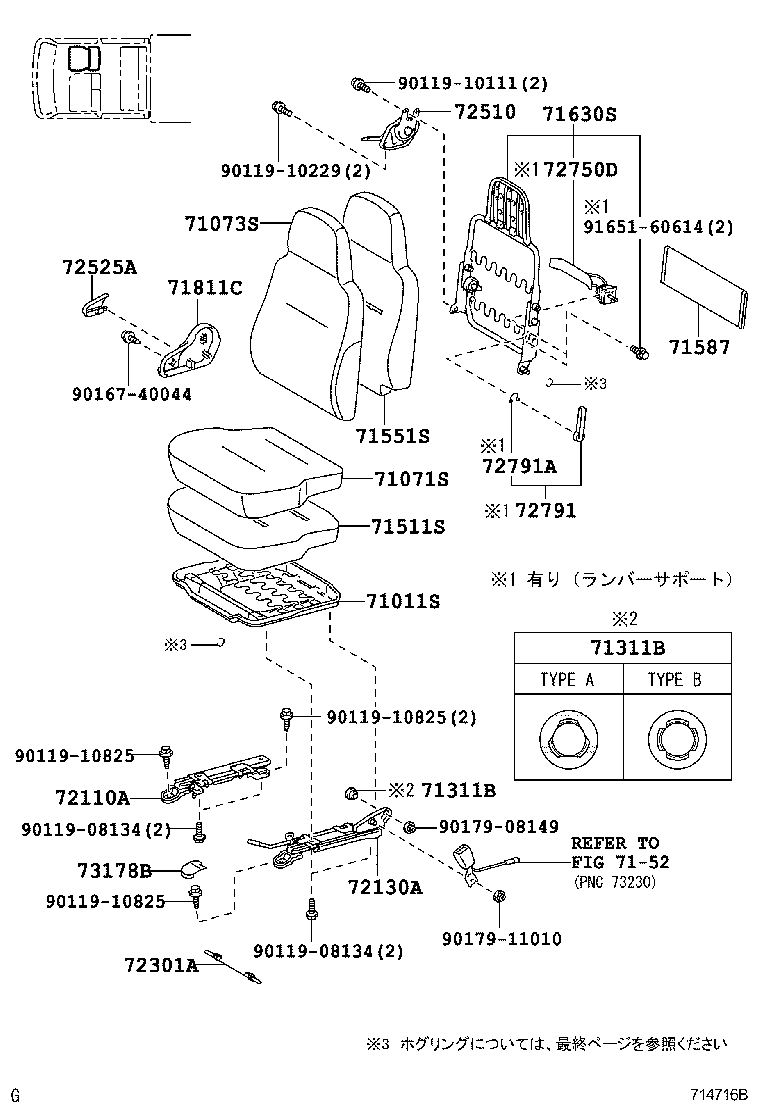

ILLUST NO. 1 OF 3(0610- )DCB,SCB

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08134
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
Linked diagrams
7152

ILLUST NO. 1 OF 3(0610- )SCB,VAN

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ SCB ｱﾘ(ﾗﾝﾊﾞｰｻﾎﾟｰﾄ) OR VAN

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
91651-60614
Linked diagrams
7152

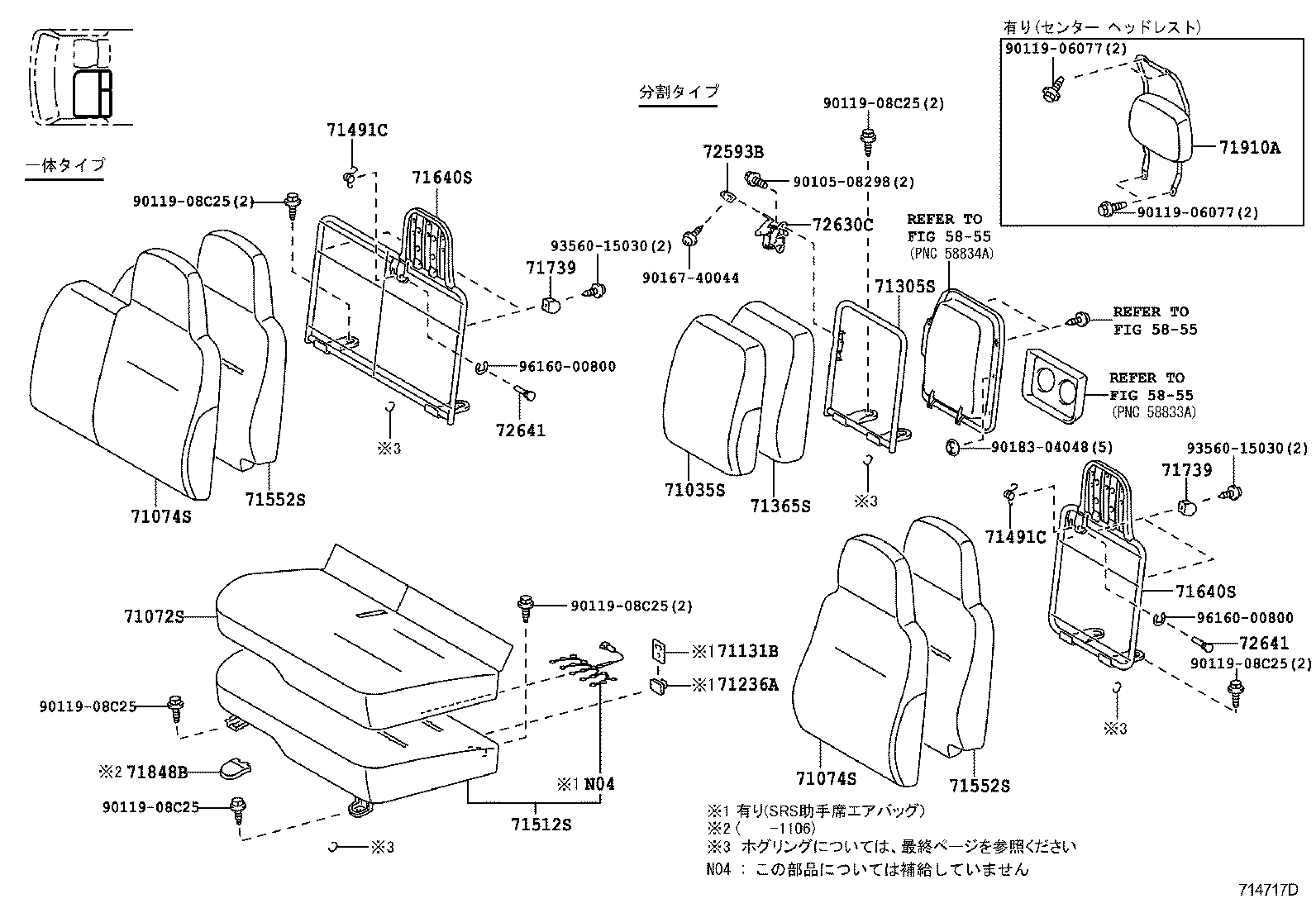

ILLUST NO. 2 OF 3(0610- )SCB

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹｼｰﾄ

diagram

Part #	Description	Period	Qty	Price
Common parts
90105-08298
90119-06077
90119-08C25
90167-40044
90183-04048
93560-15030
96160-00800
Linked diagrams
5855

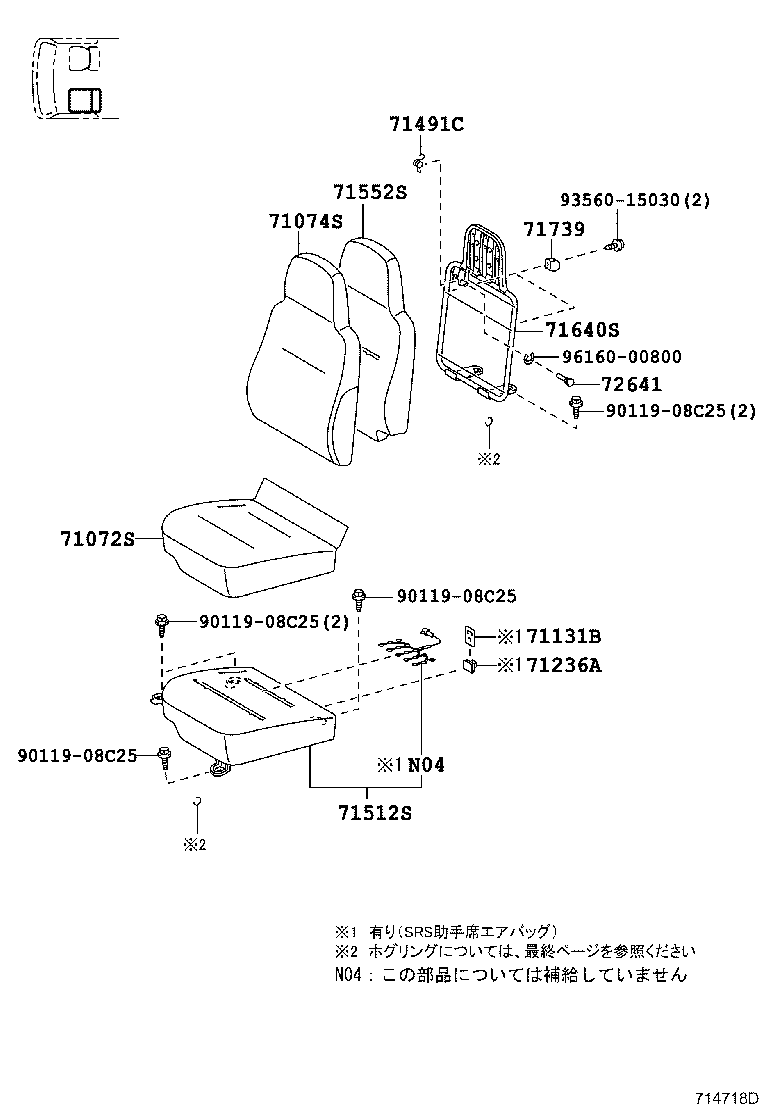

ILLUST NO. 2 OF 3(0610- )SCB

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷｾﾊﾟﾚｰﾄｼｰﾄ (1+1 ﾀｲﾌﾟ)

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08C25
93560-15030
96160-00800

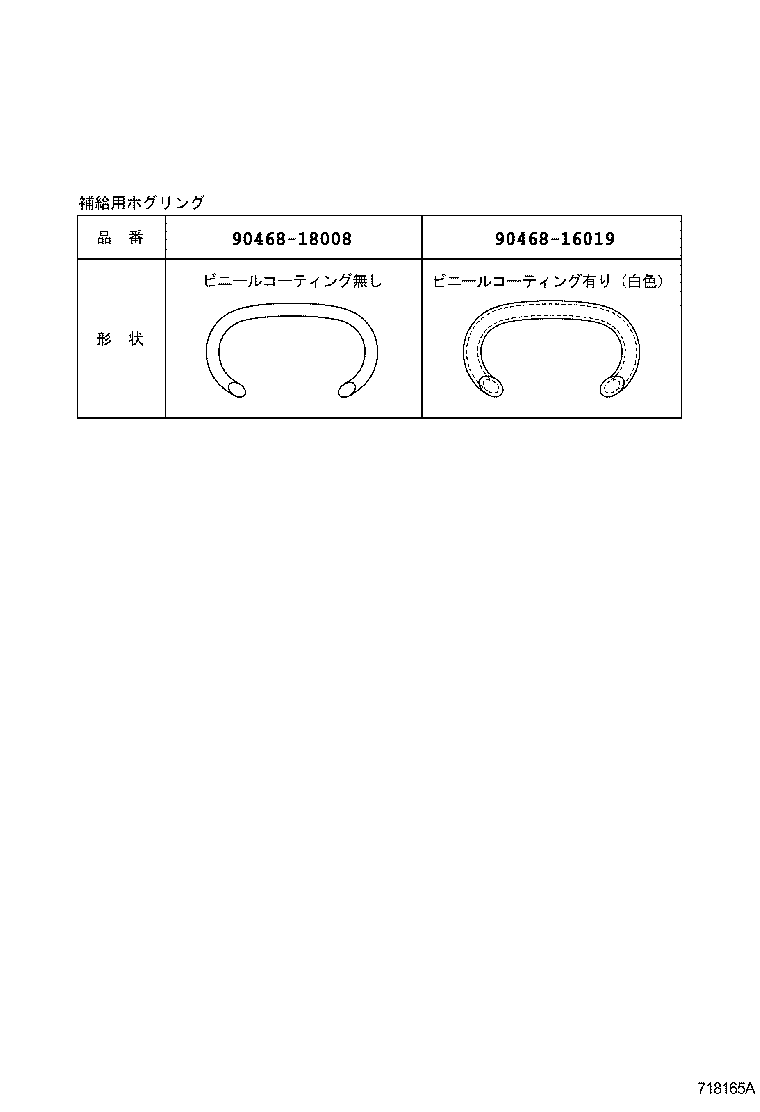

(0610- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

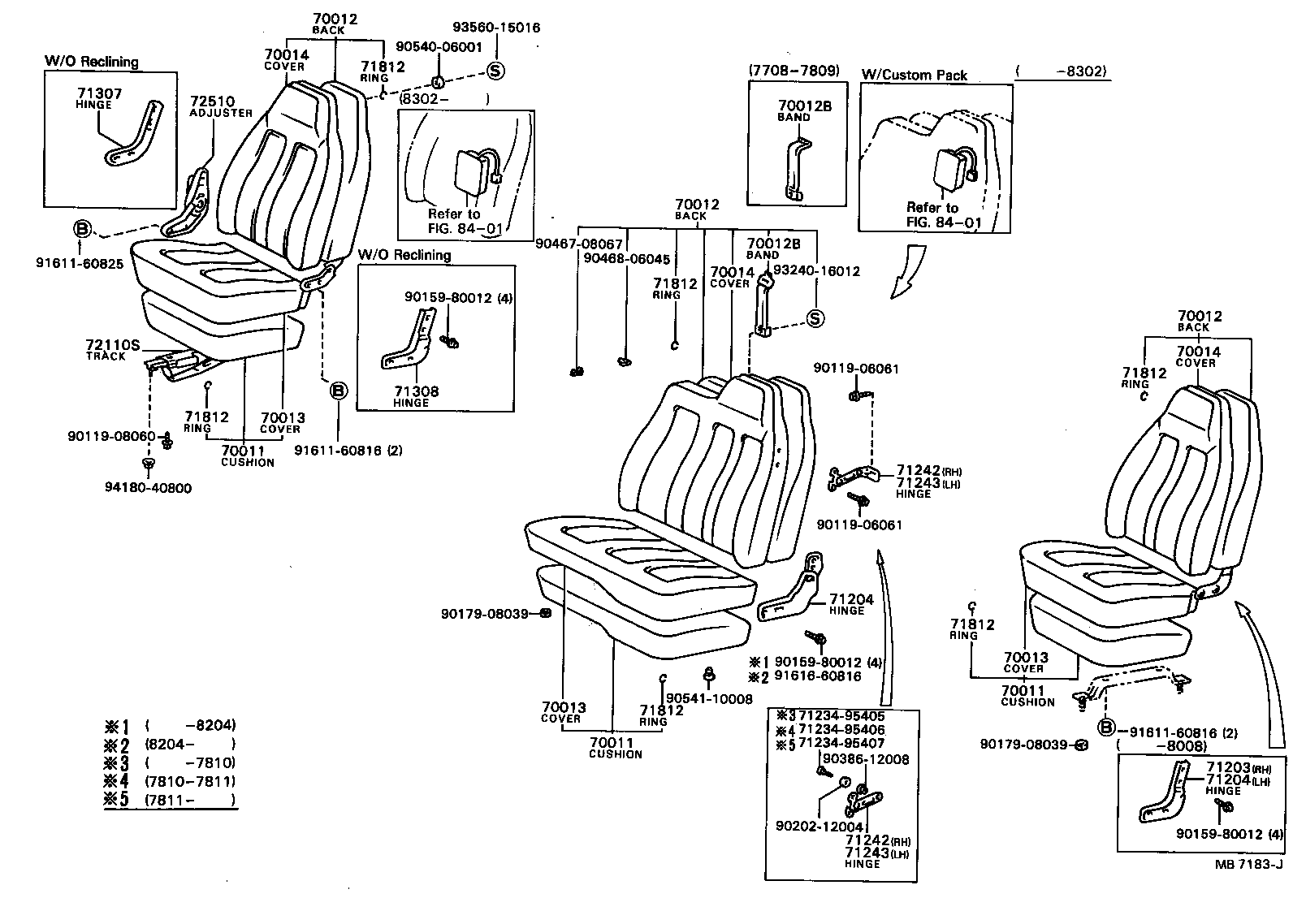

(7708- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
71234-95405
71234-95406
71234-95407
90119-06061
90119-08060
90159-80012
90179-08039
90202-12004
90386-12008
90467-08067
90468-06045
90540-06001
90541-10008
91611-60816
91611-60825
91616-60816
93240-16012
93560-15016
94180-40800
Linked diagrams
8401

(9905- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008
