XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0406- )

Click highlighted areas on diagram

ﾌﾂｸ

diagram 51961C 51962 51962 51963B 51964B 51968C 9017814007 91645C1032 9167201460 9167201460 9167201460 9413001002 9413001402 9413001432 9462241400
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37040

XZU302..ST;XZU382..T4..IV3;BU301,XZU301,31#,321,322,351,352,362..4NO

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51961-37070

BZU340,RZU30#,XZU378,388..(DM5,T2,T4)..20T;BZU300,RZU340,XZU301,304,306,308,321,334,336,338,34#,35#,368..(03S,06S,DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(175T,20T)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51962 - HOOK, NO.2
51961-36040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51961-36040

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
51962 - HOOK, NO.2
51961-36040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51961-36040

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
51963-37030

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51964-37040

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

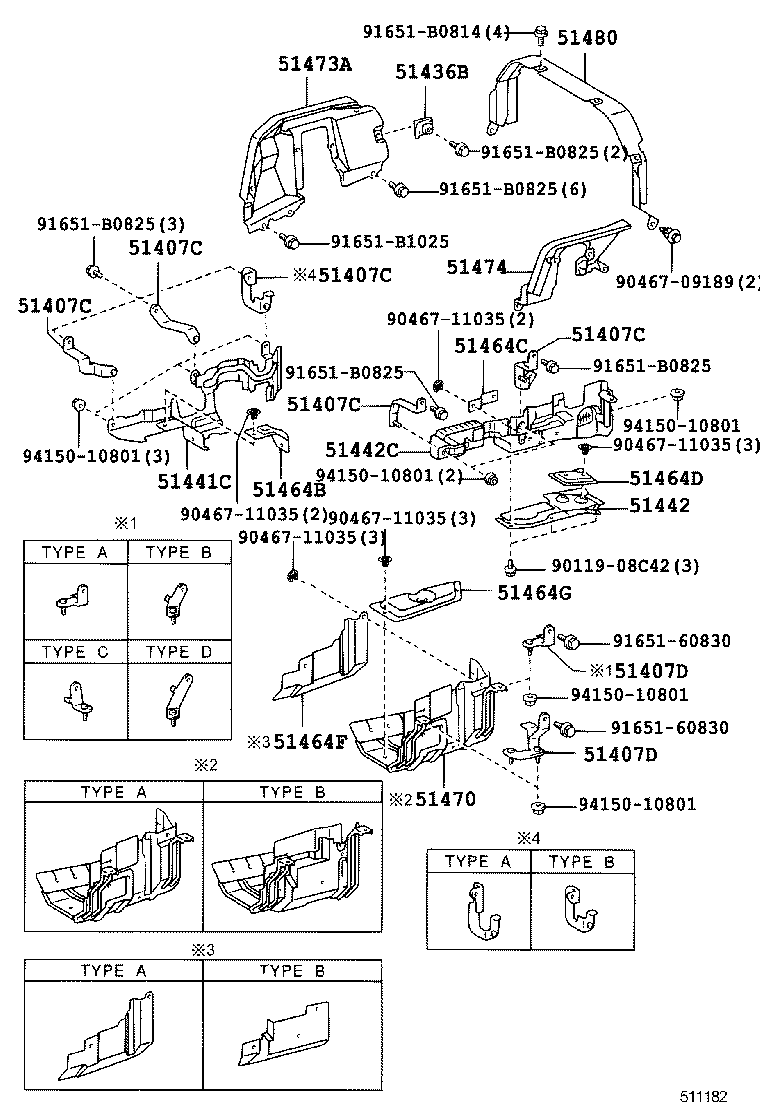

ILLUST NO. 1 OF 2(0406- )XZU301,311,321,331,341,351..5F

Click highlighted areas on diagram

diagram 51407C 51407C 51407C 51407C 51407C 51407D 51407D 51436B 51441C 51442 51442C 51464B 51464C 51464D 51464F 51464G 51470 51473A 51474 51480 9011908C42 9046709189 9046711035 9046711035 9046711035 9046711035 9046711035 9165160830 9165160830 91651B0814 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B1025 9415010801 9415010801 9415010801 9415010801 9415010801
Part # Description Qty Price
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37390

XZU301,311,321,331,341,351..5F

左側 ｾﾝﾀｰ

 1
51407-37320

XZU301..5F..(CBU,IV6);XZU311,331,341,351..5F;XZU301..(DM6,T3,T4,T5)..5F..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側ﾘﾔ

 1
51407-37200

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側 ｾﾝﾀｰ

 1
51407-37220

RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI)

左側ﾌﾛﾝﾄ

 1
51407-37190

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側ﾌﾛﾝﾄ

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37390

XZU301,311,321,331,341,351..5F

左側 ｾﾝﾀｰ

 1
51407-37320

XZU301..5F..(CBU,IV6);XZU311,331,341,351..5F;XZU301..(DM6,T3,T4,T5)..5F..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側ﾘﾔ

 1
51407-37200

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側 ｾﾝﾀｰ

 1
51407-37220

RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI)

左側ﾌﾛﾝﾄ

 1
51407-37190

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側ﾌﾛﾝﾄ

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37390

XZU301,311,321,331,341,351..5F

左側 ｾﾝﾀｰ

 1
51407-37320

XZU301..5F..(CBU,IV6);XZU311,331,341,351..5F;XZU301..(DM6,T3,T4,T5)..5F..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側ﾘﾔ

 1
51407-37200

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側 ｾﾝﾀｰ

 1
51407-37220

RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI)

左側ﾌﾛﾝﾄ

 1
51407-37190

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側ﾌﾛﾝﾄ

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37390

XZU301,311,321,331,341,351..5F

左側 ｾﾝﾀｰ

 1
51407-37320

XZU301..5F..(CBU,IV6);XZU311,331,341,351..5F;XZU301..(DM6,T3,T4,T5)..5F..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側ﾘﾔ

 1
51407-37200

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側 ｾﾝﾀｰ

 1
51407-37220

RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI)

左側ﾌﾛﾝﾄ

 1
51407-37190

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側ﾌﾛﾝﾄ

 1
51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37390

XZU301,311,321,331,341,351..5F

左側 ｾﾝﾀｰ

 1
51407-37320

XZU301..5F..(CBU,IV6);XZU311,331,341,351..5F;XZU301..(DM6,T3,T4,T5)..5F..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側ﾘﾔ

 1
51407-37200

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側 ｾﾝﾀｰ

 1
51407-37220

RZU301..5F;RZU300,340,XZU301,311,321,331,341,351..5F..(DSL,EFI)

左側ﾌﾛﾝﾄ

 1
51407-37190

RZU301..5F;RZU300,340,XZU301,304,311,321,331,334,341,351..5F..(20T,30T)..(DSL,EFI)

右側ﾌﾛﾝﾄ

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37250

RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG)

ﾌﾛﾝﾄ

 1
51407-37070

BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ

 1
51407-37251

RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG)

ﾌﾛﾝﾄ

 1
51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER
51407-37250

RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG)

ﾌﾛﾝﾄ

 1
51407-37070

BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾘﾔ

 1
51407-37251

RZU300..EFI;XZU306,308,346..(DCB,VAN)..5F;BZU300,340,RZU301,340,XZU301,304,311,331,334,341,351..5F..(DSL,EFI,LPG)

ﾌﾛﾝﾄ

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382

 2
51436-37080

XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368

 2
51441C - COVER, ENGINE UNDER, RH
51440-37110

XZU301,311,321,331,341,351..5F

 1
51442 - COVER, ENGINE UNDER, NO.2
51440-37151

XZU301,311,321,331,341,351..5F

 1
51442C - COVER, ENGINE UNDER, LH
51440-37121

XZU301,311,321,331,341,351..5F

 1
51464B - SILENCER, TRANSMISSION UNDER
51464-37080

XZU301,311,321,331,341,351..5F

 1
51464C - SILENCER, TRANSMISSION UNDER
51464-37090

XZU301,304,311,321,331,334,341,351..SCB..5F..DSL

 1
51464D - SILENCER, TRANSMISSION UNDER
51464-37100

XZU301,311,321,331,341,351..5F

 1
51464F - SILENCER, TRANSMISSION UNDER
51464-37120

BZU340..LPG;RZU300..SCB..EFI;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51464G - SILENCER, TRANSMISSION UNDER
51464-37140

RZU300,XZU306,308,346..(SCB,VAN)..5F..(DSL,EFI)..(CBU,IV3);BZU300,340,RZU301,340,XZU301,304,33#,341,348,368,378,388..(T1,T2,T3,T4,T5)..5F..(20T,30T)..(DSL,EFI,LPG)..(CBU,IV3)

 1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37070

XZU30#,33#,34#..SCB..(T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3,IV7)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51470-37170

RZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
51473-37180

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
51474-37120

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#

 1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37010

XZU300,302..T3..IV3;XZU301..(T4,T5)..CBU;XZU301..(T3,T4,T5)..(DSL,DSLL)..IV3;BU30#,XZU300,302,306,307,322..SCB..(T1,T2,T4,T5)..(DSL,DSLL)

 1
51480-37010

XZU301..(T4,T5)..CBU;XZU304..DCRL..CBU..4NO;XZU301..(T3,T4,T5)..IV3;XZU304..(T3,T4,T5)..DCRL..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3)

 1
Common parts
90119-08C42
90467-09189
90467-11035
91651-60830
91651-B0814
91651-B0825
91651-B1025
94150-10801

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

diagram 51961C 51962 51962 51963B 51964B 51968C 9017814007 91645C1032 9167201460 9167201460 9167201460 9413001002 9413001402 9413001432 9462241400
Part # Description Qty Price
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 51171 51171 51171 51441 51442 51456 51456 51457 51457 51459 51459 51961 51961 51961 51961 51961 51961 51963 51963 9111271455 9111271455 9111271460 9111271460 9116271250 9116271250 9165140816 9165140816 9165140820 9165140820 9359056014 9359056014 9411541200 9411551200 9411551400 9411551400 9411551400 9411551400 9451201200 9451201200 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
Common parts
91112-71455
91112-71460
91162-71250
91651-40816
91651-40820
93590-56014
94115-41200
94115-51200
94115-51400
94512-01200
94512-01400

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 51961C 51961D 51962 51963B 51963B 51964B 51965A 9017814007 9167201460 9167201460 9167201460 9412541400 9412541400 9413001402
Part # Description Qty Price
Common parts
90178-14007
91672-01460
94125-41400
94130-01402
