XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

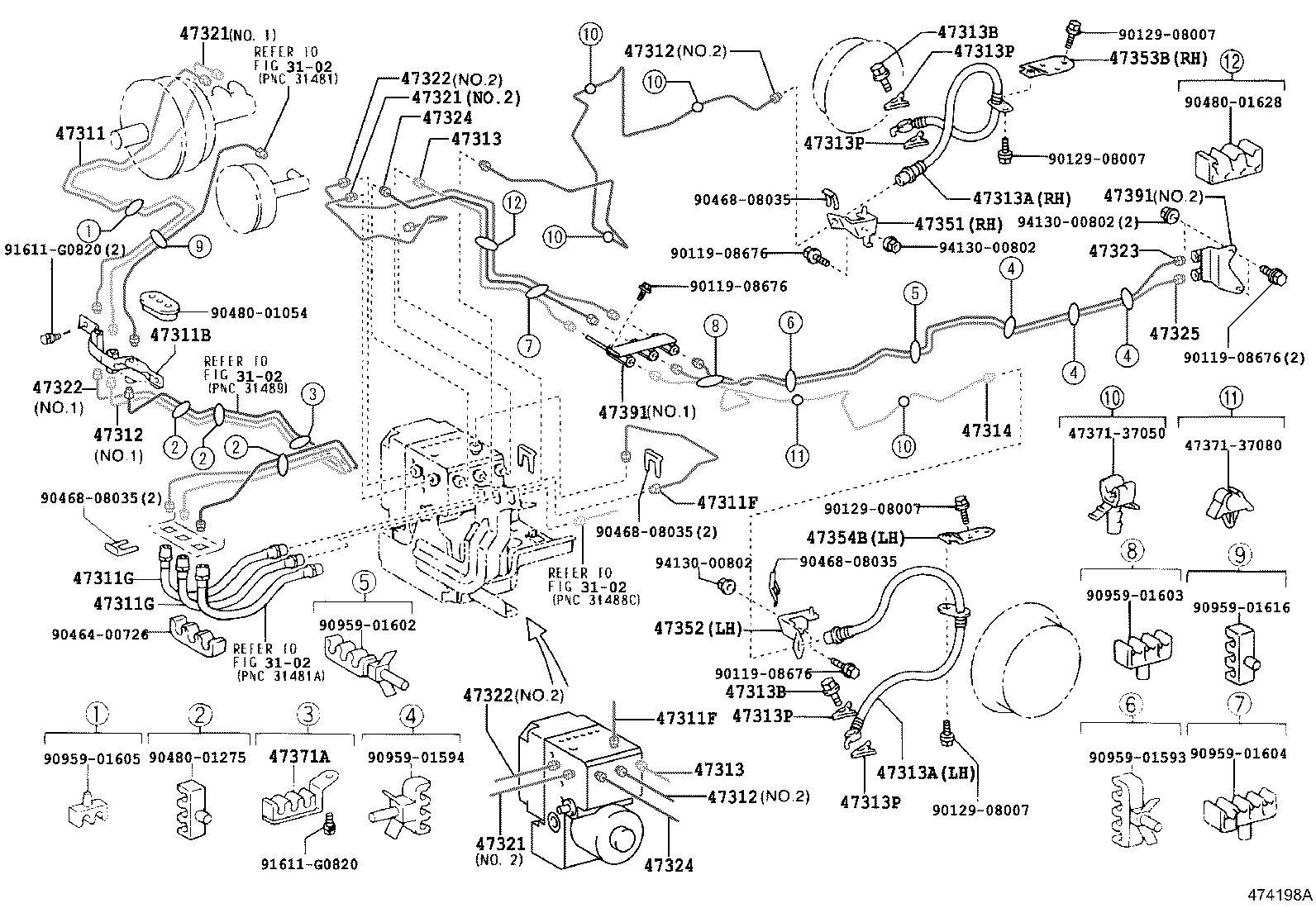

ILLUST NO. 1 OF 5(0406- )XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5..CBU,IV3,IV4,IV6

Click highlighted areas on diagram

diagram 3102 3102 3102 3102 47311 47311B 47311F 47311F 47311G 47311G 47312 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47321 47321 47321 47322 47322 47322 47323 47324 47324 47325 47351 47352 47353B 47354B 4737137050 4737137080 47371A 47391 47391 9011908676 9011908676 9011908676 9011908676 9012908007 9012908007 9012908007 9012908007 9046400726 9046808035 9046808035 9046808035 9046808035 9048001054 9048001275 9048001628 9095901593 9095901594 9095901602 9095901603 9095901604 9095901605 9095901616 91611G0820 91611G0820 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-37160

BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
47311-37162

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
47311-37161

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
47391-37010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37180

XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL)

 1
47311-37440

XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7

NO.1

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37180

XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL)

 1
47311-37440

XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7

NO.1

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79

XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#

 2
90947-02D83

XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7

ｱﾘ(ABS)

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79

XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#

 2
90947-02D83

XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7

ｱﾘ(ABS)

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47312-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6

NO.1

 1
47312-37490

XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

NO.2

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47312-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6

NO.1

 1
47312-37490

XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

NO.2

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47312-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6

NO.1

 1
47312-37490

XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

NO.2

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440

XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7

ｱﾘ(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440

XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7

ｱﾘ(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72

BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T

右側

 1
90947-02B27

BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T

左側

 1
90947-02B27

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

左側

 1
90947-02A72

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72

BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T

右側

 1
90947-02B27

BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T

左側

 1
90947-02B27

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

左側

 1
90947-02A72

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
90401-10015

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 2
90401-10015

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 4
47389-30010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 4
47389-30010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 4
47389-30010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 4
47389-30010

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570

XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T)

ｱﾘ(ABS)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47321-37160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

NO.1

 1
47321-37420

XZU30#,31#,321,33#,34#,35#,368,378,388

ｱﾘ(ABS),NO.2

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47321-37160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

NO.1

 1
47321-37420

XZU30#,31#,321,33#,34#,35#,368,378,388

ｱﾘ(ABS),NO.2

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47321-37160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

NO.1

 1
47321-37420

XZU30#,31#,321,33#,34#,35#,368,378,388

ｱﾘ(ABS),NO.2

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

NO.1

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

NO.1

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

NO.1

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-37070

XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7)

ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ)

 1
47323-37530

XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7

ｱﾘ(ABS)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-37320

XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7

ｱﾘ(ABS)

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130

BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T

 1
47351-37130

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050

BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T

 1
47352-37050

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150

XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)

 1
47353-37150

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160

BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T

 1
47354-37160

XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030

BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

 1
47371-37030

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6

 1
47391 - WAY, BRAKE TUBE
47391-37310

XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6)

NO.2

 1
47391-37300

XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6

NO.1

 1
47391 - WAY, BRAKE TUBE
47391-37310

XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6)

NO.2

 1
47391-37300

XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6

NO.1

 1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01628
90959-01593
90959-01594
90959-01602
90959-01603
90959-01604
90959-01605
90959-01616
91611-G0820
94130-00802
Linked diagrams
3102

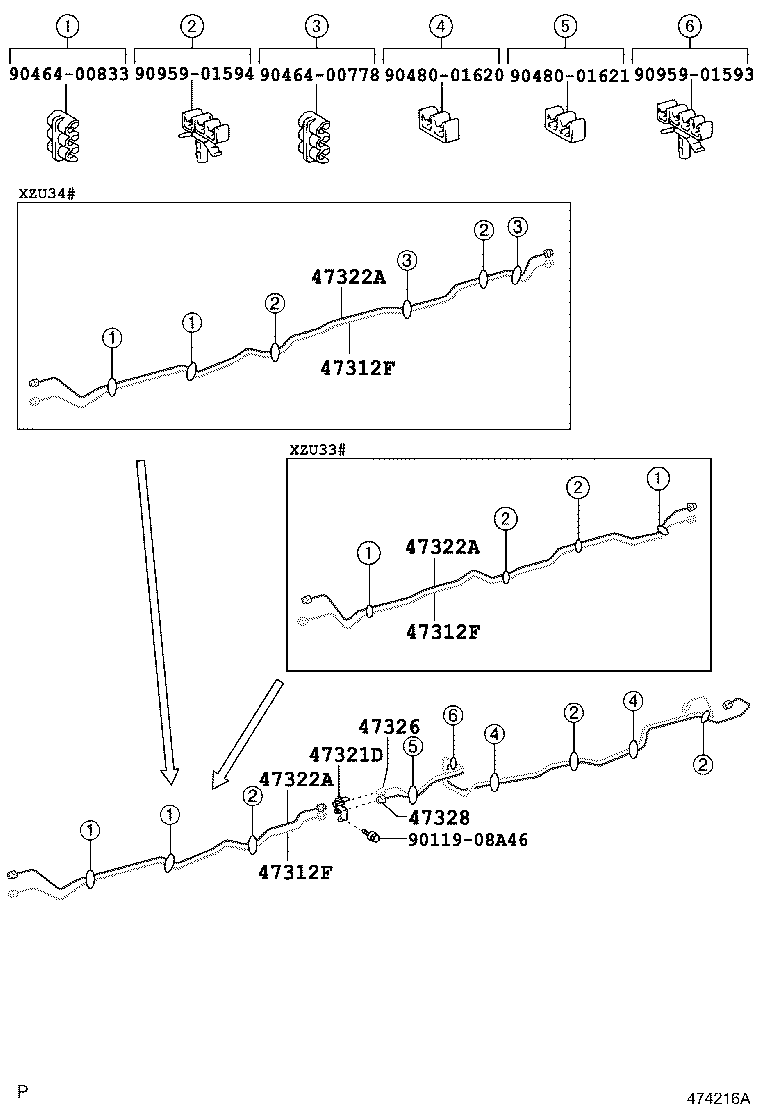

ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7

Click highlighted areas on diagram

W(ABS) 4X2 SHORT,S/LONG,LONG

diagram 47312F 47312F 47312F 47321D 47322A 47322A 47322A 47326 47328 9011908A46 9046400778 9046400833 9048001620 9048001621 9095901593 9095901594
Part # Description Qty Price
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47312-37500

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47312-37501

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47312-37500

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47312-37501

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47312-37500

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47312-37501

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7)

NO.4

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47322-37590

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47322-37880

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47322-37590

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47322-37880

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47322-37590

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47322-37880

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-37510

XZU301,304..ST

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-37360

XZU301,304..ST

 1
Common parts
90119-08A46
90464-00778
90464-00833
90480-01620
90480-01621
90959-01593
90959-01594

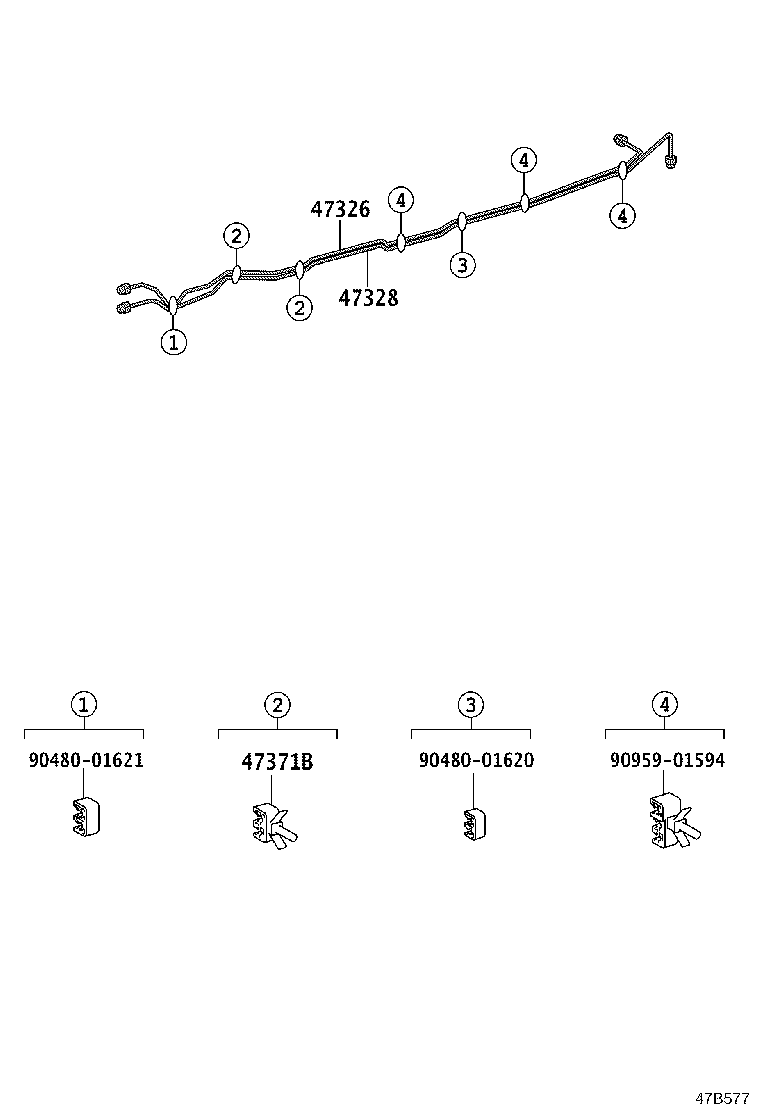

ILLUST NO. 2 OF 5(0406- )ST

Click highlighted areas on diagram

W(ABS) SINGLE TIRE

diagram 47312F 47321D 47322A 47326 47328 9011908A46 9046400833 9048001620 9095901594
Part # Description Qty Price
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47312-37500

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47312-37501

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7)

NO.4

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220

BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
47322-37590

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47322-37880

XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-37510

XZU301,304..ST

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-37360

XZU301,304..ST

 1
Common parts
90119-08A46
90464-00833
90480-01620
90959-01594

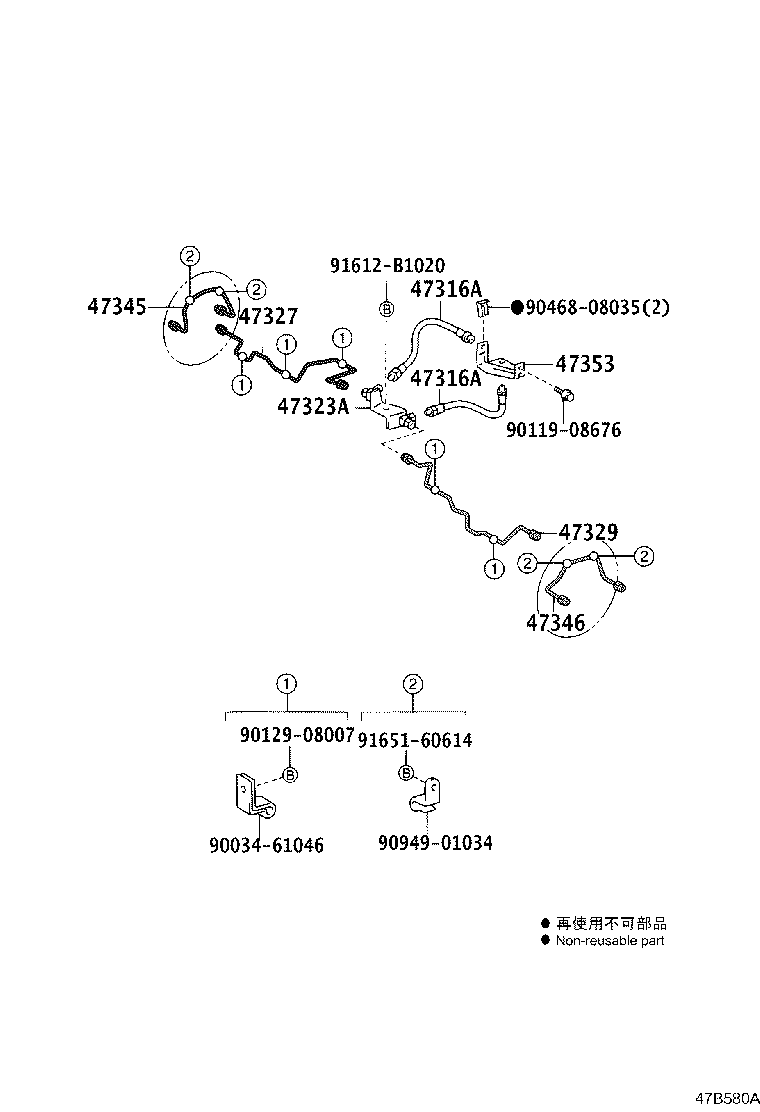

ILLUST NO. 3 OF 5(0406- )ST

Click highlighted areas on diagram

W(ABS) CLAMP:LH SIDE=2,RH SIDE=3

diagram 47316A 47316A 47323A 47327 47329 47345 47346 47353 9003461046 9011908676 9012908007 9046808035 9094901034 91612B1020 9165160614
Part # Description Qty Price
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B72

XZU301,304..ST

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B72

XZU301,304..ST

 2
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37050

XZU301,304..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-37220

XZU362..T4;XZU301,306..T5..20T

 1
47327-37170

XZU301,304..ST

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-37040

XZU301,304..ST

 1
47329-37080

XZU362..T4;XZU301,306..T5..20T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37040

XZU301,304..ST

 1
47345-36050

XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050

XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT

 1
47345-37040

XZU301,304..ST

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37070

XZU301,304..ST

 1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
90949-01034
91612-B1020
91651-60614

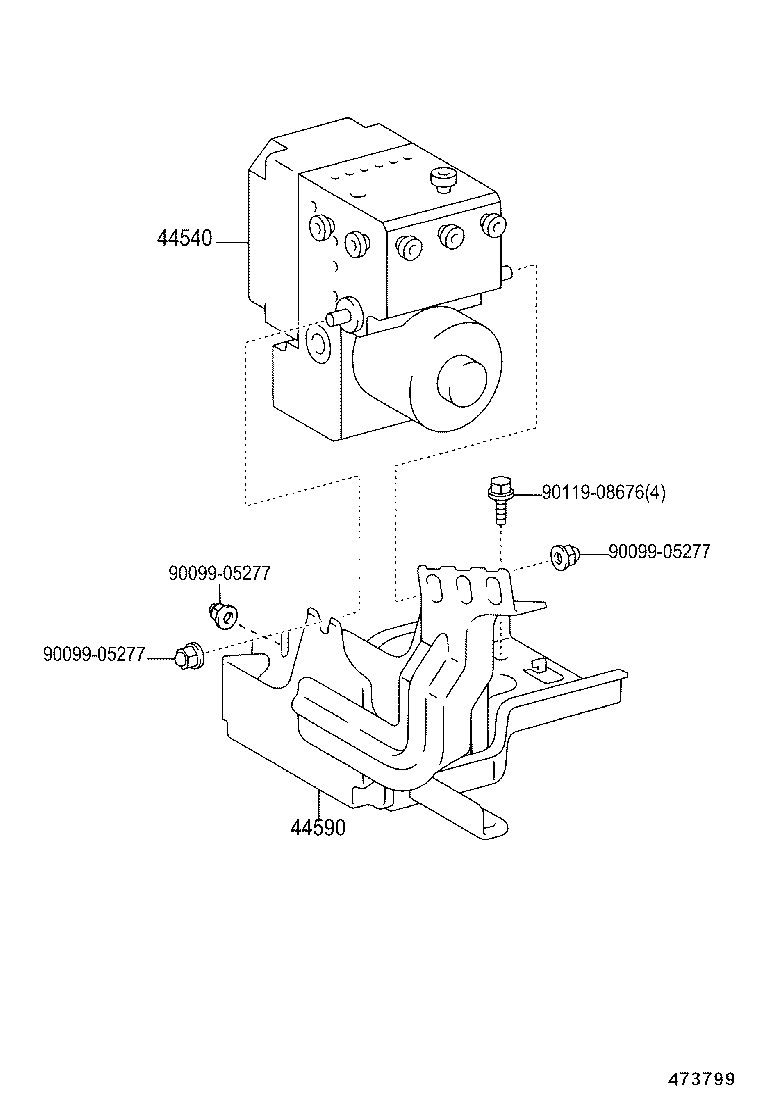

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

W(ABS)

diagram 44540 44590 9009905277 9009905277 9009905277 9011908676
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010

BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
44050-37040

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37010

XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG

 1
Common parts
90099-05277
90119-08676

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

diagram 44540 44590 9009905277 9009905277 9009905277 9011908676
Part # Description Qty Price
Common parts
90099-05277
90119-08676

ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )

Click highlighted areas on diagram

diagram 3102 3102 3102 3102 47311 47311B 47311F 47311F 47311G 47311G 47312 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47321 47321 47321 47322 47322 47322 47323 47324 47324 47325 47351 47352 47353B 47354B 4737137050 4737137080 47371A 47391 47391 9011908676 9011908676 9011908676 9011908676 9012908007 9012908007 9012908007 9012908007 9046400447 9046400726 9046808035 9046808035 9046808035 9046808035 9046808035 9048001054 9048001275 9048001275 9048001311 9048001628 9095901603 9095901604 9095901605 9095901616 9095901622 91611G0820 91611G0820 9413000802 9413000802
Part # Description Qty Price
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00447
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01628
90959-01603
90959-01604
90959-01605
90959-01616
90959-01622
91611-G0820
94130-00802
Linked diagrams
3102

ILLUST NO. 2 OF 4(0610- )ST

Click highlighted areas on diagram

diagram 47326 47328 47371B 9048001620 9048001621 9095901594
Part # Description Qty Price
Common parts
90480-01620
90480-01621
90959-01594

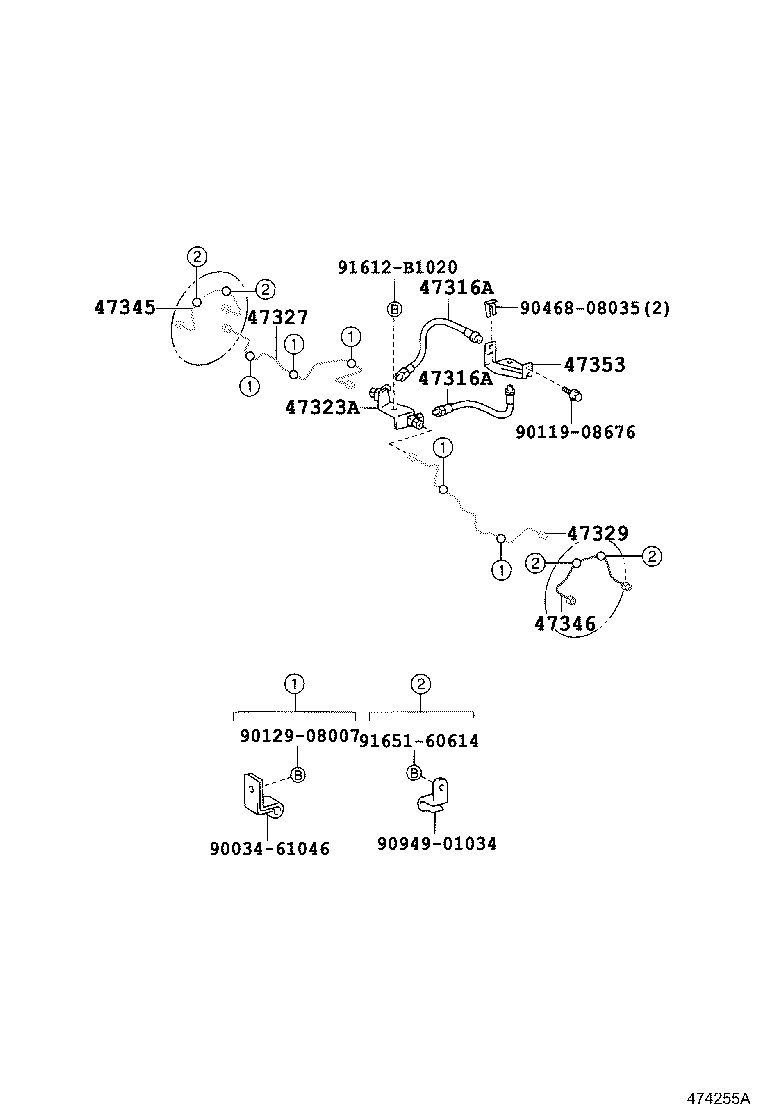

ILLUST NO. 3 OF 4(0610- )ST

Click highlighted areas on diagram

diagram 47316A 47316A 47323A 47327 47329 47345 47346 47353 9003461046 9011908676 9012908007 9046808035 9094901034 91612B1020 9165160614
Part # Description Qty Price
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
90949-01034
91612-B1020
91651-60614

ILLUST NO. 3 OF 3(7708- )

Click highlighted areas on diagram

diagram 47910 47920 47920A 47920A 47920B 47920C 47920C 47920K 47931 47933 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9113150840 9113150840 9161140816 9165140820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
Common parts
91131-50840
91611-40816
91651-40820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 3(7708- )

Click highlighted areas on diagram

diagram 47311A 47321D 47321E 47322B 47323A 47323A 47341C 47343B 47351 47352 47353 47910A 47910B 47910G 9017908146 9046106009 9046106178 9046106487 9046108058 9046108058 9046110076 9046110625 9046112124 9046210033 9048001047 9048001047 9048008343 9094901006 9094901019 9094901034 9094901035 9161140812 9161140812 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140825 9161160614 9161541040 9161541040 9161640820 9165140820 9165160614 9165160614 9165160614 9165160614 9166140614 9166140614 9411040800 9411040800 9411040800 9411040800 9411040800 9622120905 9622120905 9622120906 9622120906
Part # Description Qty Price
Common parts
90179-08146
90461-06009
90461-06178
90461-06487
90461-08058
90461-10076
90461-10625
90461-12124
90462-10033
90480-01047
90480-08343
90949-01006
90949-01019
90949-01034
90949-01035
91611-40812
91611-40820
91611-40825
91611-60614
91615-41040
91616-40820
91651-40820
91651-60614
91661-40614
94110-40800
96221-20905
96221-20906
