XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace

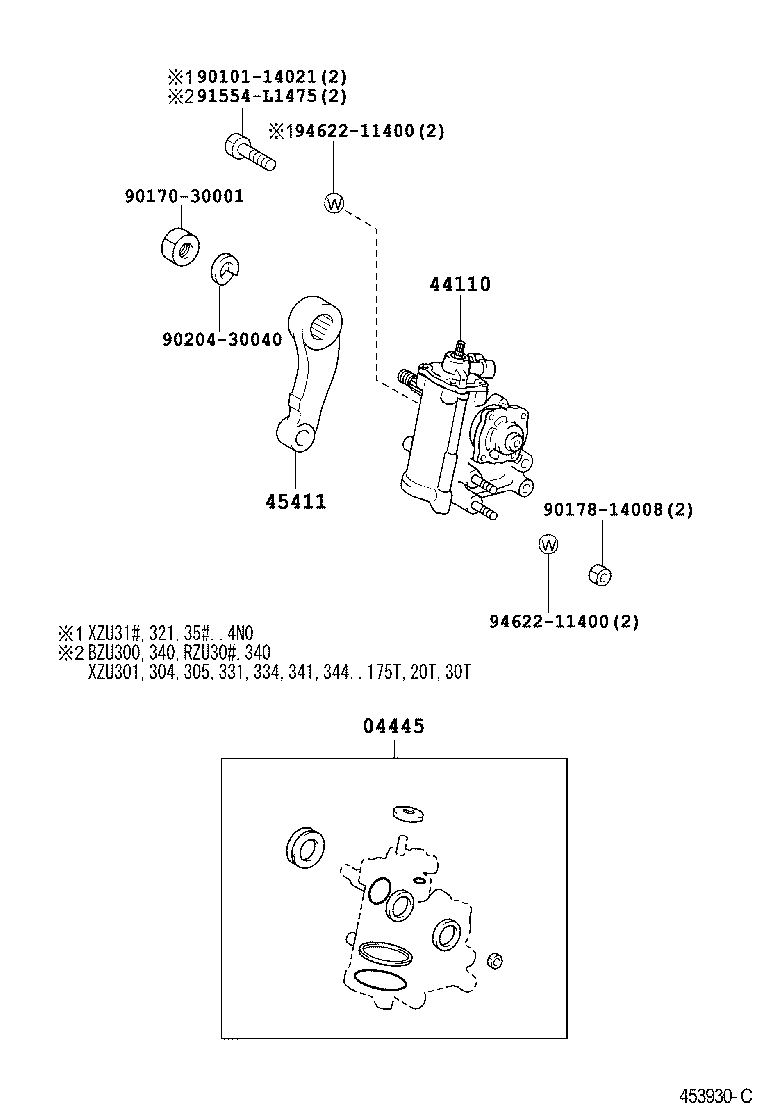

ILLUST NO. 1 OF 3(0406- )BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-37040 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37110 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,330,340,341,342,350 |
1 | ||
| 44110-37110 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 45411-37130 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| Common parts | ||||
| 90101-14021 | ||||
| 90170-30001 | ||||
| 90178-14008 | ||||
| 90204-30040 | ||||
| 91554-L1475 | ||||
| 94622-11400 | ||||
ILLUST NO. 2 OF 3(0406- )BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37110 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44011-37110 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37110 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44015-37110 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1 |
1 | ||
| 90029-20047 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# NO.1 |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2 |
1 | ||
| 90029-20006 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# NO.2 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20047 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1 |
1 | ||
| 90029-20047 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# NO.1 |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2 |
1 | ||
| 90029-20006 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# NO.2 |
1 | ||
| 44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY) | ||||
| 90029-20708 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 90029-20708 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37090 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,330,340,341,342,350 |
1 | ||
| 44107-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 90029-20061 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 90029-21023 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,330,340,341,342,350 |
2 | ||
| 90029-01502 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,330,340,341,342,350 |
2 | ||
| 90029-01502 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-37110 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44108-37110 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20006 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 90029-20006 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 90029-21023 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44142-37010 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44167-37010 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35# |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44168-25010 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90029-02302 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 90029-02302 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| Common parts | ||||
| 89110-99002 | ||||
| 90029-34002 | ||||
| 96711-35042 | ||||
(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91161-51250 | ||||
| 91619-61250 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||
| 95381-03045 | ||||
| 95381-04035 | ||||
| 96451-00600 | ||||
| 96456-00609 | ||||
