XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace
(0406- )XZU301,306,311,331,336,341,346,351

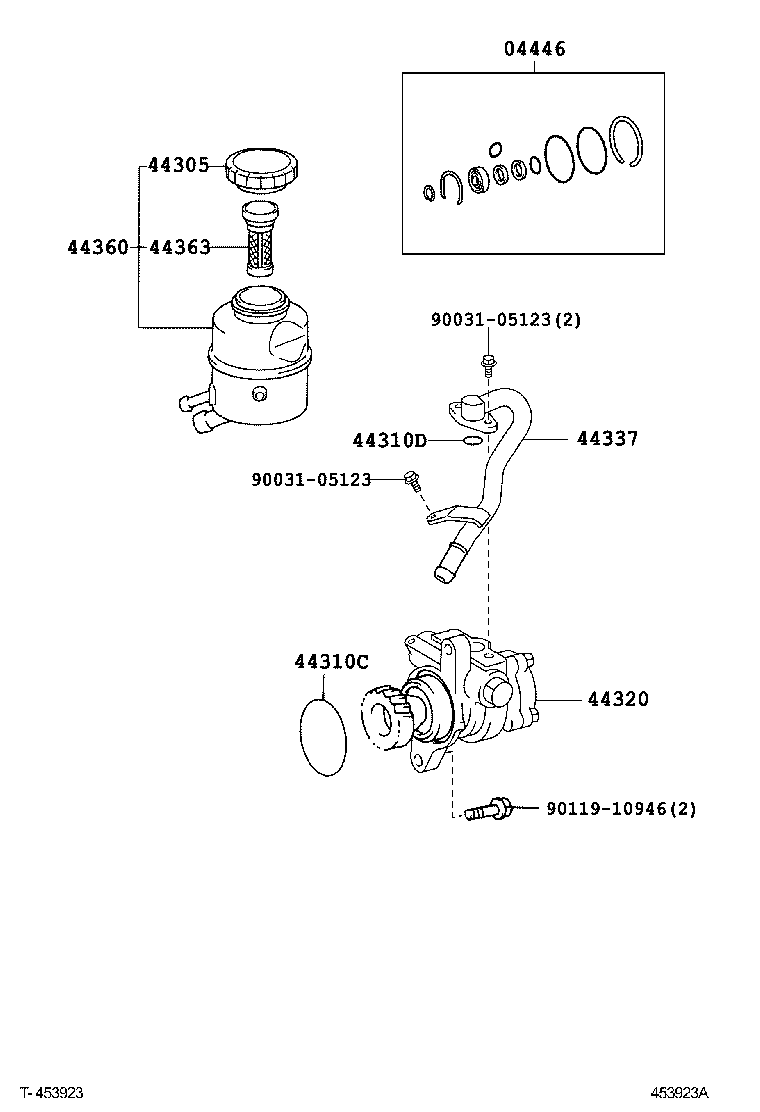

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-37010 |
XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44305-12030 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90301-60002 |
BU30#,346,BZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44310D - RING, O(FOR VANE PUMP UNION) | ||||
| 90301-15019 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90301-15019 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-37060 |
XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 44310-37200 |
XZU301,311,331,341,351 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-37080 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..DSL..(CBU,IV3);XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 44337-37281 |
XZU301,306,311,331,336,341,346,351 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-37130 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35# |
1 | ||
| 44360-37130 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-37130 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44363-37130 |
BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90119-10946 | ||||
(0610- )XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05123 | ||||
| 90119-10946 | ||||
| Linked diagrams | ||||
| 4503 | ||||
