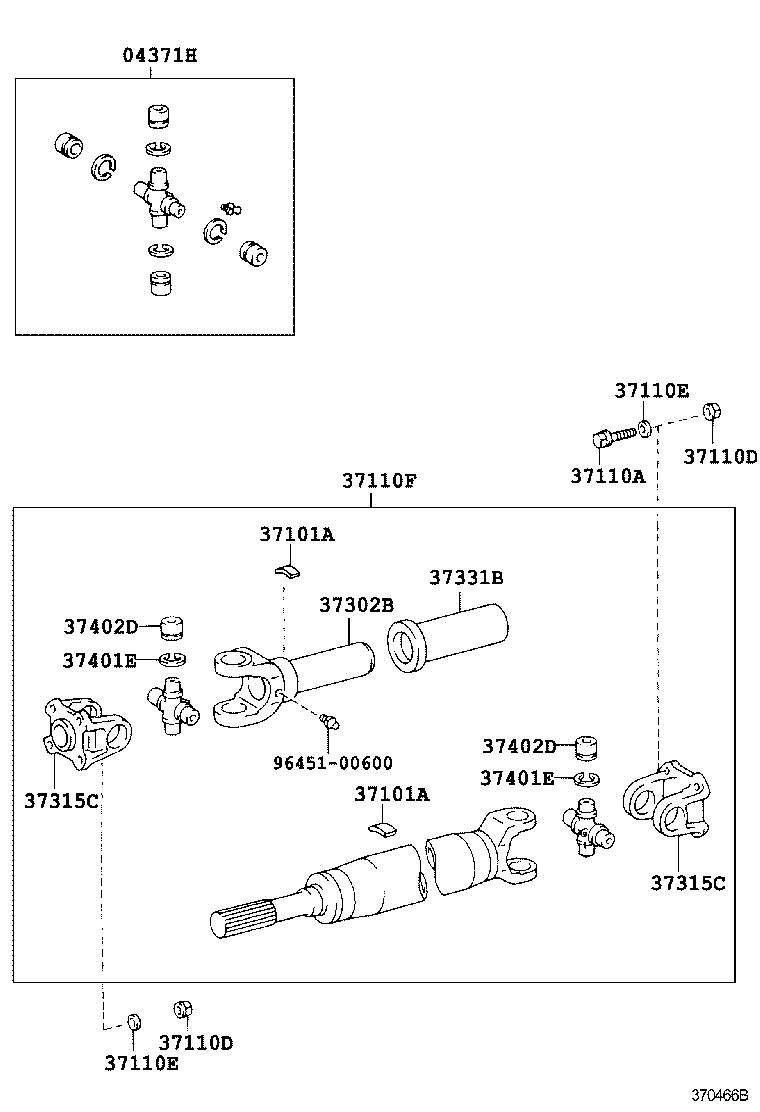

XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace
(0406- )XZU301..ST ; (0406- )XZU301..T4..5F..20T ; (0406- )XZU306,336..03S
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60030 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..(03S,06S,T1,T2,T3,T4,T5)..(DSL,EFI,LPG) |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 6G |
1 | ||
| 90039-13002 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 12G |
1 | ||
| 90039-13003 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 25G |
1 | ||
| 90039-13004 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 50G |
1 | ||
| 90039-13005 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 75G |
1 | ||
| 90937-01136 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 20G,長さ=41.4 |
1 | ||
| 90937-01140 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 30G,長さ=62.2 |
1 | ||
| 90937-01149 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 6G,長さ=12.4 |
1 | ||
| 90937-01148 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 4G,厚さ=2.0 |
1 | ||
| 90937-01147 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 10G,長さ=20.7 |
1 | ||
| 90937-01157 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 22G,長さ=45.6 |
1 | ||
| 90937-01153 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 16G,長さ=33.2 |
1 | ||
| 90937-01152 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 14G,長さ=29.0 |
1 | ||
| 90937-01151 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 12G,長さ=24.9 |
1 | ||
| 90937-01154 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 18G,長さ=37.3 |
1 | ||
| 90937-01158 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 28G,長さ=58.1 |
1 | ||
| 90937-01156 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 8G,長さ=16.6 |
1 | ||
| 90937-01193 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 16G,厚さ=4.5 |
1 | ||
| 90937-01194 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 12G,厚さ=4.5 |
1 | ||
| 90937-01269 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01198 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 4G,厚さ=1.6 |
1 | ||
| 90937-01270 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 44G,長さ=22.6 |
1 | ||
| 90937-01199 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01272 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 52G,長さ=26.7 |
1 | ||
| 90937-01200 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01274 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 60G,長さ=28.7 |
1 | ||
| 90937-01191 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 8G,厚さ=1.6 |
1 | ||
| 90937-01271 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 48G,長さ=24.6 |
1 | ||
| 90937-01273 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 56G,長さ=28.7 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 6G |
1 | ||
| 90039-13002 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 12G |
1 | ||
| 90039-13003 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 25G |
1 | ||
| 90039-13004 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 50G |
1 | ||
| 90039-13005 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 75G |
1 | ||
| 90937-01136 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 20G,長さ=41.4 |
1 | ||
| 90937-01140 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 30G,長さ=62.2 |
1 | ||
| 90937-01149 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 6G,長さ=12.4 |
1 | ||
| 90937-01148 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 4G,厚さ=2.0 |
1 | ||
| 90937-01147 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 10G,長さ=20.7 |
1 | ||
| 90937-01157 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 22G,長さ=45.6 |
1 | ||
| 90937-01153 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 16G,長さ=33.2 |
1 | ||
| 90937-01152 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 14G,長さ=29.0 |
1 | ||
| 90937-01151 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 12G,長さ=24.9 |
1 | ||
| 90937-01154 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 18G,長さ=37.3 |
1 | ||
| 90937-01158 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 28G,長さ=58.1 |
1 | ||
| 90937-01156 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 8G,長さ=16.6 |
1 | ||
| 90937-01193 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 16G,厚さ=4.5 |
1 | ||
| 90937-01194 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 20G,厚さ=4.5 |
1 | ||
| 90937-01192 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 12G,厚さ=4.5 |
1 | ||
| 90937-01269 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01198 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 4G,厚さ=1.6 |
1 | ||
| 90937-01270 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 44G,長さ=22.6 |
1 | ||
| 90937-01199 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01272 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 52G,長さ=26.7 |
1 | ||
| 90937-01200 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01274 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 60G,長さ=28.7 |
1 | ||
| 90937-01191 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 8G,厚さ=1.6 |
1 | ||
| 90937-01271 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 48G,長さ=24.6 |
1 | ||
| 90937-01273 |
RZU30#;XZU301..ST;XZU301..T4..5F..20T;XZU304,308..5F..DSL;XZU306,336..(03S,T2)..5F 56G,長さ=28.7 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90031-01165 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,340,XZU300,301,306,31#,320,321,330,331,340,341,342,346,347,35#,362,37#,382 *12−1.25PX35−17 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90179-11005 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90179-11005 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90201-11013 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90201-11013 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37270 |
XZU301..ST;XZU306..T2..5F;XZU301..T4..5F..20T |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-36020 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU301..4FC..DSL;XZU306..T5..DSLL;XZU302..(T4,T5)..(295T,30T);XZU302,331..5F..(CNG,DSLL,LPG);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU301,322..(DM3,DM6,T3,T4,T5)..5F;XZU300,306,31#,320,321,330,331,35#,372..DSL |
2 | ||
| 37315-36020 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,XZU304,308,334,338..DSL,EFI,LPG |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
XZU301..4FC..DSL;XZU306..T5..DSLL;XZU302..(T4,T5)..(295T,30T);XZU302,331..5F..(CNG,DSLL,LPG);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU301,322..(DM3,DM6,T3,T4,T5)..5F;XZU300,306,31#,320,321,330,331,35#,372..DSL |
2 | ||
| 37315-36020 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,XZU304,308,334,338..DSL,EFI,LPG |
2 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-36050 |
RZU30#,340;XZU301..ST;XZU301..T4..5F..20T;XZU304,308,348..5F..DSL;XZU306,336..(03S,T2)..5F |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.50 |
8 | ||
| 90035-21024 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.55 |
8 | ||
| 90035-21025 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.70 |
8 | ||
| 90520-29039 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29041 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29040 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90520-29046 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29043 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29042 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90520-29044 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29047 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29048 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 90520-29045 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.50 |
8 | ||
| 90035-21024 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.55 |
8 | ||
| 90035-21025 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU347..DCB..T3..4FC;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302..(T4,T5)..(295T,30T);XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BZU300,340,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 厚さ=1.70 |
8 | ||
| 90520-29039 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29041 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29040 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90520-29046 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29043 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29042 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90520-29044 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29047 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29048 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 90520-29045 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,340,XZU304,308,334,338,348..DSL,EFI,LPG 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU302..(T4,T5)..(295T,30T);XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BZU300,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 |
8 | ||
| 37402-60060 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,XZU304,308,334,338..DSL,EFI,LPG |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU322..T5..5F;XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU302..DM3,DM6,T3;XZU301..5F..DSL..IV3;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU302..(T4,T5)..(295T,30T);XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BZU300,XZU300,31#,32#,330,35#,362,37#,382..DM2,DM5,DM6,DM7,DM8,T3,T4 |
8 | ||
| 37402-60060 |
XZU301..ST;XZU301..T4..5F..20T;XZU306,336..(03S,T2)..5F;RZU30#,XZU304,308,334,338..DSL,EFI,LPG |
8 | ||
| Common parts | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
