XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine S05D
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

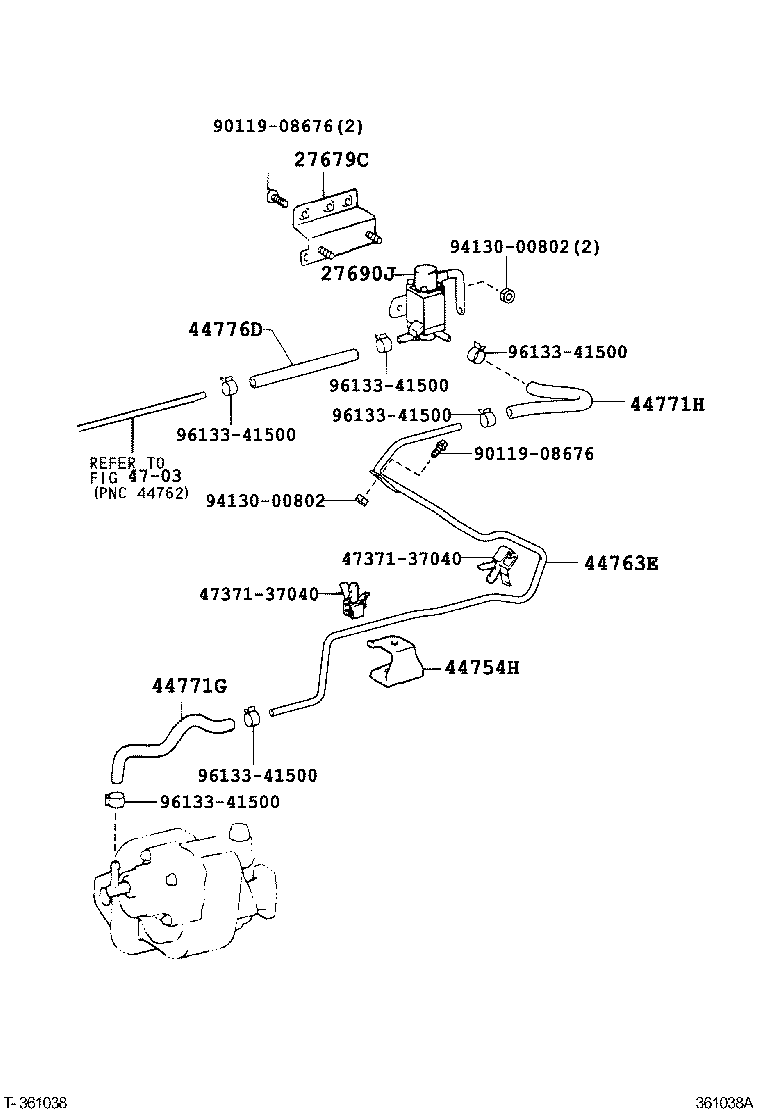

ILLUST NO. 2 OF 2(0406- )XZU301,306,334,336,341,344,346..T2,T3,T4,T5..5F..CBU,IV3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ15KG,25KG

diagram 27679C 27690J 44754H 44763E 44771G 44771H 44776D 4703 4737137040 4737137040 9011908676 9011908676 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78040

J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27679-78040

J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,362,372,382..(T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27679-78041

1BZFPE..BZU300..T3,T4;N04C,S05D,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
27679-78041

1BZFPE..BZU300..T3,T4;N04C,S05D,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78030

J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27690-78030

J05C,S05#,4B..BU30#,346,XZU30#,322,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..MTM..(CBU,IV3)

 1
27690-78080

N04C,S05D..XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
27690-78080

N04C,S05D..XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44754H - BRACKET, VACUUM TUBE
44754-37110

BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44754-37110

BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37160

XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU300,301,306,330,331,34#..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3)

 1
44763-37160

XZU302..5F..1NO;XZU302..(T4,T5)..(295T,30T)..4NO;XZU300,301,306,330,331,34#..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3)

 1
44763-37170

XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44763-37170

XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37290

XZU301,302,341,342..(DM6,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,33#,340,346,347..(DCB,SCB)..MTM..(CBU,IV3)

 1
44771-37290

XZU301,302,341,342..(DM6,T3,T4,T5)..MTM..(DSL,DSLL)..(CBU,IV3);BU30#,346,RZU300,340,XZU300,306,307,33#,340,346,347..(DCB,SCB)..MTM..(CBU,IV3)

 1
44771-37550

XZU331,334..SCB..5F..(30T,40T);XZU304..(T3,T4,T5)..(DCRL,DSLL)..(CBU,IV3);XZU301,306,336,341,344,346..(T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44771-37550

XZU331,334..SCB..5F..(30T,40T);XZU304..(T3,T4,T5)..(DCRL,DSLL)..(CBU,IV3);XZU301,306,336,341,344,346..(T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09300

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BZU340..LPG;BZU300,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
95446-09300

BZU340..LPG;BZU300,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3)

 1
44776D - HOSE, BRAKE BOOSTER
44776-37180

XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
44776-37180

XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3)

 1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

(7708- )
