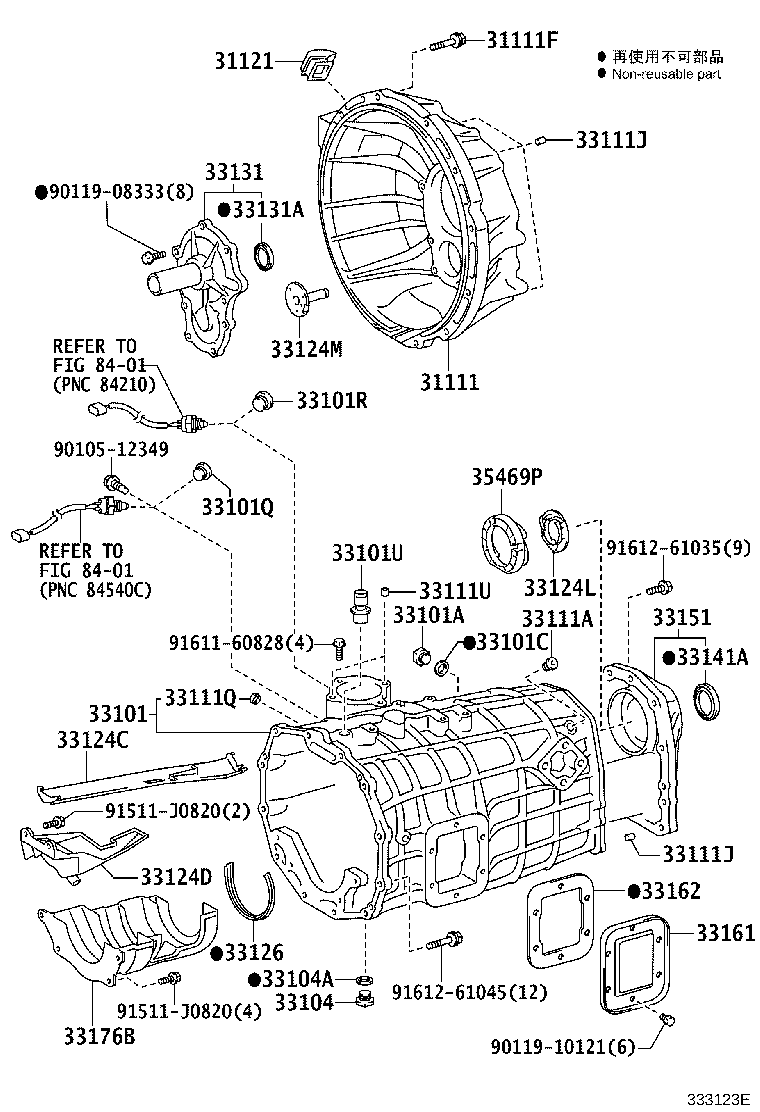

XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace
(0406- )XZU301,305,306,331,336,341,344,346,354..03S,DM3,DM6,T2,T3,T4,T5..5F
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-37060 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 31111-37060 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL) |
12 | ||
| 90119-10898 |
XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL) |
12 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 31121-28041 |
XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM |
2 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90430-18008 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU322,340,350,371..MTM;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90341-18006 |
XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU322,340,350,371..MTM;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90430-18008 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU322,340,350,371..MTM;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90341-18006 |
XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU322,340,350,371..MTM;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-37010 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33124-37010 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-37080 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33131-37080 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301..SCB..T3..5F..30T..(DSL,DSLL);XZU301,330..(DM6,T3,T5)..5F..(20T,40T) |
1 | ||
| 90311-35023 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301..SCB..T3..5F..30T..(DSL,DSLL);XZU301,330..(DM6,T3,T5)..5F..(20T,40T) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-37011 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301..SCB..T3..5F..30T..(DSL,DSLL);XZU301,330..(DM6,T3,T5)..5F..(20T,40T) |
1 | ||
| 33151-37011 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301..SCB..T3..5F..30T..(DSL,DSLL);XZU301,330..(DM6,T3,T5)..5F..(20T,40T) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU322,340,350,371..MTM;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33161-36010 |
XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU322,340,350,371..MTM;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33162-36020 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90105-12349 | ||||
| 90119-08333 | ||||
| 90119-10121 | ||||
| 91511-J0820 | ||||
| 91611-60828 | ||||
| 91612-61035 | ||||
| 91612-61045 | ||||
(0610- )XZU30#,33#,34#,354,50#,538,548..03S,06S,DM3,DM6,T2,T3,T4,T5..5F
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12349 | ||||
| 90119-08333 | ||||
| 90119-10121 | ||||
| 91511-J0820 | ||||
| 91611-60828 | ||||
| 91612-61035 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(7708- )RU20,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08092 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91611-61050 | ||||
| 91611-61060 | ||||
| 91619-61245 | ||||
| 91619-61255 | ||||
| 93311-16010 | ||||
