XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0406- )BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388

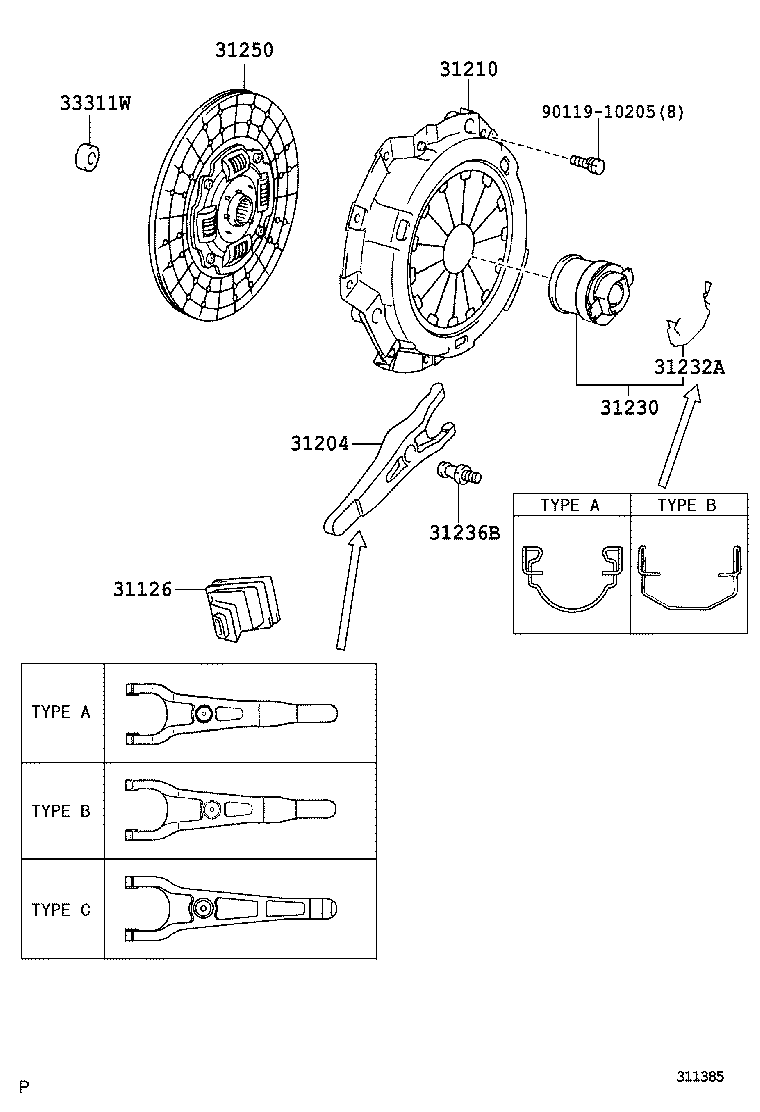

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)	05/1999 - 06/2002	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-37010	XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
31210 - COVER ASSY, CLUTCH
31210-36240	XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 07/2001	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36200	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)	05/1999 - 06/2002	1
31232A - CLIP, RELEASE BEARING HUB
31232-36030	XZU322,350..5F;XZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
31232-36030	XZU304,334..5F..(DCRL,DSLL);BZU300,340,XZU301,305,306,331,336,341,344,346,354..(03S,DM3,DM6,T2,T3,T4,T5)..5F TYPE A:ｲﾗｽﾄ参照	06/2004 - 12/2999	1
31250 - DISC ASSY, CLUTCH
31250-37090	XZU301..5F..DSLL..IV4;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..(DM6,T5)..5F..DSLL;XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 06/2001	1
33311W - BEARING (FOR INPUT SHAFT)
90033-63032	XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
90033-63032	XZU301,306,311,321,331,336,341,346,351..5F	06/2004 - 10/2006	1
Common parts
90119-10205

(0610- )BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,56

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10205

(7708- )RU2#,3#

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90101-08350
90159-60139
90170-08197
91611-60816
94512-00800

(9905- )MTM..CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10205
