XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace

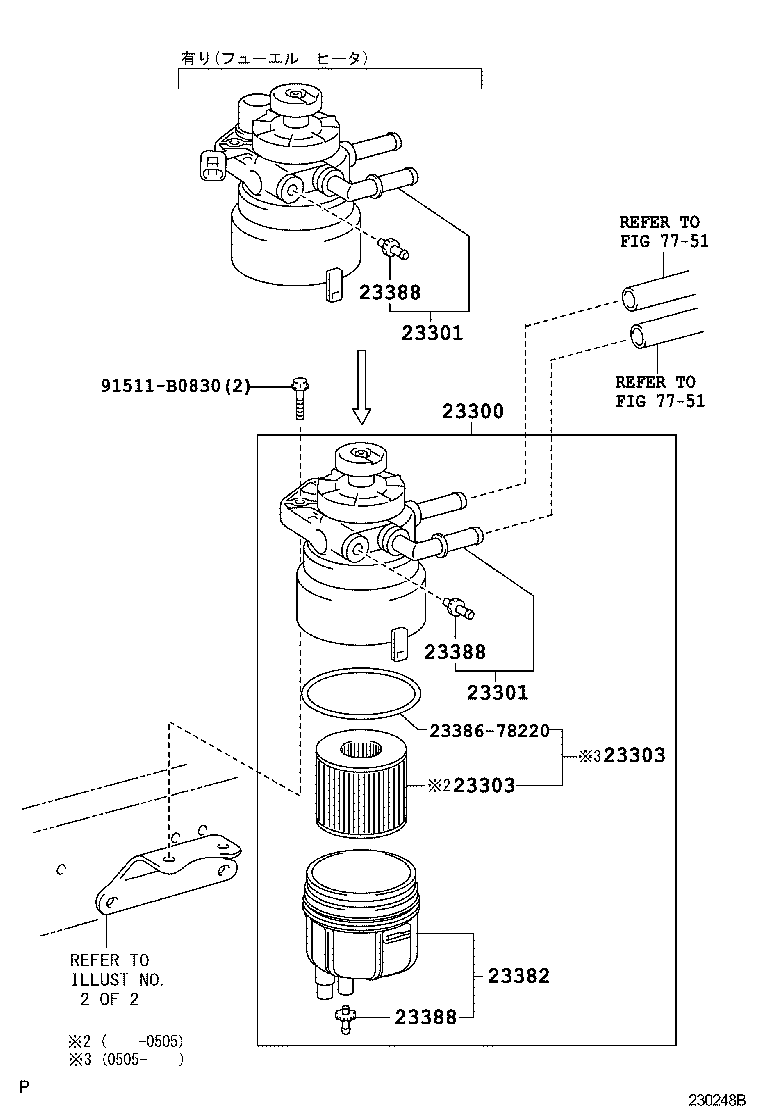

ILLUST NO. 1 OF 2(0406-0512)N04C,S05D..DCB,SCB..CBU,IV3,IV6,IV7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-78231 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ) |
1 | ||
| 23300-78220 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 23300-78230 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ) |
1 | ||
| 23300-78221 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23301-78220 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 23301-78230 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ) |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23301-78220 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 23301-78230 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ) |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23390-64480 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23390-78221 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 23390-78220 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23390-64480 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 23390-78221 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 23390-78220 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23382-78220 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 23386-78220 | ||||
| 91511-B0830 | ||||
| Linked diagrams | ||||
| 7751 | ||||

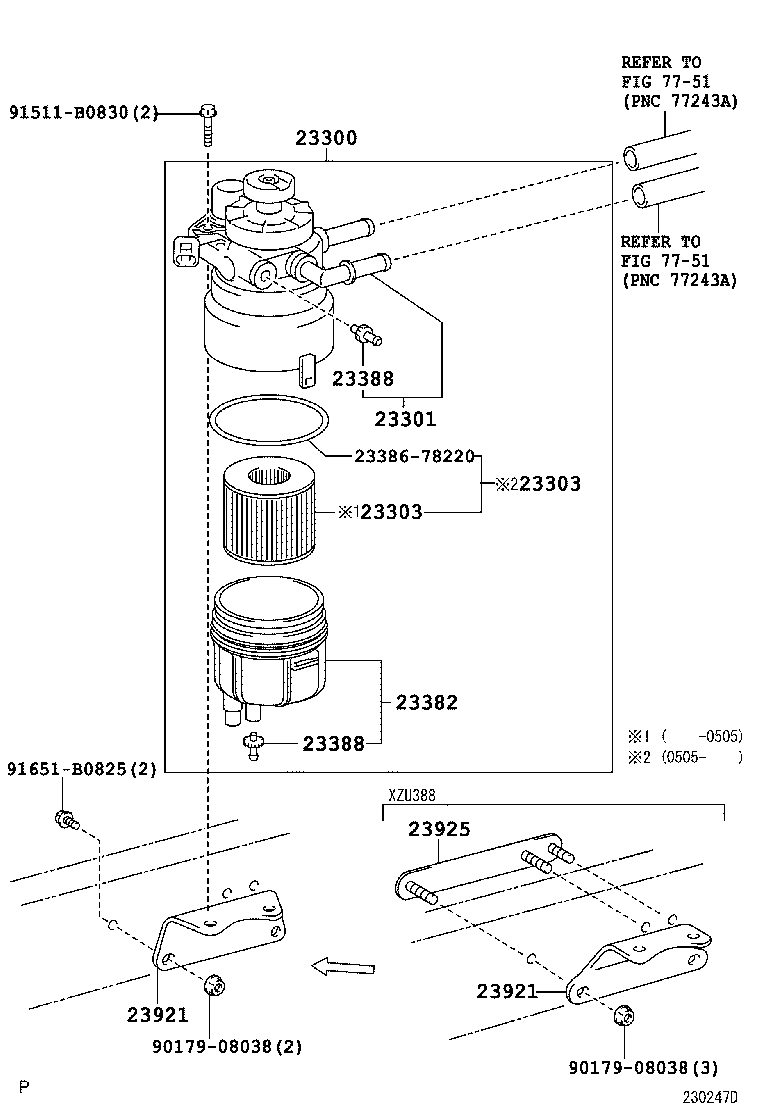

(0406-0512)J05D,N04C,S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23386-78220 | ||||
| 90179-08038 | ||||
| 91511-B0830 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 7751 | ||||

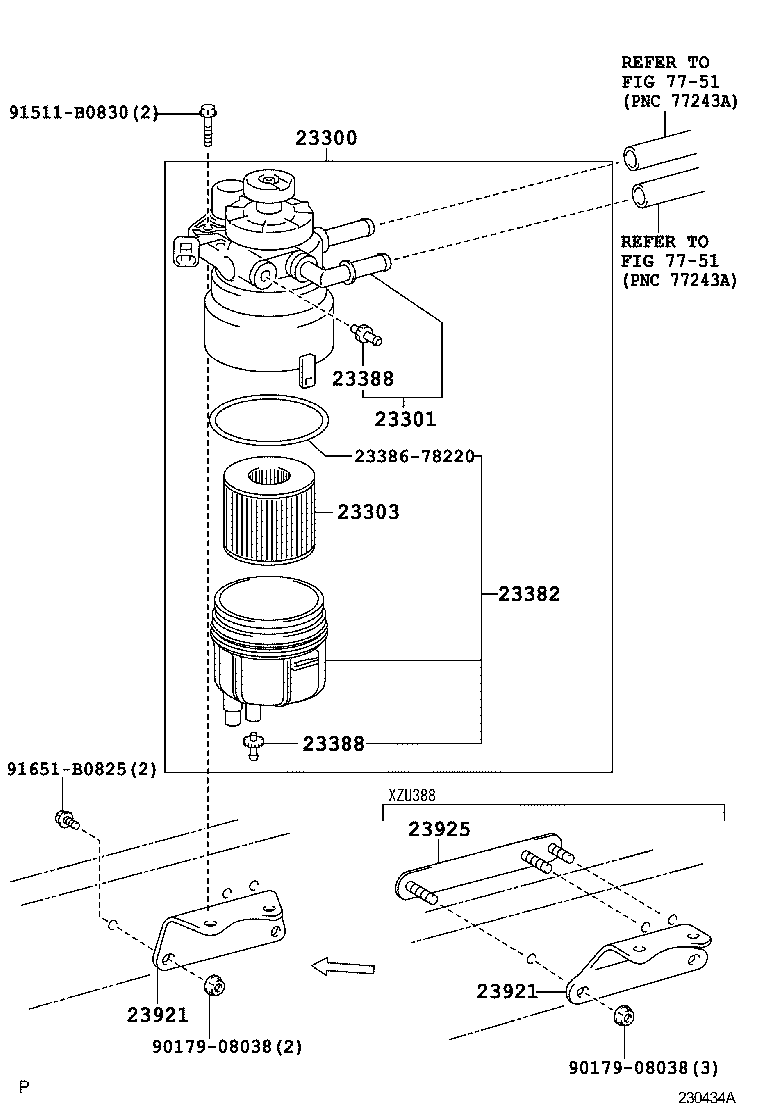

(0512-0610)J05D,N04C,S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23386-78220 | ||||
| 90179-08038 | ||||
| 91511-B0830 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 7751 | ||||
