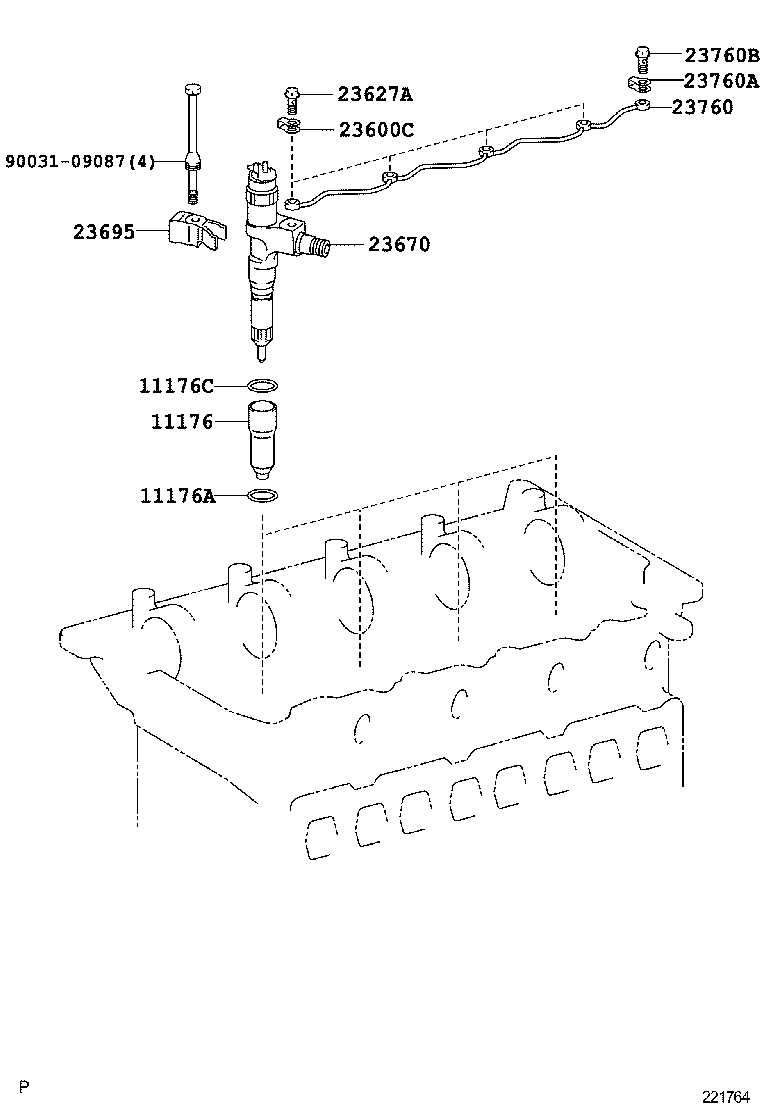

Toyota Dyna/toyoace XZU301 INJECTION NOZZLE

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-89101	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
11176-89101	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
11176A - GASKET(FOR INJECTION NOZZLE SEAT)
90034-30039	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
90034-30039	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
90034-30039	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
90034-30039	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
23600C - GASKET(FOR HOLDER & NOZZLE SET)
90032-09030	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
23627A - SCREW, FOLLOW(FOR NOZZLE)
23656-89101	S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05#..XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382	05/1999 - 06/2004	4
23670 - INJECTOR ASSY
23670-78051	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-89102	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
23695-78050	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23708-78020	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
23760A - GASKET
90032-09030	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
Common parts
90031-09087

XZU301-TPMLS3 (2004)

(0406-0610)S05D

(0406- )J05D,S05D
