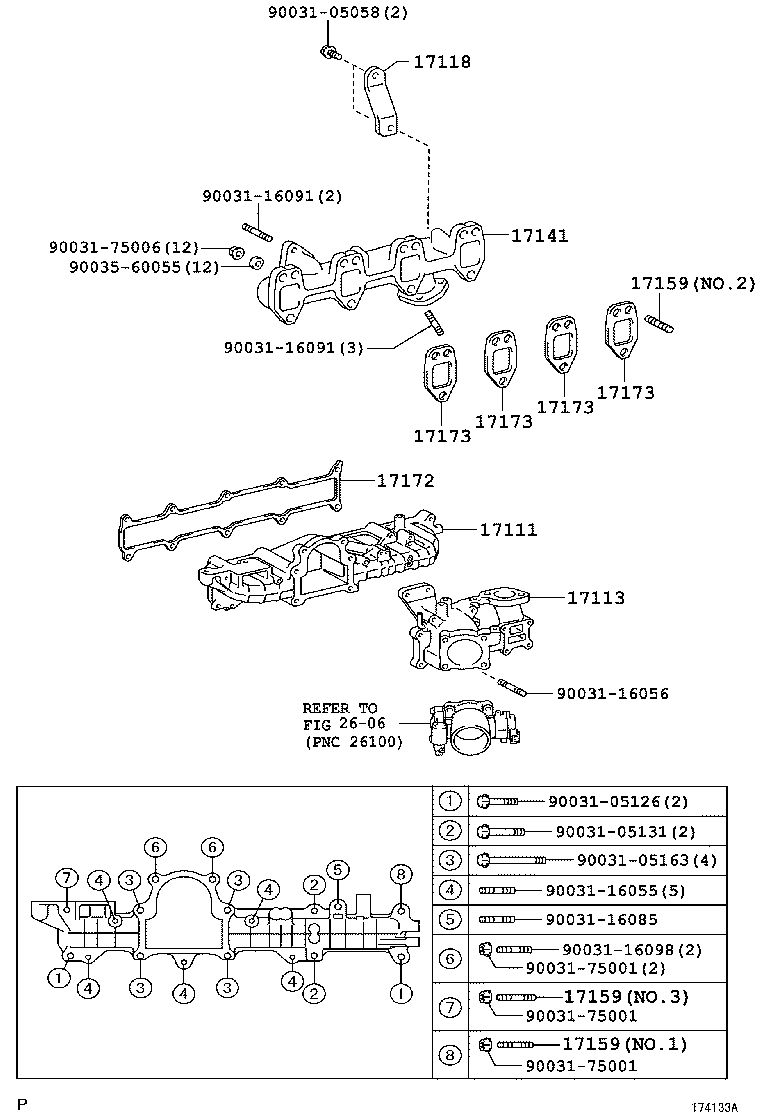

Toyota Dyna/toyoace XZU301 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	1
17111-78060	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
17113 - PIPE, INTAKE
17113-78150	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
17118 - STAY, MANIFOLD
17455-78160	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
17141 - MANIFOLD, EXHAUST
17141-78130	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
17141-78030	J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 09/2003	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16069	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｴｷｿﾞｰｽﾄ側	05/1999 - 06/2004	12
90031-16054	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｲﾝﾃｰｸ側	05/1999 - 06/2004	2
90031-16055	S05D..XZU301,306,311,321,331,336,341,346,351 NO.1	06/2004 - 10/2006	1
90031-16099	S05D..XZU301,306,311,321,331,336,341,346,351 NO.3	06/2004 - 10/2006	1
90031-16069	S05D..XZU301,306,311,321,331,336,341,346,351 NO.2	06/2004 - 10/2006	12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16069	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｴｷｿﾞｰｽﾄ側	05/1999 - 06/2004	12
90031-16054	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｲﾝﾃｰｸ側	05/1999 - 06/2004	2
90031-16055	S05D..XZU301,306,311,321,331,336,341,346,351 NO.1	06/2004 - 10/2006	1
90031-16099	S05D..XZU301,306,311,321,331,336,341,346,351 NO.3	06/2004 - 10/2006	1
90031-16069	S05D..XZU301,306,311,321,331,336,341,346,351 NO.2	06/2004 - 10/2006	12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16069	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｴｷｿﾞｰｽﾄ側	05/1999 - 06/2004	12
90031-16054	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｲﾝﾃｰｸ側	05/1999 - 06/2004	2
90031-16055	S05D..XZU301,306,311,321,331,336,341,346,351 NO.1	06/2004 - 10/2006	1
90031-16099	S05D..XZU301,306,311,321,331,336,341,346,351 NO.3	06/2004 - 10/2006	1
90031-16069	S05D..XZU301,306,311,321,331,336,341,346,351 NO.2	06/2004 - 10/2006	12
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-89102	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
17172-78020	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-89102	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
17173-89102	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-89102	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
17173-89102	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-89102	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
17173-89102	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-89102	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	4
17173-89102	J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
Common parts
90031-05058
90031-05126
90031-05131
90031-05163
90031-16055
90031-16056
90031-16085
90031-16091
90031-16098
90031-75001
90031-75006
90035-60055
Linked diagrams
2606

XZU301-TPMLS3 (2004)

(0406-0610)S05D

(0406- )S05D
