XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace

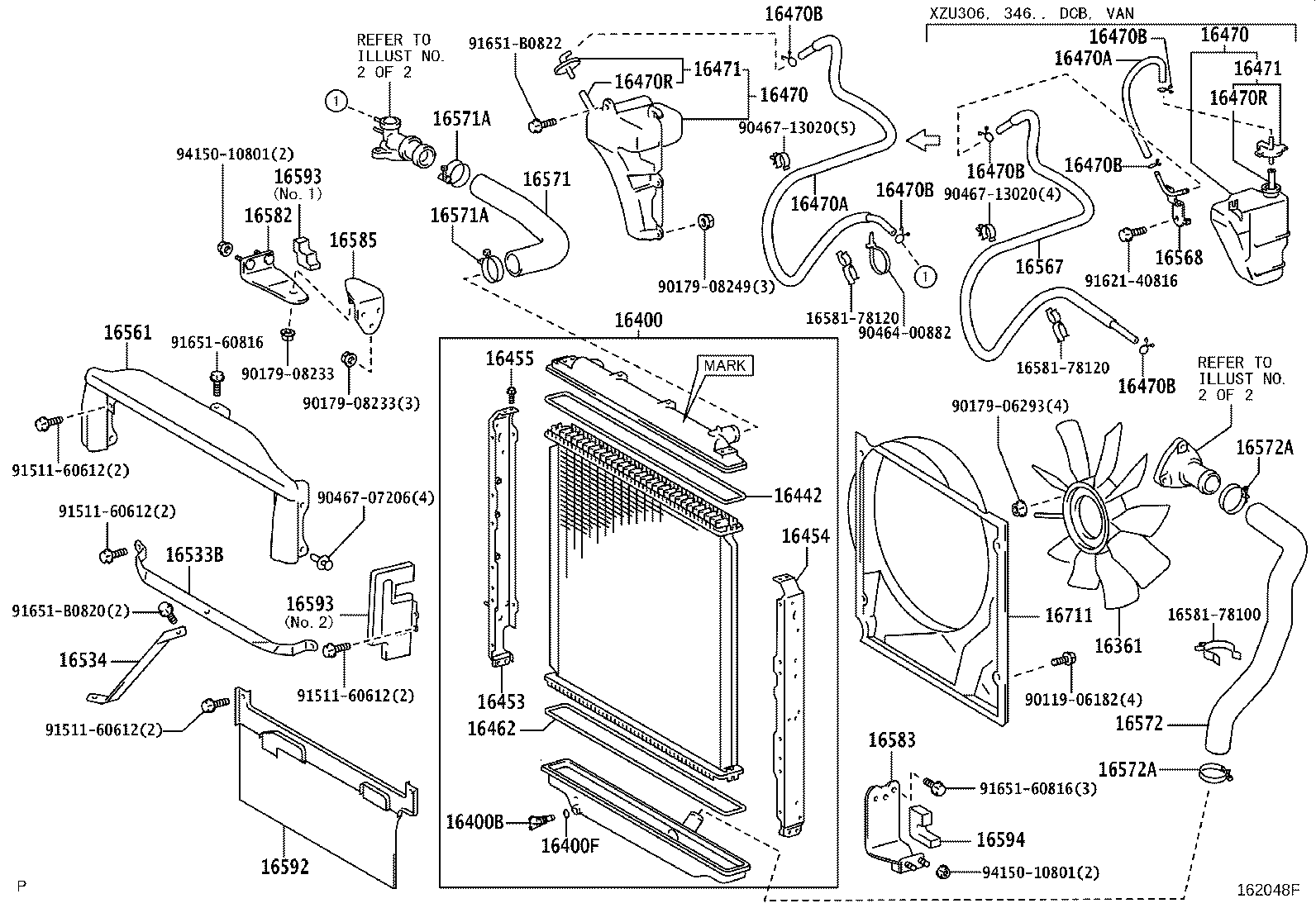

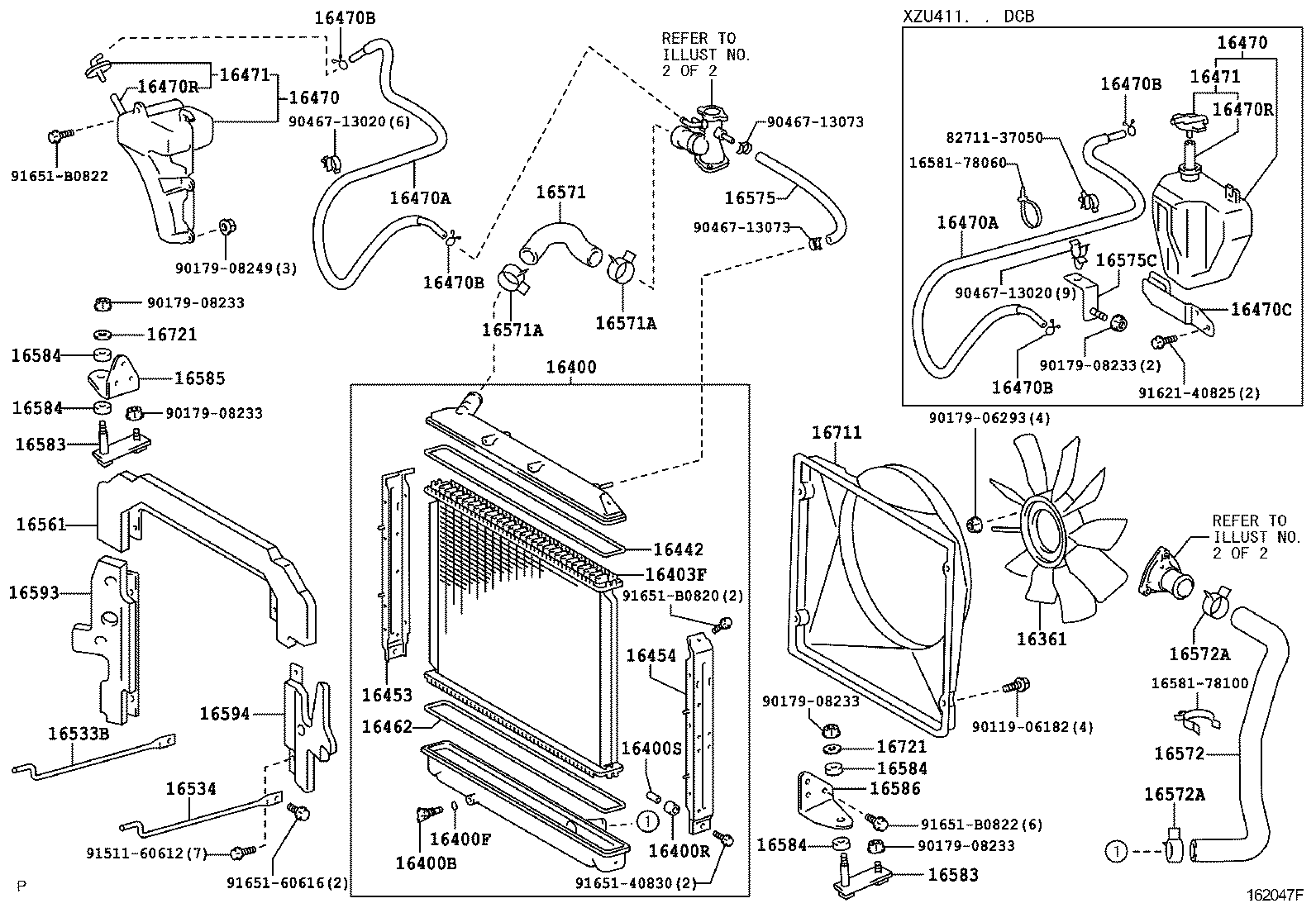

ILLUST NO. 1 OF 2(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78030 |
S05C..XZU307,312,347..DCB,VAN;J05C,S05D..XZU300,301,306,311,320,321,330,331,340,341,346,350,351 |
1 | ||
| 16361-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78080 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#..MTM..(CBU,IV3,IV6,IV7) ﾏｰｸ=7808 OR 7816 |
1 | ||
| 16400-78360 |
S05D..XZU301,306,311,321,331,336,341,346,351..5F ﾏｰｸ=7836 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78080 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78080 |
J05C,S05#,15B#..XZU30#,31#,32#,33#,34#,35# |
1 | ||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442-78080 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 16567-78290 |
S05D..XZU301,306,311,321,331,336,341,346,351..SCB |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 16567-78290 |
S05D..XZU301,306,311,321,331,336,341,346,351..SCB |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 90445-12078 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB 長さ=315 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 90445-12078 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..SCB |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534-78020 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78060 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..SCB |
1 | ||
| 16571-78190 |
S05D..XZU301,306,311,321,331,336,341,346,351..SCB |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
S05C..XZU307,312,347..SCB;S05C..XZU347..DCB..T3..4FC;J05C,S05#..XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,37#,382 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
S05C..XZU307,312,347..SCB;S05C..XZU347..DCB..T3..4FC;J05C,S05#..XZU300,301,302,306,311,32#,33#,340,341,342,346,35#,362,37#,382 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78180 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16572-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352..CBU,IV3,IV6,IV7 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
S05#..XZU311,372,382;S05C..XZU347..DCB..T3..4FC;J05C,S05#..XZU30#,312,32#,33#,34#,35#,362..SCB |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
S05#..XZU311,372,382;S05C..XZU347..DCB..T3..4FC;J05C,S05#..XZU30#,312,32#,33#,34#,35#,362..SCB |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78020 |
J05C,S05#,15B#..XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78020 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
N04C..XZU304,334,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV7);N04C,S05D..XZU301,305,306,31#,321,331,336,341,344,346,35# |
1 | ||
| 16592-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#..CBU,IV3,IV6,IV7 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16593-78110 |
S05D..XZU301,306,331,336,341,346 NO.2 |
1 | ||
| 16593-78070 |
S05D..XZU301,306,331,336,341,346 NO.1 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78010 |
J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16593-78110 |
S05D..XZU301,306,331,336,341,346 NO.2 |
1 | ||
| 16593-78070 |
S05D..XZU301,306,331,336,341,346 NO.1 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16594-78090 |
N04C..XZU304,334..SCB..(DCRL,DSLL);N04C,S05D..XZU301,305,306,331,336,341,344,346,354..03S,DM3,DM6,T2,T3,T4,T5 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
1 | ||
| 16711-78021 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| Common parts | ||||
| 16581-78100 | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00882 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91621-40816 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||

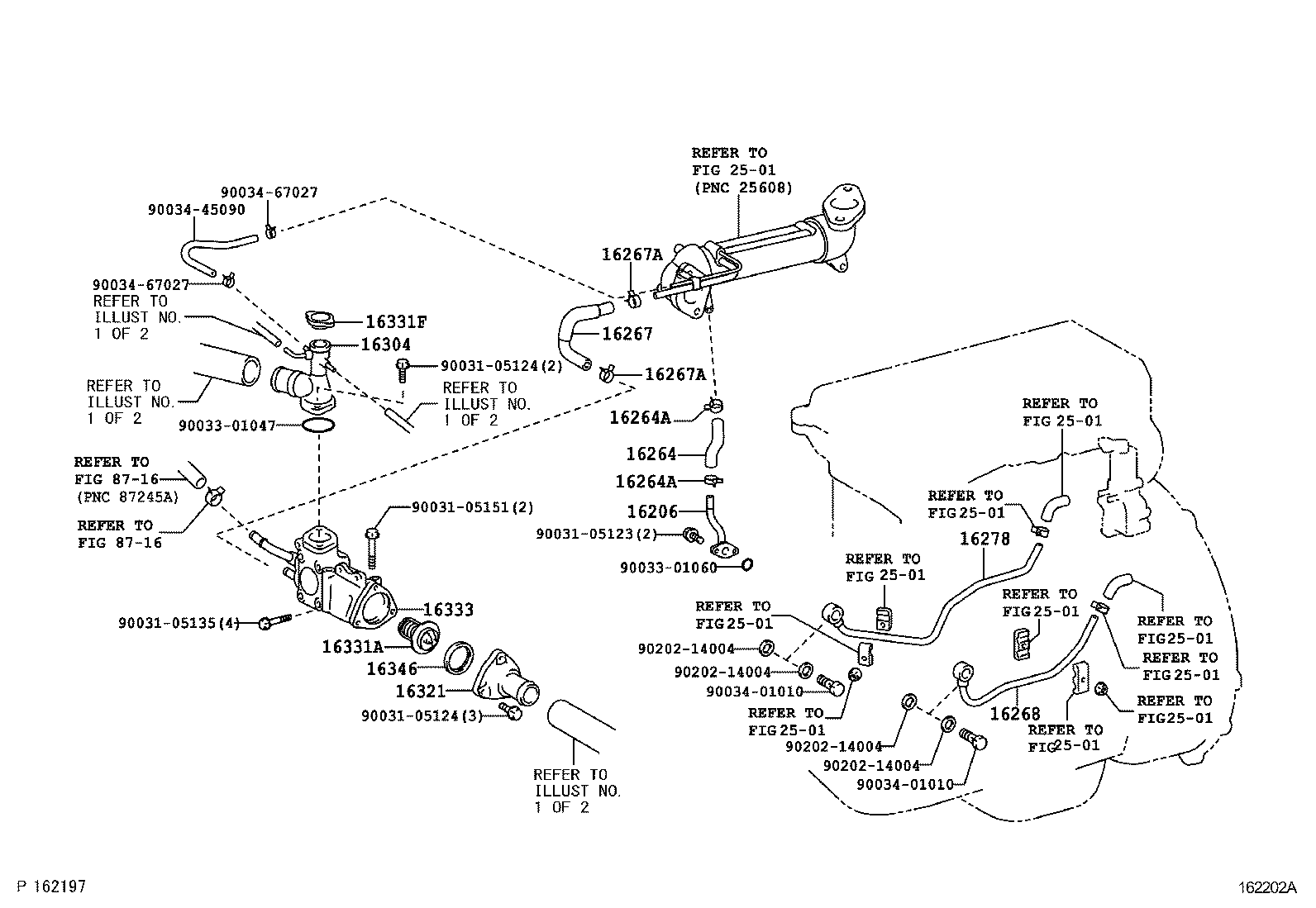

ILLUST NO. 2 OF 2(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78081 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45087 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67032 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67032 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90034-45088 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-78050 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-78060 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 16304-78090 |
S05D..XZU301,306,311,321,331,336,341,346,351..SCB |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#..SCB |
1 | ||
| 16304-78090 |
S05D..XZU301,306,311,321,331,336,341,346,351..SCB |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16321-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33010 |
S05D..XZU301,306,311,321,331,336,341,346,351 *WAX 76.5−90 |
1 | ||
| 90038-33010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..CBU,IV3,IV6,IV7 *WAX 76.5−90 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-78100 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-78030 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 16303-78062 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 16346-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05135 | ||||
| 90031-05151 | ||||
| 90033-01047 | ||||
| 90033-01060 | ||||
| 90034-01010 | ||||
| 90034-45089 | ||||
| 90034-67027 | ||||
| 90202-14004 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16581-78060 | ||||
| 16581-78100 | ||||
| 82711-37050 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91621-40825 | ||||
| 91651-40830 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
ILLUST NO. 2 OF 2(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05135 | ||||
| 90031-05151 | ||||
| 90033-01047 | ||||
| 90033-01060 | ||||
| 90034-01010 | ||||
| 90034-45090 | ||||
| 90034-67027 | ||||
| 90202-14004 | ||||
| Linked diagrams | ||||
| 2501 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
