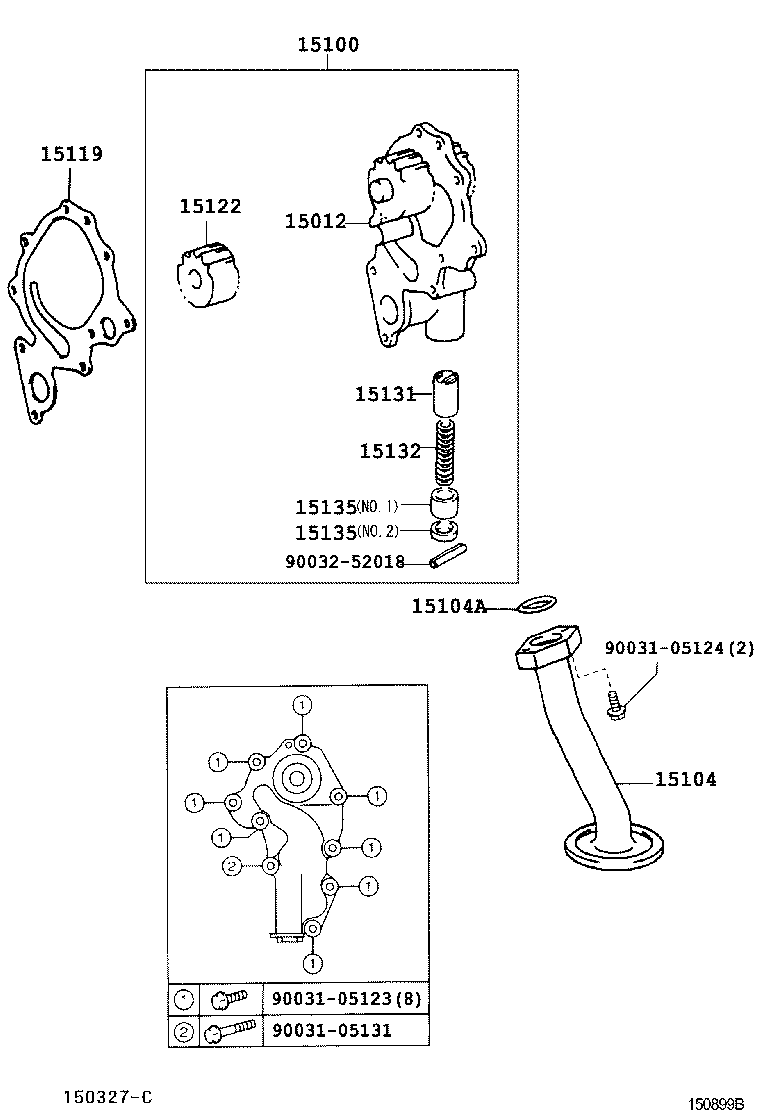

XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace
(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-89103 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 15012-89104 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15110-89105 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 15110-89106 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15107-78040 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15107-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352 |
1 | ||
| 15104A - RING, O(FOR OIL STRAINER) | ||||
| 90033-01046 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90033-01046 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15119 - GASKET, OIL PUMP COVER | ||||
| 15119-89101 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 15119-89101 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-89103 |
J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 15122-89105 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-89102 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 15131-89102 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15131-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 15132-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15165-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
1 | ||
| 15165-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 15165-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2 |
1 | ||
| 15165-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15165-78020 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.2 |
1 | ||
| 15165-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 15165-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2 |
1 | ||
| 15165-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05131 | ||||
| 90032-52018 | ||||

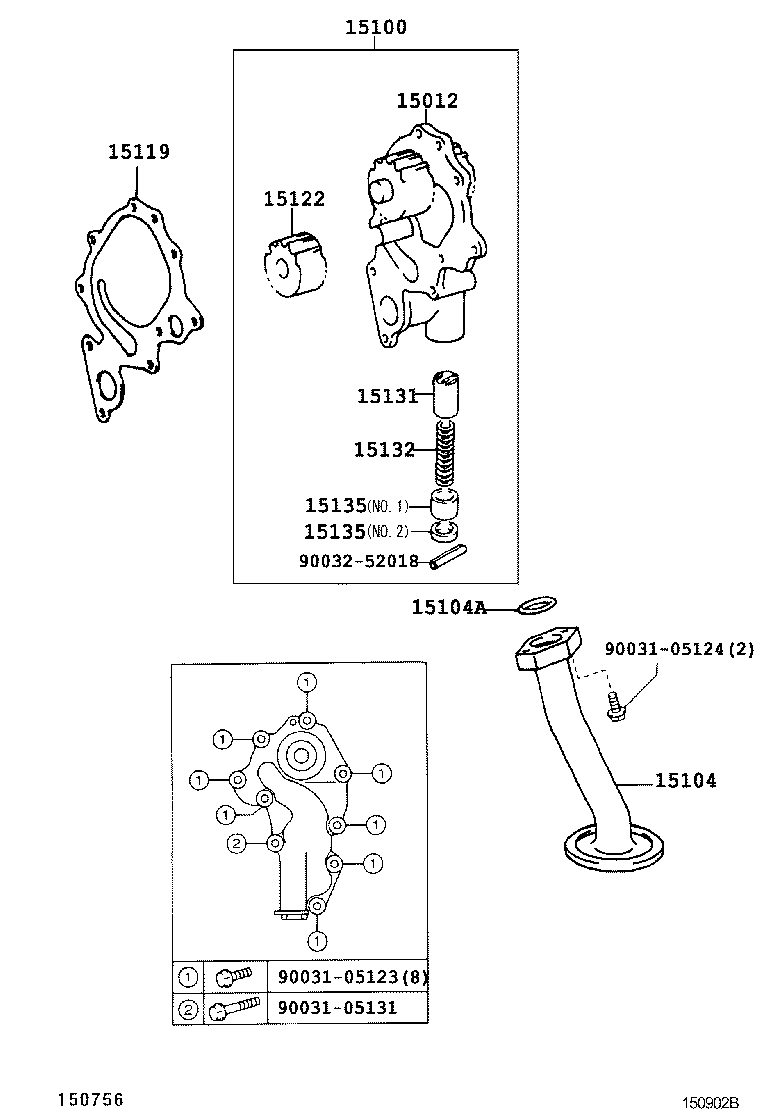

(0406- )J05D,S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05131 | ||||
| 90032-52018 | ||||
