Toyota Dyna/toyoace XZU301 MOUNTING

XZU301-TPMLS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine S05D

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

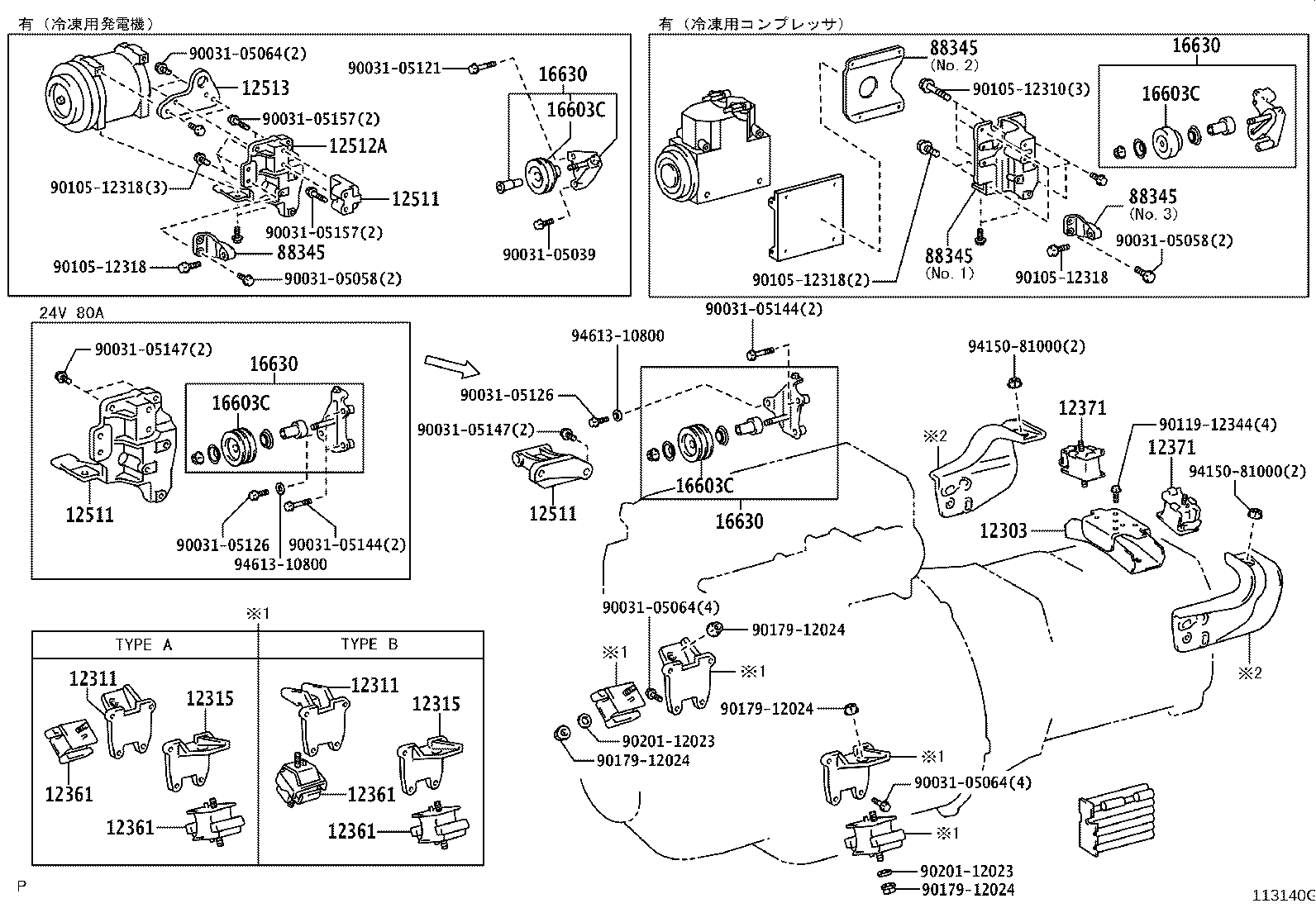

ILLUST NO. 1 OF 2(0406-0610)S05D..XZU301,306,321,331,336,341,346

Click highlighted areas on diagram

Part #	Description	Period	Qty
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78020	S05C..XZU302..DM3,DM6,T3;S05C..XZU302..(T4,T5)..(295T,30T);S05C..XZU302,307,337..(03S,T2,T4,T5)..4FC;J05C,S05#..XZU300,301,306,32#,330,331,340,341,342,346,347,350	05/1999 - 06/2004	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12311-78030	S05D..XZU301,311,321,331,341,351 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12311-78030	S05D..XZU301,311,321,331,341,351 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315-78010	S05D..XZU301,311,321,331,341,351 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78010	J05C,S05#..XZU300,301,302,31#,32#,330,331,340,341,342,35# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	1
12315-78010	S05D..XZU301,311,321,331,341,351 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78070	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	05/1999 - 06/2004	1
12361-78040	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	05/1999 - 06/2004	1
12361-78040	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2004 - 10/2006	1
12361-78070	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/2004 - 10/2006	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78070	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	05/1999 - 06/2004	1
12361-78040	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	05/1999 - 06/2004	1
12361-78040	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2004 - 10/2006	1
12361-78070	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/2004 - 10/2006	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78070	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	05/1999 - 06/2004	1
12361-78040	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	05/1999 - 06/2004	1
12361-78040	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2004 - 10/2006	1
12361-78070	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/2004 - 10/2006	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-78070	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	05/1999 - 06/2004	1
12361-78040	S05#..XZU301,302,31#,321,322,331,341,342,351,352 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	05/1999 - 06/2004	1
12361-78040	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,右側	06/2004 - 10/2006	1
12361-78070	S05D..XZU301,311,321,331,341,351 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,左側	06/2004 - 10/2006	1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010	J05C,S05#,15B#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12501-78020	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
12501-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12501-78020	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
12501-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
12511 - BRACKET, ALTERNATOR, NO.1
12501-78020	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
12501-78020	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
12501-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16603C - PULLEY SUB-ASSY, IDLER
16603-78050	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16603-78030	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16603-78040	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16603C - PULLEY SUB-ASSY, IDLER
16603-78050	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16603-78030	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16603-78040	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16603C - PULLEY SUB-ASSY, IDLER
16603-78050	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16603-78030	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16603-78040	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16603C - PULLEY SUB-ASSY, IDLER
16603-78050	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16603-78030	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16603-78040	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16630-78110	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16630-78090	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16630-78110	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16630-78090	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16630-78110	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16630-78090	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
16630 - PULLEY ASSY, IDLER
16630-78010	J05C,S05#..XZU30#,31#,32#,33#,34#,35#	05/1999 - 03/2001	1
16630-78100	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ)	06/2004 - 10/2006	1
16630-78110	S05D..XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ)	06/2004 - 10/2006	1
16630-78090	S05D..XZU301,306,311,321,331,336,341,346,351	06/2004 - 10/2006	1
88345 - BRACKET, COMPRESSOR MOUNTING
88345-37120	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2	06/2004 - 10/2006	1
88345-37020	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1	06/2004 - 10/2006	1
88345-37230	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3	06/2004 - 10/2006	1
88345 - BRACKET, COMPRESSOR MOUNTING
88345-37120	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2	06/2004 - 10/2006	1
88345-37020	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1	06/2004 - 10/2006	1
88345-37230	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3	06/2004 - 10/2006	1
88345 - BRACKET, COMPRESSOR MOUNTING
88345-37120	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2	06/2004 - 10/2006	1
88345-37020	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1	06/2004 - 10/2006	1
88345-37230	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3	06/2004 - 10/2006	1
88345 - BRACKET, COMPRESSOR MOUNTING
88345-37120	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2	06/2004 - 10/2006	1
88345-37020	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1	06/2004 - 10/2006	1
88345-37230	XZU301,306,331,336,341,346..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3	06/2004 - 10/2006	1
Common parts
90031-05039
90031-05058
90031-05064
90031-05121
90031-05126
90031-05144
90031-05147
90031-05157
90105-12310
90105-12318
90119-12344
90179-12024
90201-12023
94150-81000
94613-10800

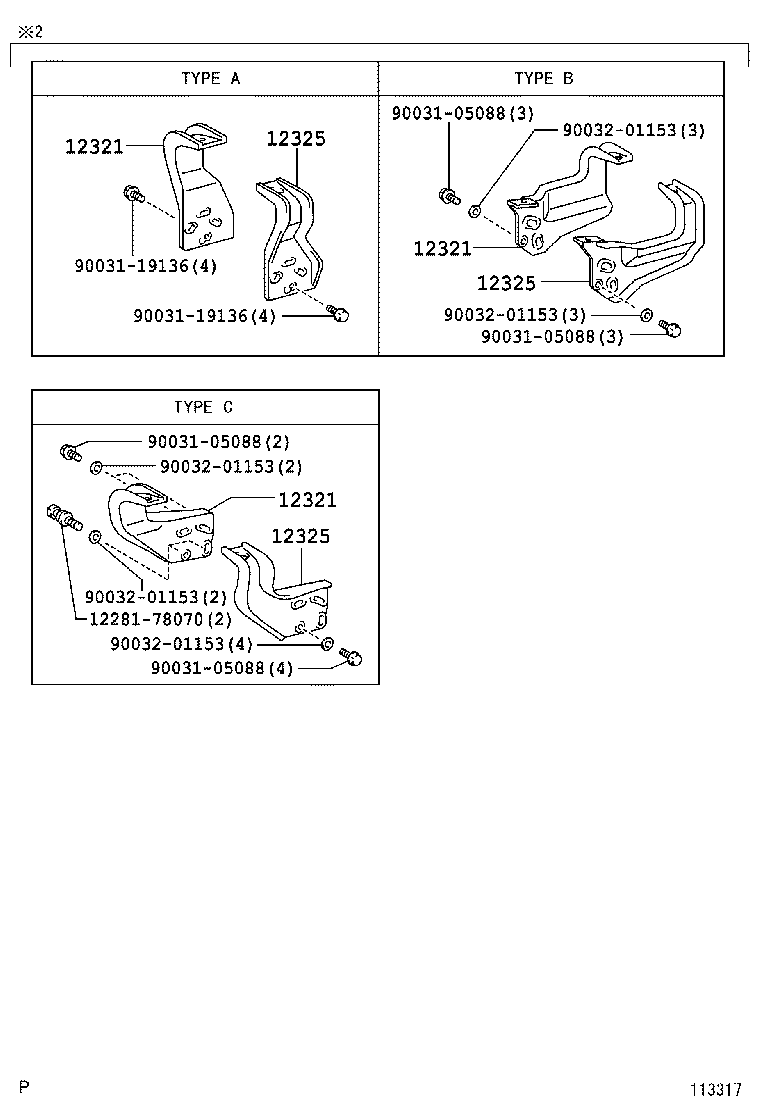

ILLUST NO. 2 OF 2(0406-0610)S05D..XZU301,306,321,331,336,341,346

Click highlighted areas on diagram

Part #	Description	Period	Qty
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78290	S05D..XZU301,306,331,336,341,346..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78290	S05D..XZU301,306,331,336,341,346..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78090	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12321-78290	S05D..XZU301,306,331,336,341,346..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78270	S05D..XZU301,306,331,336,341,346..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78270	S05D..XZU301,306,331,336,341,346..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78070	S05C..XZU302..(DM3,DM6,T3)..5F;S05C..XZU302..(T4,T5)..(295T,30T);J05C,S05#..XZU300,301,306,32#,330,331,34#,350..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2002	1
12325-78270	S05D..XZU301,306,331,336,341,346..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 10/2006	1
Common parts
12281-78070
90031-05088
90031-19136
90032-01153

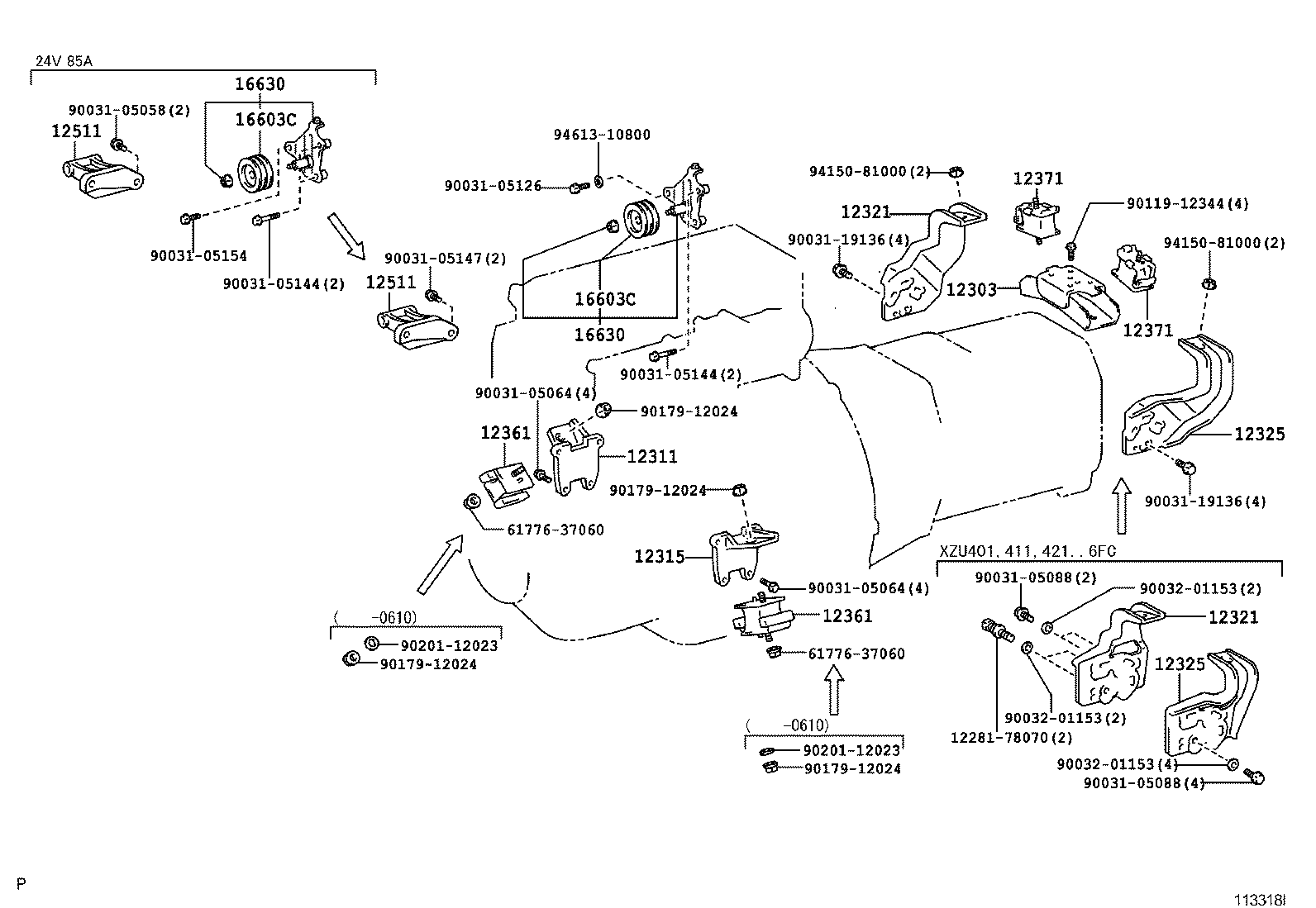

(0406-0610)S05D

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
12281-78070
61776-37060
90031-05058
90031-05064
90031-05088
90031-05126
90031-05144
90031-05147
90031-05154
90031-19136
90032-01153
90119-12344
90179-12024
90201-12023
94150-81000
94613-10800

XZU301-TPMLS3 (2004)

ILLUST NO. 1 OF 2(0406-0610)S05D..XZU301,306,321,331,336,341,346

ILLUST NO. 2 OF 2(0406-0610)S05D..XZU301,306,321,331,336,341,346

(0406-0610)S05D
