XZU301-TPMLS3 (2004)
Toyota Dyna/Toyoace
(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

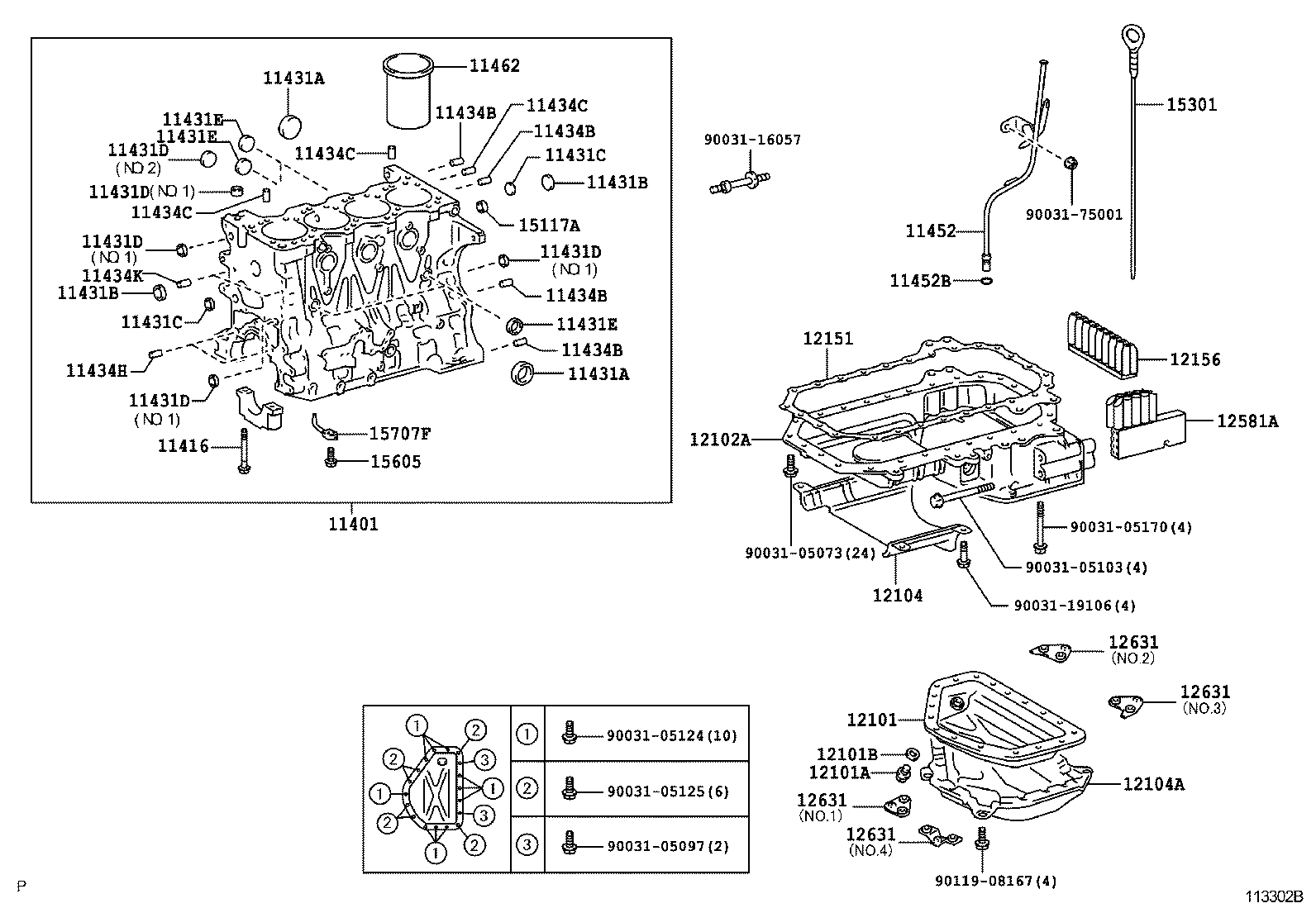

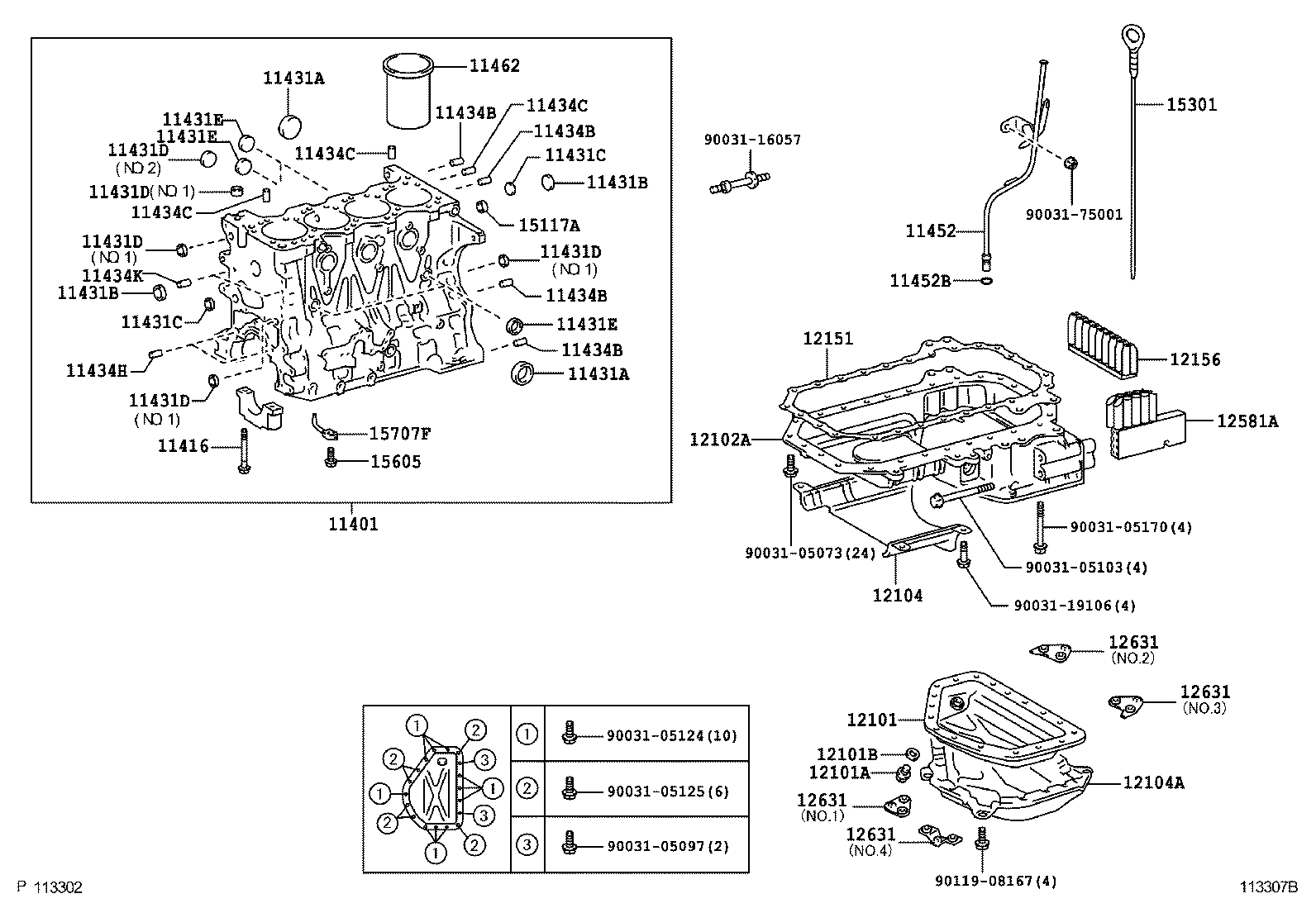

| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78040 |
S05D..XZU301,306,311,321,331,341,346,351,371 |
1 | ||
| 11410-78260 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 11401-78200 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 11401-78201 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90031-09052 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 |
10 | ||
| 90031-09052 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=50 |
4 | ||
| 90033-31026 |
S05C..XZU322..DM7,DM8;S05D..XZU341..6F..295T;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..4NO;S05D..XZU301,331..4FC..DSLL;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU306..T4..5F..DSLL..IV3;S05D..XZU301..5F..DSLL..IV3..1NO;S05C..XZU302,347,352,362..SCB..20T;S05D..XZU306,321..(DM7,T4)..DSL..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05D..XZU301..(DM3,T4)..5F..DSL..(CBU,IV3)..4NO;S05#..XZU302,311..(DM5,T4)..(295T,30T)..DSL..4NO;S05#..XZU307,331,337,341,342,346,351,37#,382..(03S,DM2,T2,T3,T4,T5)..(20T,30T)..DSL 外径=50 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=50 |
4 | ||
| 90033-31026 |
S05C..XZU322..DM7,DM8;S05D..XZU341..6F..295T;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..4FC..20T..4NO;S05D..XZU301,331..4FC..DSLL;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU306..T4..5F..DSLL..IV3;S05D..XZU301..5F..DSLL..IV3..1NO;S05C..XZU302,347,352,362..SCB..20T;S05D..XZU306,321..(DM7,T4)..DSL..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05D..XZU301..(DM3,T4)..5F..DSL..(CBU,IV3)..4NO;S05#..XZU302,311..(DM5,T4)..(295T,30T)..DSL..4NO;S05#..XZU307,331,337,341,342,346,351,37#,382..(03S,DM2,T2,T3,T4,T5)..(20T,30T)..DSL 外径=50 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31027 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=42 |
3 | ||
| 90033-31027 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31027 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=42 |
3 | ||
| 90033-31027 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=42 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31021 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=22 |
2 | ||
| 90033-31021 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=22 |
2 | ||
| 90033-31022 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=22 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31021 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=22 |
2 | ||
| 90033-31021 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=22 |
2 | ||
| 90033-31022 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=22 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=17 |
5 | ||
| 90033-31020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1,外径=17 |
5 | ||
| 90033-31023 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2,外径=30 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=17 |
5 | ||
| 90033-31020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1,外径=17 |
5 | ||
| 90033-31023 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2,外径=30 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=17 |
5 | ||
| 90033-31020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1,外径=17 |
5 | ||
| 90033-31023 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2,外径=30 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=17 |
5 | ||
| 90033-31020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1,外径=17 |
5 | ||
| 90033-31023 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2,外径=30 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=17 |
5 | ||
| 90033-31020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1,外径=17 |
5 | ||
| 90033-31023 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2,外径=30 |
1 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31025 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=26 |
3 | ||
| 90033-31025 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=26 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31025 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=26 |
3 | ||
| 90033-31025 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=26 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31025 |
S05C..XZU322..DM7,DM8;S05C..XZU312,347..DCB..5F;S05D..XZU301..T4..4FC..4NO;S05C..XZU302,347..SCB..20T;S05C..XZU347..DCB..T4..4FC;S05D..XZU301..5F..DSLL..IV3;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..4FC..20T..4NO;S05#..XZU306,322..T5..5F..DSL;S05D..XZU301..(DM6,T3,T5)..DSL;S05D..XZU301..(DM3,T4)..5F..4NO;S05D..XZU306,321..(DM7,T4)..4NO;S05C..XZU302,312..(DM3,DM5,T3,T5)..30T;S05#..XZU302,311..(DM5,T4)..(295T,30T)..4NO;S05#..XZU307,331,337,341,342,346,351,352,362,37#,382..DSL 外径=26 |
3 | ||
| 90033-31025 |
S05D..XZU301,306,311,321,331,336,341,346,351 外径=26 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50050 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=24,外径=8 |
4 | ||
| 90250-08015 |
S05C..XZU302..ST;S05C..XZU312,322..20T;S05C..XZU302..(DM3,DM6)..20T;S05C..XZU302..(295T,30T)..1NO;S05#..XZU301,306,307,311,321,331,337,341,346,347,351,352,362,37#,382 長さ=24,外径=8,NO.1 |
2 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8,NO.2 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50050 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=24,外径=8 |
4 | ||
| 90250-08015 |
S05C..XZU302..ST;S05C..XZU312,322..20T;S05C..XZU302..(DM3,DM6)..20T;S05C..XZU302..(295T,30T)..1NO;S05#..XZU301,306,307,311,321,331,337,341,346,347,351,352,362,37#,382 長さ=24,外径=8,NO.1 |
2 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8,NO.2 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50050 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=24,外径=8 |
4 | ||
| 90250-08015 |
S05C..XZU302..ST;S05C..XZU312,322..20T;S05C..XZU302..(DM3,DM6)..20T;S05C..XZU302..(295T,30T)..1NO;S05#..XZU301,306,307,311,321,331,337,341,346,347,351,352,362,37#,382 長さ=24,外径=8,NO.1 |
2 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8,NO.2 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50050 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=24,外径=8 |
4 | ||
| 90250-08015 |
S05C..XZU302..ST;S05C..XZU312,322..20T;S05C..XZU302..(DM3,DM6)..20T;S05C..XZU302..(295T,30T)..1NO;S05#..XZU301,306,307,311,321,331,337,341,346,347,351,352,362,37#,382 長さ=24,外径=8,NO.1 |
2 | ||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8,NO.2 |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8 |
2 | ||
| 90032-50049 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=16,外径=8 |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8 |
2 | ||
| 90032-50049 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=16,外径=8 |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 長さ=16,外径=8 |
2 | ||
| 90032-50049 |
S05D..XZU301,306,311,321,331,336,341,346,351 長さ=16,外径=8 |
3 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90032-50049 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
2 | ||
| 11434K - PIN, STRAIGHT(FOR WATER PUMP) | ||||
| 90250-08016 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 |
2 | ||
| 90032-50049 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-78021 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 11452-78050 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11409-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78090 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 ﾏｰｸ A |
4 | ||
| 11461-78110 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 ﾏｰｸ C |
4 | ||
| 11461-78100 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 ﾏｰｸ B |
4 | ||
| 11461-78090 |
S05D..XZU301,306,311,321,331,336,341,346,351 ﾏｰｸ A |
4 | ||
| 11461-78110 |
S05D..XZU301,306,311,321,331,336,341,346,351 ﾏｰｸ C |
4 | ||
| 11461-78100 |
S05D..XZU301,306,311,321,331,336,341,346,351 ﾏｰｸ B |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 12101-78020 |
S05D..XZU306..T5..DSLL;S05D..XZU306..DSLL..CBU;S05D..XZU301..DSLL..4NO;S05D..XZU301,306..SCB..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#..XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352..CBU,IV3 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90202-18002 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 90202-18002 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12111-78030 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 |
1 | ||
| 12101-78060 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 12104 - COVER SUB-ASSY, OIL PAN, NO.1 | ||||
| 12104-78040 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 12104-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 |
1 | ||
| 12104A - COVER SUB-ASSY, OIL PAN, NO.2 | ||||
| 12104-78031 |
S05D..XZU301,311,321,331,341,351 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
J05C,S05#..XZU30#,31#,32#,33#,34#,351,352,362,37#,382 NO.1 |
1 | ||
| 12151-78020 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#..XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 NO.2 |
1 | ||
| 12151-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-78010 |
J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 12156-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 12581A - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-78050 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1 |
1 | ||
| 12631-78050 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.4 |
1 | ||
| 12631-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.3 |
1 | ||
| 12631-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1 |
1 | ||
| 12631-78050 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.4 |
1 | ||
| 12631-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.3 |
1 | ||
| 12631-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1 |
1 | ||
| 12631-78050 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.4 |
1 | ||
| 12631-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.3 |
1 | ||
| 12631-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.1 |
1 | ||
| 12631-78050 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.4 |
1 | ||
| 12631-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.3 |
1 | ||
| 12631-78020 |
S05D..XZU301,306,311,321,331,336,341,346,351 NO.2 |
1 | ||
| 15117A - BUSHING, OIL PUMP COVER | ||||
| 15117-89101 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78040 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 |
1 | ||
| 15301-78070 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15301-78071 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-78010 |
J05C,S05#..XZU30#,31#,32#,33#,341,342,346,347,35#,362,37#,382 |
4 | ||
| 15703-78010 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
4 | ||
| 15707F - PIPE SUB-ASSY, OIL | ||||
| 11418-78030 |
S05D..XZU301,306,311,321,331,336,341,346,351 |
4 | ||
| 15707-78010 |
S05#..XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382 |
4 | ||
| Common parts | ||||
| 90031-05073 | ||||
| 90031-05097 | ||||
| 90031-05103 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05170 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90119-08167 | ||||
(0406-0610)S05D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05073 | ||||
| 90031-05097 | ||||
| 90031-05103 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05170 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90119-08167 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
