XZC675-TQMMB3 (2011)
Toyota Dyna/Toyoace

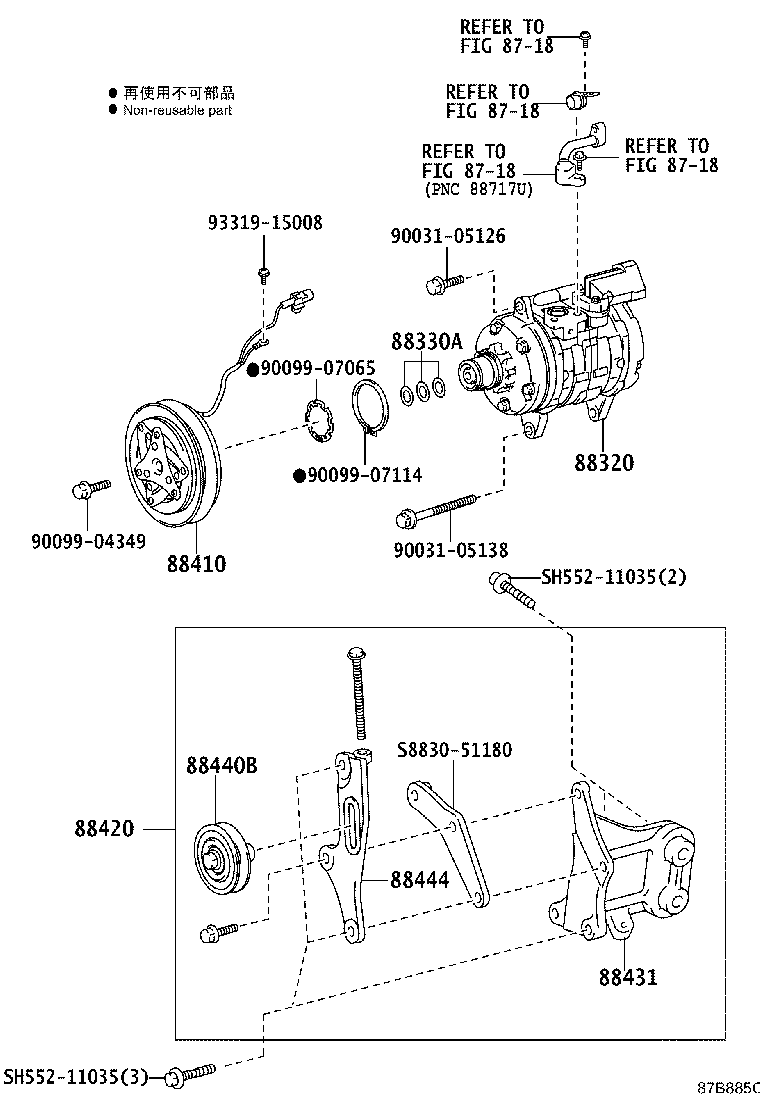

ILLUST NO. 1 OF 2(1107- )XZC675,XZU675,685,695..DCRTJ,DCRTK
ｺﾝﾌﾟﾚｯｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37120 |
XZC675,XZU675,685,695 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37141 |
XZC675,XZU675,685,695 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| S8830-51170 |
XZC675,XZU675,685,695 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| S8834-51630 |
XZC675,XZU675,685,695 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| S8836-01380 |
XZC675,XZU675,685,695 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| S1638-21670 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90031-05126 | ||||
| 90031-05138 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
| S8830-51180 | ||||
| SH552-11035 | ||||
| Linked diagrams | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(1107- )DCRTH,DCRTJ,DCRTK,DCRVT
ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾚｲﾄｳｺﾝﾌﾟﾚｯｻ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13471H - PULLEY, CRANKSHAFT | ||||
| 13471-78040 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471-78060 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-78021 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78110 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603-E0010 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-78021 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78110 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603-E0010 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78201 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-E0050 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,65#..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78201 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78201 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-E0050 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,65#..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78201 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37210 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37183 |
XZC655..T3..6FC..IV3;XZU650..5F..20T..IV3;XZC605..(T2,T5)..5F..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37210 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37183 |
XZC655..T3..6FC..IV3;XZU650..5F..20T..IV3;XZC605..(T2,T5)..5F..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37210 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37183 |
XZC655..T3..6FC..IV3;XZU650..5F..20T..IV3;XZC605..(T2,T5)..5F..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90301-83001 | ||||
| SH552-10816 | ||||
| SH552-11045 | ||||
| SH552-11050 | ||||
| SH552-11060 | ||||
ILLUST NO. 2 OF 2(1107- )DCRTH,DCRTJ,DCRTK,DCRVT
ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾊﾂﾃﾞﾝﾖｳﾚｲﾄｳｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13471H - PULLEY, CRANKSHAFT | ||||
| 13471-78040 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 13471-78060 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603F - PULLEY SUB-ASSY, IDLER | ||||
| 16603-78021 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78021 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16603-78110 |
N04C..XZU640..DCRTK..IV3;N04C..XZU640..T4..5F..IV3;N04C..XZC600..5F..ST..IV3;N04C..XZU640..T3..6FC..IV3;N04C..XZU650..(20T,35T)..IV3;N04C..XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16603-E0010 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78201 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-E0050 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,65#..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78201 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 16630-78260 |
N04C..XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(T2,T3,T4,T5)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 16636E - SHAFT, IDLER PULLEY | ||||
| 16636-E0110 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 19121B - COVER, DUST PROOF | ||||
| 19121-E0070 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 19121-E0060 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 19121B - COVER, DUST PROOF | ||||
| 19121-E0070 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 19121-E0060 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 21557B - SPACER, NO.1 | ||||
| 21557-E0A40 |
N04C..XZC655..T3..6FC..IV3;N04C..XZU650..5F..20T..IV3;N04C..XZC605..(T2,T5)..5F..IV3;N04C..XZU605..T5..5F..20T..DCRTJ..IV3;N04C..XZU605,655..(T4,T5)..30T..DCRTK..IV3;N04C..XZU600,655..SCB..(T3,T4,T5)..20T..IV3;N04C..XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 46473A - BRACKET, PULLEY | ||||
| 46473-E0010 |
XZC655..T3..6FC..IV3;XZU650..5F..20T..IV3;XZC605..(T2,T5)..5F..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036 - COMPRESSOR MOUNTING SET | ||||
| 88036-37172 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37210 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 88036-37194 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 ***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 88036-37183 |
XZC655..T3..6FC..IV3;XZU650..5F..20T..IV3;XZC605..(T2,T5)..5F..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 ***,冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ) |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37262 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZC655..T3..6FC..IV3;XZU605..T5..5F..20T..DCRTJ..IV3;XZU605,655..(T4,T5)..30T..DCRTK..IV3;XZU600,655..SCB..(T3,T4,T5)..20T..IV3;XZC605,XZU650..(T2,T3,T5)..5F..20T..IV3;XZC60#,645,655,675,XZU605,645,675,695..SCB..T4..20T..IV3 冷凍車仕様,有り(ｵﾙﾀﾈｰﾀﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2 |
1 | ||
| 88345-37262 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1 |
1 | ||
| 88345-37271 |
XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZC600..5F..ST..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC60#,645,655,675,XZU60#,645,655,675,685,695..SCB..(T2,T3,T4,T5)..WT..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2 |
1 | ||
| Common parts | ||||
| 21857-E0030 | ||||
| 90031-05124 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| SH122-01065 | ||||
| SH552-10816 | ||||
| SH552-11045 | ||||
| SH552-11050 | ||||
| SH552-11060 | ||||
| SL611-01022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
