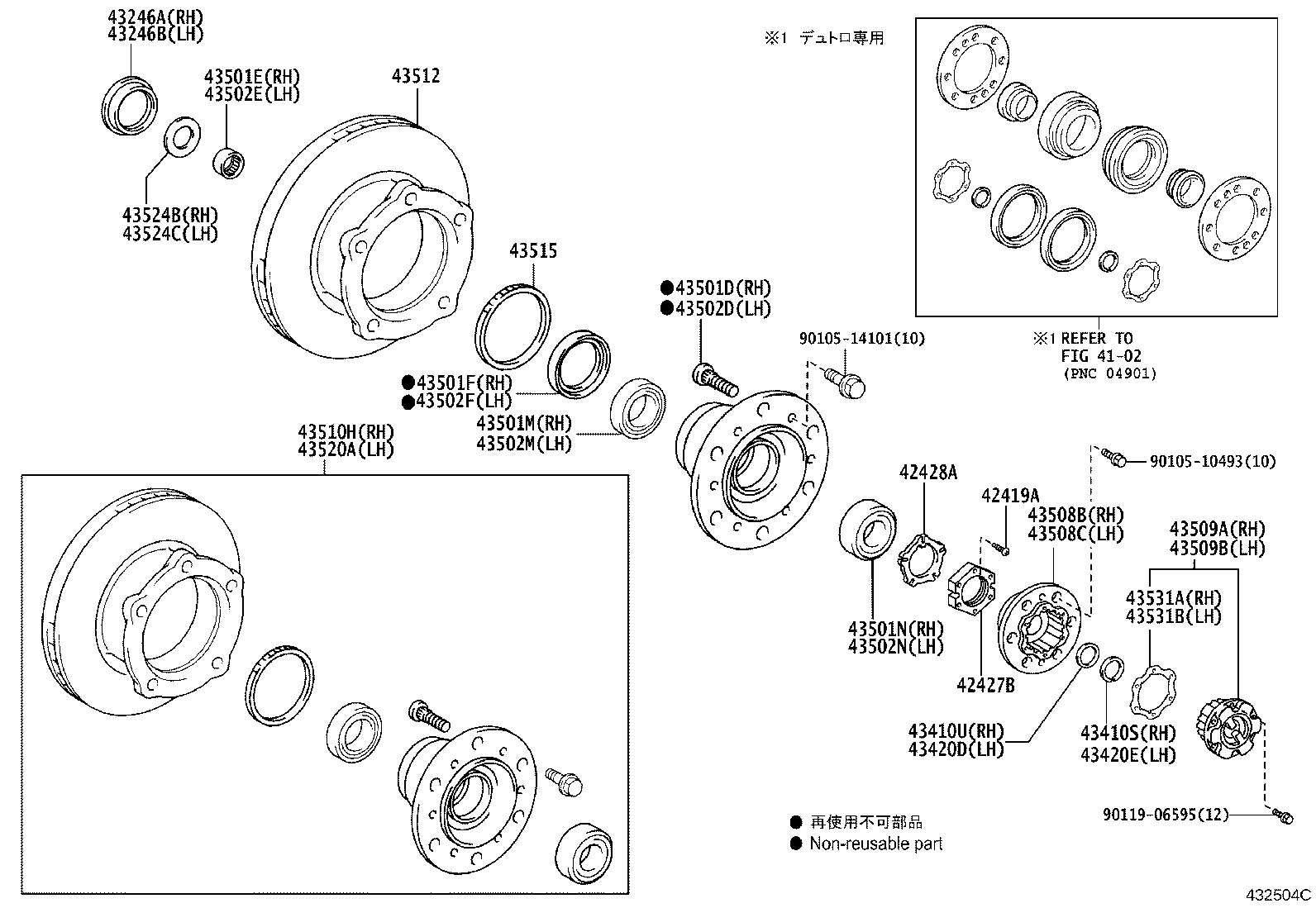

XZC675-TQMMB3 (2011)
Toyota Dyna/Toyoace
(1107- )XZC675,XZU675,685,695
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42419A - SCREW, FRONT AXLE BEARING LOCK NUT | ||||
| 42419-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 42427B - NUT, FRONT AXLE BEARING LOCK | ||||
| 42427-36040 |
XZC675,XZU675,685,695 |
2 | ||
| 42428A - PLATE, FRONT AXLE LOCK NUT | ||||
| 42428-36031 |
XZC675,XZU675,685,695 |
2 | ||
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43247-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 43410S - RING, SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90035-20025 |
XZC675,XZU675,685,695 厚さ=1.50 |
1 | ||
| 43410U - SHIM (FOR FRONT DRIVE SHAFT SNAP RING RH) | ||||
| 90035-64036 |
XZC675,XZU675,685,695 厚さ=1.0 |
1 | ||
| 90035-64038 |
XZC675,XZU675,685,695 厚さ=0.3 |
1 | ||
| 90035-64035 |
XZC675,XZU675,685,695 厚さ=0.8 |
1 | ||
| 90035-64037 |
XZC675,XZU675,685,695 厚さ=0.5 |
1 | ||
| 43420D - SHIM (FOR FRONT DRIVE SHAFT SNAP RING LH) | ||||
| 90035-64035 |
XZC675,XZU675,685,695 厚さ=0.8 |
1 | ||
| 90035-64038 |
XZC675,XZU675,685,695 厚さ=0.3 |
1 | ||
| 90035-64036 |
XZC675,XZU675,685,695 厚さ=1.0 |
1 | ||
| 90035-64037 |
XZC675,XZU675,685,695 厚さ=0.5 |
1 | ||
| 43420E - RING, SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90035-20025 |
XZC675,XZU675,685,695 厚さ=1.50 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02085 |
XZU645..20T..IV3;XZU655..T4..5F..IV3;XZU605..T4..30T..IV3;XZU655..T3..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC675,XZU620,630,650,675,685,695..(20T,30T)..(IV3,IV4,IV6);BZU600,XZU60#,64#..(DM3,DM6,T3,T5)..(20T,30T)..(IV3,IV4,IV5,IV6,IV7) ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90033-64017 |
XZC675,XZU675,685,695 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-77001 |
XZC675,XZU675,685,695 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-60015 |
XZC675,XZU675,685,695 |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-55042 |
XZC675,XZU675,685,695 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90942-02086 |
XZU645..20T..IV3;XZU655..T4..5F..IV3;XZU605..T4..30T..IV3;XZU655..T3..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC675,XZU620,630,650,675,685,695..(20T,30T)..(IV3,IV4,IV6);BZU600,XZU60#,64#..(DM3,DM6,T3,T5)..(20T,30T)..(IV3,IV4,IV5,IV6,IV7) ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90033-64017 |
XZC675,XZU675,685,695 |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-77001 |
XZC675,XZU675,685,695 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-60015 |
XZC675,XZU675,685,695 |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-55042 |
XZC675,XZU675,685,695 |
1 | ||
| 43508B - BODY SUB-ASSY, FREE WHEEL HUB, RH | ||||
| 43508-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 43508C - BODY SUB-ASSY, FREE WHEEL HUB, LH | ||||
| 43508-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 43509A - COVER SUB-ASSY, FREE WHEEL HUB, RH | ||||
| 43509-39015 |
XZC675,XZU675,685,695 |
1 | ||
| 43509B - COVER SUB-ASSY, FREE WHEEL HUB, LH | ||||
| 43509-39015 |
XZC675,XZU675,685,695 |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39245 |
XZC675,XZU675,685,695 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37091 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..20T..IV3;XZU655..(T2,T3)..20T;XZU650..T3..DCRTJ..CBU;XZU640..T3..6FC..(IV3,IV4);XZU605,645,655..(T3,T4)..30T;XZC675,XZU620,630,675,685,695;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T) |
2 | ||
| 43512-37090 |
BZU600,XZU605,650..(T3,T4)..30T;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T);BZU600,XZC600,XZU65#..(DM6,T2,T3,T5)..20T;TRU600,XZC675,XZU620,630,640,675,685,695..20T,30T |
2 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37040 |
XZC675,XZU675,685,695 |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39225 |
XZC675,XZU675,685,695 |
1 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 43531A - GASKET, FREE WHEEL HUB, RH | ||||
| 43531-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 43531B - GASKET, FREE WHEEL HUB, LH | ||||
| 43531-37010 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90105-10493 | ||||
| 90105-14101 | ||||
| 90119-06595 | ||||
| Linked diagrams | ||||
| 4102 | ||||
(1107- )BZU600,TRC600,TRU600,XZC60#,610,630,645,655,XZU600,605,610,620,630,640,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02085 |
XZU645..20T..IV3;XZU655..T4..5F..IV3;XZU605..T4..30T..IV3;XZU655..T3..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC675,XZU620,630,650,675,685,695..(20T,30T)..(IV3,IV4,IV6);BZU600,XZU60#,64#..(DM3,DM6,T3,T5)..(20T,30T)..(IV3,IV4,IV5,IV6,IV7) ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-77001 |
XZC675,XZU675,685,695 |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-60015 |
XZC675,XZU675,685,695 |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-55042 |
XZC675,XZU675,685,695 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90942-02086 |
XZU645..20T..IV3;XZU655..T4..5F..IV3;XZU605..T4..30T..IV3;XZU655..T3..20T..IV3;XZU655..T4..6FC..20T..IV3;XZC675,XZU620,630,650,675,685,695..(20T,30T)..(IV3,IV4,IV6);BZU600,XZU60#,64#..(DM3,DM6,T3,T5)..(20T,30T)..(IV3,IV4,IV5,IV6,IV7) ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-77001 |
XZC675,XZU675,685,695 |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-60015 |
XZC675,XZU675,685,695 |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-55042 |
XZC675,XZU675,685,695 |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39245 |
XZC675,XZU675,685,695 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37091 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..20T..IV3;XZU655..(T2,T3)..20T;XZU650..T3..DCRTJ..CBU;XZU640..T3..6FC..(IV3,IV4);XZU605,645,655..(T3,T4)..30T;XZC675,XZU620,630,675,685,695;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T) |
2 | ||
| 43512-37090 |
BZU600,XZU605,650..(T3,T4)..30T;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T);BZU600,XZC600,XZU65#..(DM6,T2,T3,T5)..20T;TRU600,XZC675,XZU620,630,640,675,685,695..20T,30T |
2 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37040 |
XZC675,XZU675,685,695 |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39225 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4102 | ||||
