XZC675-TQMMB3 (2011)
Toyota Dyna/Toyoace

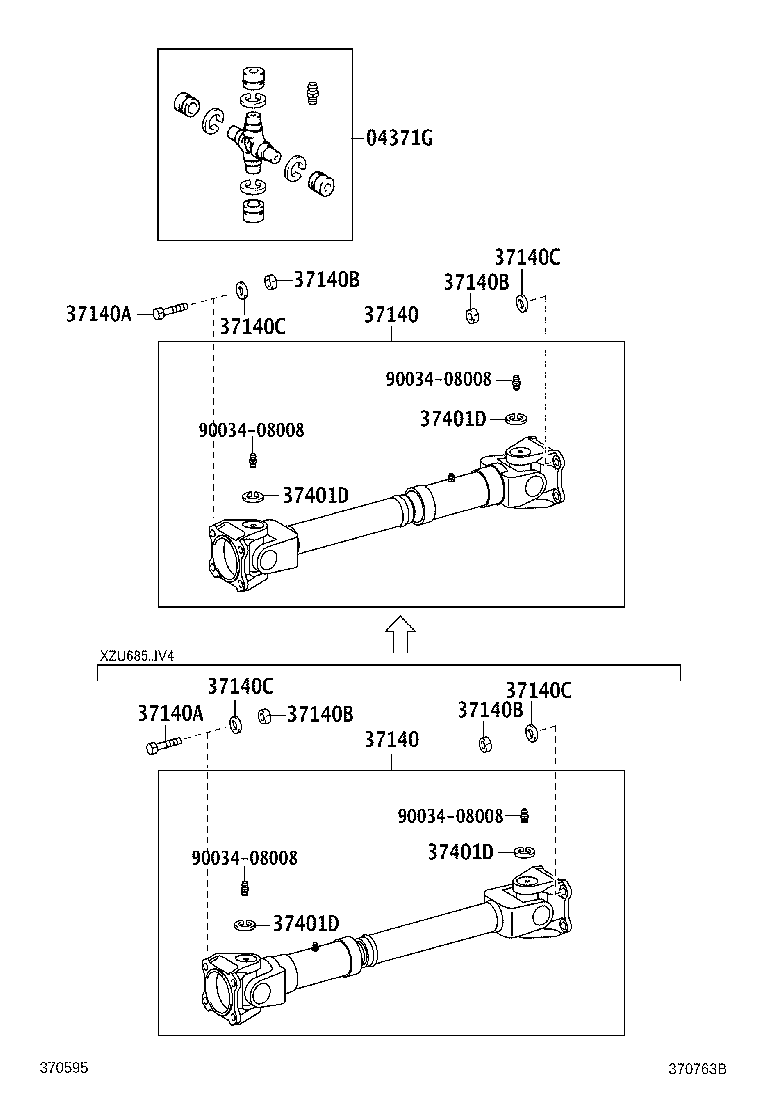

ILLUST NO. 1 OF 2(1107- )XZC675,XZU675,685,695
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04375-37010 |
XZC675,XZU675,685,695 |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37110-37D10 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37110-37D10 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-01196 |
XZC675,XZU675,685,695 |
4 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-01196 |
XZC675,XZU675,685,695 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZC675,XZU675,685,695 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21033 |
XZC675,XZU675,685,695 厚さ=1.50 |
8 | ||
| 90035-21035 |
XZC675,XZU675,685,695 厚さ=1.59 |
8 | ||
| 90035-21037 |
XZC675,XZU675,685,695 厚さ=1.68 |
8 | ||
| 90035-21036 |
XZC675,XZU675,685,695 厚さ=1.62 |
8 | ||
| 90035-21034 |
XZC675,XZU675,685,695 厚さ=1.53 |
8 | ||
| Common parts | ||||
| 90034-08008 | ||||

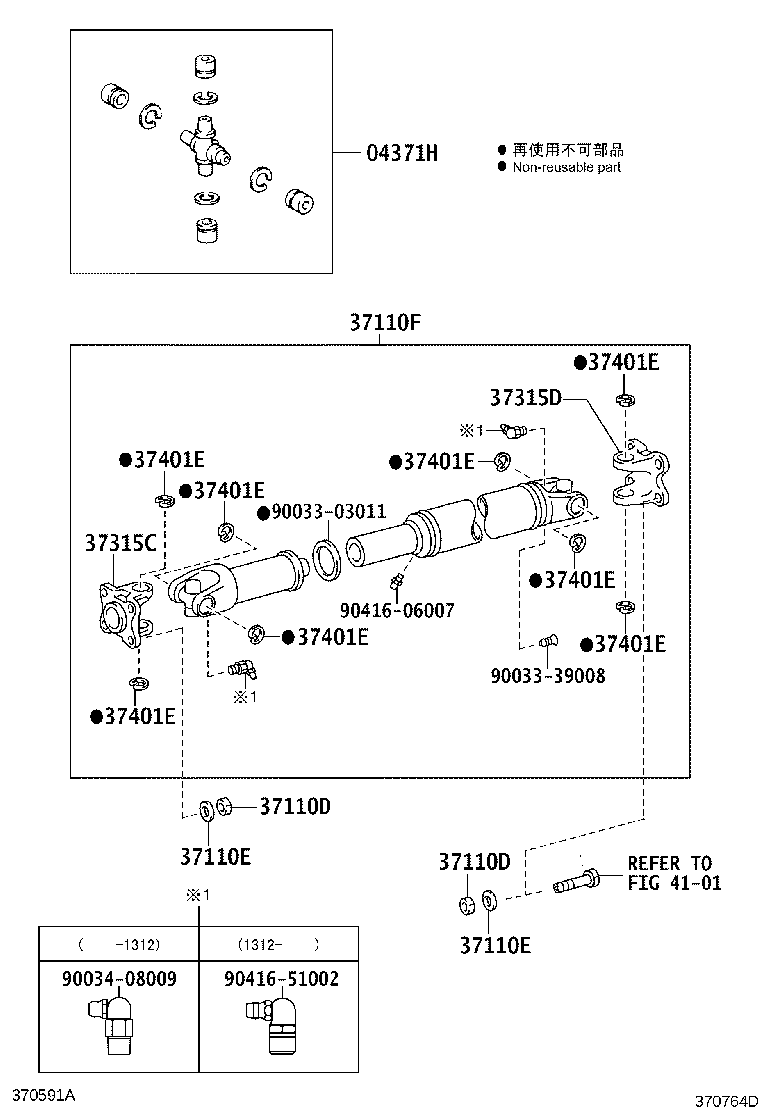

ILLUST NO. 2 OF 2(1107- )XZC675,XZU675,685
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 04371-37081 |
XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,XZC60#,610,630,645,675,XZU60#,610,620,630,645,675,685..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 04371-37110 |
XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37D91 |
XZC675,XZU675 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37050 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08009 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| Linked diagrams | ||||
| 4101 | ||||
(1107- )XZU605..T2..DCRWD ; (1107- )XZU600,605..T2,T4..20T..DCRTH,DCRTJ ; (11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 04371-37081 |
XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,XZC60#,610,630,645,675,XZU60#,610,620,630,645,675,685..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 04371-37110 |
XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37D91 |
XZC675,XZU675 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37050 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08009 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
(1107- )XZU600..DM3,DM5,DM6,T3,T5 ; (1107-)TRU600,XZU602,610,620,630,64# ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 04371-37080 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 04371-37081 |
XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,XZC60#,610,630,645,675,XZU60#,610,620,630,645,675,685..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 04371-37081 |
XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,XZC60#,610,630,645,675,XZU60#,610,620,630,645,675,685..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 04371-37110 |
XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 04371-37110 |
XZC60#,610,630,645,675,XZU60#,610,620,630,64#,675,685 |
2 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 90170-12005 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 94512-01200 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37D91 |
XZC675,XZU675 |
1 | ||
| 37110-37D91 |
XZC675,XZU675 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37050 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F |
1 | ||
| 37315-37050 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 37315-37070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21038 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.68 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21040 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.62 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21039 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.65 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21041 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.59 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21042 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.56 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21043 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.53 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| 90035-21044 |
XZU600,640..6F;XZC610,630,675,XZU610,620,630,675,685..5F 厚さ=1.50 |
4 | ||
| Common parts | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08009 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| Linked diagrams | ||||
| 4101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
