XZC675-TQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XZC675,XZU675,685,695..DCRTJ,DCRTK

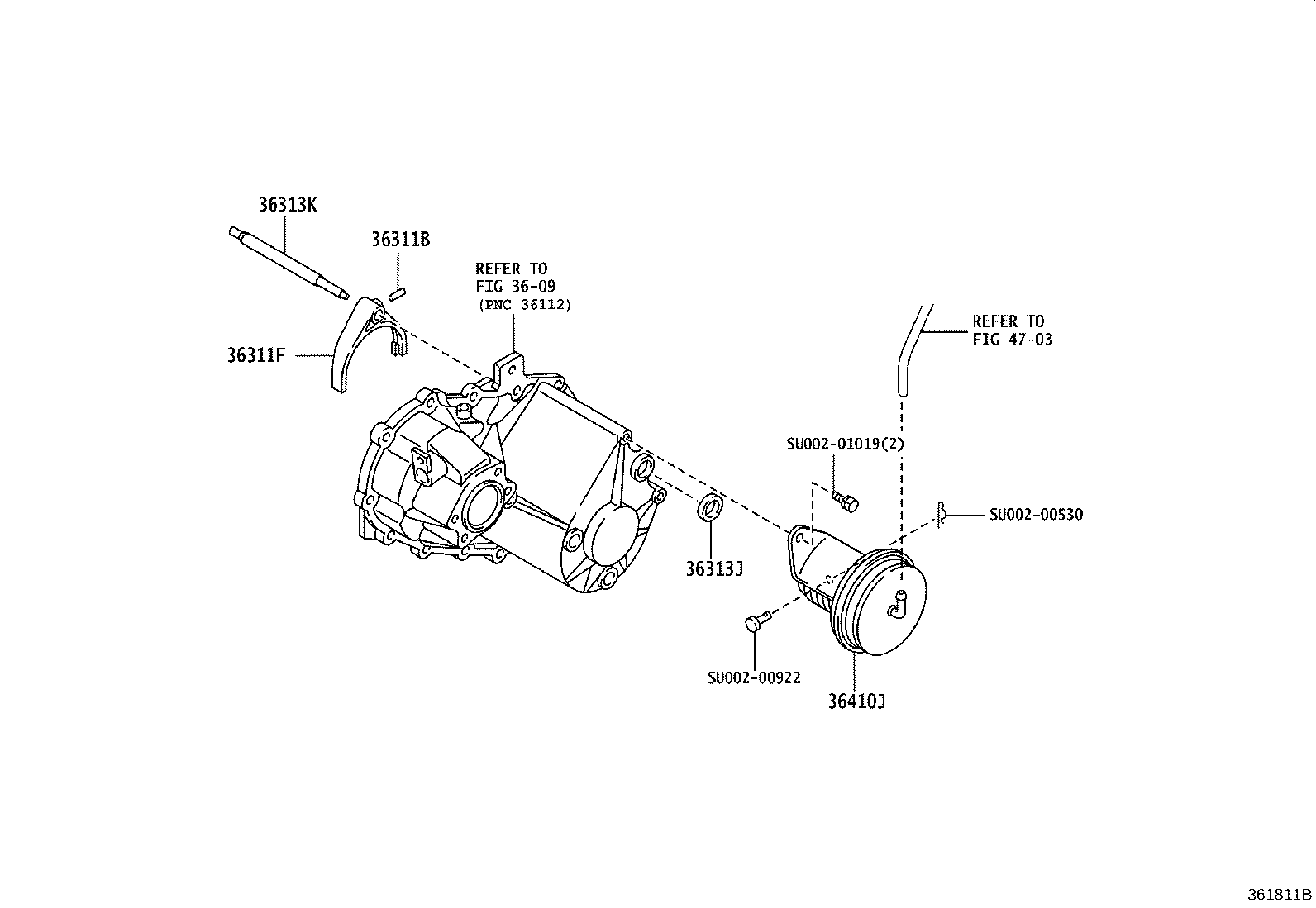

Click highlighted areas on diagram

diagram 3609 36311B 36311F 36313J 36313K 36410J 4703 SU00200530 SU00200922 SU00201019
Part # Description Qty Price
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
SU002-00127

XZC675,XZU675,685,695

長さ=32.0

 1
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
SU002-00331

XZC675,XZU675,685,695

 1
36313J - SEAL, OIL (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
SU002-00475

XZC675,XZU675,685,695

 1
36313K - SHAFT, TRANSFER GEAR SHIFT FORK
SU002-00467

XZC675,XZU675,685,695

 1
36410J - ACTUATOR ASSY, TRANSFER SHIFT
SU002-00971

XZC675,XZU675,685,695

 1
Common parts
SU002-00530
SU002-00922
SU002-01019
Linked diagrams
3609
4703
