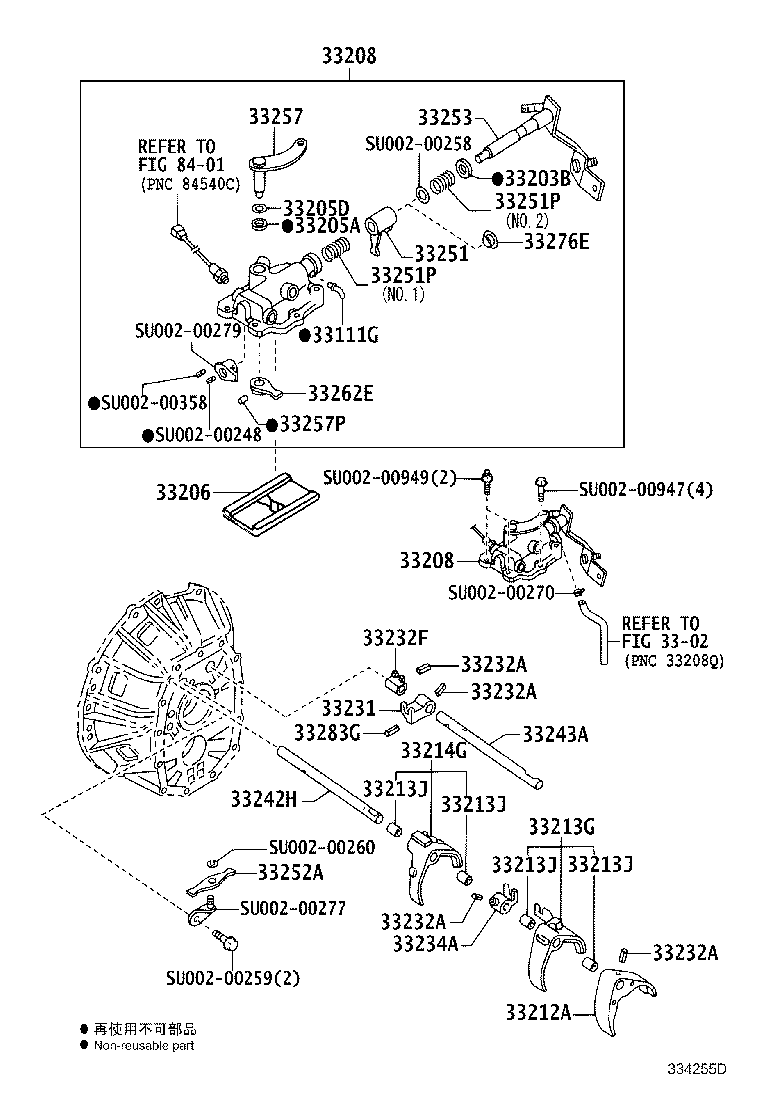

Toyota Dyna/toyoace XZC675 GEAR SHIFT FORK & LEVER SHAFT (MTM)

Part #	Description	Period	Qty
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
SU002-00274	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
SU002-00355	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
SU002-00264	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
SU002-00357	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33206 - PLATE SUB-ASSY, SHIFT INTER LOCK
SU002-00275	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
SU002-00516	XZC675,XZU675,685,695	07/2011 - 05/2017	1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
SU002-00516	XZC675,XZU675,685,695	07/2011 - 05/2017	1
33212A - FORK, GEAR SHIFT, NO.1
SU002-00240	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33213G - FORK, GEAR SHIFT, NO.2
SU002-01056	XZC675,XZU675,685,695	12/2011 - 05/2017	1
SU002-00517	XZC675,XZU675,685,695	07/2011 - 12/2011	1
33213J - BUSHING, SHIFT ARM
SU002-00161	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33213J - BUSHING, SHIFT ARM
SU002-00161	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33213J - BUSHING, SHIFT ARM
SU002-00161	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33213J - BUSHING, SHIFT ARM
SU002-00161	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33214G - FORK, GEAR SHIFT, NO.3
SU002-00245	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33231 - HEAD, REVERSE SHIFT
SU002-00243	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	4
33232F - HEAD, GEAR SHIFT, NO.1
SU002-00244	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33242H - SHAFT, GEAR SHIFT FORK, NO.1
SU002-00518	XZU600,650..6F;XZU675,685,695;XZC675,XZU640..20T,40T	07/2011 - 05/2017	1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
SU002-00519	XZC675,XZU675,685,695	07/2011 - 05/2017	1
33251 - LEVER, SHIFT & SELECT
SU002-00249	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00269	XZC610,630,675,XZU610,620,630,675,685,695..5F NO.2	07/2011 - 05/2017	1
SU002-00268	XZC610,630,675,XZU610,620,630,675,685,695..5F NO.1	07/2011 - 05/2017	1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00269	XZC610,630,675,XZU610,620,630,675,685,695..5F NO.2	07/2011 - 05/2017	1
SU002-00268	XZC610,630,675,XZU610,620,630,675,685,695..5F NO.1	07/2011 - 05/2017	1
33252A - LEVER, SHIFT, INNER NO.2
SU002-00241	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33253 - LEVER, SHIFT OUTER, NO.1
SU002-00528	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33257 - LEVER, SELECT OUTER
SU002-00673	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 01/2012	1
SU002-00984	XZC610,630,675,XZU610,620,630,675,685,695..5F	01/2012 - 05/2017	1
33257P - PIN, SELECT OUTER LEVER LOCK
SU002-00271	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33262E - SHAFT, SELECT LEVER
SU002-00252	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33276E - SEAT, SELECT SPRING, NO.1
SU002-00250	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
SU002-00272	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
Common parts
SU002-00248
SU002-00258
SU002-00259
SU002-00260
SU002-00270
SU002-00277
SU002-00279
SU002-00358
SU002-00947
SU002-00949
Linked diagrams
3302
8401

XZC675-TQMMB3 (2011)

(1107- )XZC675,XZU675,685,695..DCRTJ,DCRTK
