XZC675-TQMMB (2011)
Toyota Dyna/Toyoace

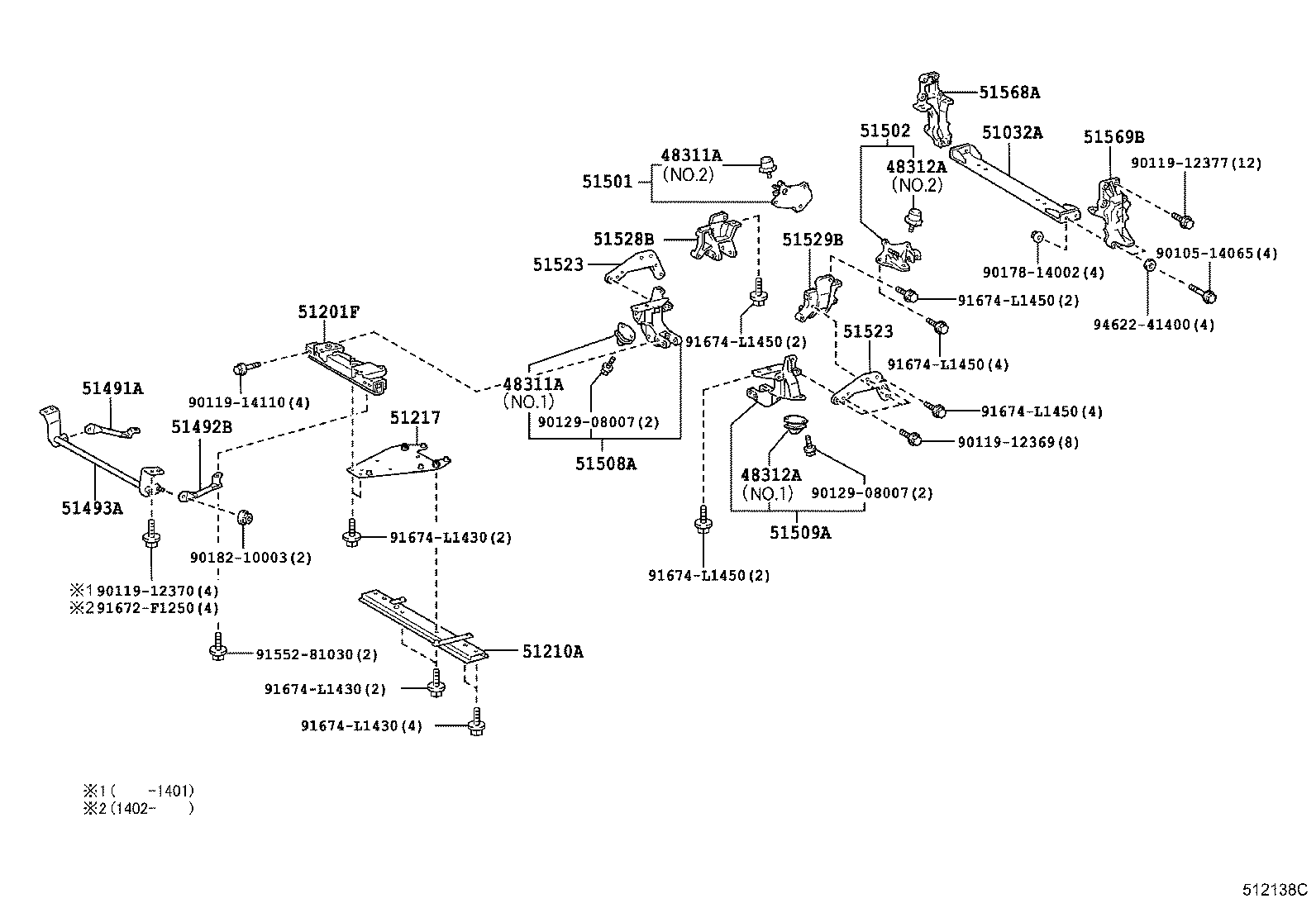

ILLUST NO. 3 OF 5(1107- )XZC675,XZU675,685,695..DCRTJ,DCRTK ;(1905- )XZC675,XZU675,685,695..D
ｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48311A - BRACKET, HOLLOW SPRING, RH | ||||
| 48332-37010 |
XZC675,XZU675,685,695 NO.2 |
1 | ||
| 48331-37020 |
XZC675,XZU675,685,695 NO.1 |
1 | ||
| 48311A - BRACKET, HOLLOW SPRING, RH | ||||
| 48332-37010 |
XZC675,XZU675,685,695 NO.2 |
1 | ||
| 48331-37020 |
XZC675,XZU675,685,695 NO.1 |
1 | ||
| 48312A - BRACKET, HOLLOW SPRING, LH | ||||
| 48332-37010 |
XZC675,XZU675,685,695 NO.2 |
1 | ||
| 48331-37020 |
XZC675,XZU675,685,695 NO.1 |
1 | ||
| 48312A - BRACKET, HOLLOW SPRING, LH | ||||
| 48332-37010 |
XZC675,XZU675,685,695 NO.2 |
1 | ||
| 48331-37020 |
XZC675,XZU675,685,695 NO.1 |
1 | ||
| 51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT | ||||
| 51032-37041 |
XZC675,XZU675,685,695 |
1 | ||
| 51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-37121 |
XZC675,XZU675,685,695 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37041 |
XZC675,XZU675,685,695 |
1 | ||
| 51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 51217-37021 |
XZC675,XZU675,685,695 |
1 | ||
| 51491A - BAR, UNDER GUARD, FRONT NO.1 | ||||
| 51491-37030 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 51492B - BAR, UNDER GUARD, FRONT NO.2 | ||||
| 51492-37020 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 51493A - BRACKET, UNDER GUARD, FRONT NO.1 | ||||
| 51493-37080 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37030 |
XZC675,XZU675,685,695 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37060 |
XZC675,XZU675,685,695 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51523-37010 |
XZC675,XZU675,685,695 |
2 | ||
| 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51523-37010 |
XZC675,XZU675,685,695 |
2 | ||
| 51528B - BRACKET, LOWER ARM SUPPORT, REAR RH | ||||
| 51528-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 51529B - BRACKET, LOWER ARM SUPPORT, REAR LH | ||||
| 51529-37010 |
XZC675,XZU675,685,695 |
1 | ||
| 51568A - SUPPORT, ANCHOR ARM, LOWER RH | ||||
| 51568-37580 |
XZC675,XZU675,685,695 |
1 | ||
| 51569B - SUPPORT, ANCHOR ARM, LOWER LH | ||||
| 51569-37340 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90105-14065 | ||||
| 90119-12369 | ||||
| 90119-12370 | ||||
| 90119-12377 | ||||
| 90119-14110 | ||||
| 90129-08007 | ||||
| 90178-14002 | ||||
| 90182-10003 | ||||
| 91552-81030 | ||||
| 91672-F1250 | ||||
| 91674-L1430 | ||||
| 91674-L1450 | ||||
| 94622-41400 | ||||
ILLUST NO. 1 OF 5(1107- )DCB,SCB..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VP40 |
XZC675,XZU675..T4 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37191 |
XZC675,XZU675,685,695 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37191 |
XZC675,XZU675,685,695 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37850 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 82715K - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VN20 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| Common parts | ||||
| 90467-09101 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 94151-21201 | ||||
| 94151-81200 | ||||
ILLUST NO. 4 OF 5(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZC600..5F..ST;XZU650..20T,35T;XZU600,640,685..IV4,IV5;XZC655,675,XZU655,675,695;XZU650..T3..30T..DCRTJ..CBU;XZC605,XZU60#..(03S,DM3,DM6,T5)..(CBU,IV3,IV6) |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZC600..5F..ST;XZU650..20T,35T;XZU600,640,685..IV4,IV5;XZC655,675,XZU655,675,695;XZU650..T3..30T..DCRTJ..CBU;XZC605,XZU60#..(03S,DM3,DM6,T5)..(CBU,IV3,IV6) |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 5 OF 5(1107- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01040 | ||||

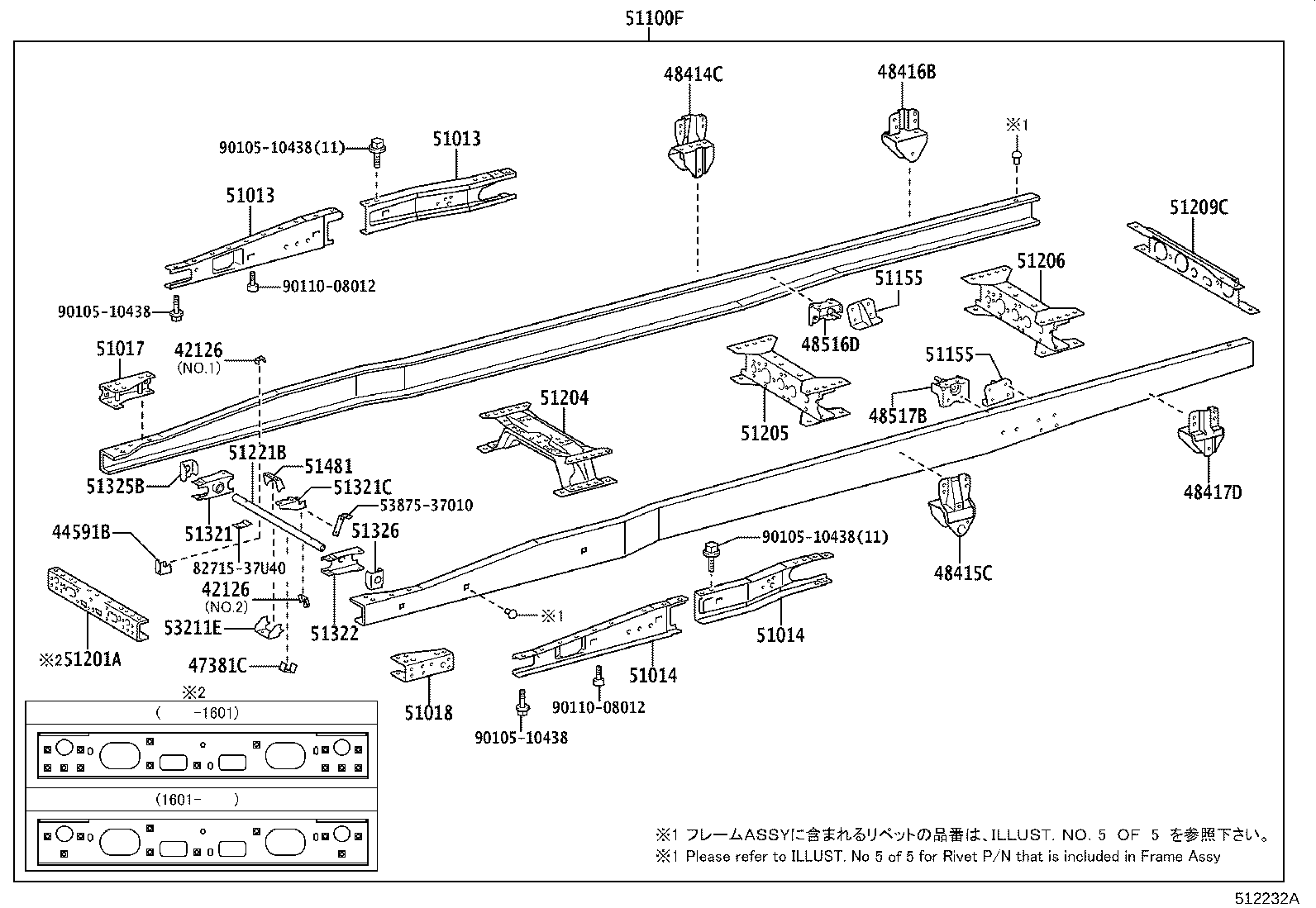

ILLUST NO. 2 OF 5(1107- )XZC675,XZU675..T4..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37160 |
XZC675,XZU675,685,695 NO.2 |
1 | ||
| 42126-37070 |
XZC675,XZU675,685,695 NO.1 |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37160 |
XZC675,XZU675,685,695 NO.2 |
1 | ||
| 42126-37070 |
XZC675,XZU675,685,695 NO.1 |
1 | ||
| 44591B - BRACKET, BRAKE ACTUATOR | ||||
| 44591-37260 |
XZC675,XZU675,685,695 |
1 | ||
| 47381C - BRACKET, TUBE CLAMP | ||||
| 47381-37310 |
XZC610,630,675,XZU610,620,630,675,685,695 |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37180 |
XZU645..20T;XZC60#,645,675,XZU60#,675..(DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37180 |
BZU600,TRC600,TRU600..DM5,DM6,T4;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6)..(DCRTJ,DCRTK) |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37150 |
XZU645..20T;XZC60#,645,675,XZU60#,675..(03S,DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37150 |
XZU645..20T;XZC60#,645,675,XZU60#,675..(03S,DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37310 |
XZC675,XZU675,685,695..CBU,IV3,IV6 ｾﾝﾀ |
1 | ||
| 51013-37301 |
XZC675,XZU675,685,695 ﾌﾛﾝﾄ |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37310 |
XZC675,XZU675,685,695..CBU,IV3,IV6 ｾﾝﾀ |
1 | ||
| 51013-37301 |
XZC675,XZU675,685,695 ﾌﾛﾝﾄ |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37200 |
XZC675,XZU675,685,695 ﾌﾛﾝﾄ |
1 | ||
| 51014-37240 |
XZC675,XZU675,685,695 ｾﾝﾀ |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37200 |
XZC675,XZU675,685,695 ﾌﾛﾝﾄ |
1 | ||
| 51014-37240 |
XZC675,XZU675,685,695 ｾﾝﾀ |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37150 |
XZC675,XZU675,685,695 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37021 |
XZU600,650..6F;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC675,XZU675,685,695;XZU600..(DM3,DM6,T3)..(20T,30T);XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VP40 |
XZC675,XZU675..T4 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU645..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZC60#,645,675,XZU60#,675,685,695..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU645..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZC60#,645,675,XZU60#,675,685,695..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-37130 |
XZC675,XZU675,685,695 |
1 | ||
| 51201-37131 |
XZC675,XZU675,685,695 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37251 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..SCB..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZU640,685..(DCRTJ,DCRTK,EFI,LPG)..(CBU,IV3,IV5,IV6) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37030 |
XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZC655,XZU640,650,655,685,695..DCRTJ,DCRTK,EFI,LPG |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37140 |
XZC600..5F..ST;XZU605..DCB..CBU;XZC675,XZU675..T4;XZU605..T4..30T..CBU;XZC605,XZU60#..(DM3,T5)..CBU;XZC60#,XZU60#..(DM3,DM6,T2,T4,T5)..WT..(IV3,IV5,IV6) |
1 | ||
| 51221B - CROSSMEMBER, FRONT SUSPENSION | ||||
| 51221-37180 |
XZC675,XZU675,685,695 |
1 | ||
| 51321 - GUSSET, CROSSMEMBER, NO.2 RH | ||||
| 51321-37110 |
XZC675,XZU675,685,695 |
1 | ||
| 51321C - BRACKET, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51321-37100 |
XZC675,XZU675,685,695 |
1 | ||
| 51322 - GUSSET, CROSSMEMBER, NO.2 LH | ||||
| 51322-37050 |
XZC675,XZU675,685,695 |
1 | ||
| 51325B - RETAINER, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51325-37080 |
XZC675,XZU675,685,695 |
1 | ||
| 51326 - RETAINER, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51326-37040 |
XZC675,XZU675,685,695 |
1 | ||
| 51481 - BRACKET, POWER STEERING TUBE CLAMP | ||||
| 51481-37120 |
XZC675,XZU675,685,695 |
1 | ||
| 53211E - SUPPORT, RADIATOR | ||||
| 53211-37080 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 53875-37010 | ||||
| 82715-37U40 | ||||
| 90105-10438 | ||||
| 90110-08012 | ||||
