XZC675-TQMMB (2011)
Toyota Dyna/Toyoace

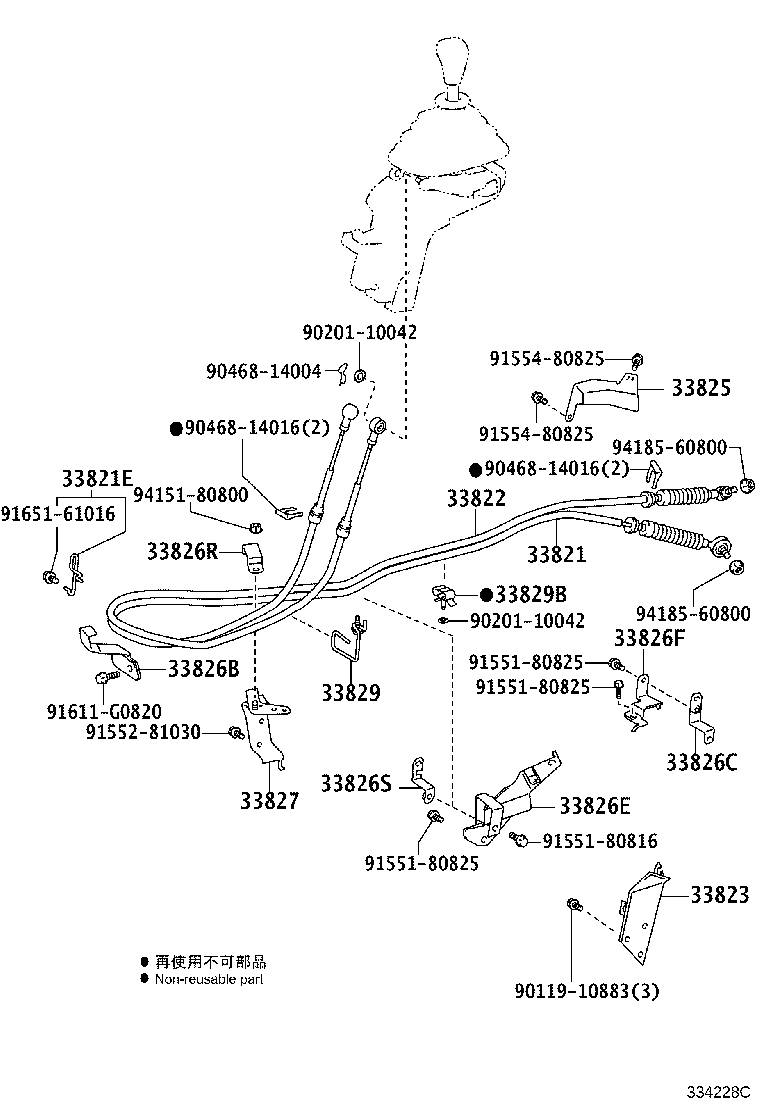

ILLUST NO. 2 OF 2(1107- )XZC675,XZU675,685,695..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37L60 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37330 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37550 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A50 |
XZC675,XZU675,685,695 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-37310 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33827-37230 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37190 |
XZU600,650..6F;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC675,XZU675,685,695;XZU600..(DM3,DM6,T3)..(20T,30T);XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9 | ||||
| 33828-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37241 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU600..5F..DCRTJ..(CBU,IV3);XZU650..T3..5F..30T..DCRTJ..CBU;XZC600,610,630,XZU610,620..(DM5,DM7,T5)..5F..(DCRTH,DCRTJ);XZC60#,645,655,675,XZU605,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 91554-80825 | ||||
| 91611-G0820 | ||||
| 91651-61016 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
ILLUST NO. 2 OF 2(1107- )XZU650..35T..DCRTK ; (1107- )XZU640..MTM..DCRTJ,DCRTK ; (1107- )XZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37L60 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37330 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37550 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A50 |
XZC675,XZU675,685,695 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A50 |
XZC675,XZU675,685,695 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-37310 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33827-37230 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37190 |
XZU600,650..6F;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC675,XZU675,685,695;XZU600..(DM3,DM6,T3)..(20T,30T);XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9 | ||||
| 33828-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37241 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU600..5F..DCRTJ..(CBU,IV3);XZU650..T3..5F..30T..DCRTJ..CBU;XZC600,610,630,XZU610,620..(DM5,DM7,T5)..5F..(DCRTH,DCRTJ);XZC60#,645,655,675,XZU605,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 91554-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
ILLUST NO. 2 OF 2(1107- )XZU600..T4..6FC ; (1107- )XZC60#,610,630,645,655,XZU605,610,620,642,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37330 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37A50 |
XZC675,XZU675,685,695 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37070 |
XZC675,XZU675,685,695 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-37310 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33827-37230 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37190 |
XZU600,650..6F;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC675,XZU675,685,695;XZU600..(DM3,DM6,T3)..(20T,30T);XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9 | ||||
| 33828-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37241 |
XZU650..5F..20T;XZU640..T4..5F..IV3;XZU600..5F..DCRTJ..(CBU,IV3);XZU650..T3..5F..30T..DCRTJ..CBU;XZC600,610,630,XZU610,620..(DM5,DM7,T5)..5F..(DCRTH,DCRTJ);XZC60#,645,655,675,XZU605,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14016 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91554-80825 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
ILLUST NO. 1 OF 2(1107- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051C0 |
XZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..5F BLACK,TRIM1# |
1 | ||
| 33520A - SHAFT ASSY, FLOOR SHIFT CONTROL | ||||
| 33520-37030 |
XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37331C0 |
XZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..5F BLACK,TRIM1# |
1 | ||
| 33550-37330C0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..5F BLACK,TRIM1# |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 58808-37030C0 |
XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM BLACK,TRIM1# |
1 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33571-37040 |
XZC675,XZU675,685,695..SCB |
1 | ||
| Common parts | ||||
| 90119-08C60 | ||||
| 90179-08249 | ||||
