XZC630D-TMFMX3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1905- )XZC60#,630,645,655,XZU600,605,630,642,645,65#..SCB..DCRWD..CBU,IV3,IV7
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ(ﾐｷﾞｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A20 |
XZC600,630..DCRWD..IV3;XZC605,645,XZU600,605,640,645..SCB..(T3,T4,T5)..DCRWD..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−70L |
1 | ||
| 77100-37A20 |
XZC600,630..DCRWD..IV3;XZC605,645,XZU600,605,640,645..SCB..(T3,T4,T5)..DCRWD..(CBU,IV3) ﾌｭｰｴﾙﾀﾝｸ−70L |
1 | ||
| 77100-37A30 |
XZC675,XZU675..T4..DCRWD;XZC60#,630,XZU600,605,630..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77100-37A30 |
XZC675,XZU675..T4..DCRWD;XZC60#,630,XZU600,605,630..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 90105-12116 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 90430-12245 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 77249-37510 |
XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37541 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501-37541 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37541 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501-37541 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501V - BRACKET SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77501-37640 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501-37640 |
XZC630,XZU630..DCRWD |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37551 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501-37551 |
XZC630,XZU630..DCRWD |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37551 |
XZC630,XZU630..DCRWD |
1 | ||
| 77501-37551 |
XZC630,XZU630..DCRWD |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

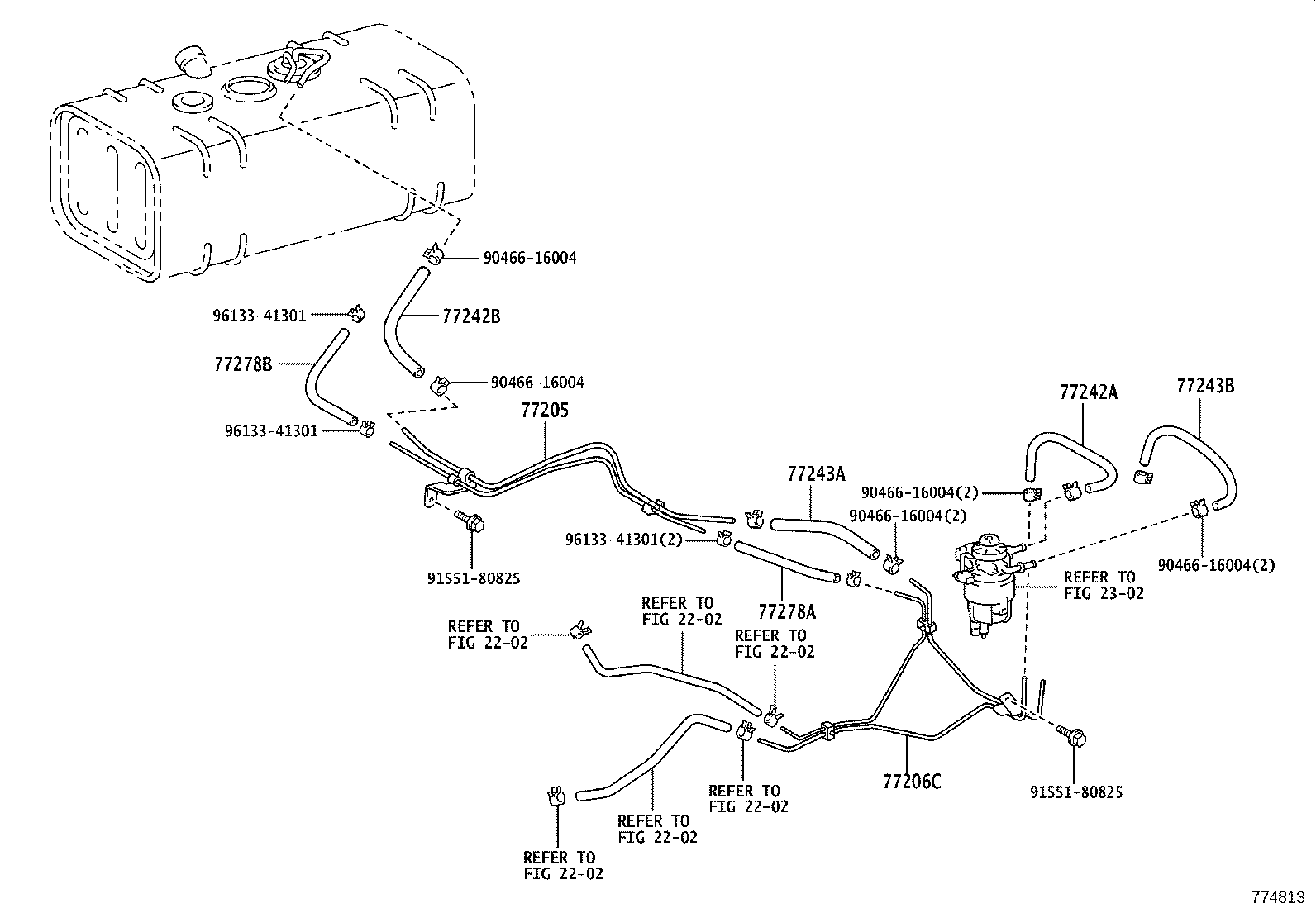

ILLUST NO. 2 OF 2(1905- )XZC630,XZU630..DCRWD
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37K40 |
XZC630,XZU630..DCRWD |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37N30 |
XZC630,XZU630..DCRWD |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZC630,XZU630..DCRWD 長さ=240 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZC630,XZU630..DCRWD 長さ=240 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZU650..DCVTO..IV3;XZC60#,630,645,655,XZU600,605,630,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) 長さ=160 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| SM331-10030 |
XZC630,XZU630..DCRWD 長さ=300 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU60#,630,645,655..SCB..(DCRWD,DCVTO) 長さ=160 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08028 |
XZU650..DCVTO..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..DCRWD..(CBU,IV3) 長さ=280 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 2 OF 2(1905- )XZU605,655..SCB..T3,T4..20T..DCRWD..CBU ; (1905- )XZC675,XZU642,652,6
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37N30 |
XZC630,XZU630..DCRWD |
1 | ||
| 77206-37N30 |
XZC630,XZU630..DCRWD |
1 | ||
| 77206-37N30 |
XZC630,XZU630..DCRWD |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZC630,XZU630..DCRWD 長さ=240 |
1 | ||
| SM331-10030 |
XZC630,XZU630..DCRWD 長さ=240 |
1 | ||
| SM331-10030 |
XZC630,XZU630..DCRWD 長さ=240 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08028 |
XZU650..DCVTO..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..DCRWD..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..DCVTO..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..DCRWD..(CBU,IV3) 長さ=280 |
1 | ||
| 95337-08028 |
XZU650..DCVTO..IV3;XZC630,645,655,XZU630,640,645,65#..SCB..DCRWD..(CBU,IV3) 長さ=280 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
