XZC630D-TMFMX3 (2019)
Toyota Dyna/Toyoace

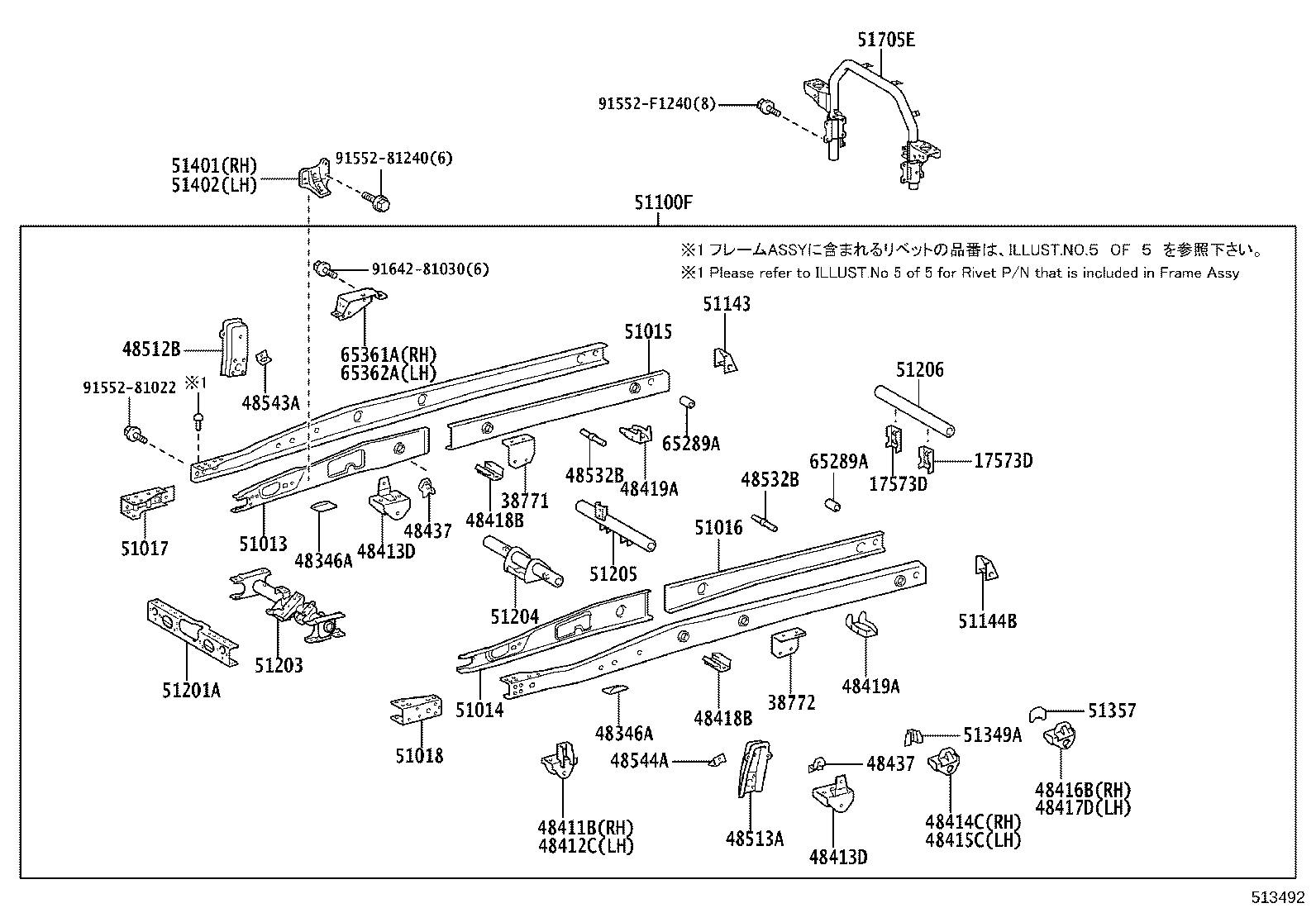

ILLUST NO. 2 OF 5(1905- )XZC630,XZU630..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78030 |
N04C..XZC630,XZU630..DCRWD |
2 | ||
| 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78030 |
N04C..XZC630,XZU630..DCRWD |
2 | ||
| 38771 - STAY, TRUNNION BRACKET, RH | ||||
| 38771-37020 |
XZC630,XZU630..DCRWD |
1 | ||
| 38772 - STAY, TRUNNION BRACKET, LH | ||||
| 38772-37020 |
XZC630,XZU630..DCRWD |
1 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZC630,XZU630..DCRWD |
2 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZC630,XZU630..DCRWD |
2 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37180 |
XZC630,XZU630..DCRWD |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37180 |
XZC630,XZU630..DCRWD |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37090 |
XZC630,XZU630..DCRWD |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37010 |
XZC630,XZU630..DCRWD |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37070 |
XZC630,XZU630..DCRWD |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37070 |
XZC630,XZU630..DCRWD |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37020 |
XZC630,XZU630..DCRWD |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37020 |
XZC630,XZU630..DCRWD |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37020 |
XZC630,XZU630..DCRWD |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37020 |
XZC630,XZU630..DCRWD |
2 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZC630,XZU630..DCRWD |
2 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZC630,XZU630..DCRWD |
2 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZC600,630,675,XZU600,630,675..(DM5,DM7)..DCRWD |
2 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZC600,630,675,XZU600,630,675..(DM5,DM7)..DCRWD |
2 | ||
| 48543A - REINFORCEMENT, FRONT ABSORBER BRACKET, RH | ||||
| 48543-37010 |
XZC630,XZU630..DCRWD |
1 | ||
| 48544A - REINFORCEMENT, FRONT ABSORBER BRACKET, LH | ||||
| 48543-37010 |
XZC630,XZU630..DCRWD |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37590 |
XZC630,XZU630..DCRWD |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37560 |
XZC630,XZU630..DCRWD |
1 | ||
| 51015 - CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR RH, NO.1 | ||||
| 51015-37110 |
XZC630,XZU630..DCRWD |
1 | ||
| 51016 - CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR LH, NO.1 | ||||
| 51016-37110 |
XZC630,XZU630..DCRWD |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37180 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37230 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-3VJ00 |
XZC630,XZU630..DCRWD |
1 | ||
| 51143 - REINFORCEMENT, SIDE RAIL, REAR RH | ||||
| 51143-37040 |
XZC630,XZU630..DCRWD |
1 | ||
| 51144B - REINFORCEMENT, SIDE RAIL, REAR LH | ||||
| 51143-37040 |
XZC630,XZU630..DCRWD |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37280 |
XZU600..DM5..IV3;XZU640..DCRWD..IV4;XZU600..(DM5,T3)..DCRWD..(CBU,IV4);XZC60#,630,645,655,675,XZU605,630,645,655,675,685,695..DCRWD |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37430 |
XZC630,XZU630..DCRWD |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-37190 |
XZC630,XZU630..DCRWD |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51241-37030 |
XZC630,XZU630..DCRWD |
1 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37012 |
XZC630,XZU630..DCRWD |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37020 |
XZC630,XZU630..DCRWD |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37081 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37141 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37B50 |
XZC630,XZU630..DCRWD |
1 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZC630,XZU630..DCRWD |
2 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZC630,XZU630..DCRWD |
2 | ||
| 65361A - STAY, VESSEL LOCK, RH | ||||
| 65361-37030 |
XZC630,XZU630..DCRWD |
1 | ||
| 65362A - STAY, VESSEL LOCK, LH | ||||
| 65362-37020 |
XZC630,XZU630..DCRWD |
1 | ||
| Common parts | ||||
| 91552-81022 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 91642-81030 | ||||
ILLUST NO. 4 OF 5(1905- )DCRWD,DCVTO
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37460 |
XZC630,XZU630..DCRWD |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
