XZC630D-TMFMX3 (2019)
Toyota Dyna/Toyoace

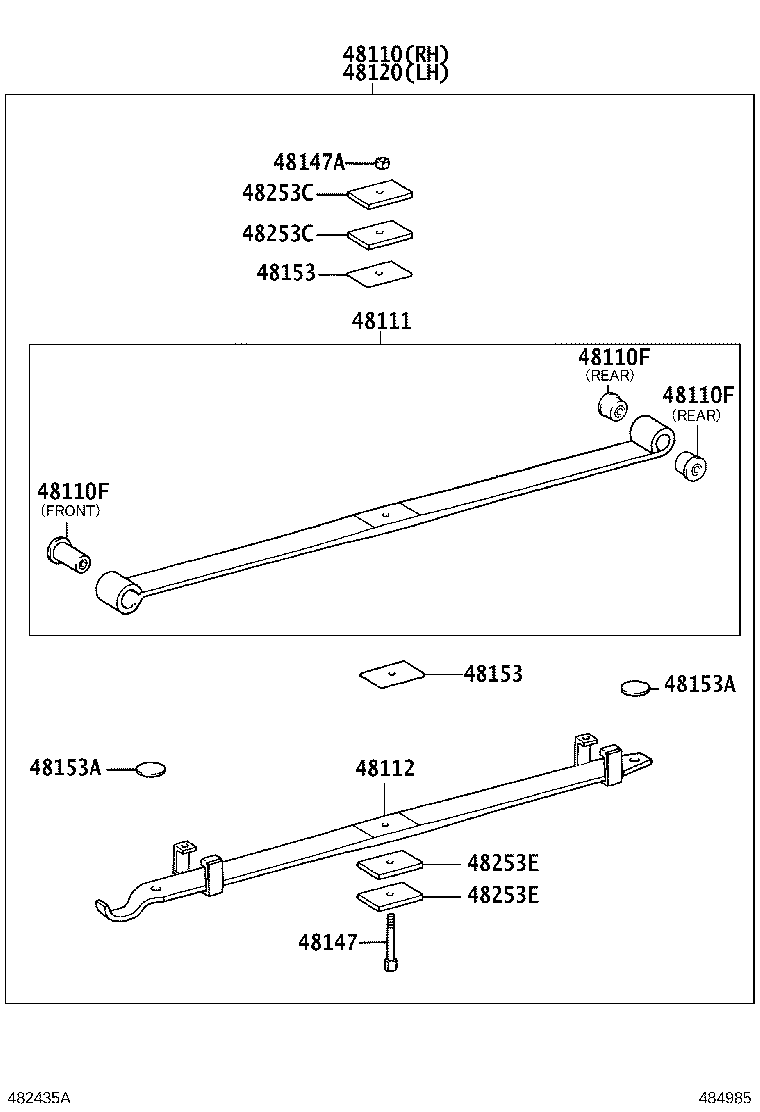

ILLUST NO. 2 OF 2(1905- )XZC600,630,XZU600,630..20T..DCRWD..CBU,IV3
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V880 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VA00 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾘﾔ |
4 | ||
| 90389-16025 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾘﾔ |
4 | ||
| 90389-16025 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾘﾔ |
4 | ||
| 90389-16025 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VA00 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-3V890 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 助手席側 |
1 | ||
| 48101-3VA10 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-3V880 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3V890 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 助手席側 |
1 | ||
| 48102-3VA10 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-3V880 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 運転席側 |
1 | ||
| 48102-3VA00 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VA10 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3V890 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37A01 |
XZU630..20T..DCRWD;XZC600,630,XZU600..(DM3,DM5,DM7)..DCRWD |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU650..30T..DCRWD;XZC600,630,XZU640..DCRWD;XZU600,630..(DM5,DM7)..20T..DCRWD;XZU600..(DM3,T3)..DCRWD..(CBU,IV3,IV4,IV6) |
4 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU650..30T..DCRWD;XZC600,630,XZU640..DCRWD;XZU600,630..(DM5,DM7)..20T..DCRWD;XZU600..(DM3,T3)..DCRWD..(CBU,IV3,IV4,IV6) |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37562 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48114-37L52 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37562 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48114-37L52 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48114-37J42 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48113-3VB20 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48114-37J42 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48113-3VB20 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||

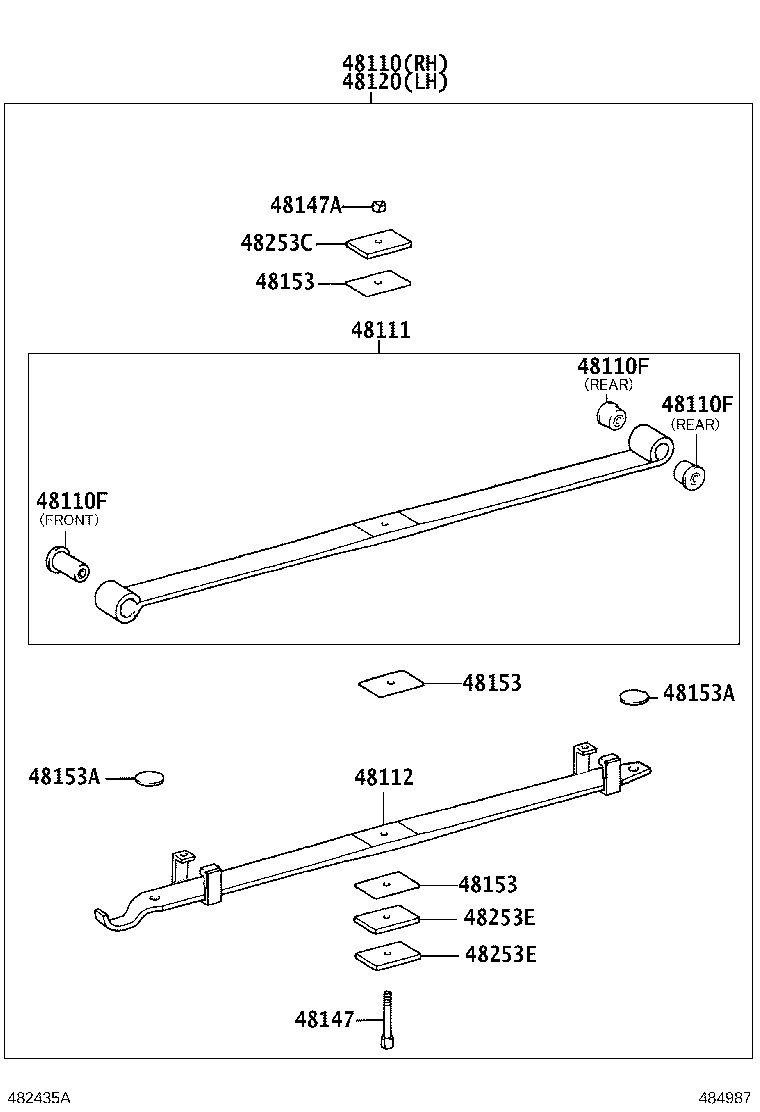

ILLUST NO. 2 OF 2(1905- )XZC600,630,XZU600,630..DM5,DM7..20T..DCRWD
2-LEAF(ｷｮｳｶﾘｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V880 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VA00 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾘﾔ |
4 | ||
| 90389-16025 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾘﾔ |
4 | ||
| 90389-16025 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾘﾔ |
4 | ||
| 90389-16025 |
XZU650..DCVTO;XZU600..DM5..30T..IV3;XZU600..DCRWD..(CBU,IV4,IV7);XZU640..(DCRWD,DCVTO)..(IV4,IV6);XZC600,630,XZU602,630,642,652..DCRWD;XZU600..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VA00 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-3V890 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 助手席側 |
1 | ||
| 48101-3VA10 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-3V880 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3V890 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 助手席側 |
1 | ||
| 48102-3VA10 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-3V880 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 運転席側 |
1 | ||
| 48102-3VA00 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VA10 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3V890 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37A01 |
XZU630..20T..DCRWD;XZC600,630,XZU600..(DM3,DM5,DM7)..DCRWD |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU650..30T..DCRWD;XZC600,630,XZU640..DCRWD;XZU600,630..(DM5,DM7)..20T..DCRWD;XZU600..(DM3,T3)..DCRWD..(CBU,IV3,IV4,IV6) |
4 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU650..30T..DCRWD;XZC600,630,XZU640..DCRWD;XZU600,630..(DM5,DM7)..20T..DCRWD;XZU600..(DM3,T3)..DCRWD..(CBU,IV3,IV4,IV6) |
4 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU650..30T..DCRWD;XZC600,630,XZU640..DCRWD;XZU600,630..(DM5,DM7)..20T..DCRWD;XZU600..(DM3,T3)..DCRWD..(CBU,IV3,IV4,IV6) |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37562 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48114-37L52 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48114-37J42 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48113-3VB20 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48114-37J42 |
XZC600,630,XZU600,630..20T..DCRWD..(CBU,IV3) |
4 | ||
| 48113-3VB20 |
XZC600,630,XZU600,630..(DM5,DM7)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
